Description

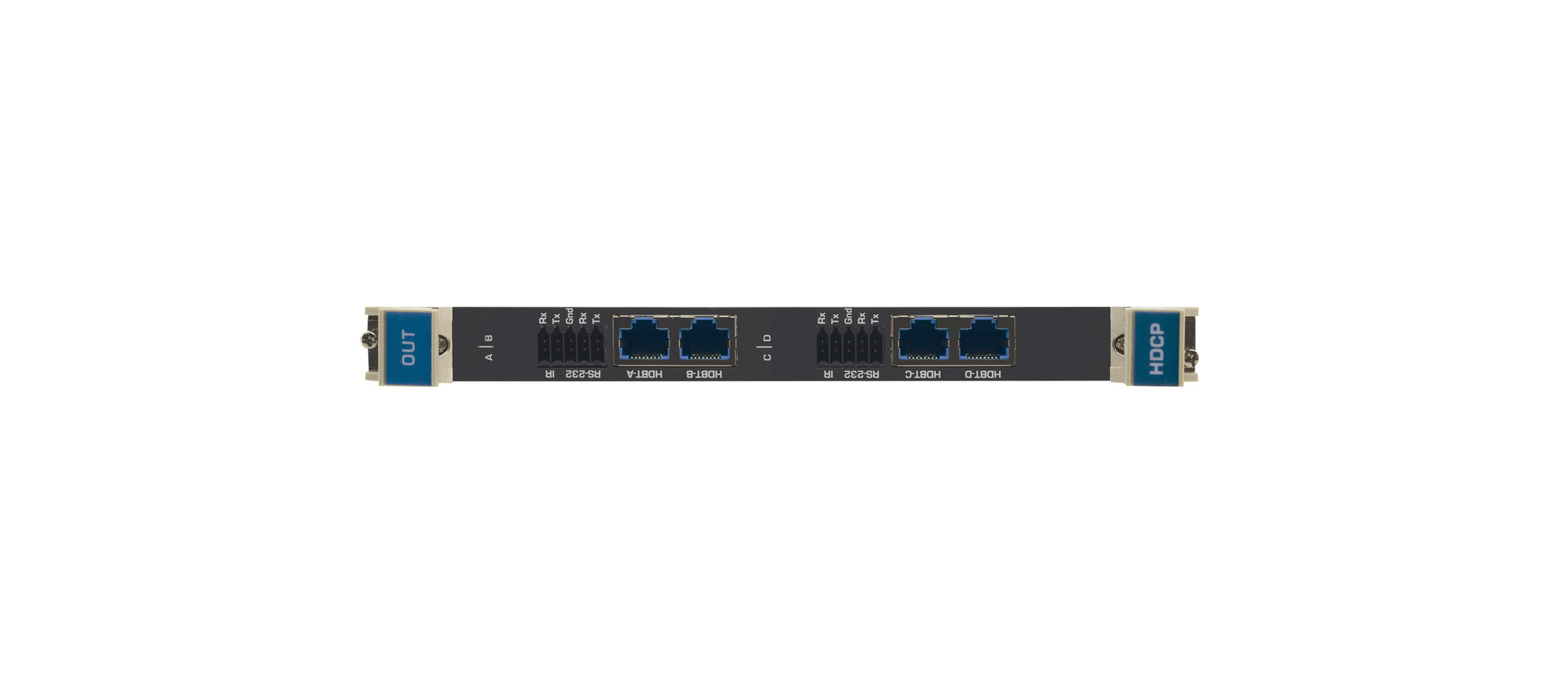

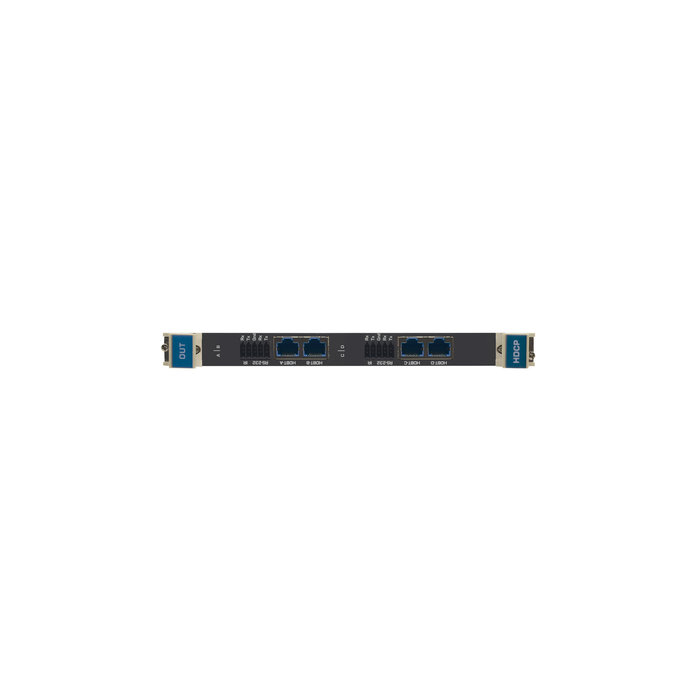

DT−OUT4−F32 is a four−channel 4K@60Hz (4:2:0), long reach, HDBaseT output card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. DT−OUT4−F32 outputs four long reach HDBaseT signals with bidirectional RS−232 and IR from the chassis to the line.

Max. Data Rate — 10.2 Gbps (3.4 Gbps per graphic channel).
System Range — 40m (130ft) — 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) — 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables.
HDTV Compatible.
HDCP Compliant.
3D Pass–Through.
Bidirectional RS–232 and IR per Port.
Kramer Equalization and re–Klocking Technology.

Top of Form

APPLICATIONS

Professional display systems requiring video signal routing
Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
Rental/staging applications

Technische specificaties

OUTPUTS

4 HDBaseT: On RJ–45 connectors

PORTS

4 RS−232 and 4 IR ports: On 10–pin terminal blocks

BANDWIDTH PER CHANNNEL

Video: 3.4Gbps
Serial data: 115200

TOTAL BANDWIDTH

Video: 10.2Gbps
Serial data: 115200

MAXIMUM RANGE

40m (130ft) — 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4)
70m (230ft) — 1080p 12 bit (deep color)
Note: When using Kramer HDBaseT cables

3D PASS-THROUGH

Supported

EXTENDED RS-232

300 to 115200 baud rate

STANDARDS COMPLIANCE

HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible

POWER CONSUMPTION

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

REGULATORY

Safety: CE
Environmental: RoHs and WEEE

INCLUDED ACCESSORIES

Screw driver

PRODUCT DIMENSIONS

21.60cm x 19.00cm x 2.00cm (8.50" x 7.48" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.5kg (1.1lbs) approx.

SHIPPING DIMENSIONS

25.00cm x 22.50cm x 5.50cm (9.84" x 8.86" x 2.17" ) W, D, H

SHIPPING WEIGHT

0.7kg (1.5lbs) approx.

Kramer DT-OUT4-F32 - 4–Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card
