Description

AAD−OUT4−F32 is a four−channel analog and digital output card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The AAD−OUT4−F32 outputs four analog and digital signals from the chassis.

Balanced Analog Audio over Terminal Block Connector.
S/PDIF Digital Audio over RCA Connector.

Top of Form

APPLICATIONS

Audio broadcast & production studios
Multimedia & presentation

Technische specificaties

PORTS

4 S/PDIF (digital audio) on RCA connectors, 4 balanced audio stereo (analog audio) on 5–pin terminal blocks

TOTAL BANDWIDTH

Analog (–3db): >100kHz, Digital: 32kHz — 192kHz sample frequency

POWER CONSUMPTION

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

SAFETY REGULATORY COMPLIANCE

ENVIRONMENTAL REGULATORY COMPLIANCE

Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

22.00cm x 18.80cm x 2.00cm (8.66" x 7.40" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.3kg (0.7lbs) approx.

SHIPPING DIMENSIONS

25.00cm x 22.50cm x 5.50cm (9.84" x 8.86" x 2.17" ) W, D, H

SHIPPING WEIGHT

0.5kg (1.1lbs) approx.

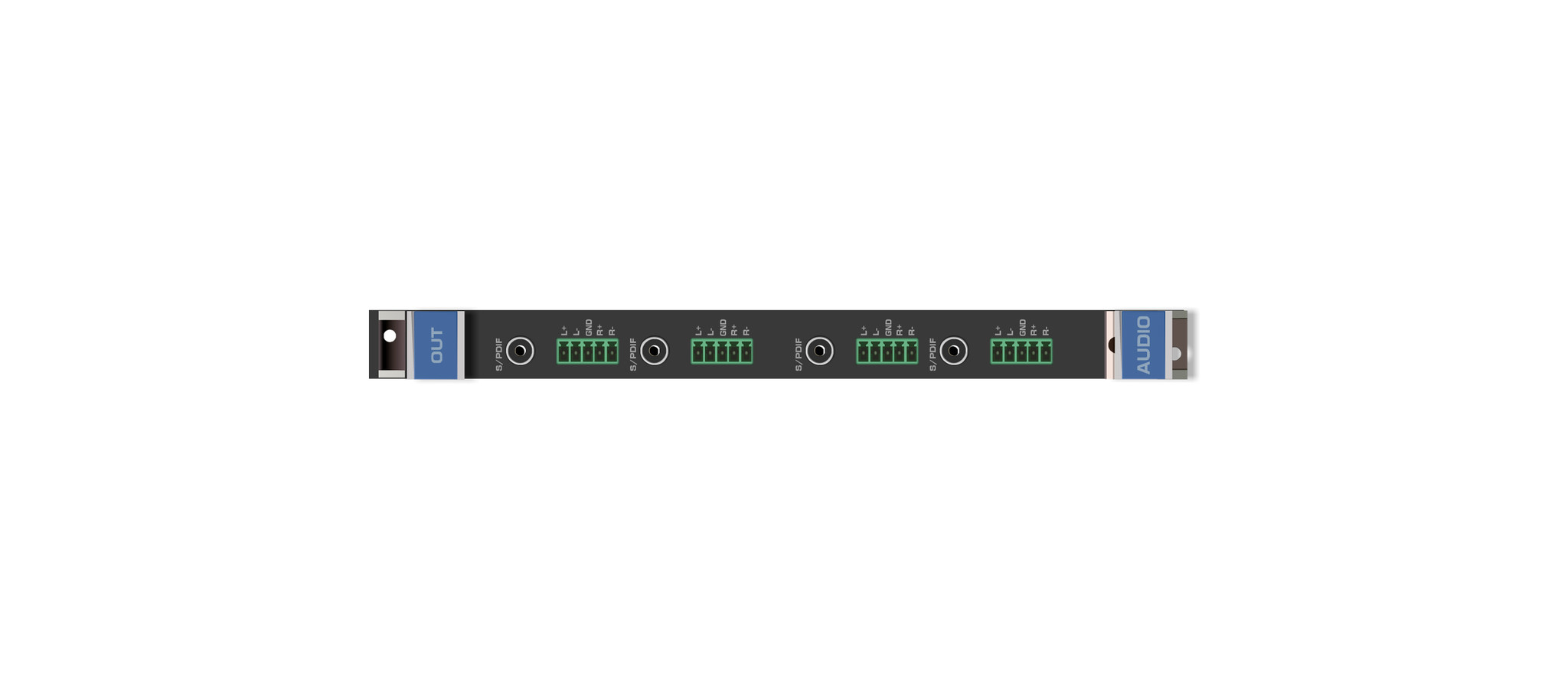

Kramer AAD-OUT4-F32 - 4–Channel Analog & Digital Audio Output Card
