KRAMER - 101L - Composite Video Line Amplifier
Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig
Gratis verzending vanaf € 75,-
085 130 5392
Great deals
Meedenkers en Oplossers
Tailored Services
Description

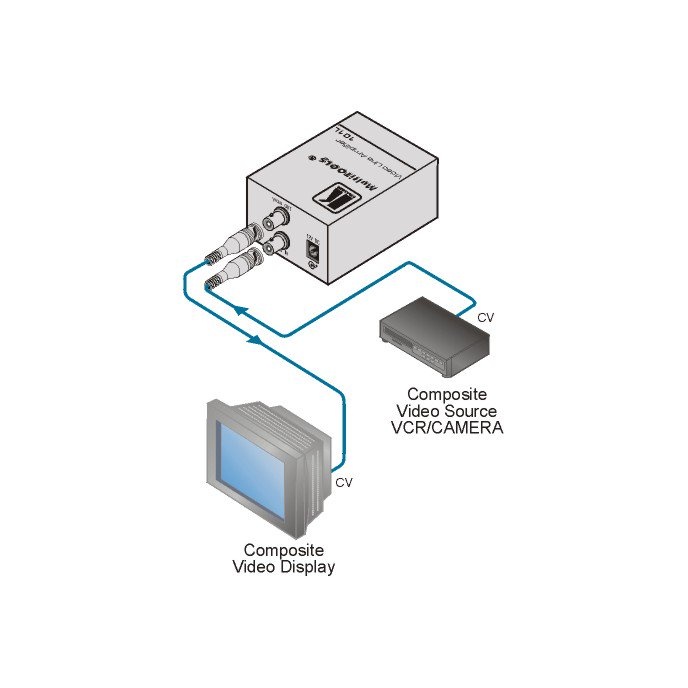

The 101L is a high−performance line amplifier for composite video signals. It provides controls to compensate for signal loss inherent in long cable runs.
- Bandwidth — 500MHz (–3dB).
- Controls — Level (gain) & EQ (peaking) on recessed trimmers to prevent unintentional resetting.
- Compact MultiTOOLS® — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
APPLICATIONS
- Professional display systems that require long distance delivery of high–quality video
- CCTV, medical, and sports applications
Technische specificaties
- 1 composite video, 1Vpp/75Ω on a BNC connector
- 1 composite video, 1Vpp/75Ω on a BNC connector
- 2.5Vpp
- 500MHz
- 0.03%
- 0.03Deg
- 75dB
- Level: — 0.8dB to 6.5dB
- EQ.: 0dB to 8dB
- DC
- 12V DC, 60mA
- Power supply
- 5.33cm x 7.30cm x 4.36cm (2.10" x 2.87" x 1.72" ) W, D, H
- 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
- 0.6kg (1.3lbs) approx.
- 0.1kg (0.3lbs) approx.
SPECIFICATIONS
INPUT
OUTPUT
MAX. OUTPUT LEVEL
BANDWIDTH
DIFF. GAIN
DIFF. PHASE
S/N RATIO
CONTROLS
COUPLING
POWER CONSUMPTION
INCLUDED ACCESSORIES
PRODUCT DIMENSION
SHIPPING DIMENSION
SHIPPING WEIGHT
PRODUCT WEIGHT
