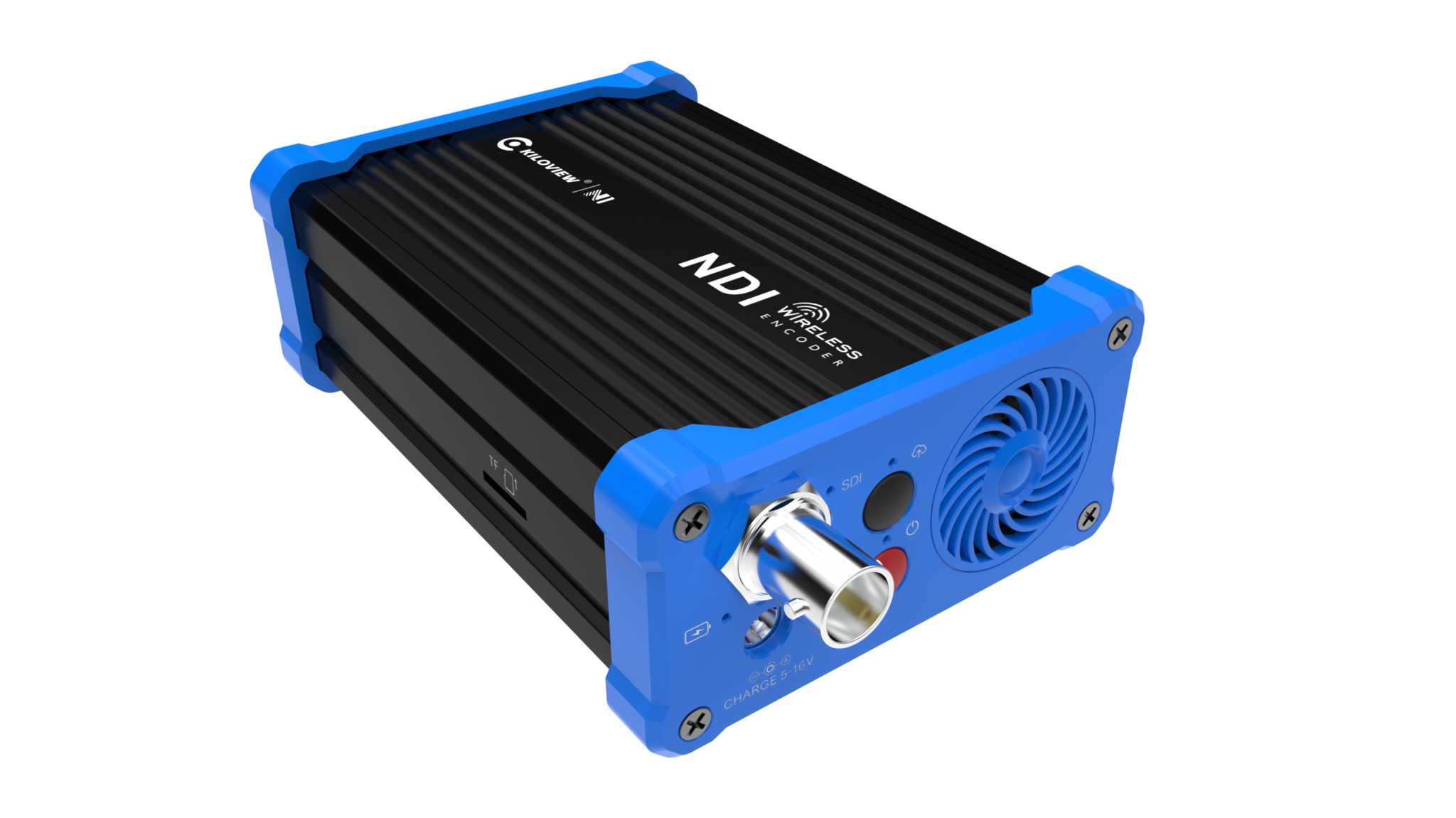

Kiloview N1 Wireless SDI to NDI|HX Encoder

N1 NDI wireless video encoder is a professional video encoding device for NDI video production. It can encode SDI video source into NDI|HX, through Ethernet or WiFi. The network is used for video transmission for any compatible system, equipment or software in the network, and it also supports the SRT/RTMP transmission protocol,

Stable Wireless Connection

Kiloview N1 contains a built-in 5GHz enhanced WiFi Module which achieves more stable wireless transmission. It also supports 4G-Lte USB dongle for mobile application.

Encoding Anywhere

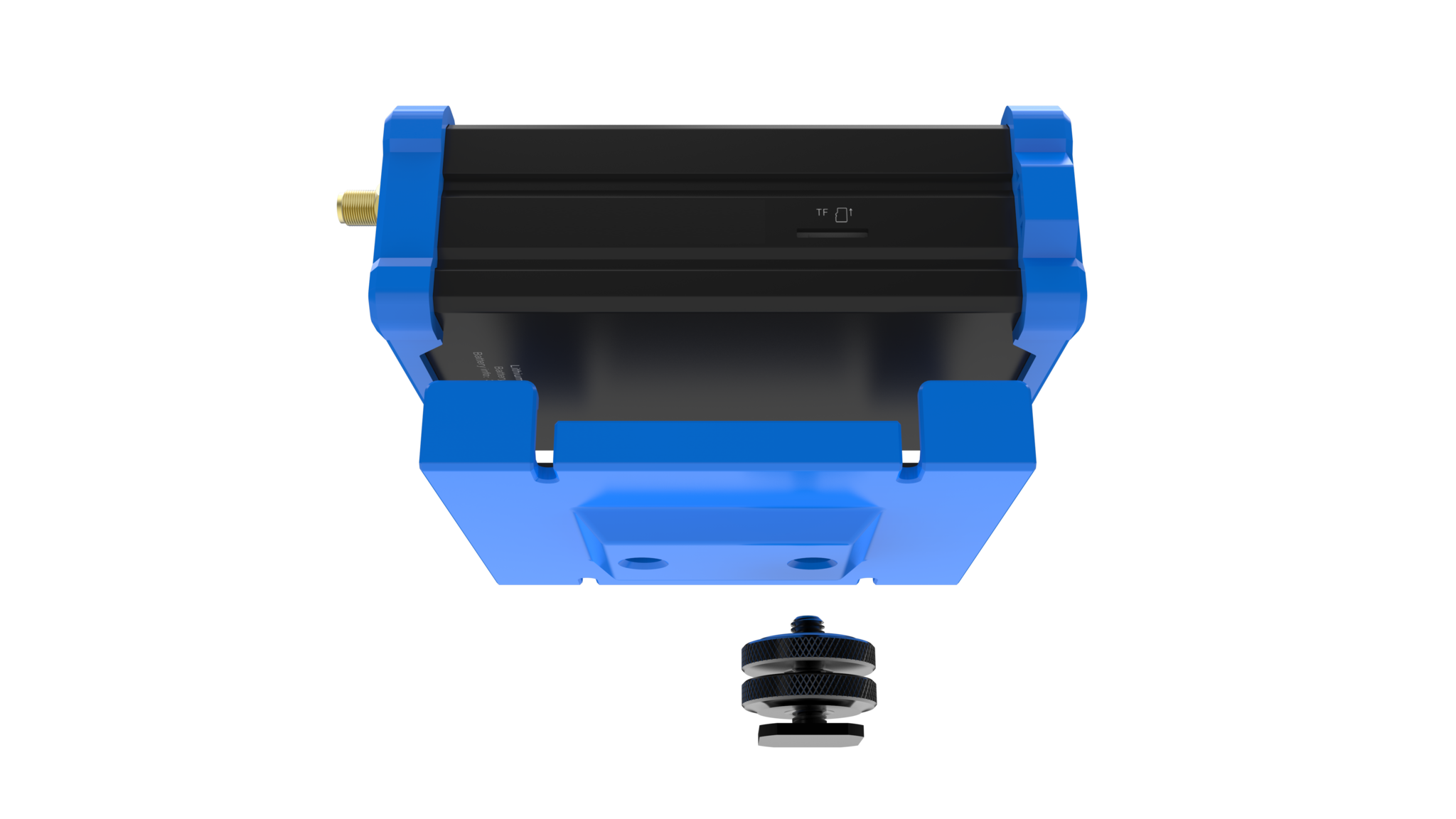

• Portable: Compact size with threaded screw, it can be installed on the camera when broadcasting outdoor;

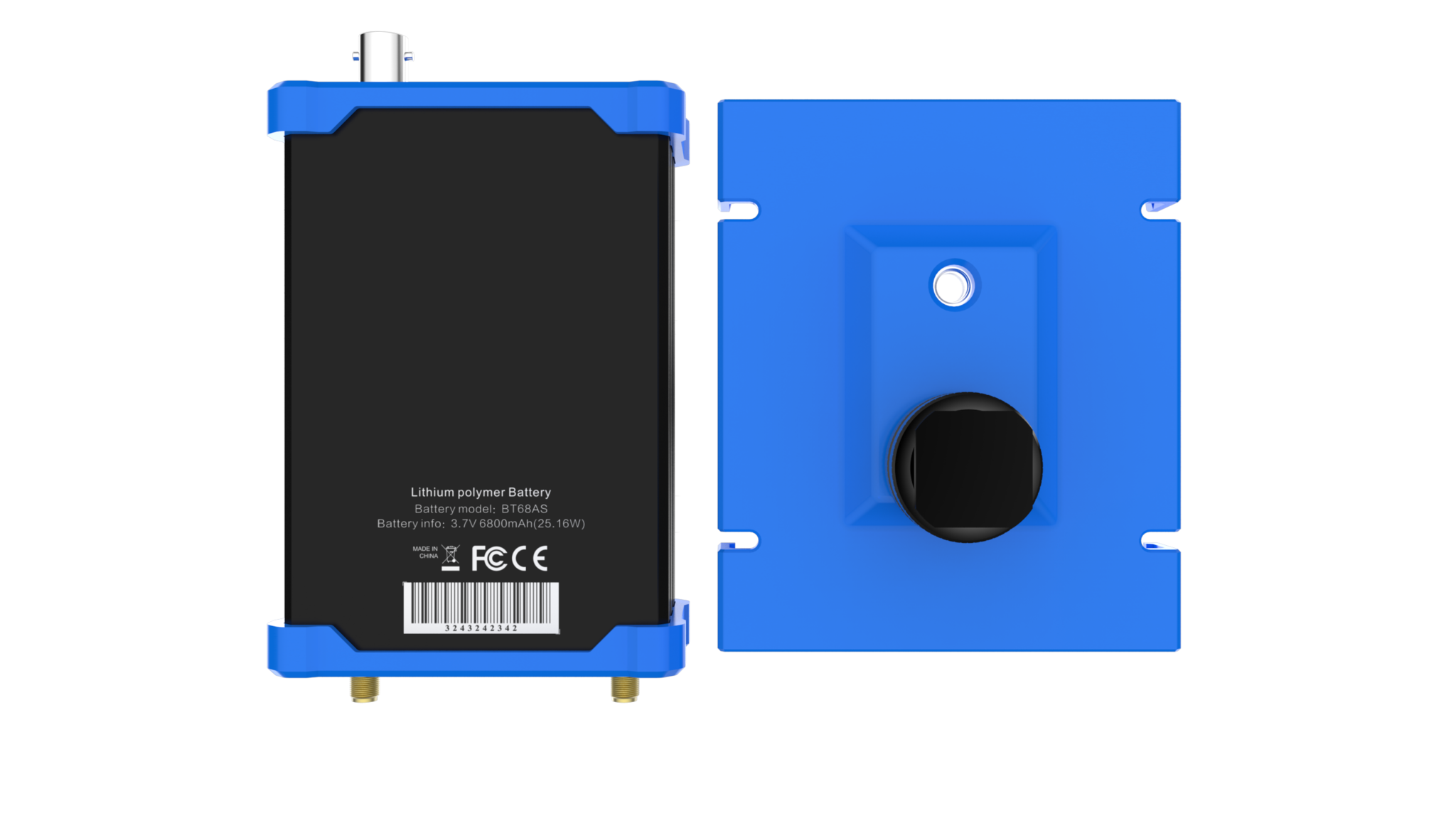

• Battery Powered: With large capacity built-in battery, it lasts more than 3 hours streaming. It's also chargeable with V-mount battery, making continuous working possible;
• Cooling Fan: Active heat dissipation design is as stable and reliable as running outdoors in high temperature;

NDI Output with High Efficiency

It delivers SDI video source to the network in full HD, with high-efficiency NDI output via NDI|HX and native support for resolutions up to 1080p.

All Protocols All at the Same Time

Besides NDI|HX2, N1 supports full range protocols including RTSP, RTMP, RTMPS, RTP, SRT, HLS, TS-UDP, Onvif, live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.

It also supports ONVIF 1.1/2.0 for easy access to security protection system/ NVR system.

Powerful Encoding with Dual Stream Output

Kiloview N1 supports dual stream output, by which 16 streaming services can be encoded at the same time into main and sub-streams, thus realizing multi-platform live broadcasting (Bitrate ranging from 64kbit/s～40Mbit/s adjustable).

Let's go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

MicroSD/NAS Storage

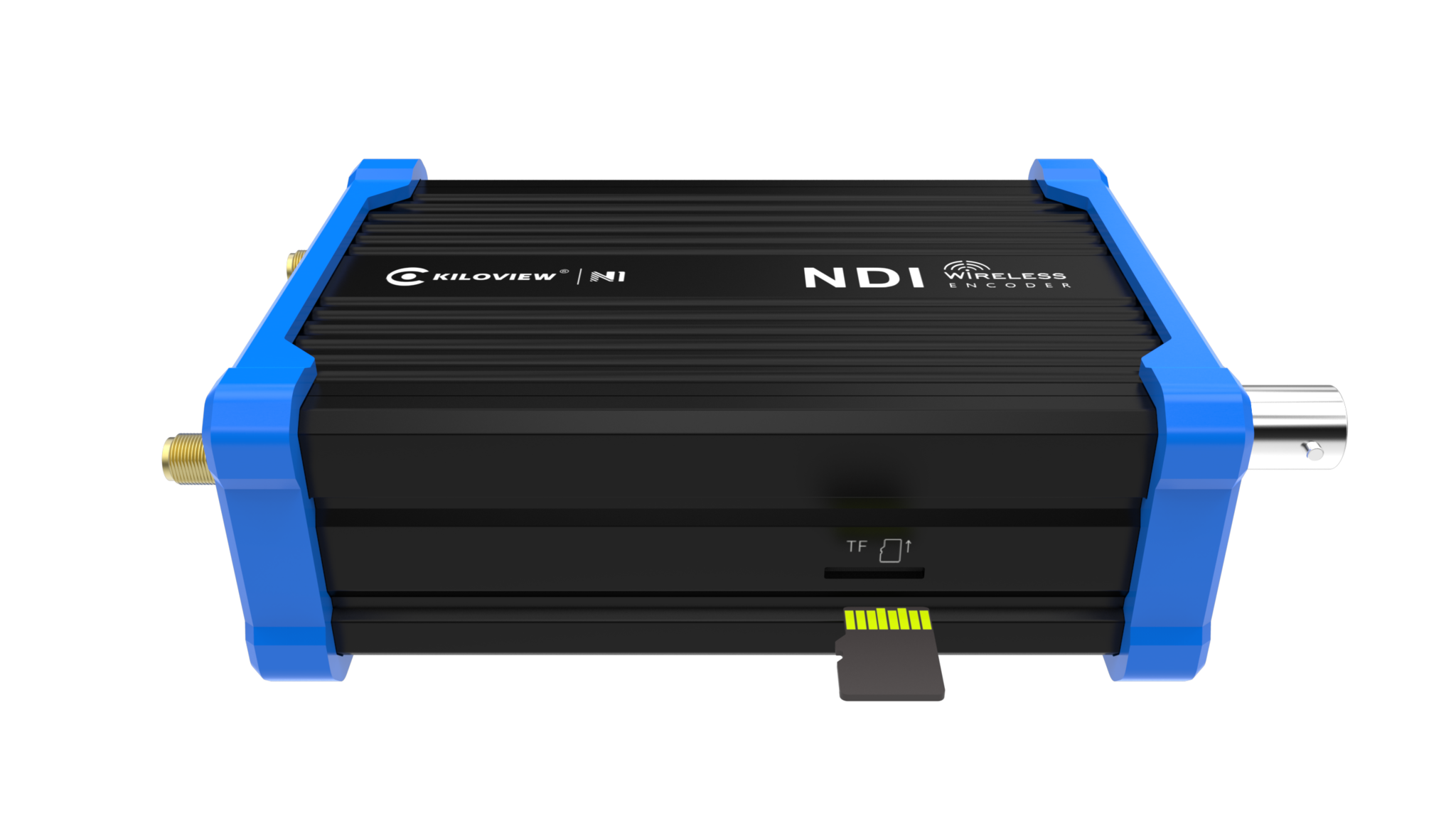

N1 comes with Micro SD/TF card slot, which supports both local recording and NAS network storage with continuous recording files in the format of .ts, .mp4, .mov,.mkv, avi.

Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.

Real time Intercom

Both embedded and analog audio encoding are supported. What's more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function.
