Hollyland Cosmo C1 - 300m SDI/HDMI Draadloos Systeem
High-definition video transmission

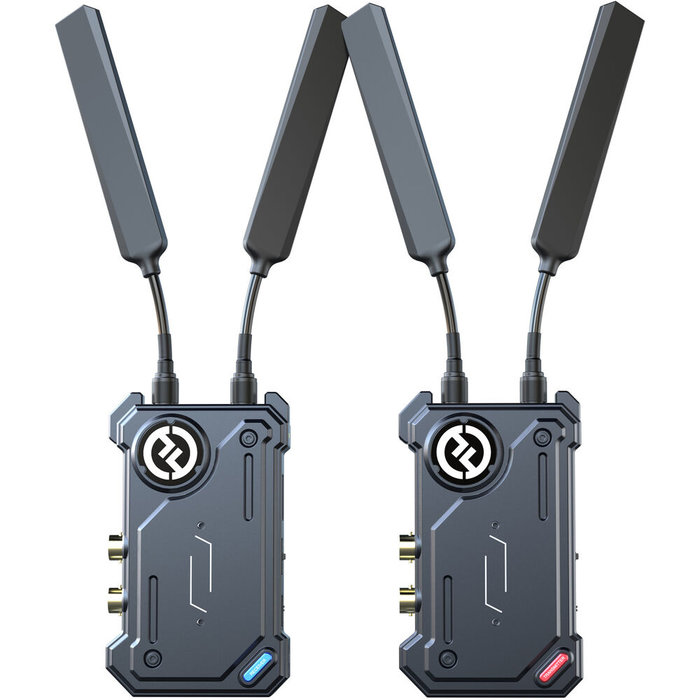

Hollyland's Cosmo C1 SDI/HDMI Wireless Video Transmission System allows you to wirelessly transmit high-resolution video up to 1080p60 over long distances, enabling flexible video monitoring and distribution for your on-site studio or production. This kit consists of a transmitter and a receiver.
Solid, secure wireless transmission
The Cosmo C1 can transfer video up to 300m line-of-sight with a low latency of 40ms using the HEVC/H.265 codec. The system operates on the 5 GHz frequency band and uses AES-128 encryption to avoid interference. It also supports smart channel selection, allowing the system to choose the strongest channel for transmission, as well as HEVO, an adaptive frequency selection technology, for seamless switching between frequencies without losing a frame.
Live video input/output

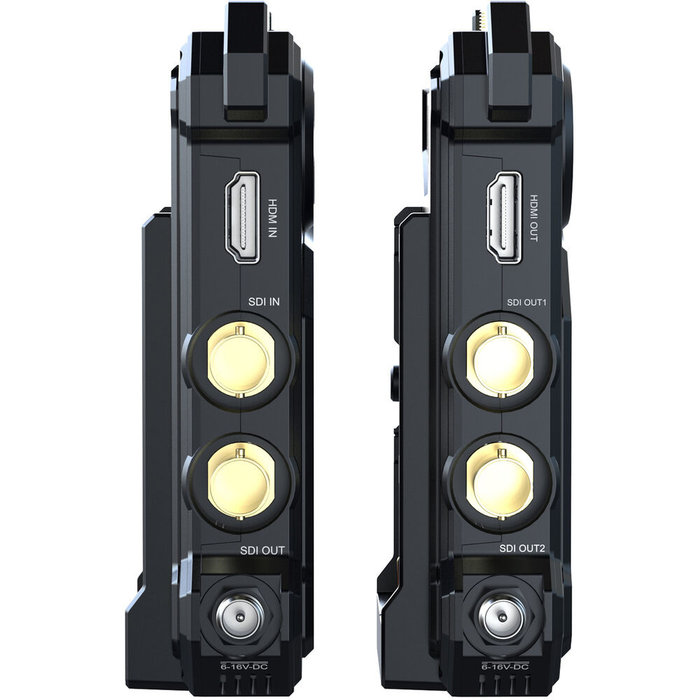

The transmitter provides one HDMI input, one SDI input, and one SDI loop output, and the receiver provides two SDI outputs and one HDMI output.
The receiver can also be used for live streaming via the USB Type-C output, which supports UVC applications on your internet-connected computer.
Versatile power and form factor

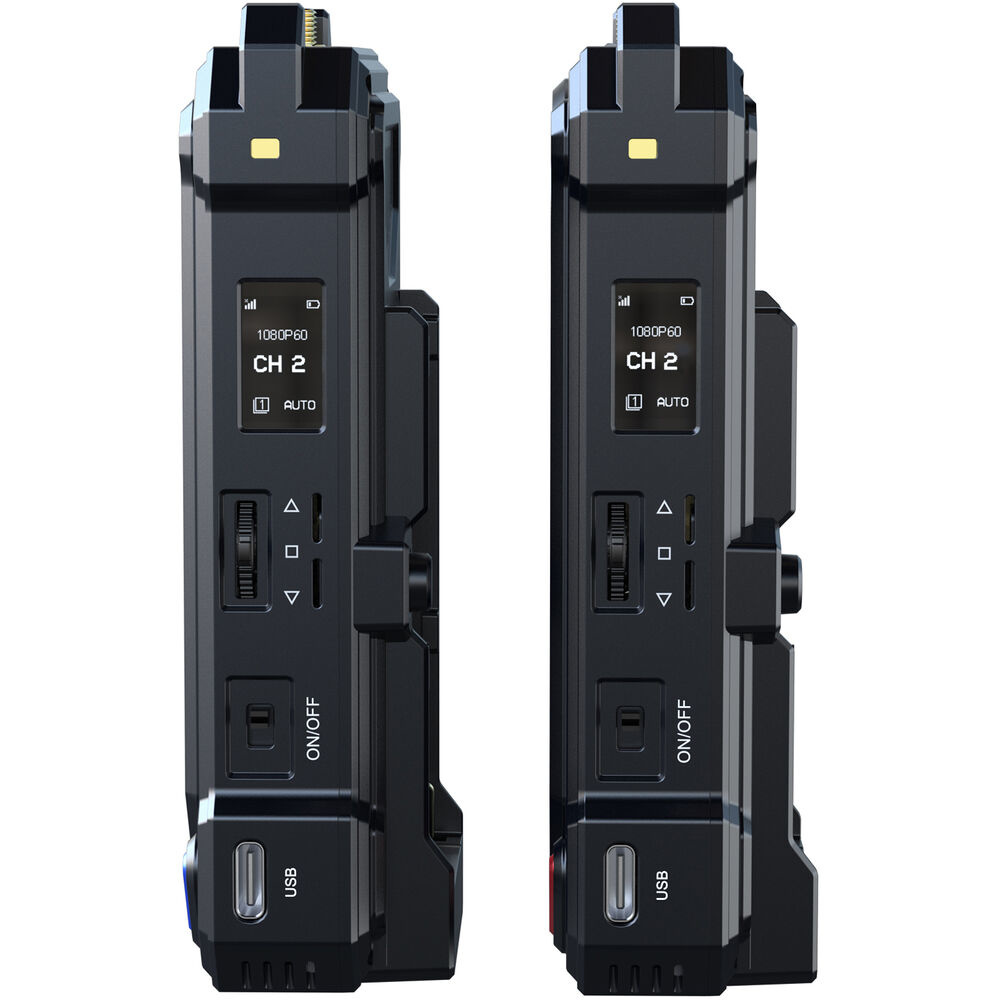

Both compact units also have a bright, easy-to-read OLED display that shows status and configuration
Each unit can be powered from an L-series battery pack or from an optional USB power supply through the USB Type-C port
Four standard antennas and two mushroom antennas are included for the receiver and transmitter

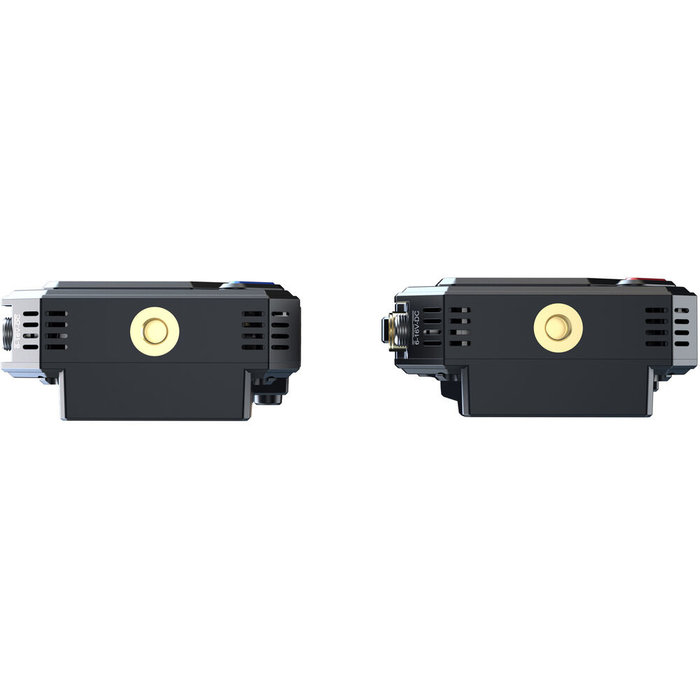

Each unit can be easily mounted almost anywhere using the 1/4"-20 thread and the included cold shoe mounting adapter
Cosmo C1 Transmitter
Cosmo C1 Receiver

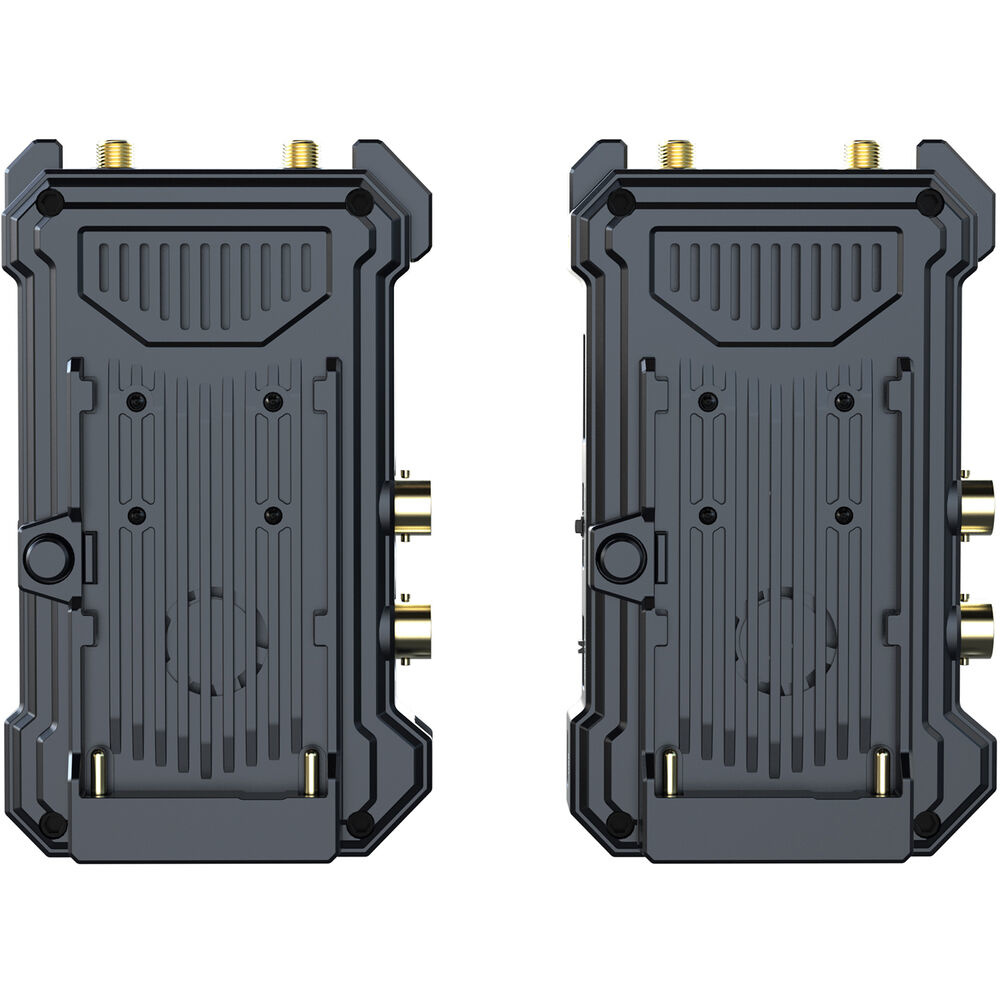

2x L-Series Battery Plate
4 x Antenna
2 x Mushroom Antenna
Shoe Mount
magic arm
USB Type-C Adapter
DC Adapter
I/O

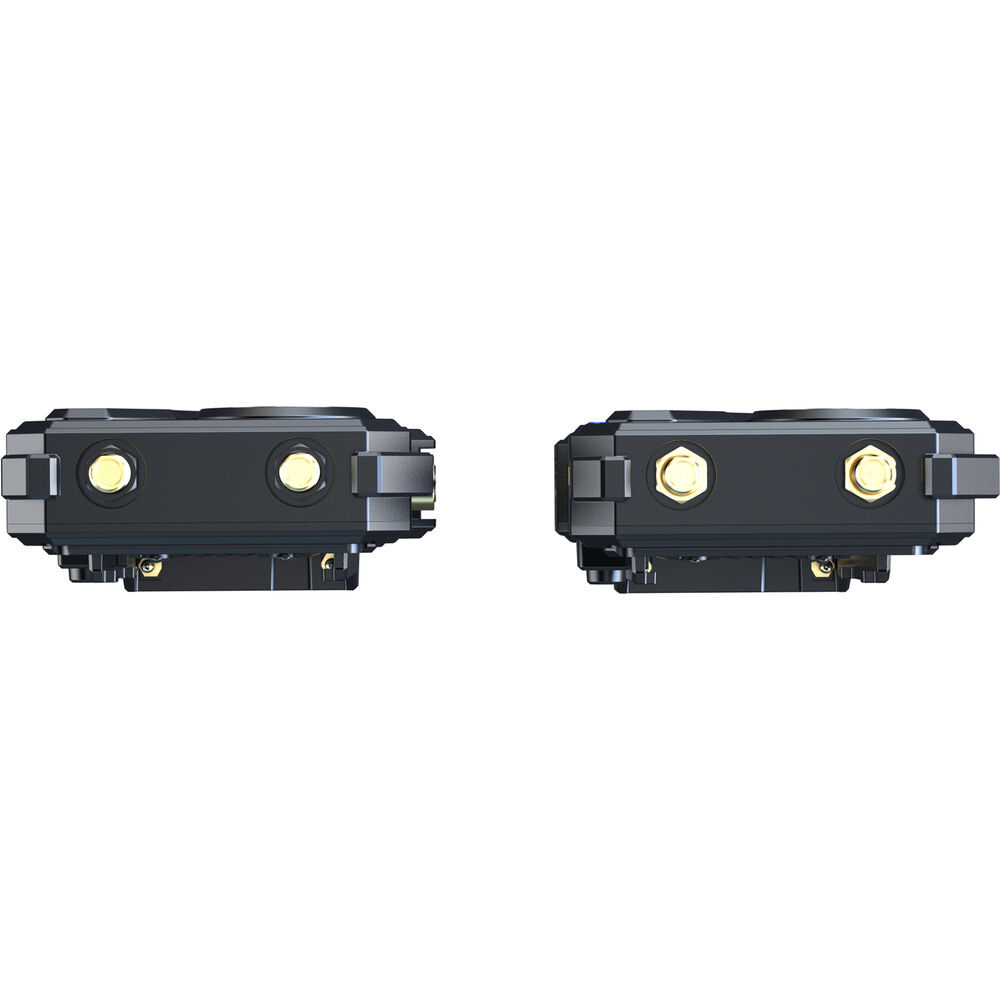

Antenna Ports | Transmitter/Receiver: 2 x RP-SMA Male |
Video | Transmitter: 1 x BNC (3G-SDI) Input |
HDCP Support | Not Specified by Manufacturer |
Embedded Audio | HDMI/SDI: 2-Channel |
audio | none |
power | Transmitter/Receiver: 1 x USB Type-C (2 A / 5 VDC) Input |
Other I/O | Transmitter/Receiver: 1 x USB 3.1 / USB 3.2 Gen 1 (USB Type-C) Input |
encryption | 128-bit AES |
wireless
Wireless Range | 1000' / 304.8 m |
Channel Bandwidth | 20MHz |
Frequency Range | US: 5.1 to 5.8 GHz |
latency | 40ms |
RF Power | 22 dBm |
RF Sensitivity | -80 dBm |
WiFi | yes |
Format Support
Video Format | HDMI |
Audio Format | Not Specified by Manufacturer |
Timecode Support | yes |
power
DC Input Power | 6 to 16 VDC |
Battery Type | Transmitter/Receiver: 1 x L-Series |
Power Consumption | Transmitter/Receiver: 9 W |
mounting
mounting | 1 x Cold Shoe |
Environmental
IP Rating | none |
General
Dimensions | Transmitter/Receiver: 4.5 x 2.8 x 1.3" / 115 x 70 x 32 mm, Excluding Battery Plate |
weight | Transmitter: 7.5 oz / 214 g, Excluding Antenna |
