Hollyland Pyro 7 Transmitter/Receiver Monitor

Transmit, receive, and monitor high-quality wireless video transmissions with the versatile Hollyland Pyro 7 wireless transceiver monitor. The Pyro 7 takes the previous M1 transceiver/monitor and makes it bigger and better with a bright 7” touchscreen display, dual L-Series battery trays, wireless transmission range up to 1,200 feet (396 meters), updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, a single Pyro 7 transmits to up to four receivers, as well as automatic dual-band 2.4/5GHz hopping and auto-frequency hopping.

Broadcast mode

The Pyro 7 features wireless broadcast technology that allows a single transmitter to connect to up to four receivers with stable, line-of-sight signals. When broadcast mode is activated, the transmitter can transmit to up to four receivers, and when it is disabled, the transmitter can transmit to up to two receivers and two mobile devices.

Large, bright display

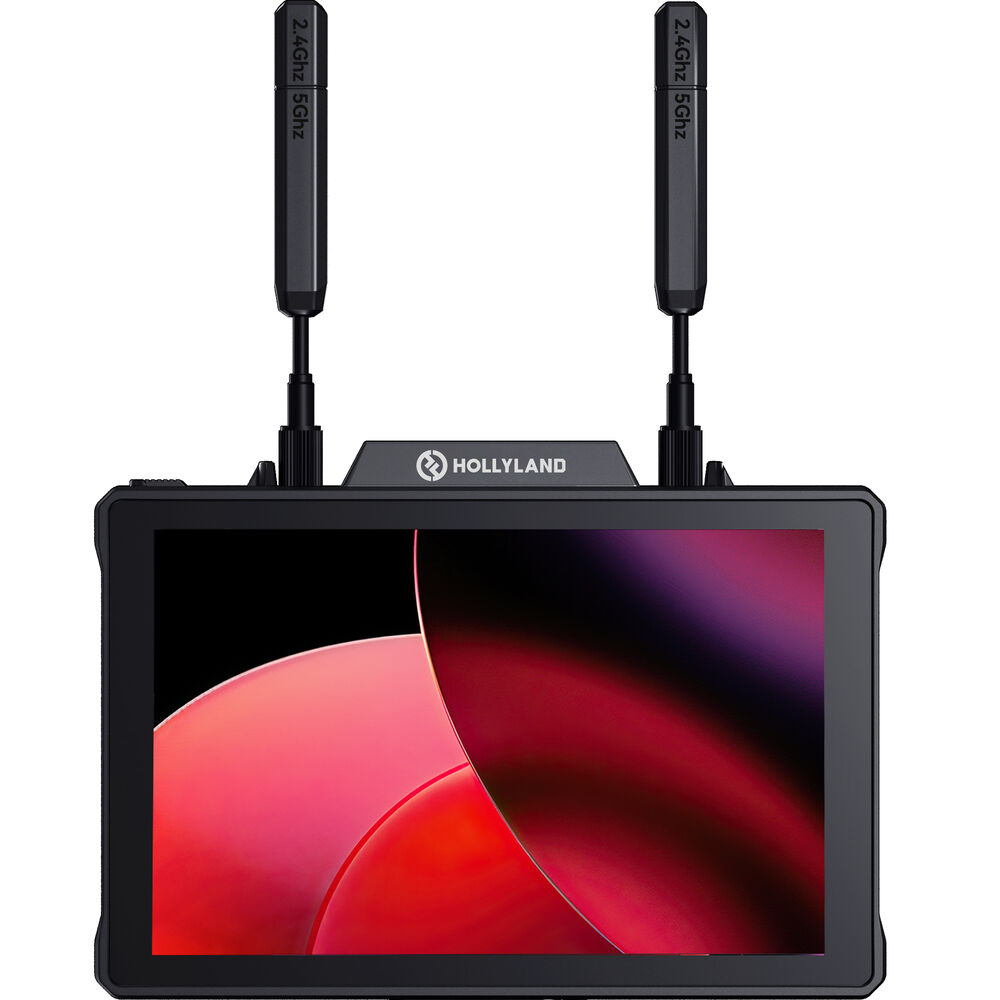

The Pyro 7 has a 7" display with a brightness of 1200 cd/m², so it is clearly visible whether you are in bright sunlight or a dim environment. The screen brightness is adjustable for optimal performance.

Versatile I/O

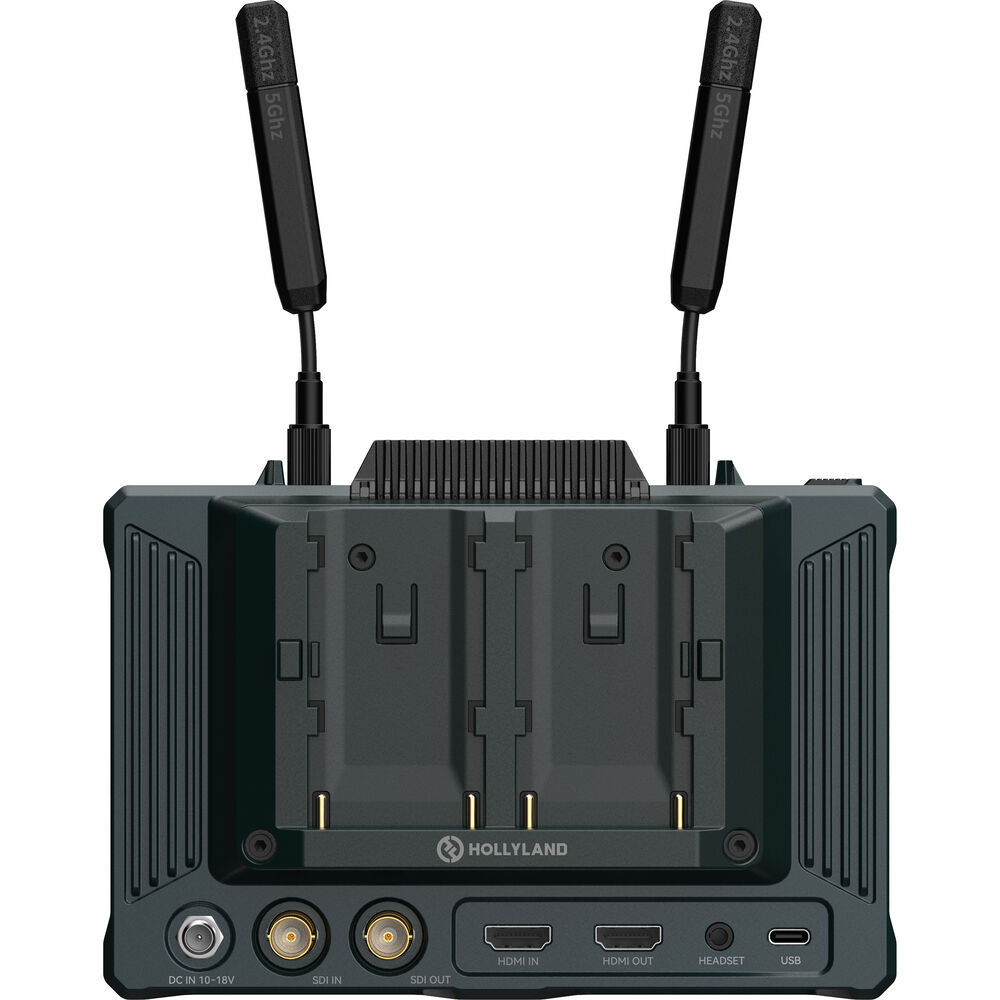

The Pyro 7 can be switched to transmitter or receiver. In transmitter mode the monitor has an HDMI input, an SDI input, an HDMI loop output and an SDI loop output. In receiver mode there is one SDI output, one HDMI output and one SDI loop output.

Quickly switch sources

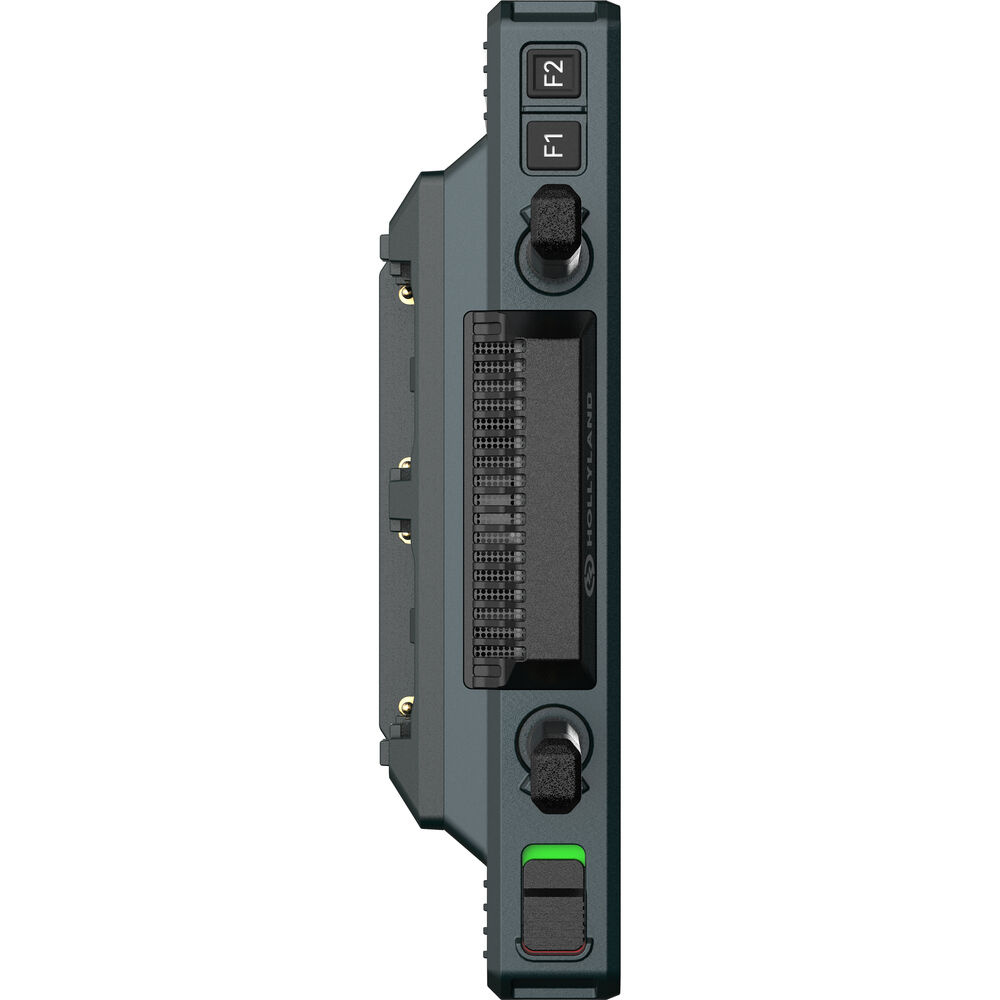

The transceiver can be seamlessly connected to all Pyro series devices using preset grouping. You can group multiple devices and switch between two cameras instantly using two customizable buttons.

Long transmission range

Utilizing 2.4 and 5GHz dual-band technology, the Pyro 7 has a stable line-of-sight transmission range of up to 396 meters with a minimum transmission delay of 60ms without image degradation. You can choose from two transmission modes: Smooth mode adjusts transmission for lowest latency at longer distances, and HD mode optimizes the image with a stable bitrate of up to 12Mbps even up to 396 meters away.

Auto Dual-Band Hopping (ADH)

With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies that work on both the 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the best channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency and frequency congestion. The high-gain omnidirectional antennas also ensure stable signals in all directions.

RTMP streaming

With built-in RTMP streaming, you can easily stream video to popular live broadcast or conference platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.

Video recording to SD card

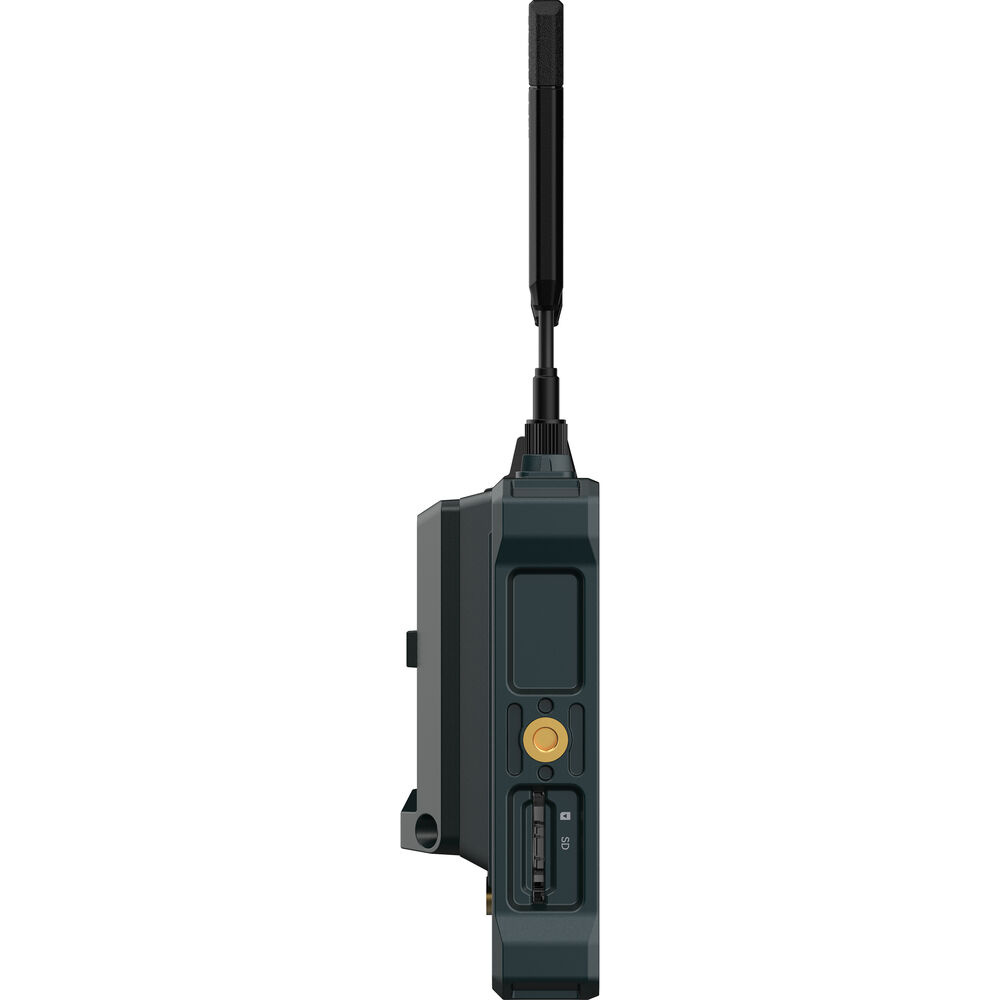

The Pyro 7 has an SD card slot that supports extended mp4 video recording up to 40 minutes in a single session using a standard SD card. You can also use an SD card to apply custom LUTs while exporting video. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and record screenshots on set and overlay them on the current recording screen for scene restoration or replication purposes.

Image tools

The custom shortcut function that can be used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist and other image analysis functions.

Durable yet lightweight construction

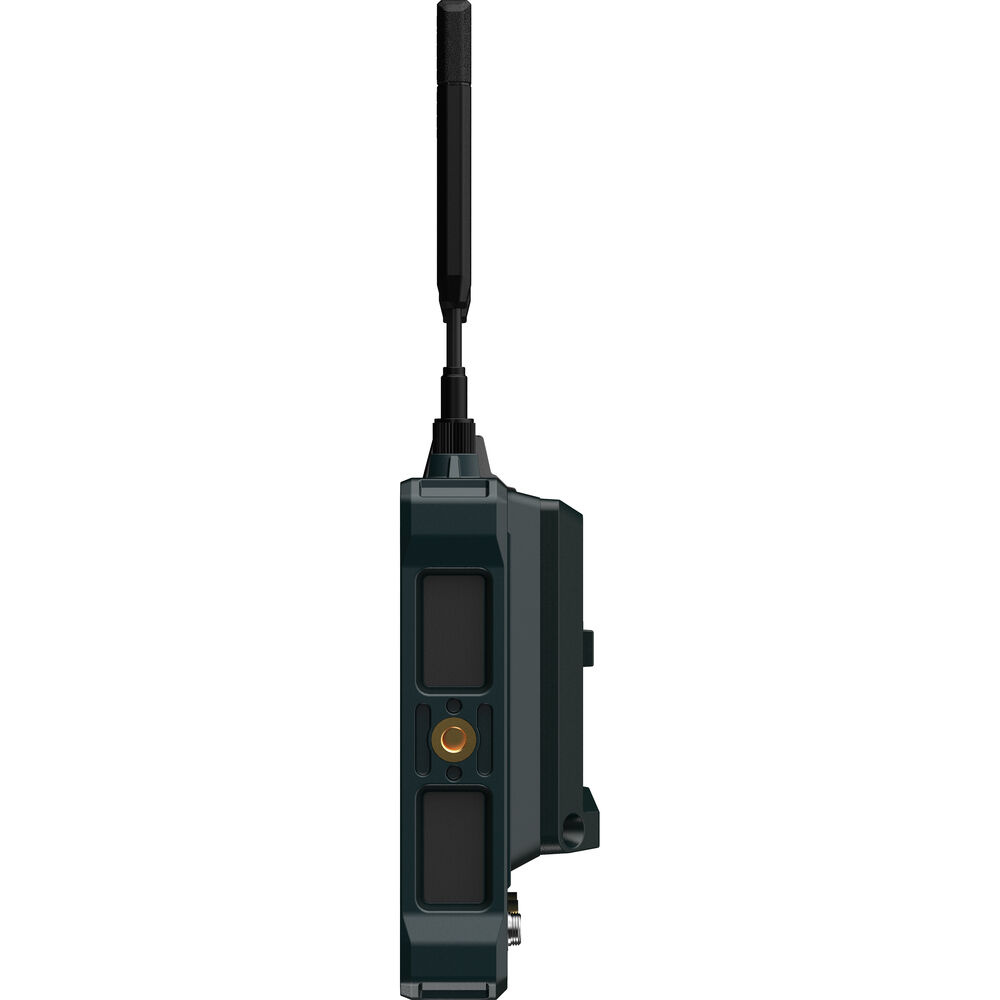

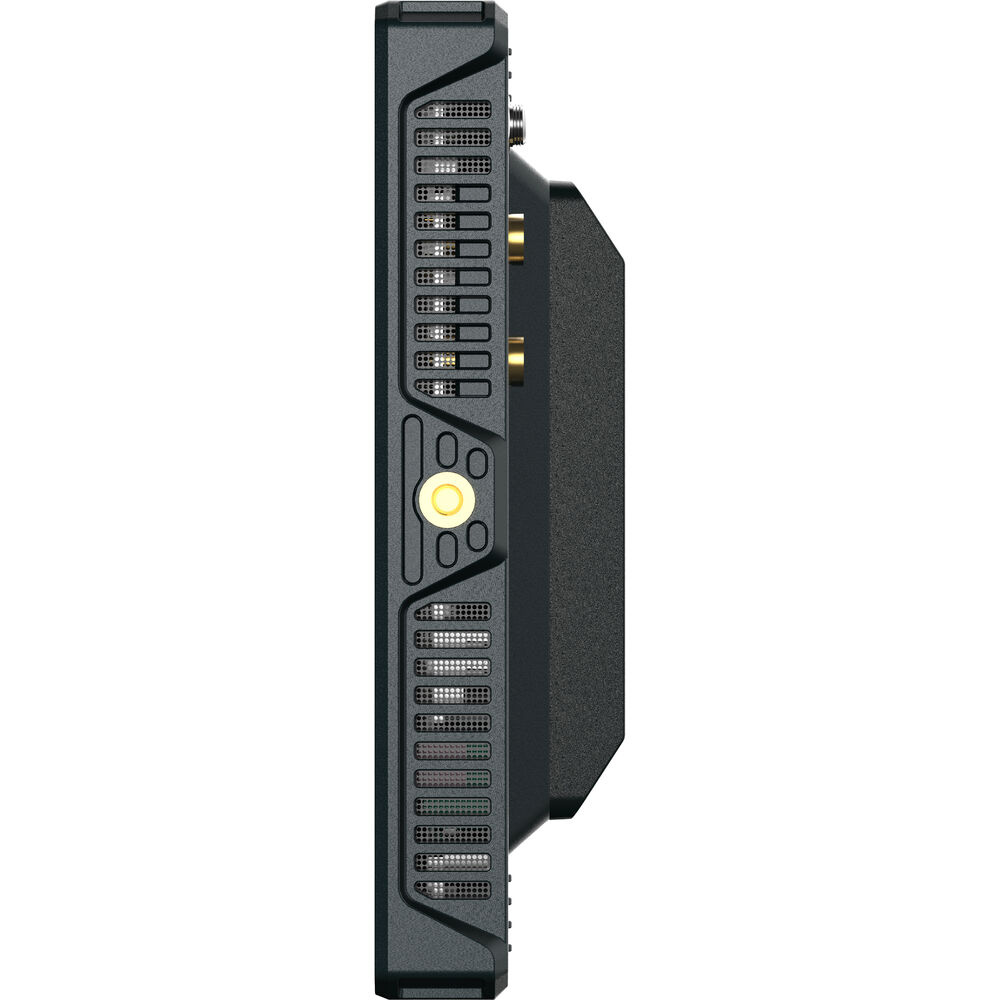

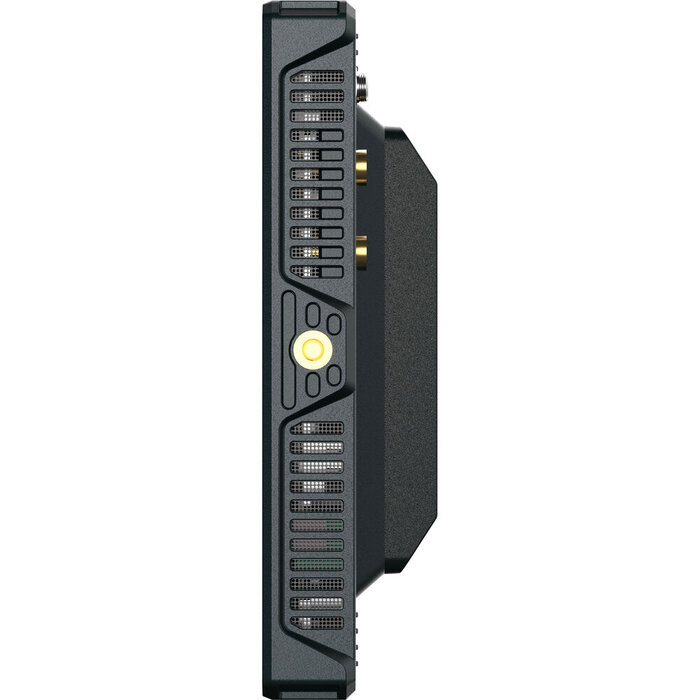

The Pyro 7's body is made from aircraft-grade magnesium-aluminum alloy, creating a rugged, rigid design that's 30% lighter and dissipates heat better than aluminum-only models.
