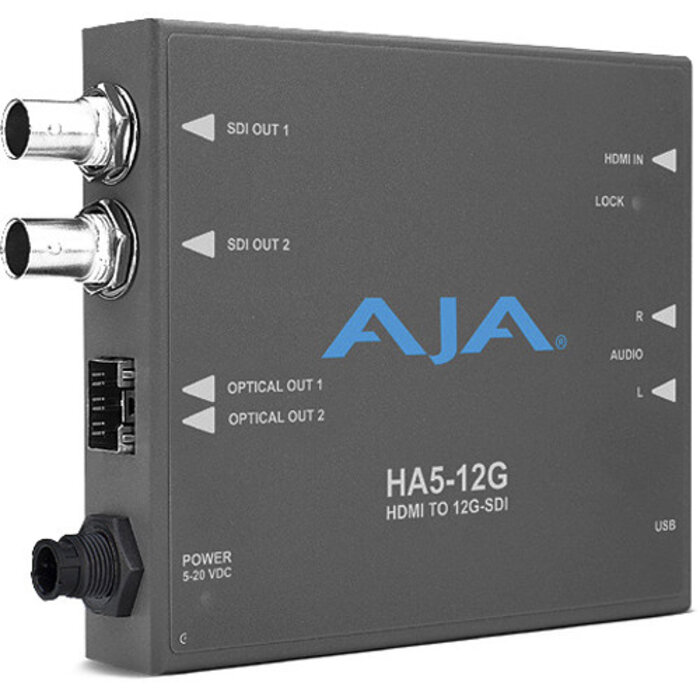

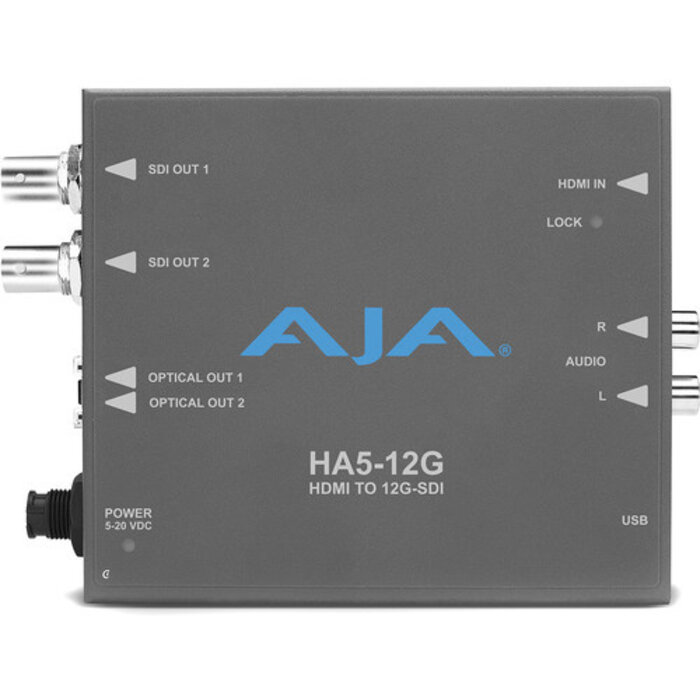

AJA HA5-12G - HDMI 2.0 to 12G-SDI Converters

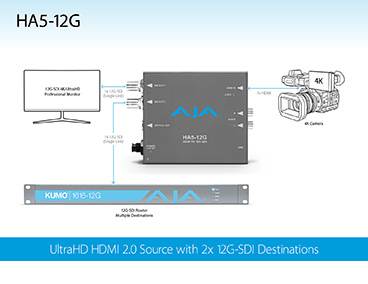

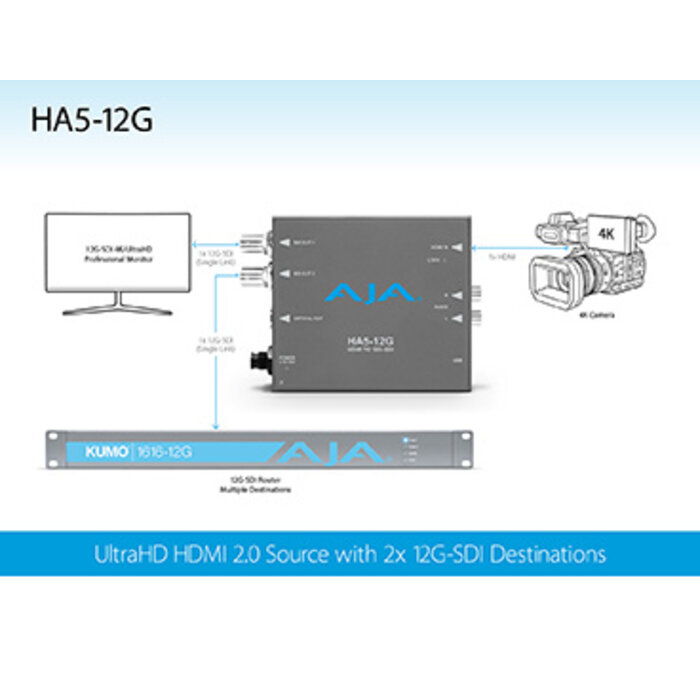

AJA’s HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input.
HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.
HA5-12G-T and HA5-12G-T-ST Fiber SFP-equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link respectively. These models ship with SFPs installed, and include all functionality of the HA5-12G, with the added benefit of extending audio and video signals further.
Features
- Convert HDMI 2.0b to 4K/UltraHD 60 fps to 12G-SDI with a second mirrored output
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- Supports 12-bit workflows
- EDID LFR & HFR Emulation up to UHDp60
- Real-timeHDMI HDR Infoframe data reporting
- HDR signaling metadata pass-through and optional override
- Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
- Embedded audio can be selected from the HDMI or Analog audio inputs
- Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
- Configure via USB port and supplied AJA Mini-Config software
- Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
- (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 720x576p
- (SD) 720x576i
- (SD) 720x480p
- (SD) 720x480i
- 1x HDMI Type A connector, HDMI v2.0b
- HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
- HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
- YCbCr 4:2:2/4:4:4/4:2:0
- RGB 4:4:4, SMPTE or Full level
- 24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 720x576p 50
- (SD) 720x576i 25
- (SD) 720x480p 59.94
- (SD) 720x480i 29.97
- Not supported. By definition, SDI outputs are unencrypted.
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- YCbCr 4:2:2/4:4:4
- RGB 4:4:4, SMPTE or Full level
- 10-bit, 12-bit*
- 1x 12G-SDI
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
- (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
- 1x 6 Gb SDI
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
- (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
- 1x 3 Gb SDI (Level A or Level B Dual Link)
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p** 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
- 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 3.5 dB (min)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 2 dBm (max)
- Extinction Ratio: 3.5 dB (min)
- PCM
- Dolby Digital (AC-3)
- Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
- HDMI embedded audio, 24-bit, 8-channel
- 2x RCA style connector, 2-channel -10dBu (nominal)
- SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
- USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
- 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
- 0.5 lb (0.3 kg)
- 5-16VDC regulated, 11 watts, power supply required included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Video Formats
Note: Raster and Frame Rate Dependent, please see HA5-12G Video Formats in the Download / Documents section of the website product page.
Video Input Digital
HDCP Decryption
Video Output Digital
*Some 12-bit formats not supported, please see HA5-12G Video Formats in the Documents tab and the Manuals.
**1280x720p is Level A Only
Video Output Digital - Additional for HA5-12G-T Only
Video Output Digital - Additional for HA5-12G-T-ST Only
Audio Pass-Through Formats
Audio Input Digital
Audio Input Analog
Audio Output Digital
User Interface
Size (w x d x h)
Weight
Power
Environment
*HA5-12G, HA5-12G-T, and HA5-12G-T-ST each use approximately 12 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G converters with other Mini-Converters.
