GreenGO 16 port Gigabit Switch

Green-GO switches form the backbone of the network distribution system. The Green-GO switchGBx 18 is specifically designed for live entertainment applications where a mix of data protocols would overload and saturate commercially available network switches.

With the switchGBX 18, you can effortlessly set up VLAN trunking through high-speed redundant loops. It's very easy to create virtual networks that can communicate with each other over a trunking connection, allowing traffic to and from devices on different networks. By creating a loop between two or more devices, the GreenGO switchGBX 18 completely eliminates delays and device redundancy. If a connection between two devices is lost, it is bypassed by a different route in the configuration because each device is part of a loop.

The Green-GO switchGBx 18 has 16 Ethernet ports with speeds up to 1GB and 2 SFP cages for fiber optic with speeds up to 2.5Gbps. The Ethernet ports on the front panel support PoE and have RGB LED status indicators.

Characteristics

- Real time backup loops

- Division of the network into separate VLANs

- TFT color touch screen and rotary knob for easy menu navigation and setting

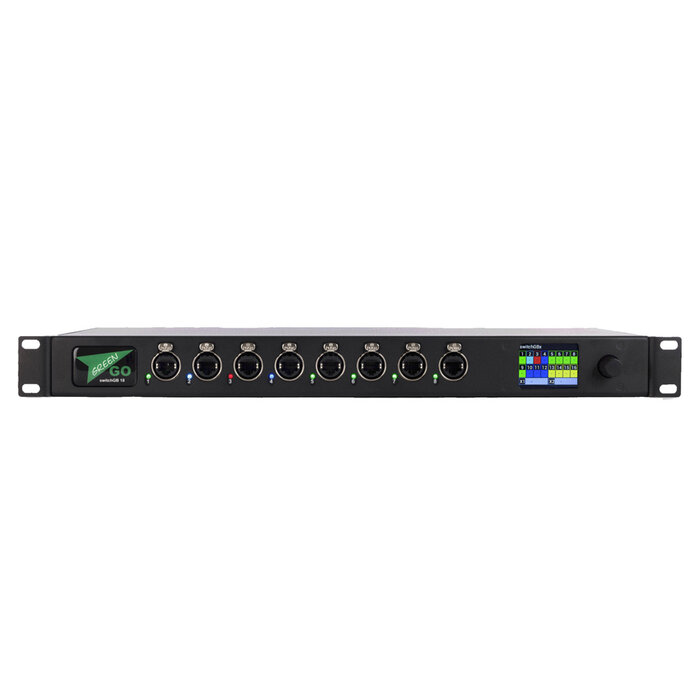

- 8 1Gbps network ports on the front panel with PoE (802.3af-2003 standard) RGB LED status indicators

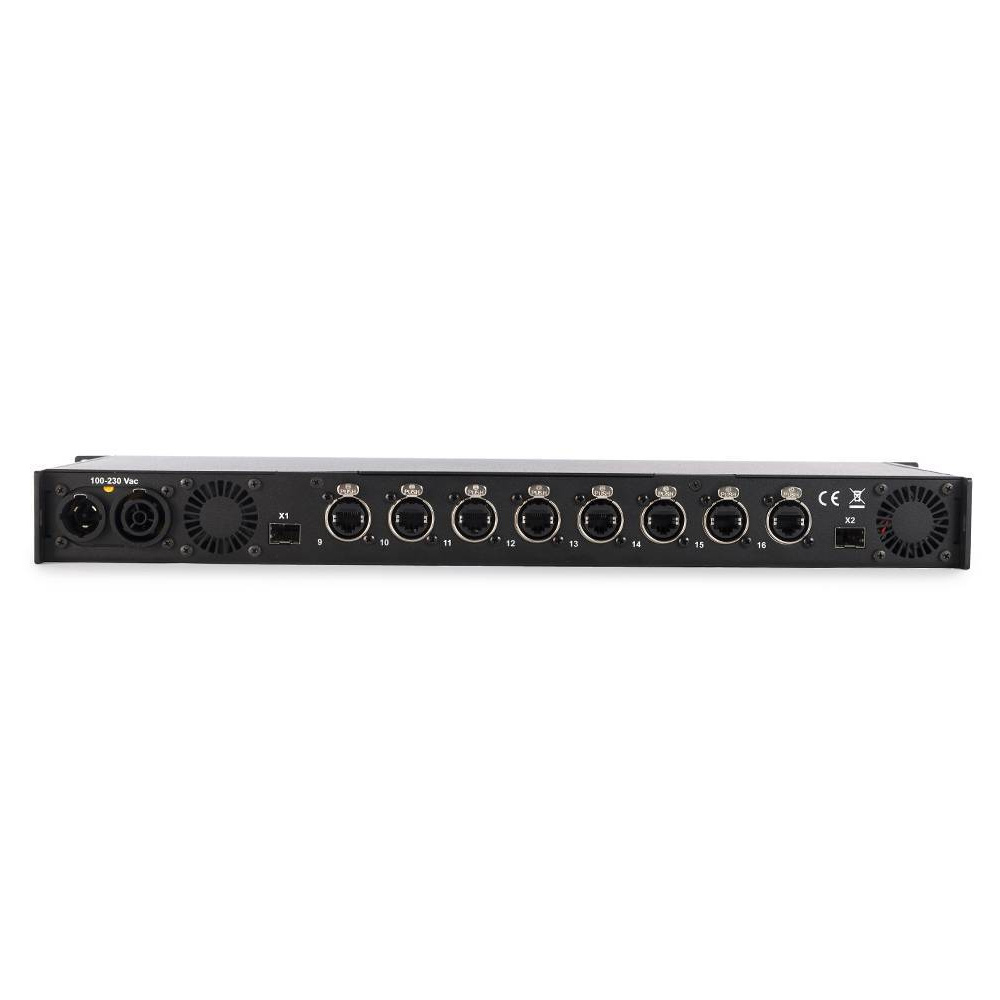

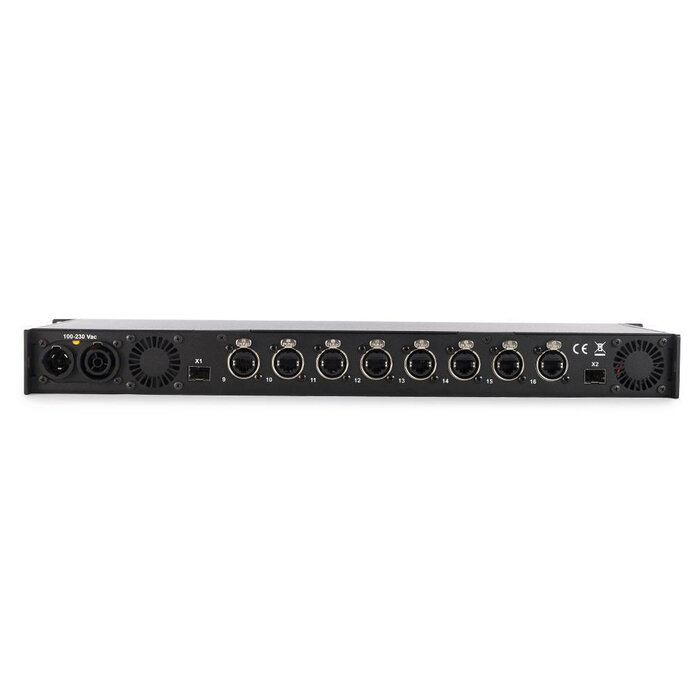

- 8 rear panel 1Gbps network ports

- 2 SFP cages on back panel for fiber optic modules up to 2.5 Gbps

- Simple remote programming with Green-GO Easy Setup software

- Multiple protocols supported (DanteTM / ArtNet / sACN / NET-2&3 / etc.)
