KRAMER - VM-2UX 1:2 4K 12G SDI DA

PRODUCT OVERVIEW

• 1:2 SDI distributor
• Resolution — Up to 4K (4:2:2) 30bpp
• Data rate — Auto–adapting, up to 12Gbps
• Input Reach — Up to 80m (260ft) at 12Gbps
• Compliance — SMPTE standards
• Lockable connections

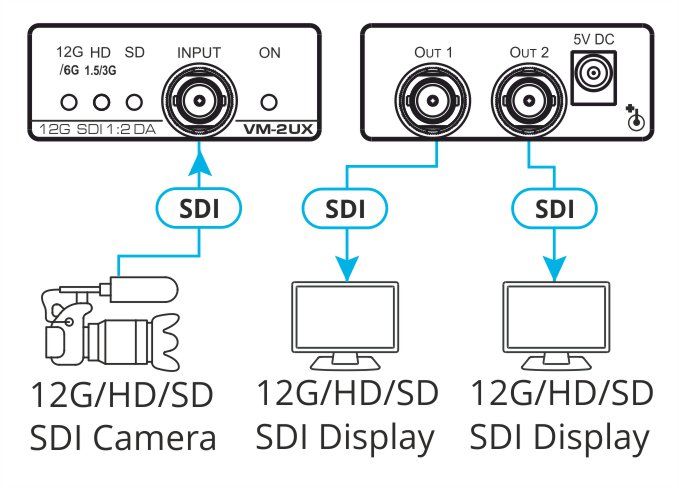

The VM−2UX is a compact and high−performance 1:2 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs.

•  Reliable Wire Connectivity — Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
•  Extended–reach Input Extension — Input signal equalization and output signal reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 80m (260ft) for 12G 4K signals.
  Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non–Kramer coaxial cables.
•  Transmitted Data Rate — From 270Mbps to 12Gbps data rates.
•  Max. Resolution — 4K@60Hz (4:2:2) 30bpp.
•  SDI Signal Transmission — Auto–adapts to SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.

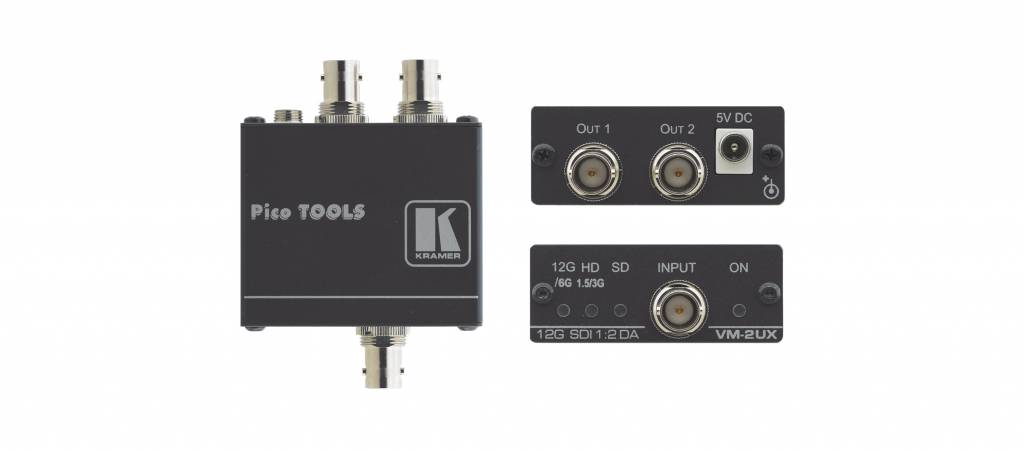

•  Easy Installation & Maintenance — Compact Pico TOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting. Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

APPLICATIONS

•  SDI video production studios
•  Broadcast studio and field SDI video production events
•  Staging and rental deployments
•  Medical facilities with highly reliable video deployments

SPECIFICATIONS

INPUT

• 1 SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) compliant serial video input on a 75Ω BNC connector

OUTPUTS

• 2 equalized and reclocked SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) outputs on 75Ω BNC connectors

CABLE EQUALIZATION REACH

• 12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
• 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft)

VIDEO

• Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate

MAXIMUM OUTPUT LEVEL

• 800mVpp/75Ω

COUPLING

• AC

STANDARDS COMPLIANCE

• SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI), ST–2082 (12G–SDI)

POWER CONSUMPTION

• 5V DC, 250mA

POWER SOURCE

• 5.2V/4A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

DIMENSIONS

• 6.2cm x 5.2cm x 2.4cm (2.4" x 2.05" x 0.9") W, D, H

WEIGHT

• 0.093kg (0.205lbs) approx

SHIPPING DIMENSIONS

• 15.7cm x 12cm x 8.7cm (6.18” x 4.7” x 3.42”) W, D, H

SHIPPING WEIGHT

• 0.52kg (1.15lbs) approx

INCLUDED ACCESSORIES

• Power supply, mounting bracket

PRODUCT DIMENSION

• 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H

PRODUCT WEIGHT

• 0.5kg (1.1lbs) approx.

SHIPPING DIMENSION

• 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

SHIPPING WEIGHT

• 0.9kg (2.1lbs) approx.
