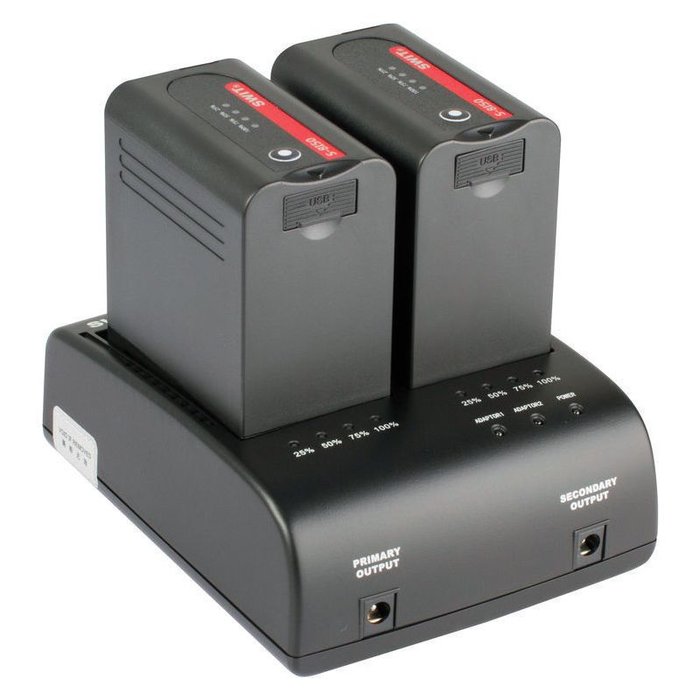

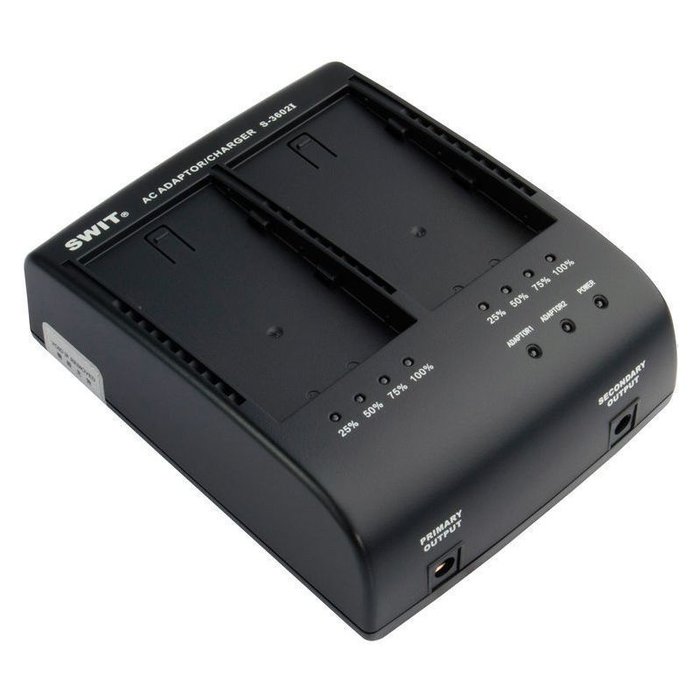

Swit S-3602I JVC DV battery Charger / Adaptor

S-3602I 2-ch JVC SSL Charger and Adaptor

- Charger for SWIT S-8i50 battery
- 2-ch simultaneous charging
- Compatible with SSL-JVC50 DV battery
- 2 DC adapting output sockets
- 4-level LED charging indicators

SSL-JVC50 DV battery Charger

S-3602I is a dual channel charger for SWIT S-8i50, and compatible with SSL-JVC50 DV battery that used on JVC GY-HM600/650/HMQ10 cameras.

Dual Channel Simultaneous Charging

S-3602I has 2 charging channels, with DC 8.4V, 2A charging output
for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel,
which indicate the real time capacity by percentage when charging.

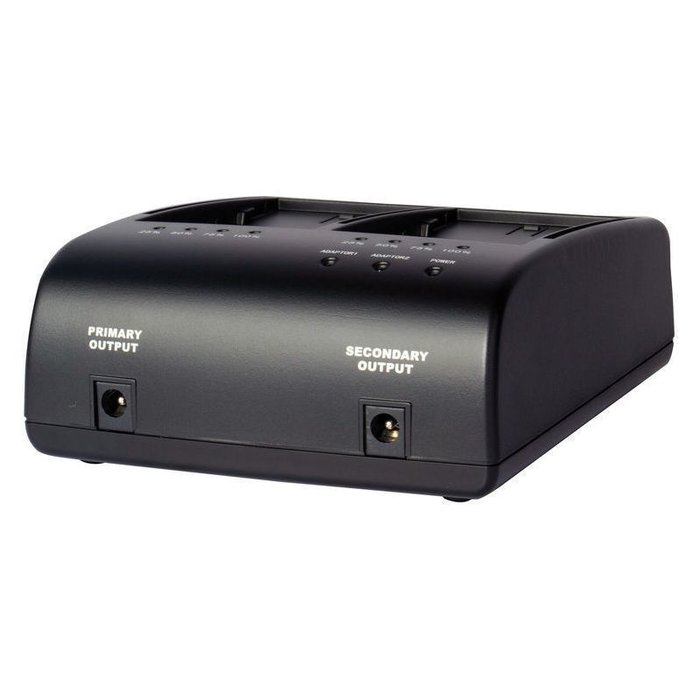

AC-DC Adapting Output

S-3602I has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total.
The package also provides a dummy battery adaptor (S-7500I) for adapting JVC GY-HM600/650 cameras, or the equipments with SSL-JVC50 battery mounts.

Technische specificaties

Input
AC 100V-240V 50/60Hz

Charging output
DC 8.4V, 2A×2

Adapting output
DC 8.4V, 4A

Applicable battery
S-8428
JVC BNV series V428U

Applicable camera
JVC GY-HD100, 101, 110, 111

Dimension
136×110×47mm

Weight
0.36kg
