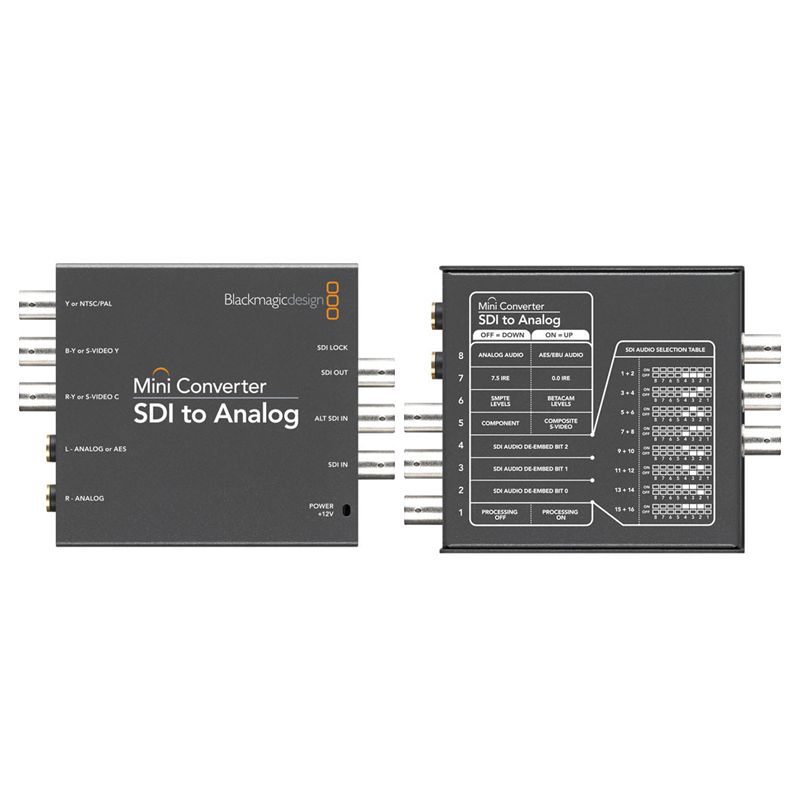

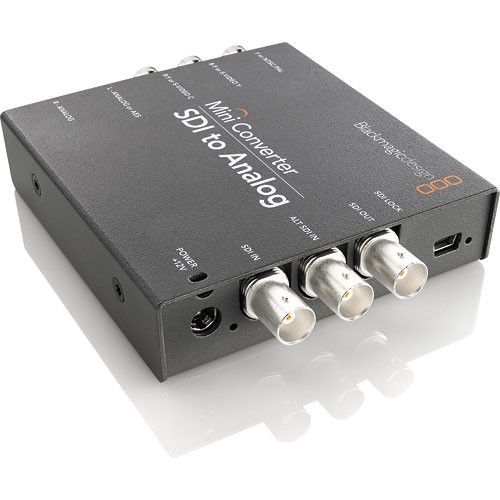

Blackmagic Design Mini Converter - SDI to Analog
The perfect way to convert SD and HD-SDI to analogue component, s-video or NTSC/PAL composite. Mini Converter SDI to Analog supports all SD and HD input formats up to 1080p30 and includes a downconverter for when you need to convert from HD to standard definition analogue formats such as s-video and composite. Audio can be de-embedded to balanced analogue or AES/EBU. The Mini Converter SDI to Analog is ideal for converting to older analogue equipment when you don’t need the added expense of the 6G-SDI 4K model.
Mini Converter SDI to Analog
Software CD
12V universal power supply with international socket adapters
Standards
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition adn UHD
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
Analog Format Support
625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080Ps F24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD down conversion
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12V
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
