ACT singlemode fiber patch cable (LC) 40 meters

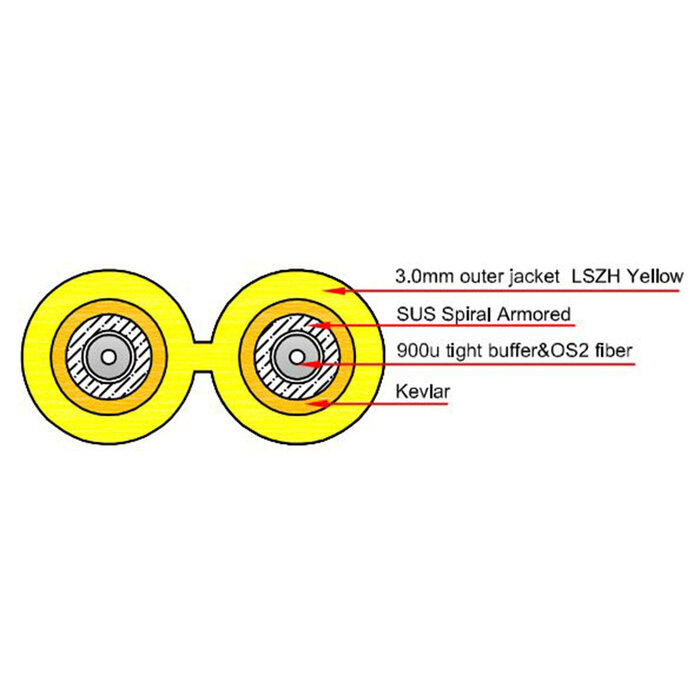

ACT singlemode 9/125 OS2 duplex armored fiber patch cable with LC connectors
Art. No. RL3340
- Best mechanical protection | Steel armored fiber optic patch cables are equipped with a metal armoring
- Highest quality and best optical performance | Grade A compliant (IEC
- Best mechanical protection | Steel armored fiber optic patch cables are equipped with a metal armoring
- Highest quality and best optical performance | Grade A compliant (IEC Standard 61300-3-34)
- 100% clarity | Each cable is tested for attenuation (Insertion Loss) and provided with an individual test report
If your patch cables are exposed to extreme conditions, you can opt for armored patch cables. Armored patch cables are also called armored or armored fiber optic patch cables. These are patch cables with a metal protective layer, making the cables even more robust and better protected. This type of patch cable is often used in industrial and offshore applications.
1x 40 meter singlemode 9/125 OS2 duplex armored fiber patch cable with LC connectors
Product Category | Armored cables |
Cable length | 40 m |
Connector type | LC |
Connector A | LC male (x2) |
Polishing A | UPC |
Connector B | LC male (x2) |
Polishing B | UPC |
Clipped | Both |
Fiber optic cable | Armored |
Fiber type | Singlemode |
Category | OS2 |
Number of fibers | 2 |
Fiber diameter | 9/125 µm |
IL (max.) | 0.15 dB |
IL (gem.) | 0.07 dB |
RL (min.) | 50 dB |
Cable sheath | LSZH |
Outer diameter | 3mm |
Cable color | Yellow |
Min. working temperature | -25 °C |
Max. working temperature | 80 °C |
Warranty (years) | 5 |
