GreenGO Audio interface 2x4 wire
The GreenGO interface range consists of several advanced devices that can integrate analog intercom systems with the GreenGO digital Ethernet network, with external networks and connect with remote controlled users. Or connect radio devices to a GreenGO network.
Interesting about GreenGo are the extensive possibilities of this intercom system. GreenGo is as complete as you can imagine.
The GreenGo equipment works as a combination. You can of course always contact us without obligation for suitable advice and a tailor-made solution.

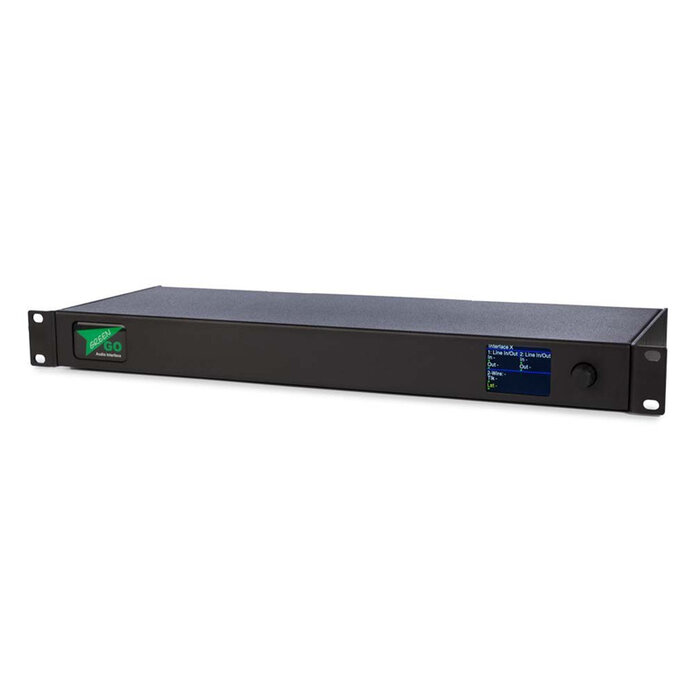

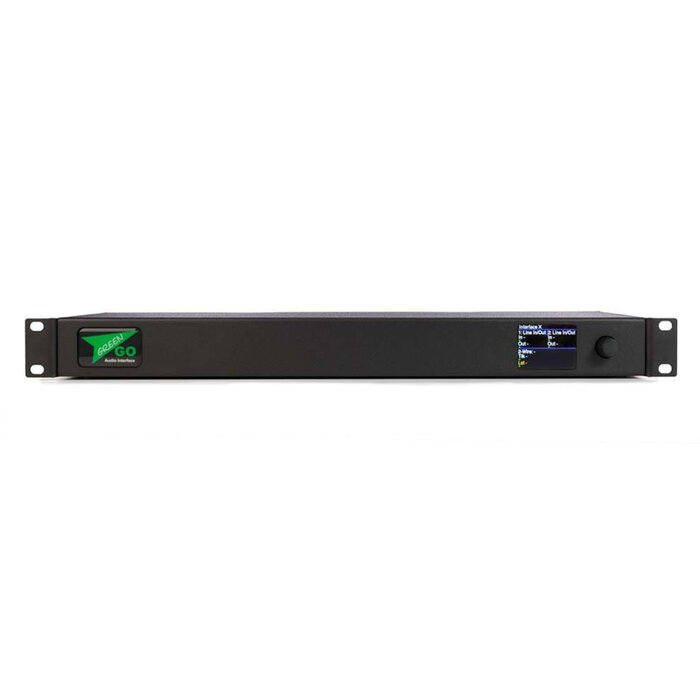

- Illuminated menu display and rotary encoder for settings
- 2 EtherCon LAN connections with 100MBit switch
- 2 pairs of 3-pin XLR in/out ports for 4-wire connection
- 3-pin XLR port for 2-wire connection
- 2 9-pin GPIO connectors
The Green-GO InterfaceX connects 2-wire or 4-wire analog intercom systems to the Green-GO digital Ethernet network. This contact closure audio in/out interface connects to an existing matrix or other analog interfacing products. A 4-wire intercom can be connected to the dual in/out 3-pin XLR ports. For example, two separate audio signals (or a stereo signal) can be injected into the Green-GO network and sent to any other location on the same Ethernet network.

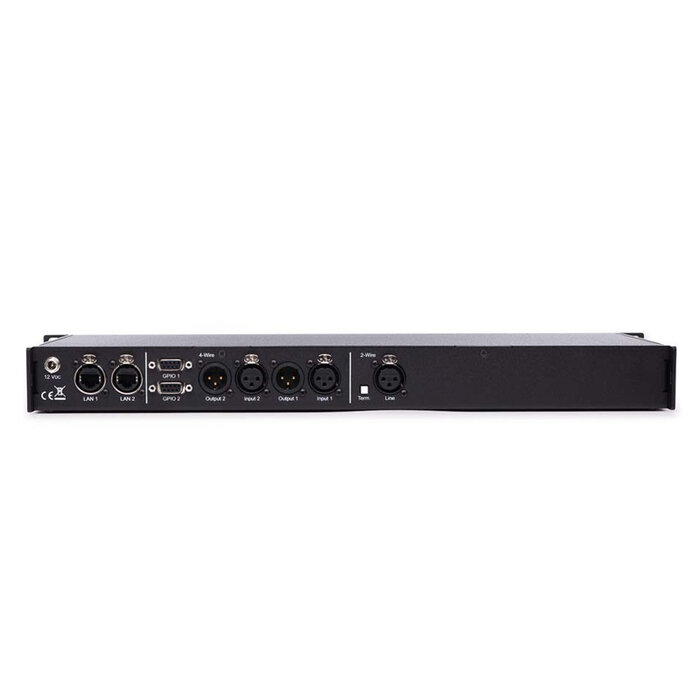

In addition to the 4-wire connections, there is a separate 3-pin XLR port especially for connecting a standard analog 2-wire intercom (partyline system). All ports can be individually configured via the setup menu of the Green-GO InterfaceX. There are also two GPIO connectors on the back of the device.
