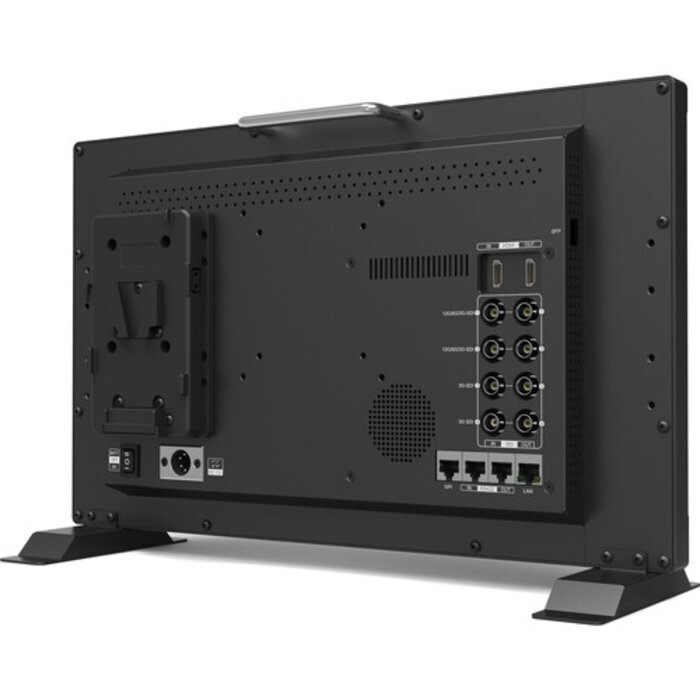

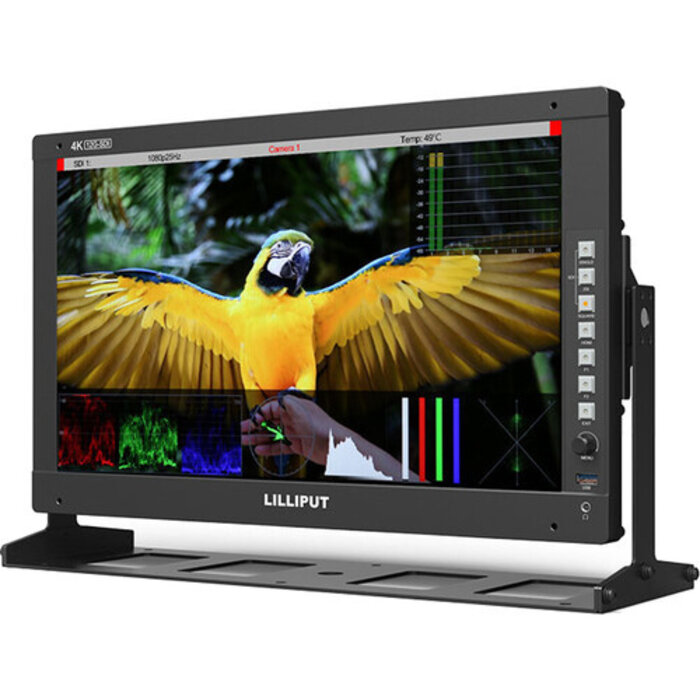

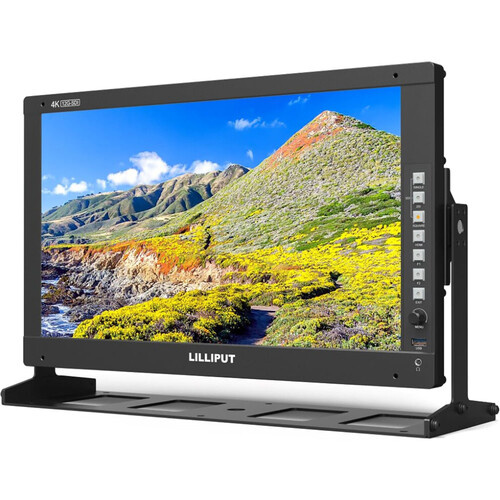

Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor

Key Features

• 3" Display 1920 x 1080 IPS LCD
• Supports up to UHD 4K60 Input
• 12G/3G-SDI & HDMI 2.0 Input/Loop Output
• HDR & 3D LUT Support
• Gold Mount Battery Plate
• Single/Dual/Quad-Link 12G-SDI Input
• 1200:1 Contrast, 300cd/m² Brightness
• 170°/170° Viewing Angle
• Waveform/Vectorscope/Focus Peaking
• Carrying Case, Tilt & Tabletop Mounts

The Q17 17.3" 12G-SDI/HDMI HDR Monitor from Lilliput is a 1920 x 1080 resolution production monitor that supports up to UHD 4K input and loop output. Its display provides 1200:1 contrast, 300 cd/m² brightness, and a wide 170 x 170° viewing angle. The integrated battery plate enables you to use longer-lasting Gold mount batteries when not working near an AC power source. The Q17 monitor features one HDMI 2.0, two 12G-SDI, and two 3G-SDI inputs and loop-through outputs. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link options plus an expansion slot for an optional 12G SPF+ module.

Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, selectable markers, and color temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.

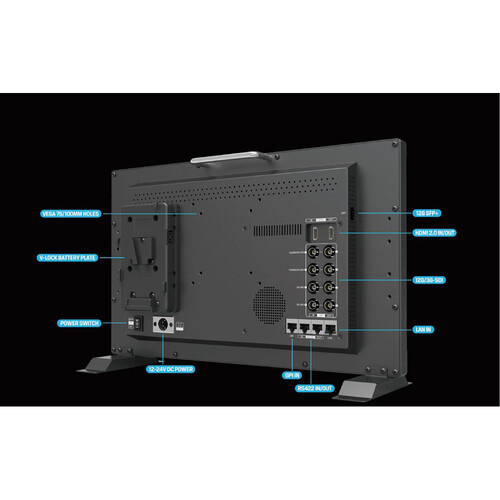

Versatile Inputs/Loop Outputs

• 12G-SDI single/dual/quad link
• 3G-SDI
• HDMI 2.0

Color Calibration

Color Spaces

• SMPTE C
• Rec. 709
• EBU

Color Temperature

• 3200/5500/6500/7500/9300K
• Customizable settings

Gamma Options

• Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas

Remote Control

• LAN control
• RS-422 control
• Lissajous audio vector
• Audio levels

High Dynamic Range

• Selectable HDR offers greater detail in highlights and shadows
• Supports ST2084/ST2084 1000/HLG

Display Functions

• Quad-view
• False color
• Focus peaking
• Check field
• Image flip
• Image freeze
• Selectable markers
• Color temperature selection

Versatile Mounting

• Tabletop base
• Tilting bracket
• Carrying case
• Rack-mountable
