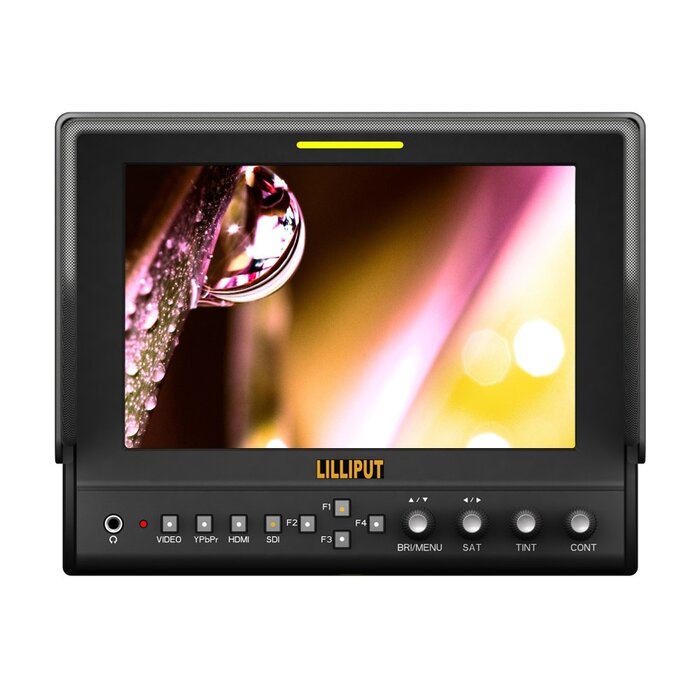

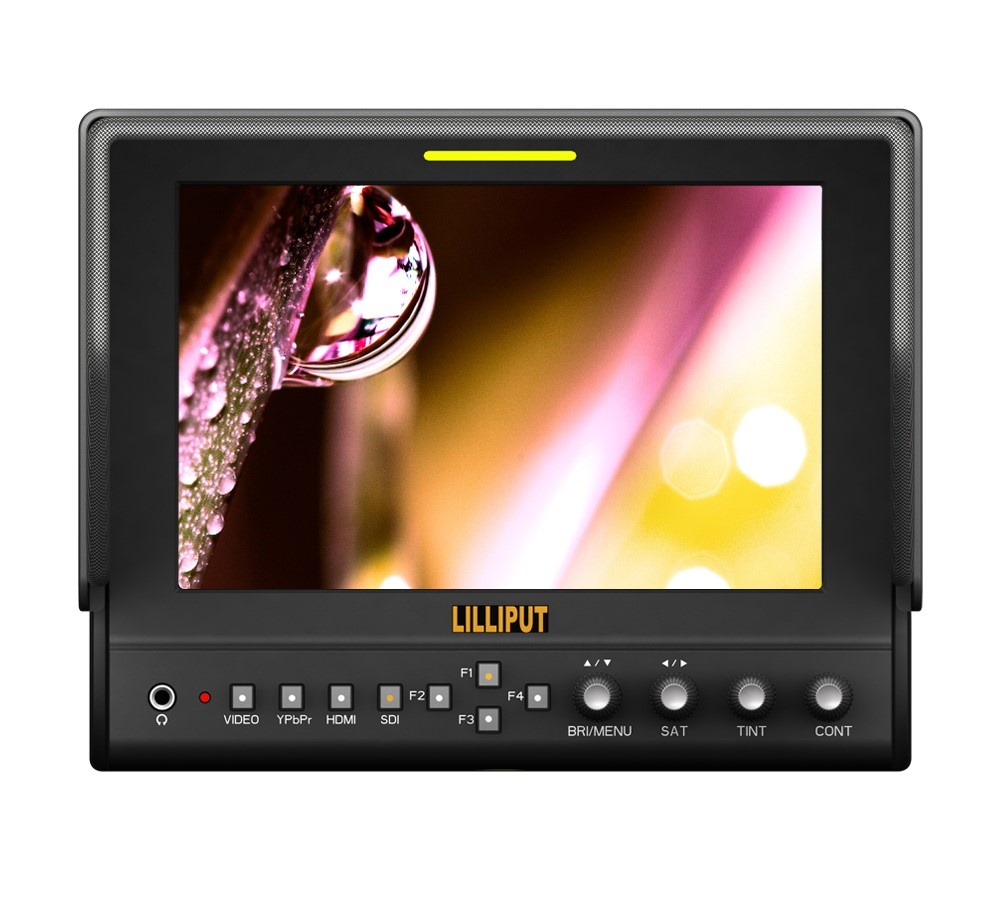

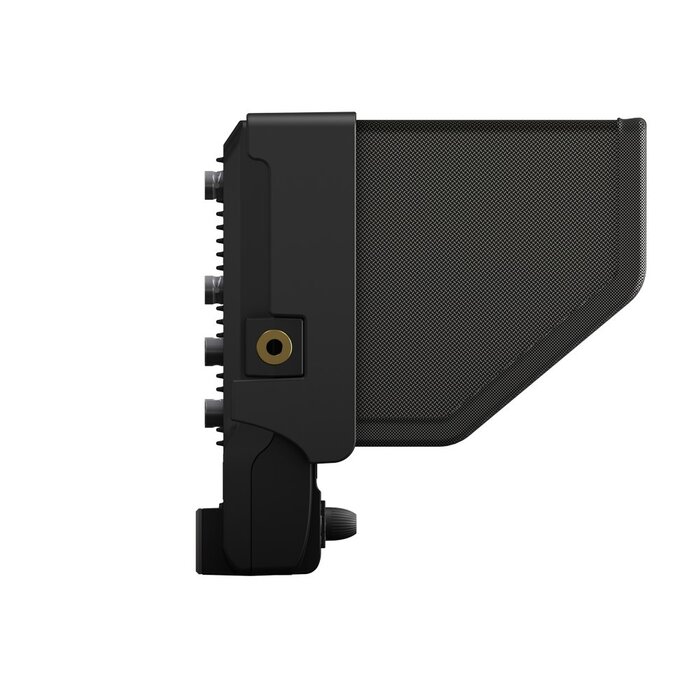

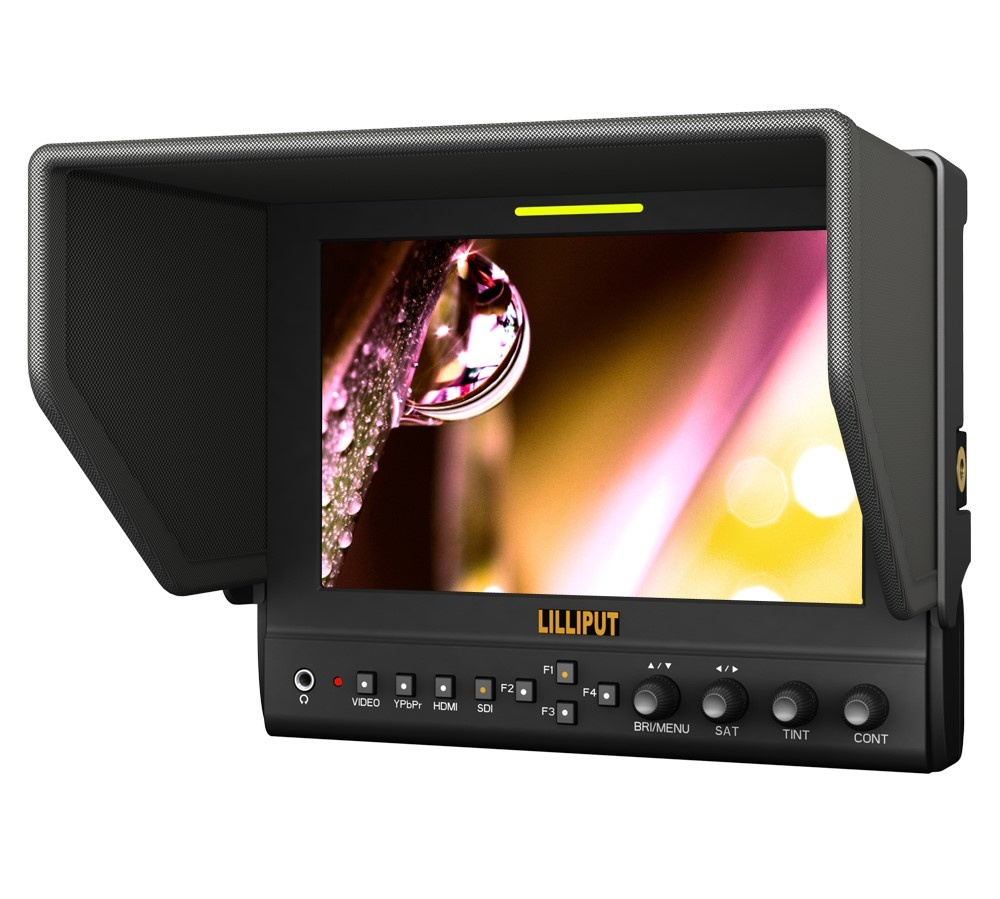

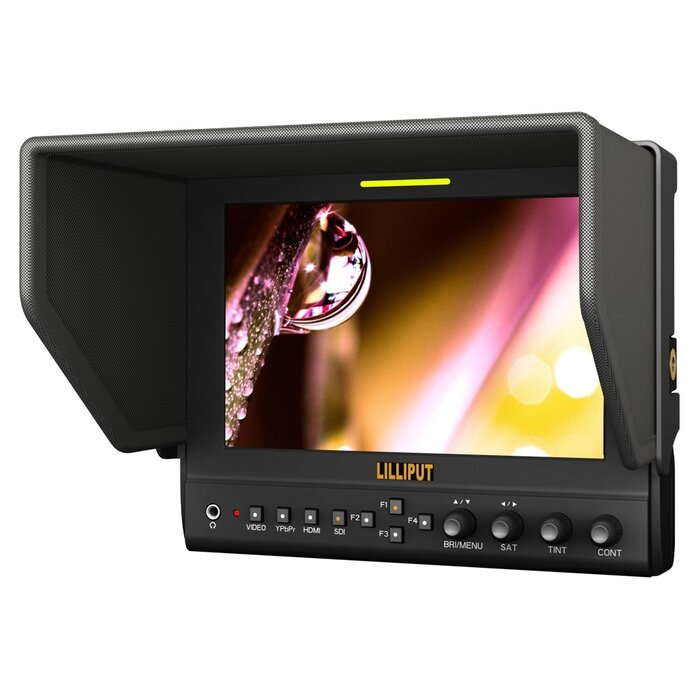

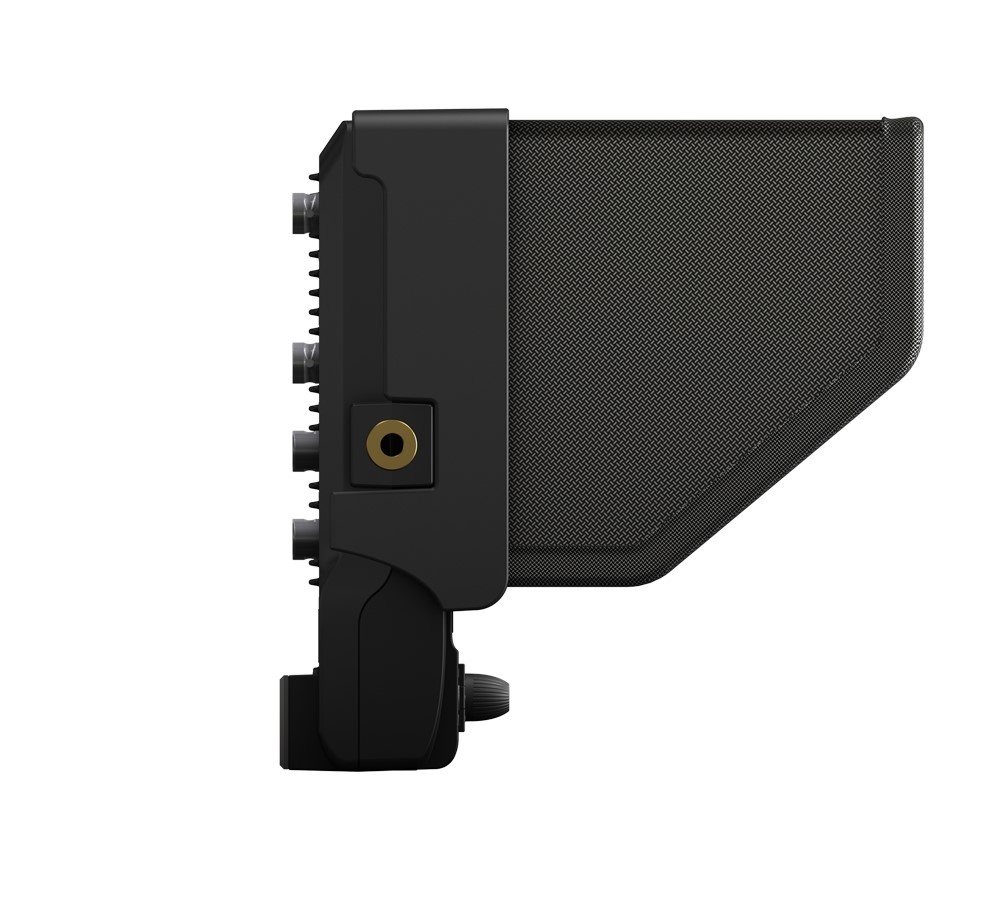

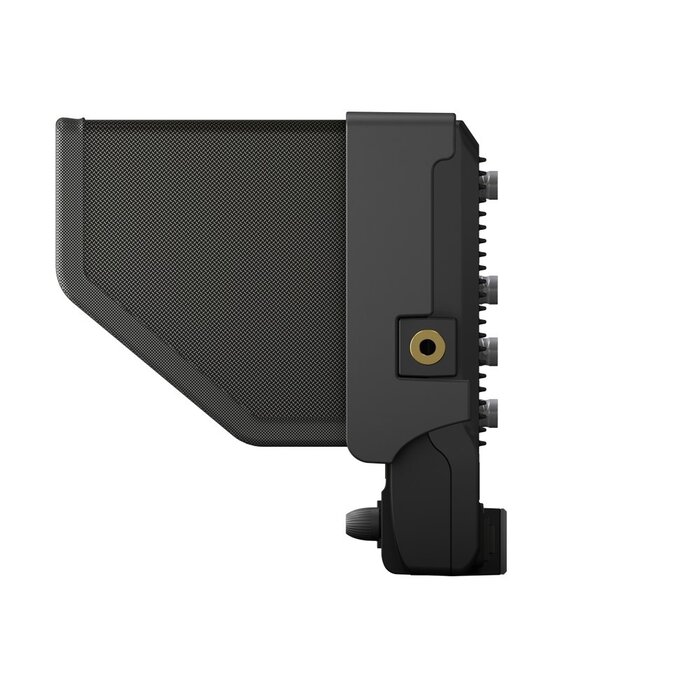

Lilliput 663/S2 SDI Monitor 7 inch

Description

The Lilliput 663 is a robust and reliable monitor for daily EB or studio operation.

Full metal housing, sun visor, carrying case and various battery adapters make this monitor a daily companion.

Extensive features such as peaking filter, false color display, exposure control and brightness distribution are included. Of course, the 663 series Canon 5D MkII and MKIII is compatible!

inputs:

HD-SDI (BNC)
Video (BNC)
Component (BNC)
HDMI (Type A)
Audio (RCA)

outputs:

HD-SDI (BNC)
Video (BNC)
HDMI (Type A)
Speaker and headphone jack
12 volt XLR connector
Various battery adapters available
V-Mount, Gold Mount, Panasonic, Sony, Canon .....
Scope of delivery of this package:
Monito 663/S2
Sunscreen roofs
aluminum case
power adapter
XLR / DC adapter
hotshoe
HDMi cable TYPE A-C
Supplied battery adapter: V-mount battery plate, Sony NP-F adapter, Canon LP-E6 adapter

Technische specificaties

16:9 display 1280*800 pixels resolution
Panel: 7 inch LED (16:9) 17.8 cm
Resolution: 1280x800 (IPS panel)
Input signals up to 1920x1080
Brightness: 400 cd/m²
Contrast: 800:1
Viewing Angle: 178°(H/V)
Input voltage: DC 7V to 24V (variable)
Input signal formats: HDMI, YPbPr, AV, HD-SDI
Current requirement (typical): 900 mA
Standby power requirement: ? 50mA
Power consumption: ? 11 w
Audio performance: ? 1w
Speakers: 1 x front
Headphone jack: 1 x front
Dimensions (HWD): 191.5x152x31 mm / 191.5x152x141 mm (with sun visor open)
Weight: 760g / 938g (with sun visor without battery), 2160g including case

Scope of delivery of this package:

Monitor 663/S2
sun visor
aluminum case
power adapter
XLR/DC adaptor
hot shoe
HDMI cable TYPE A-C
Supplied battery adapters: V-Mount battery plate, Sony NP-F adapter, Canon LP-E6 adapter

Menu functions:

Function keys 1-4 programmable with the following functions:

Center Marker
Screen Marker
Check Field
Color Bar
Kamera
PIP
Flip
Zoom
Pixel-to-Pixel
Freeze Input
Underscan
H/V delay
Peaking
False Color
Exposure
Histogramm

Knobs functions:

Contrast
Brightness
Saturation
Tint
Volume
Sharpness
Back Light
