Description

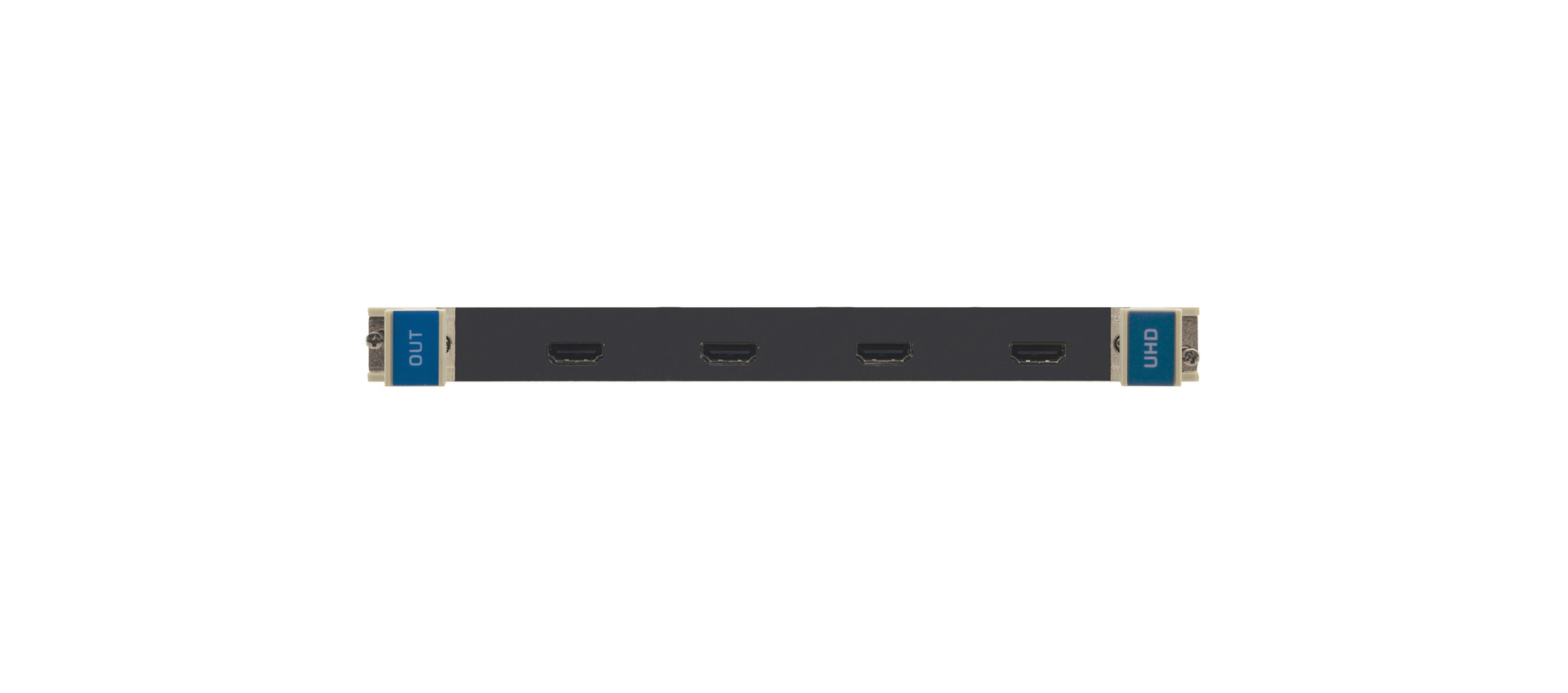

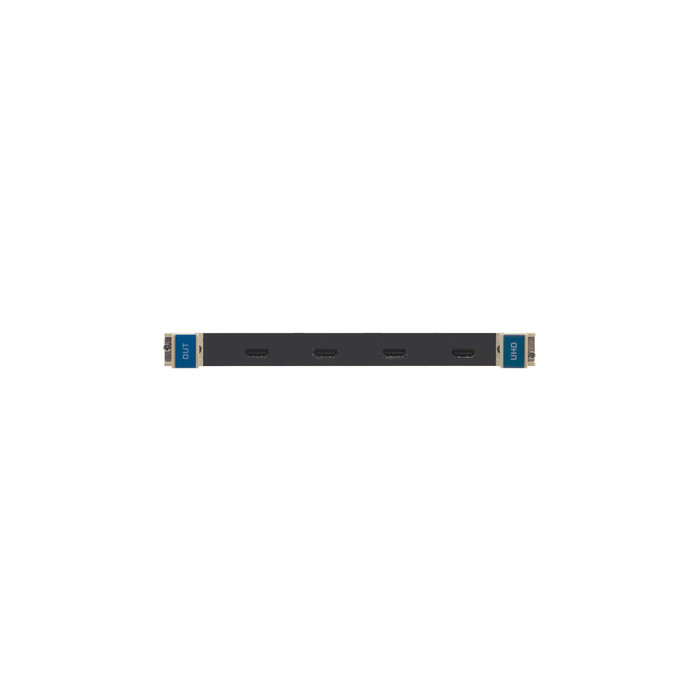

UHD−OUT4−F32 is a four−channel 4K@60Hz (4:2:0) HDMI output card for the VS−3232DN−EM Modular Multi−Format Digital Matrix Switcher. UHD−OUT4−F32 outputs four HDMI signals from the chassis.
- Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
- Resolution Support — Up to 4K@60Hz (4:2:0).
- HDMI Support — 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture — Copies and stores the EDID from a display device.
- 3D Pass–Through.
- Kramer Equalization and re–Klocking Technology.
Top of Form
APPLICATIONS
- Professional display systems requiring video signal routing
- Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
- Rental/staging applications
Technische specificaties
- 4 HDMI
- 2.97Gbps per graphics channel
- 8.91Gbps data rate
- 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)
- Supported
- 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, 7.1 multi–channel audio
- 8W
- –40° to +70°C (–40° to 158°F)
- 10% to 90%, RHL non–condensing
- HDCP 1.4, HDTV compatible
- CE
- Complies with appropriate requirements of RoHs and WEEE
- 22.00cm x 18.80cm x 2.00cm (8.66" x 7.40" x 0.79" ) W, D, H
- 0.2kg (0.5lbs) approx.
- 25.00cm x 22.50cm x 5.50cm (9.84" x 8.86" x 2.17" ) W, D, H
- 0.4kg (0.9lbs) approx.
OUTPUTS
BANDWIDTH PER CHANNEL
TOTAL BANDWIDTH
MAXIMUM RANGE
3D PASS THROUGH
HDMI SUPPORT
POWER CONSUMPTION
OPERATING TEMPERATURE
HUMIDITY
STANDARD COMPLIANCE
SAFETY REGULATORY COMPLIANCE
ENVIRONMENTAL REGULATORY COMPLIANCE
PRODUCT DIMENSIONS
PRODUCT WEIGHT
SHIPPING DIMENSIONS
SHIPPING WEIGHT
