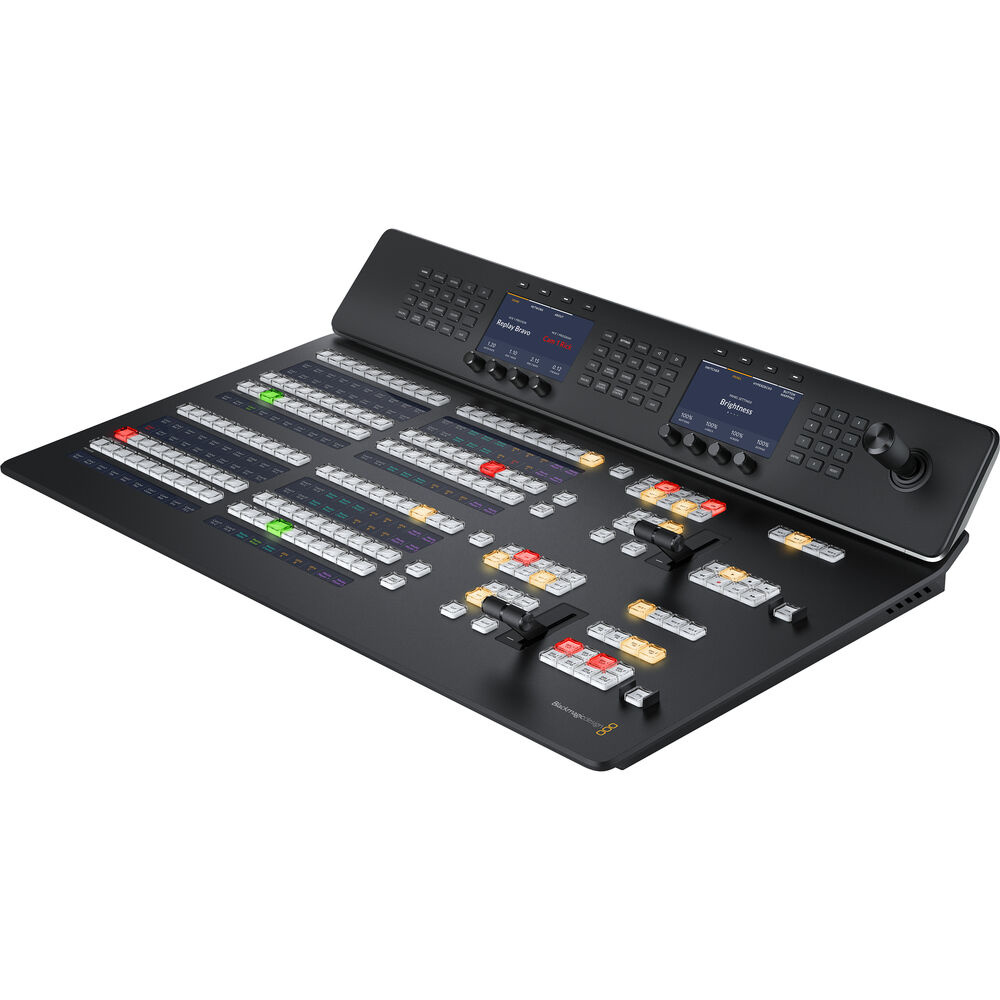

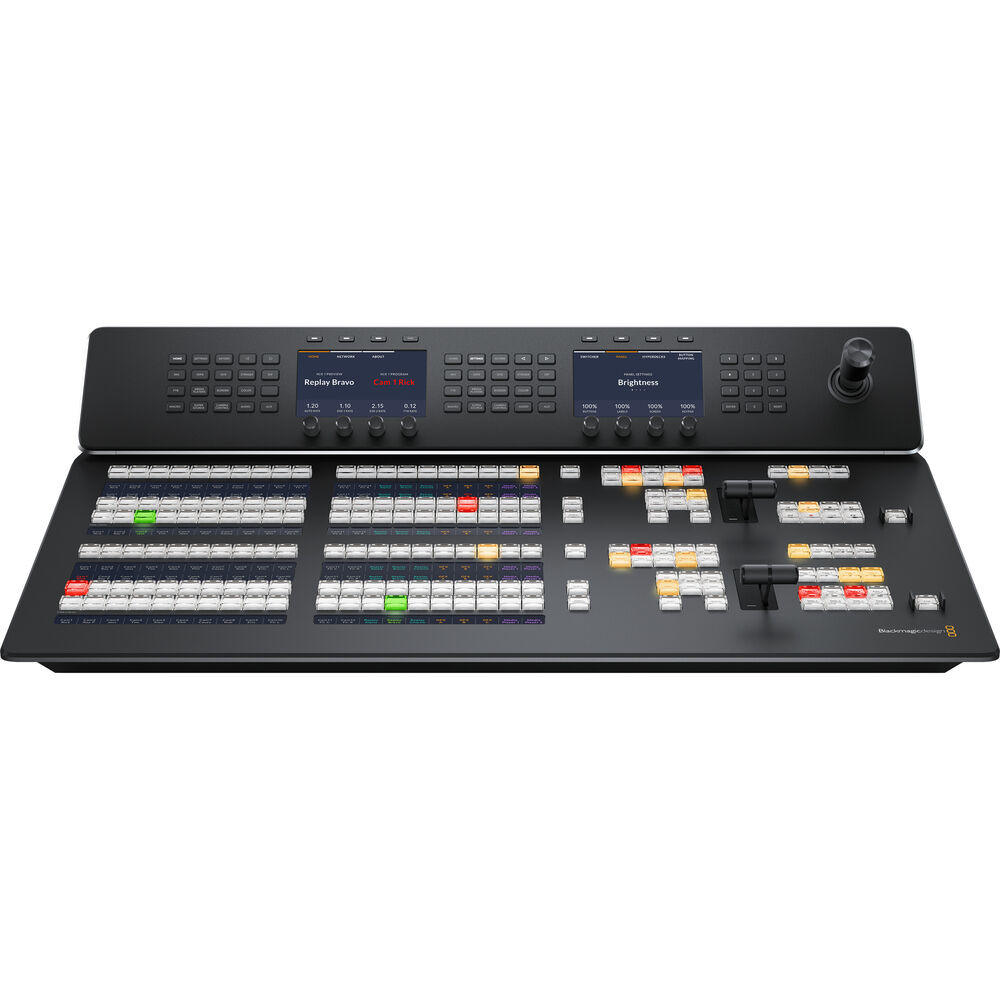

Blackmagic Design ATEM 2 M/E Advanced Panel 20

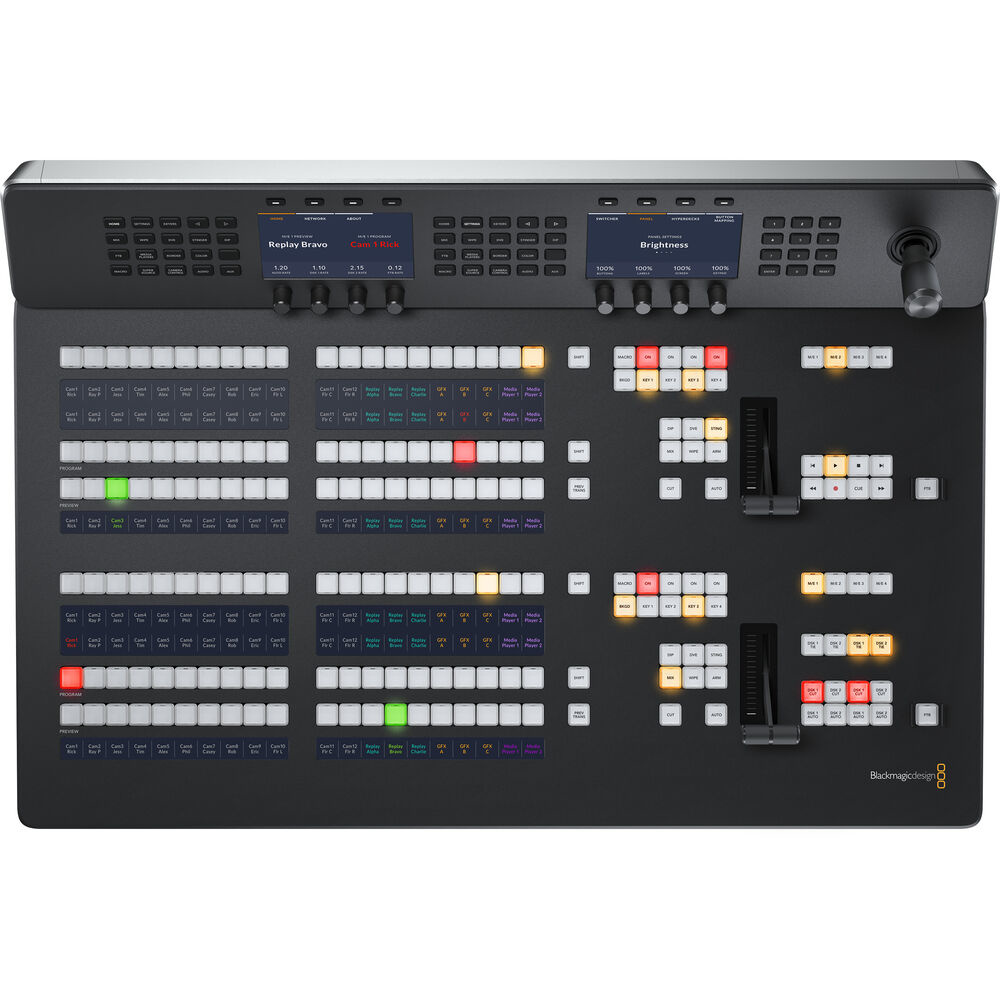

The 2 M/E model has 2 M/E rows with 20 input buttons and 2 independent control LCDs for each row. In addition, each row can drive up to 4 M/Es in larger switchers. Both rows and all input buttons are equipped with LCDs for custom labels. Each row also contains an independent selection bus!
ATEM 2 M/E Advanced Panel 20
A C13 cable is needed for power, this is not supplied
Connections
Ethernet
4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
software updates
1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows
2
Direct Cross Points
20
Shifted Cross Points
40
Cross Point Button Type
Tri Color LED
Cross Point Label
6-row 24-character LCD
Next Transition Selectors
2 x BKG, Key 1 - Key 4.
On Air indicator
8
Power Status Indicators
None
DSK Transition Selectors
Auto, Cut, Tie/Preview x 2
preview transition
2
Transition Rate Displays
Via main menu
LCD Menu Displays
2
Control menu
20 buttons x 2
Dedicated Macro Buttons
2×20
Transportation Control Buttons
8
Destination Bus
2
Source Select Bus
2
fade bar
2
3 Axis Joystick
1
Numeric keypad
1
Software
SoftwareApplications
ATEM Software Control Panel.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10, 64 bit.
Power Requirements
Input Voltage
2 x Internal 100-240V AC.
Redundant Power
Yes
Power Usage
150W
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
relative humidity
Up to 95%
