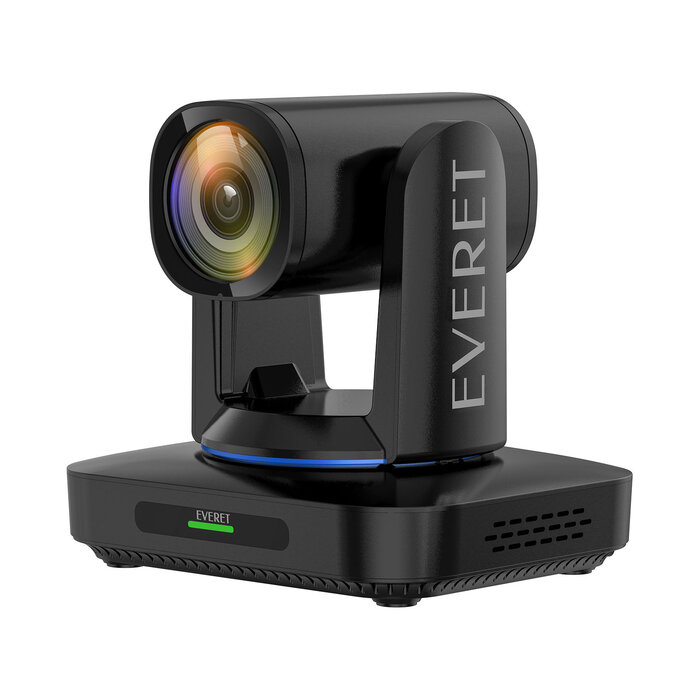

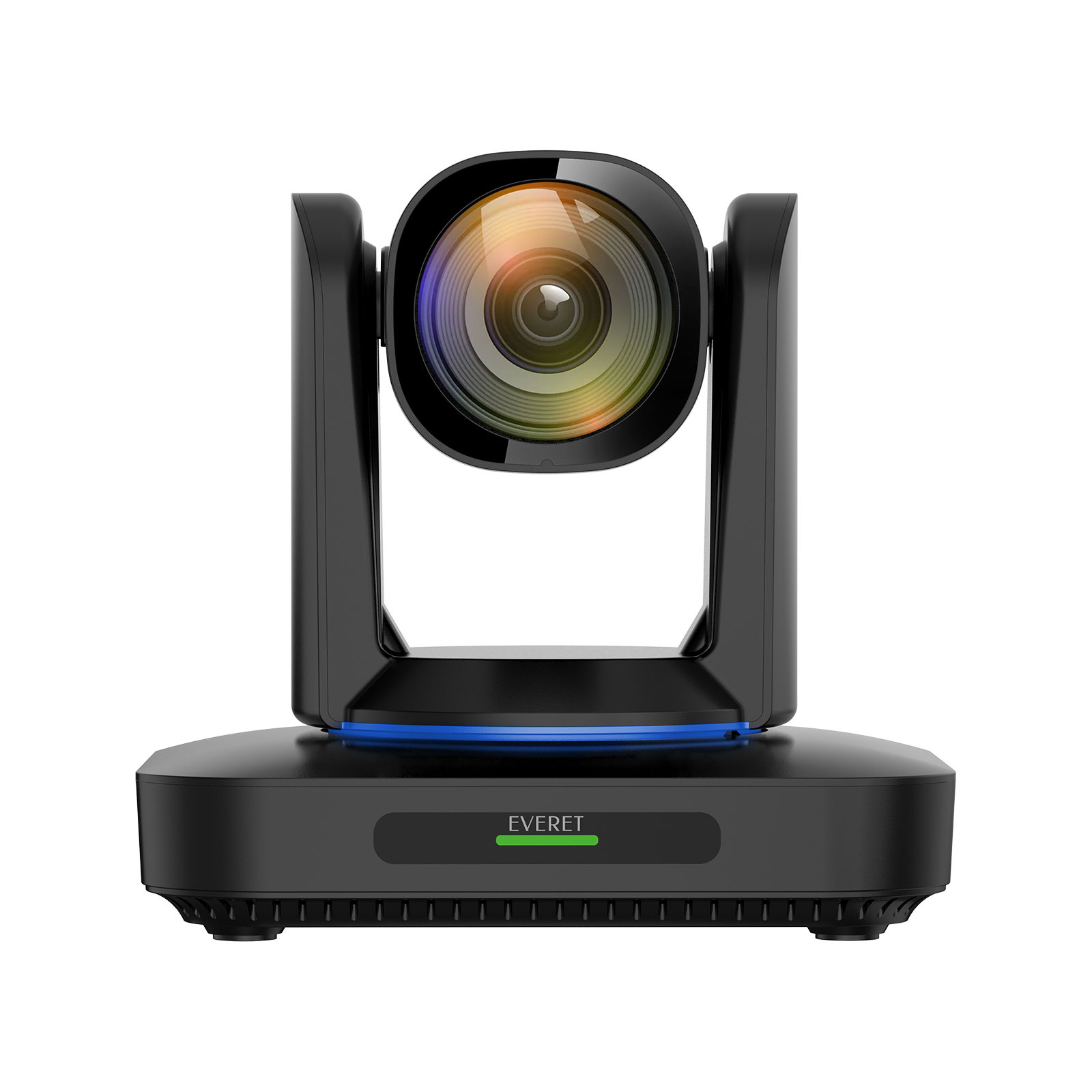

Everet EVX220 NDI HX3 PTZ Camera 20x zoom
The Everet EVX220 is a premium NDI®|HX3 full HD remotely controllable PTZ camera with 20x Zoom. Simplifying setup supporting PoE, superior video quality, tally light and control using a standard gigabit enabled network and native integration with all NDI® compatible systems and software on your network including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more. NDI|HX3, offers both low bandwidth and low latency options, the NDI®|HX3 encoding is visually lossless, even in bandwidth constrained environments.
The PTZ camera features resolutions up to 1080p60, a Panasonic 1/2.86″ 2.4MP CMOS sensor, and an integrated 20x optical zoom lens to capture high quality imagery. The camera offers also multiple simultaneous video output options including HDMI, 3G-SDI, UVC USB and IP streaming.
In addition to HDMI, 3G-SDI, and USB2.0 output up to 1080p60, the camera supports H.264/H.265 HEVC compression and it transmits IP video streams using NDI®|HX3, SRT, RTSP, RTMP, and HTTP protocols. SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. You can remote control the camera using IP RS-485, or RS-232 with separately available serial controllers, or you can utilize the included IR remote control.
With the Everet EVX series WebUI, it is easy to setup, upgrade, preview and operate the control of the camera from your browser without any plug-in. The camera is easy to install setting the IP address via OSD menu and powered using the included power adapter, or using PoE on selected networks with one RJ45 cable to get high quality video, tally light, control and power supply. Use the optional ceiling bracket to mount the camera upside-down and flip the camera image with the build-in feature.
KEY FEATURES
- NDI HX3 Certified
- 20X Optical Zoom
- Get video, PTZ control, tally and power supply with one CAT5/6 cable
- Compatible via NDI version 5
- Smooth pan-tilt-zoom
- Automatic NDI® tally support
- Support for HD video formats up to 1080p 60
- Superior Video Quality
- Efficient Bandwidth
- Low Latency
- Panasonic 1/2.86 inch CMOS 2.4MP sensor
- 60° Field of View
- HDMI, UVC USB, 3G-SDI compatible with Blackmagic Design SDI Level-B
- IP Streaming – RTSP/ RTMP/SRT/NDI®|HX
- Audio in connector
- Flexible Mounting options
- Available in Black and White colors
- 3-Year Warranty
- Webbased UI for easy setup, preview and control
- One-click firmware upgrades
- Supported vMix PTZ NDI Camera
EVERET EVX220 PTZ Camera
DC12V Power Adapter
Power Cable
RS232 Cable
IR Remote Controller
Model Number | EVX220/EVX220W | |||
Video Output | NDI®|HX3, 3G-SDI*, HDMI, USB2.0 | |||
Sensor | Panasonic 1/2.86″ CMOS 2.4 MP | |||
Video Formats | HDMI 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 3G-SDI 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 NDI|HX3 Main Stream： 1920*1080@15~60; 1280*720@15~60; 1024*576@15~60 640*360@15~60
NV12 :1920*1080p5;1280*720p15;1024*576P25;800*448P30; |
|
|
|
|
|
| ||
Lens | 20x Optical & 4x Digital Zoom | |||
Shutter Speed | 1/30 to 1/10,000 sec | |||
Panning Angle | -170° to +170° | |||
Tilting Angle | 30° to +90° | |||
Audio Input | 3.5mm stereo audio input (line) | |||
Horizontal Viewing Angle | 60°(Far)-3,2°(Near) | |||
Focal Length | 4.9~98mm | |||
Aperture | F1 ~ F14 | |||
Min. Object Distance | (Tele) 1.5M | |||
Min. Illumination | 0.1 lux | |||
Tally | Automatic NDI® Tally support | |||
User Interface | Webbased UI for easy setup, preview and control or NewTek NDI® | |||
Networking | 1 Gigabit Ethernet | |||
Video Encoding | H.264/H.265 | |||
Protocols | TCP/IP，NDI®|HX, SRT, HTTP，RTSP，DHCP，RTMP，ONVIF，VISCA over IP(TCP&UDP)，HTML5，VISCA，PELCO P/D | |||
Control | RS232, RS422, RS485, NDI®|HX, RJ45 (VISCA over IP)、USB2.0(UVC1.1) | |||
Power | POE+ (IEEE 802.3 at) or DC12V Power Supply | |||
Colors | Black/White | |||
Physical | Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm) | |||
EAN | 8720387387113(B) 8720387387144(W) | |||
Subject to change without notice | ||||
