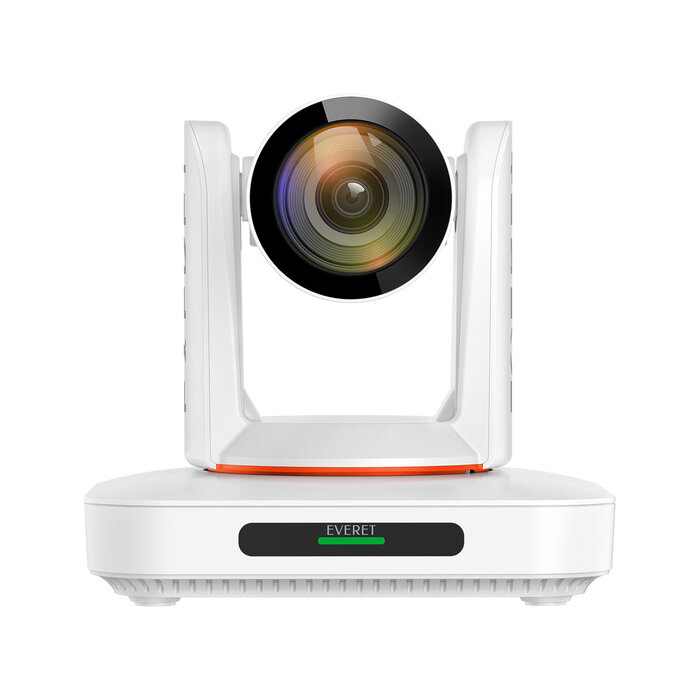

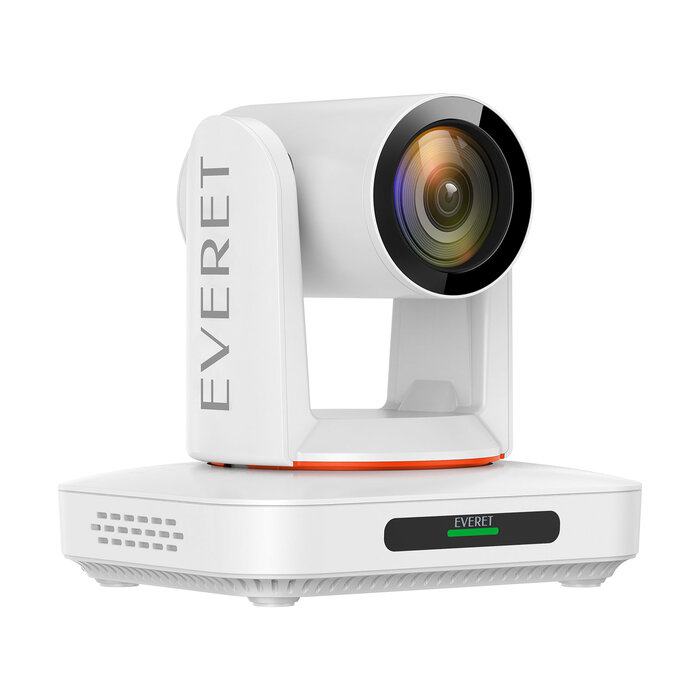

Everet EVP312W FHD NDI|HX2 PTZ Camera 12x zoom
The EVERET EVP312W is a Full HD NDI® HX2 broadcast PTZ camera with 12x Zoom. Offering four simultaneous video outputs and also NDI|HX workflows over IP. The SDI, HDMI, and USB outputs can be set at resolutions up to 1080p60, the NDI streaming can output at separate resolutions with frame rates from 1 to 60 fps. The pan, tilt, and zoom functions of the camera can be controlled via serial control or by using the included remote control. Simplifying setup supporting PoE, superior video quality, tally light and control using a standard gigabit enabled network and native integration with all NDI® compatible systems and software on your network including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more.
The PTZ camera is equipped with superior Ambarella ISP chipset, professional Panasonic 1/2.86″ 2.4MP CMOS sensor and 12x optical zoom lens to capture high quality imagery up to 1080p60. The camera also offers multiple simultaneous video output options including HDMI, 3G-SDI, UVC USB and IP streaming.
With the Everet EVP312W you will have a flexible and scalable NDI PTZ camera that can be used in a wide range of applications, from live production to broadcast, and everything in between.
Features
- NDI|HX2 Support
- Panasonic 1/2.86 inch CMOS 2.4MP sensor
- Superior High Performance American Ambarella ISP chipset
- 12X Optical Zoom
- 72.5° Field of View
- Simultaneous SDI, HDMI, USB, IP Outputs
- SDI (3G-SDI compatible with Blackmagic Design SDI Level-B)
- RS-232, VISCA over IP Control
- Smooth pan-tilt-zoom
- Automatic NDI® tally support
- Power over Ethernet (PoE) support: get video, control, tally and power supply with one CAT5/6 cable
- IP Streaming – RTSP/RTMP/SRT/NDI|HX
- Support for FHD video formats up to 1080p 60
- Wide Dynamic Range, 3D Noise Reduction feature
- Flexible mounting options
- Available in Black and White colours
- 3-Year Warranty
- Web-based UI for easy setup, preview and control
- One click firmware upgrades
EVP312W NDI|HX2 PTZ Camera
remote control
Power Adaptor
Power Cable
RS232 Cable
Fashion model | EVP312W | ||
Video format | HDMI | 1920*1080P60/50/30/25 1920*1080I60/50 1280*720P60/50/30/25 | |
SDI | 1920*1080P60/50/30/25 1920*1080I60/50 1280*720P60/50/30/25 | ||
RJ45 | 1920*1080@1~30 //1280*720@1~30（Main Stream） 1280*720@1~30 / 1027*576@1~30 / 640*360@1~30 （Sub stream） | ||
| NDI|HX 2 | 1920*1080@3~60, 1280*720@3~60 1024*576@3~ 60640*360@30 (low bandwidth mode) | |
VideoInterface | HDMI,3G-SDI,NDI|HX 2 | ||
audio input | 3.5mm Line In | ||
audio out | RTSP and RTMP | ||
Sensor | 1/2.8 inch, 5 mega pixel high quality Panasonic sensor | ||
Zoom | F4.9～98mm(20X) F1.5–3.0 View Angle: 72.5°(Far)-6.3°(Near) | ||
RotationAngle | Pan: -170° ~ +170°; Tilt: -30° ~ +90° | ||
Rotation Speed | Pan: 0°~120°/s ; Tilt: 0°~80°/s | ||
preset: | Remote controller: 10; RS232: 128; Accuracy: 0.1° | ||
Control port | RS232、RS485(optional)、RJ45(VISCA over IP)、USB3.0(UVC1.5) | ||
NetworkSpeed | 1000M | ||
Video encoding | H.264/H.265(default: H.264) | ||
Bit Rate Control | Variable Bit Rate, Constant Bit Rate | ||
Video Bit Rate | 1024Kbps~10240Kbps | ||
IP protocol | TCP/IP, HTTP, RTSP, DHCP , Onvif | ||
POE | supported | ||
DaisyChain | Support RS232 serial daisy chain | ||
Minimum Lux | 0.1lux | ||
WhiteBalance | Auto/Indoor/Outdoor/Manual/OutAuto/Sodium Bulb Auto/Sodium Bulb | ||
Exposure | Auto/Manual/Bright/Shutter/Iris | ||
Focus | Auto / Manual | ||
Iris | Auto / Manual | ||
Electric Shutter | Auto / Manual | ||
gamma | supported | ||
WDR | supported | ||
BLC | supported | ||
2D Noise Reduction | supported | ||
3D Noise Reduction | supported | ||
Anti-Flicker | OFF/50Hz/60Hz | ||
Pan Tilt Flip | supported | ||
Input Voltage | DC12V/11W PoE+ recommended (IEEE802.3at) | ||
Dimension | 220mm×190mm×173mm | ||
Just Weight | 1.4KG（3.1LBS） | ||
