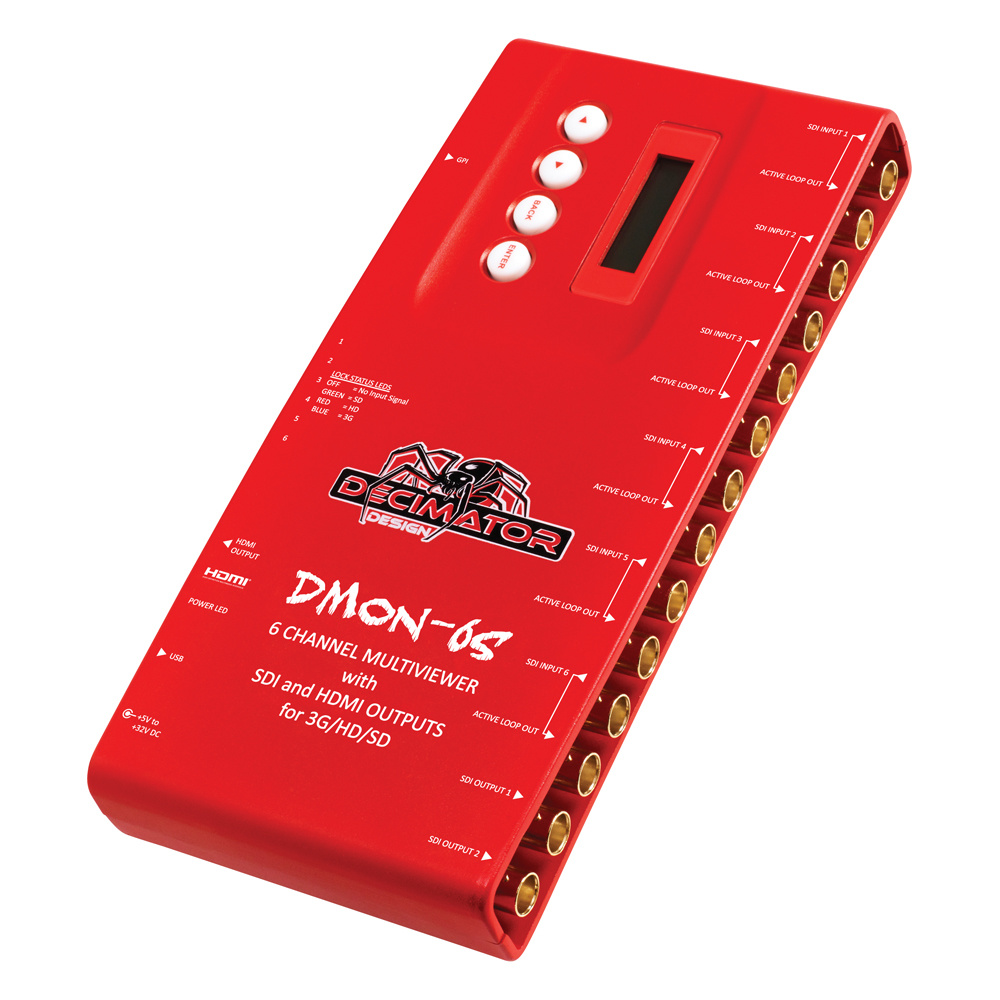

Decimator Design DMON-6S - 1 to 6 Channel MultiViewer
Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig
Gratis verzending vanaf € 75,-
085 130 5392
Great deals
Meedenkers en Oplossers
Tailored Services
Description
This multi-viewer can also be used as an input multiplexer. It is used to display up to 6 3G/HD/SD-SDI input signals on a single screen. All important settings can be made with the buttons on the top and checked on the LC display. There are many ways to enable resp. disable overlays and customize the view to your needs.
- Support for 3G level A and level B on the inputs and outputs
- Allowing conversion between 3G-SDI level A and level B
- SDI inputs are forwarded to the SDI outputs (Loop Through)
- Simultaneous outputting of the signals on the SDI outputs and the HDMI output
- Deployable as 3G-/HD-/SD-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
- Customizable layouts with various standard layouts
- 16 Character UMD (Under Monitor Display) overlay per window (enable/disable, custom positioning and size)
- 16 Channel Audio Metering overlay per window (enable/disable, custom positioning and size)
- Safe Action and Safe Title overlay per window (enable/disable and adjustment)
- Center Cross overlay per window (enable/disable and adjustment)
- Audio ID overlay
- Load and restore custom layouts
- Fast switching between inputs using full screen scaling
- Selectable output format in both full-screen and multi-viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Support for 6 video formats with automatic detection of input signals
- Each window is independent of the others, allowing any 3G-/HD-/SD-SDI signal format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 6 inputs to be selected and routed to any of the two 3G-/HD-/SD-SDI outputs or the HDMI output
- USB port for control and firmware updates
- Most settings can be made using the buttons on the top and checked on the LC display
- Tallies can be applied to either tally boxes (default), outside Safe Action Area or border
- Tally boxes allow up to 4 tallies per window (green, red, blue and yellow)
In de doos
- 1x 32 GPI to D-Sub 37-pin adapter (for tallies and remote switching)
- 1x RS422/485 to D-Sub 37-pin adapter (for dynamic UMD and tallies)
- 1x power supply unit
- 1x HDMI cable
- 1x USB cable
Technische specificaties
- HD:
1920x1080 progressive at 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
1920x1080 PsF at 30 / 29.97 / 25 / 24 / 23.98 fps
1920x1080 interlaced at 60 / 59.94 / 50 fps - HD (720):
1280x720 progressive at 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps - SD:
525 lines at 29.97 fps (NTSC), 625 lines at 25 fps (PAL) - HD:
1920x1080 progressive at 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
1920x1080 interlaced at 60 / 59.94 / 50 fps - HD (720):
1280x720 progressive at 60 / 59.94 / 50 / 30 / 29.97 / 25 fps - SD:
525 lines at 29.97 fps (NTSC), 625 lines at 25 fps (PAL) - 6x 3G/HD/SD-SDI input with automatic detection of the format
- 6x 3G/HD/SD-SDI Loop Through, BNC
- 2x 3G/HD/SD SDI, BNC
- 1x HDMI, Type A
- 1x GPI (General Purpose Interface)
- 1x USB port for control and firmware updates
- Dimensions (WxHxD): 10.37 x 2.95 x 22 cm
- Power supply: DC 5 - 32 V (with power supply unit)
Supported video resolutions and frame rates:
SDI input and output signals:
HDMI output signals:
Connections:
inputs:
Outputs:
