Data video ITC-300P - 8-channel Digital Intercom System
The Datavideo ITC-300 is an 8-channel single wired communication system, featuring power over Ethernet to 8 belt packs. The video director can select to talk to an individual channel or to all channels simultaneously.
The ITC-300 is a standard 19" 1U rackmount design, so it is easy to integrate into any rack system for using in the field or in the studio.
features

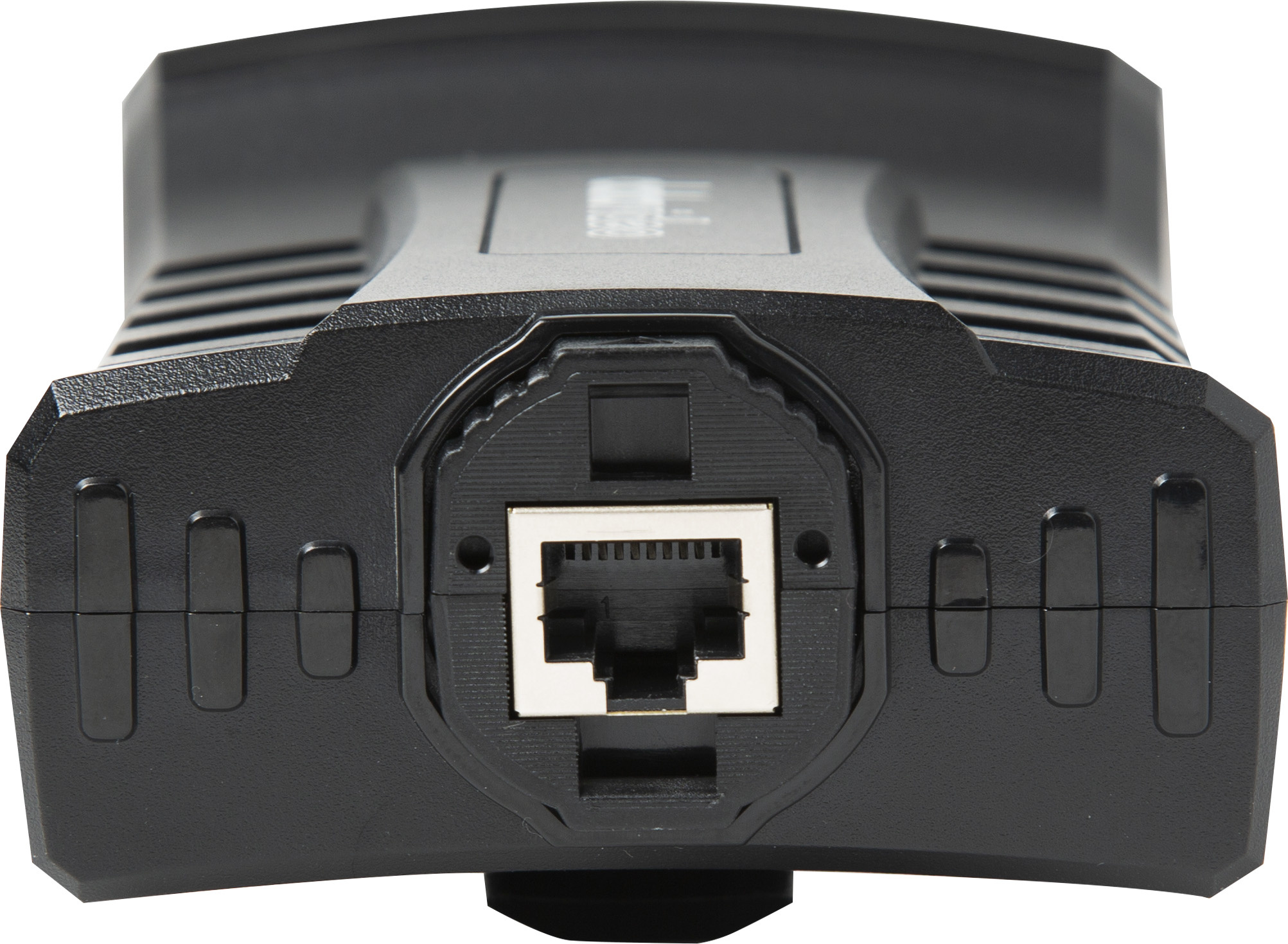

- A revolutionary design transmits two ways talk, and tally over single CAT cable.
- Supports 8-Way digital wired Intercom
- Communication distance up to 100 meters
- Selectable channel talk, broadcast to all, or mute
- Bi-colour tally light indicator
- Additional external earphone and microphone interface
- Supplied complete with Gooseneck Microphone and Light
- Industry Standard 19" 1U rack design, for easy integration
- Support cascading for more channels

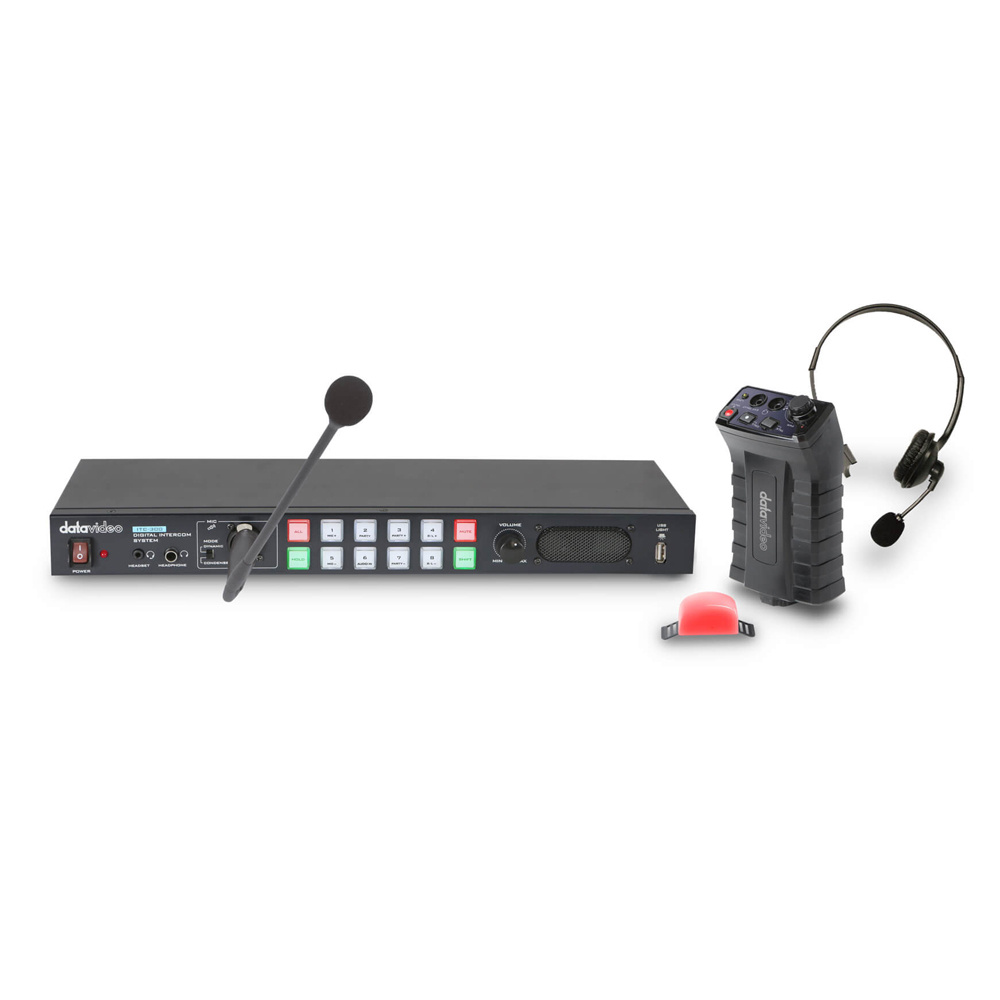

1 x ITC-300 Base Unit

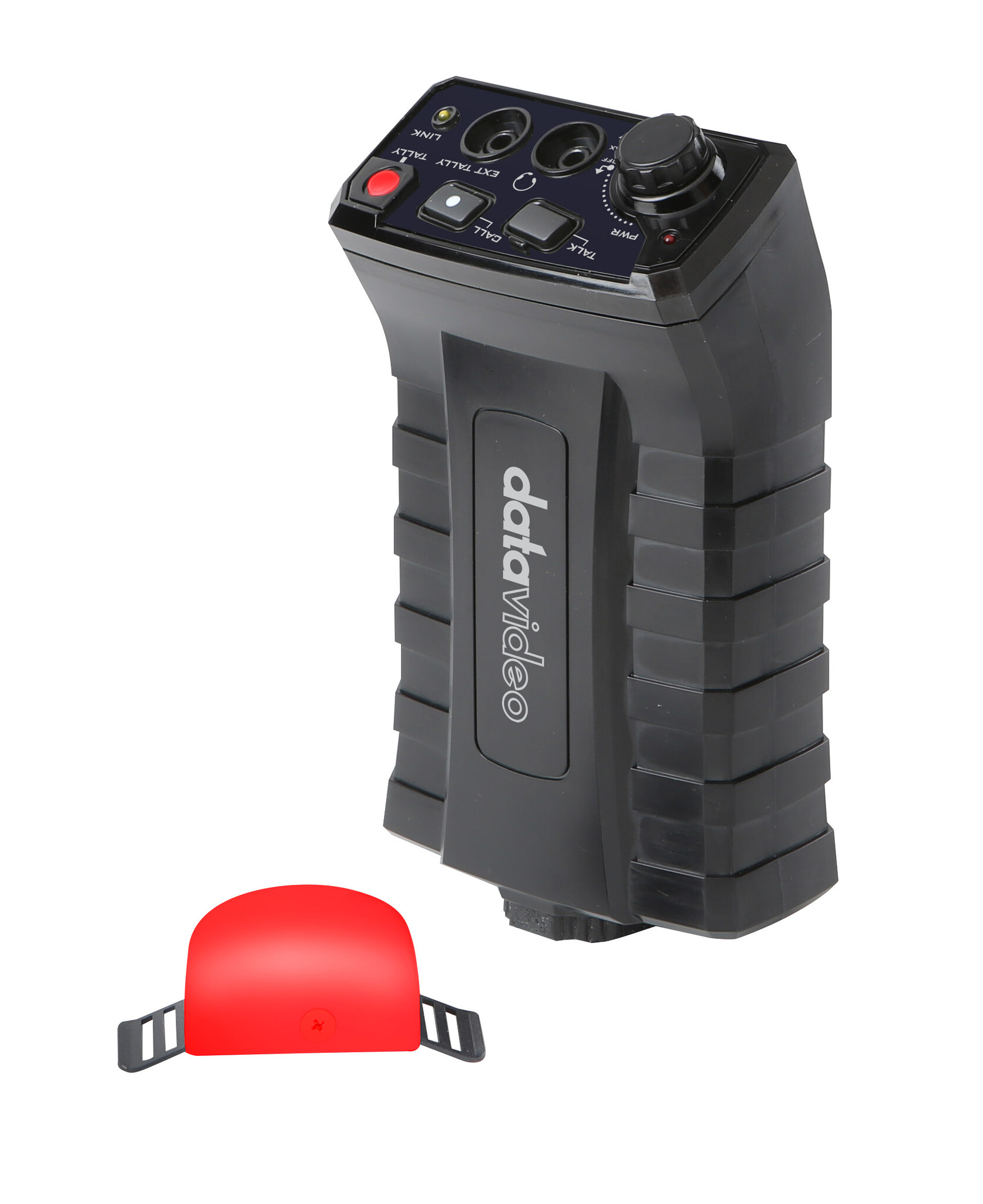

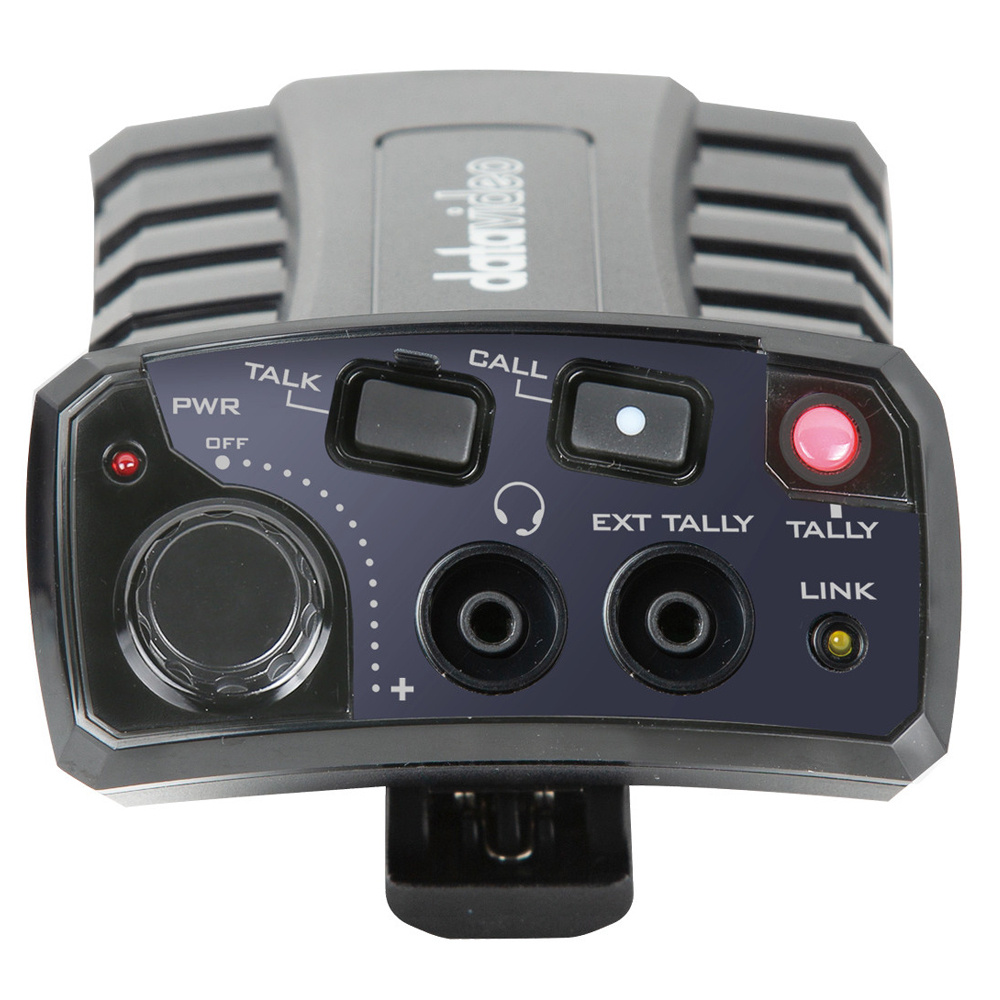

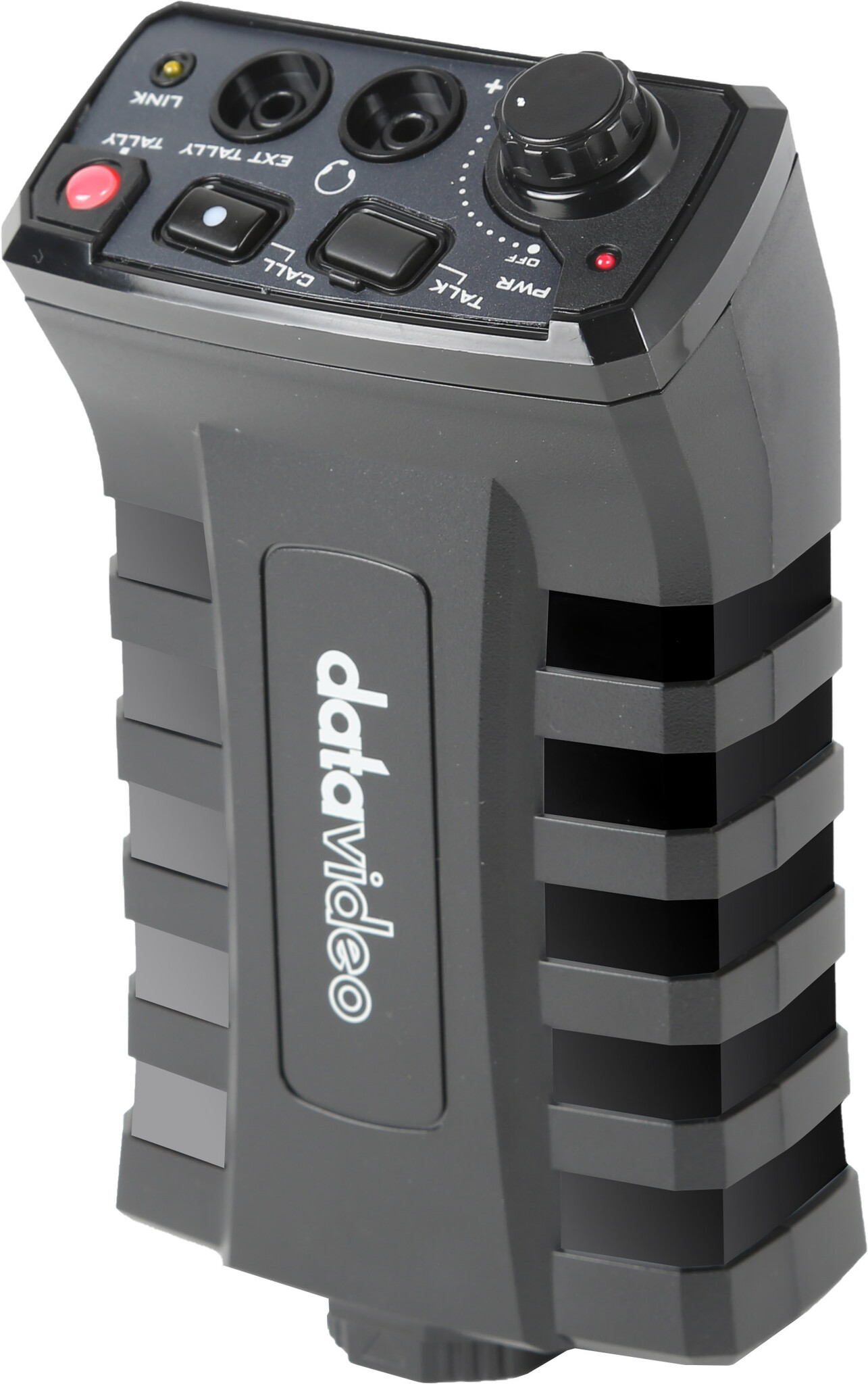

4 x ITC-300SL Belt Pack
4xEthernet Cable
4 x Earphone Cable

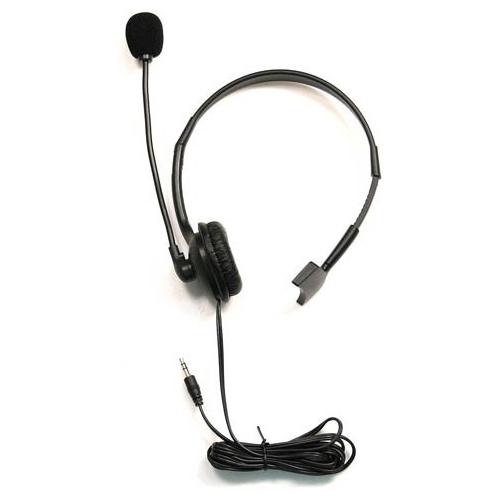

4x Headset with microphone
1 x Gooseneck Microphone
4 x Tally LED Indicator
4 x Velcro
1 x Adapter + AC Cord
model number
ITC-300

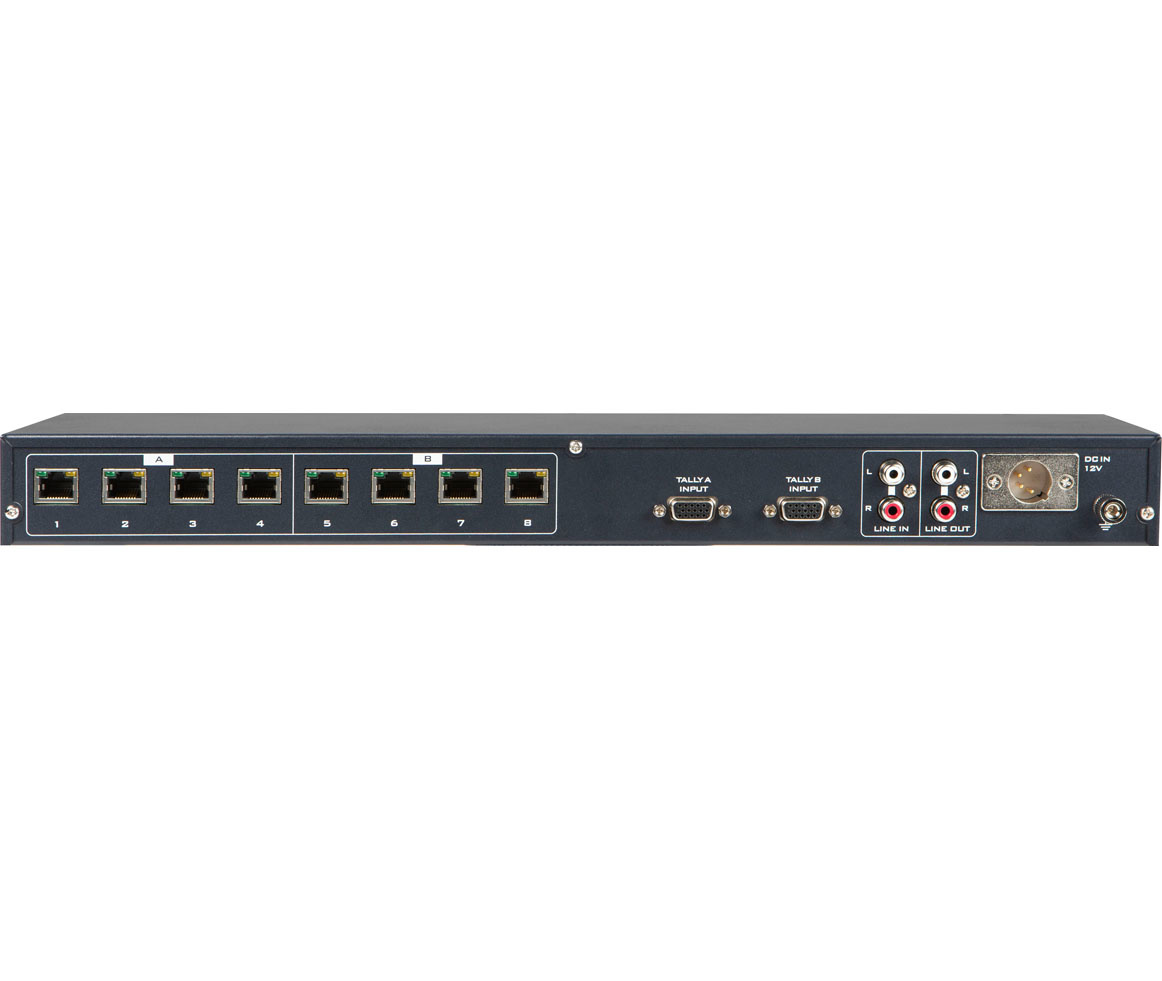

Tally
2 x 15 Pin D-Sub Female Sockets
for Tally A and Tally B
MIC / Headset
1 x 3.5mm Stereo Jack Socket
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND)
headphones
1 x 1/4" (6.3mm) Stereo Headphone Socket
(Tip: Phone、Ring: Phone、Sleeve: GND)
Light Socket (DC 12V)
Light Power Consumption: +5V / 500mA
Microphone
3 Pin XLR / 1/4” (6.3mm) Socket x 1
Switchable Condenser / Dynamic Input
Microphone Level -67dB
PIN1:N/A,PIN2:MIC,PIN3:GND
Frequency Response
300Hz-7KHz, < +/-3dB
THD
< 0.1% @1KHz
S/N
>70dB
Built-in Speaker
3W
Speaker is mute when headphones or mic / headset are connected to the ITC-300
operating range
Up to 100m between Base Station and Slave
Operating Temp. Range
0~40°C
Dimension (LxWxH)
440x126x44mm
Weight
1.9kg
Power
DC 12V, 3A
