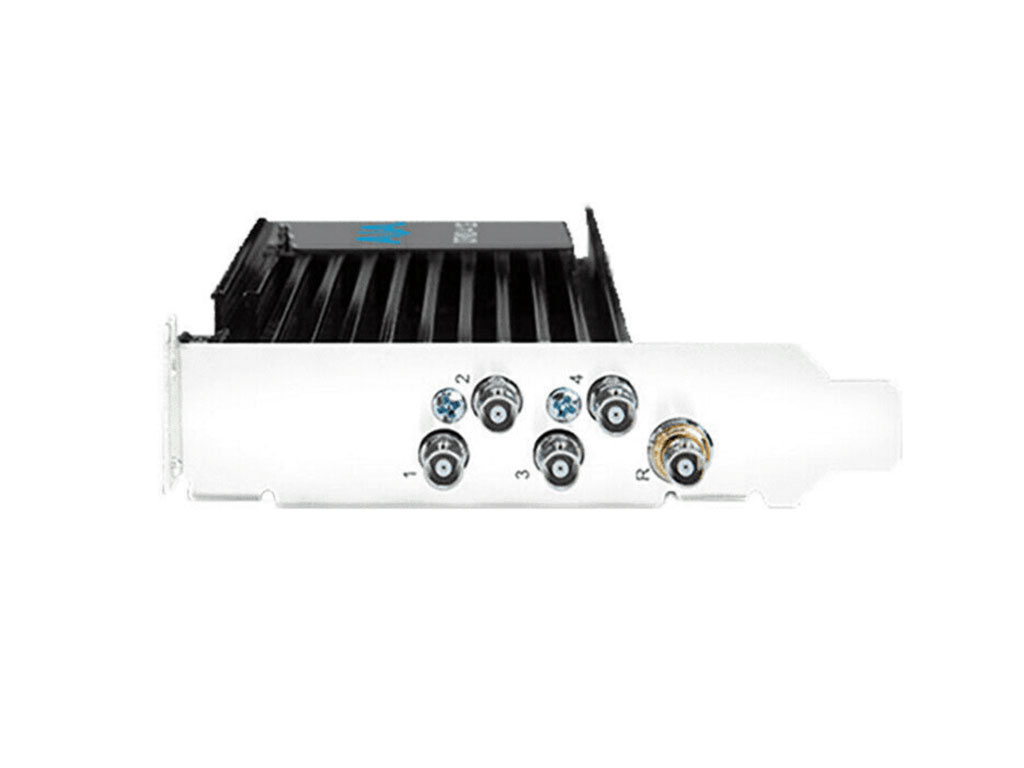

AJA Corvid 44 12G Compact 12G-SDI Power - S
2G-SDI PCIe, x4-channel I/O, Short Mount, with Fan, HDBNC
Corvid 44 12G
Compact 12G-SDI Performance
Take control of the most demanding projects with the massive power of the newest member of the Corvid product line. Corvid 44 12G is AJA's blazing-fast, compact 8-lane PCIe 3.0 I/O card with four bidirectional 12G-SDI HD-BNC connectors, designed for today's most demanding video and audio workflows. Corvid 12G 44 is available in multiple configurations including full-height or low-profile, with passive or active cooling.
Whether you're working with HFR 8K/4K/UltraHD, 2K/HD, SD, Deep Color and/or HDR, experience the quality and confidence that Corvid 44 12G brings to your projects. Corvid 44 12G supports 10-bit 4:2:2 and 4:4:4 at up to 12-bit color spaces and offers capture and output via 12G-SDI, which is also backwards compatible with 6G-SDI, 3G-SDI and 1.5G-SDI. The bidirectional 12G-SDI ports provide tremendous flexibility for capture and simultaneous forwarding for a range of solutions.
Features
• 12G-SDI I/O for 8K, UltraHD2, 4K, UltraHD, 2K, HD and SD with HFR support up to 8K 60p at YUV 10-bit 4:2:2 and support for RGB 12-bit 4:4:4 up to 8K 30p
• 4x bidirectional 12G-SDI ports and 1x reference input
• Choice of rugged HD BNC connectors, with included full-size HD BNC to BNC cables, or a full-size BNC model
• 16-channel embedded SDI audio per 12G-SDI port
• 10-bit downstream keyer in hardware, supporting up to 4K resolution
• AJA SDK compatibility on Windows, MacOS and Linux, offering advanced features including multi-channel 4K I/O
• Low-profile design for use in Workstations or servers
• 8-lane PCIe 3.0 design
• RS-422 serial control via PCIe bracket or header on the card
• Active or passive heatsink
12G-SDI, Multi-Format PCIe I/O Card
Corvid 44 12G features four bidirectional 12G-SDI ports with a reference input. 8K input or output is possible with four 12G-SDI cables and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable or four 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or Dual Link SDI, while recording and monitoring over SDI can be done simultaneously.
The Corvid 44 12G family also includes models for active vs. passive cooling, RS422 on PCIe mount vs. card header, and HD-BNC vs. full-size BNC connectors.
Flexible frame rate support
Corvid 44 12G supports 8K (8192 x 4320) and UltraHD2 (7680 x 4320) High Frame Rate (HFR) workflows up to 50/60p for the most demanding applications. Film rates of 23.98, 24, 47.95 and 48p are also supported in 8K, 4K and 2K
High frame rates are not limited to 8K and UltraHD2 on the Corvid 44 12G, multiple 4K, UltraHD, 1080p and 720p HD inputs and outputs are also supported at frame rates up to 50/60p, making the Corvid 12G extremely flexible for your current and future needs
Hardware Keying
The integrated hardware downstream keyer makes it easy to overlay graphics and images onto the input video in real time.
LTC and Reference Input
Corvid 44 12G provides an external, switchable LTC/Reference input connector on the back of the card. A second LTC input is available on an internal header to provide additional references for Corvid 44 12G.
RS-422
An integrated RS-422 connection is available either as an external connection on the full-size Corvid 44 12G or as an internal connection on the low-profile Corvid 44 12G. RS-422 enables control of external devices for frame-accurate capture and blanking.
Industry-Leading Support
AJA technical support is considered to be among the best in the industry and is available to all AJA customers. If you need help with any aspect of your Corvid installation, configuration or operation, or encounter a technical issue, AJA Support will work with you to get everything up and running.
Technical data
Video formats
• (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
Note: High frame rate capability depends on host system characteristics. Not all systems and configurations support all frame rates.
Video Inputs Digital
• 12G-SDI, SMPTE-2082, 12 bit, 10 bit and 8 bit
• 6G-SDI, SMPTE-2081, 10 bit and 8 bit
• 3G-SDI, SMPTE-259/292/296/424/425, 12 bit, 10 bit and 8 bit
• 4K/UltraHD 4:4:4 (4x BNC)
• 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12 bit, 10 bit and 8 bit
• 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10 bit and 8 bit
Note: Corvid 44 12G SDI connectors are HD BNC
Video Outputs Digital
• 12G-SDI, SMPTE-2082, 12 bit, 10 bit and 8 bit
• 6G-SDI, SMPTE-2081, 10-bit and 8-bit
• 3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
• 4K/UltraHD 4:4:4 (4x BNC)
• 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12 bit, 10 bit and 8 bit
• 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10 bit and 8 bit
Note: Corvid 44 12G SDI connectors are HD BNC
SDI I/O
• SDI connections are bi-directional
- 2K/HD, recording and monitoring occur simultaneously
– 4K/UltraHD with 12G-SDI, recording and monitoring occur simultaneously.
– 4K/UltraHD with 3G-SDI, all four connectors must be used for either input or output.
– 8K/UHD2 with 12G-SDI, connections must be used for either input or output.
Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UHD2/8K formats are supported.
Audio Inputs Digital
• 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
Audio Outputs Digital
• 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
Downstream Keyer
• Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K
