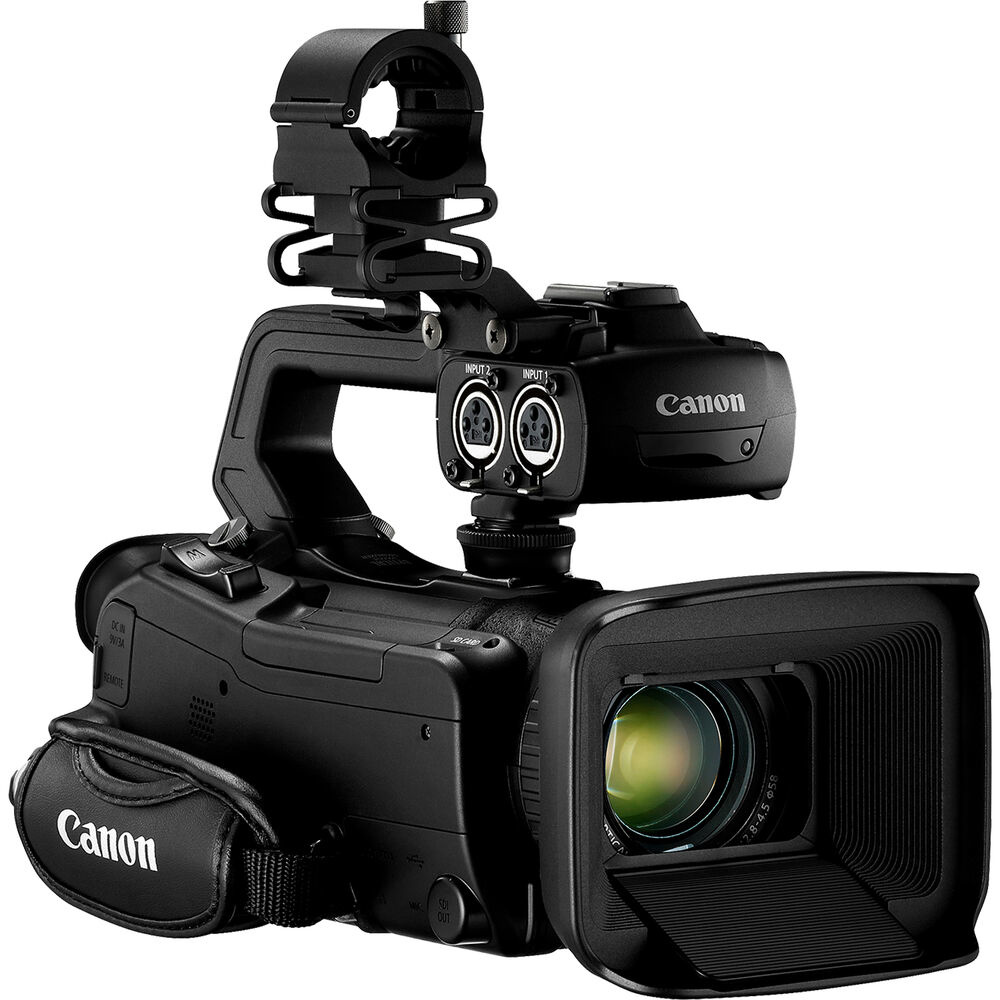

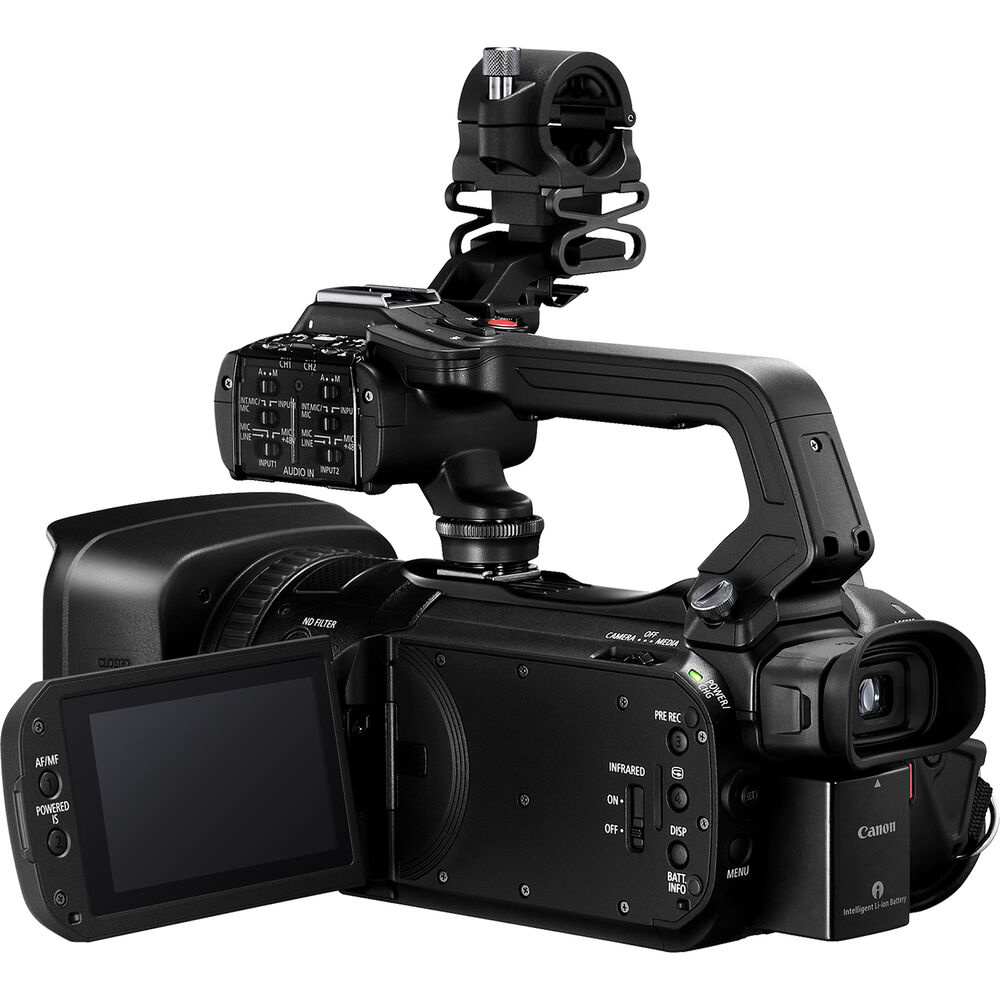

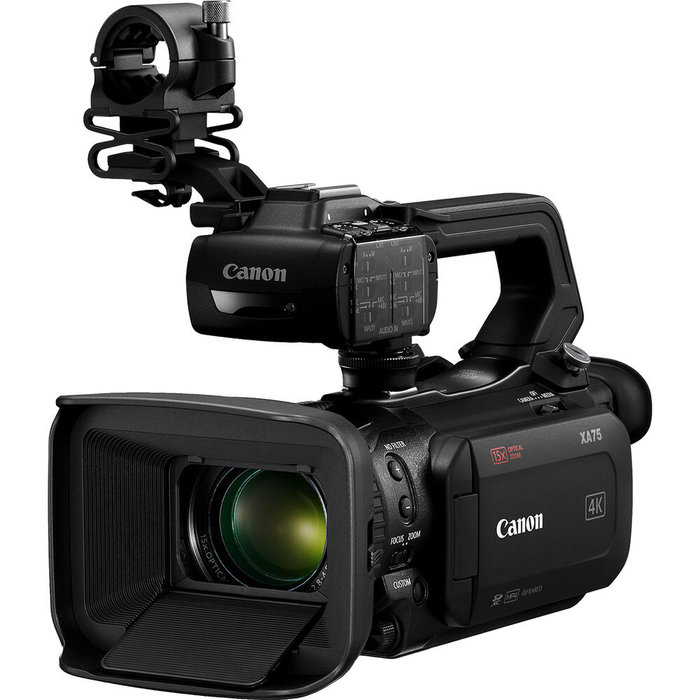

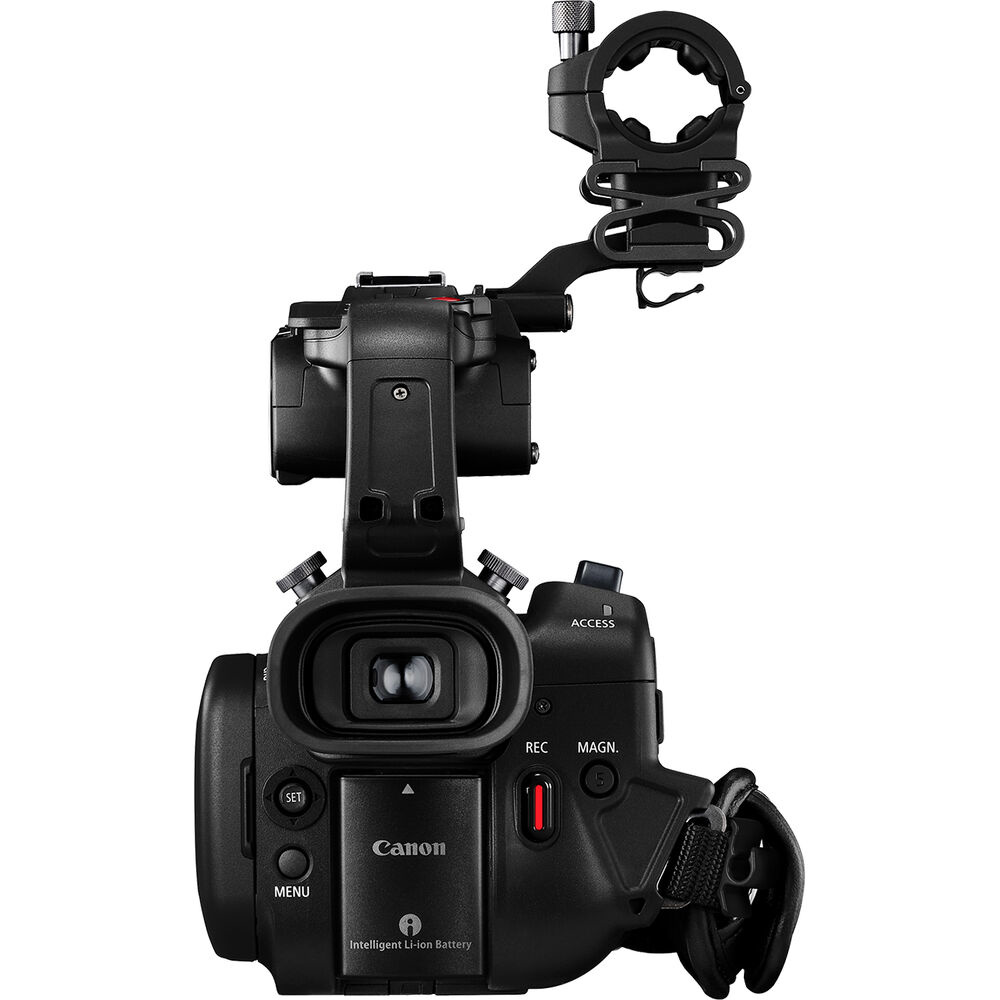

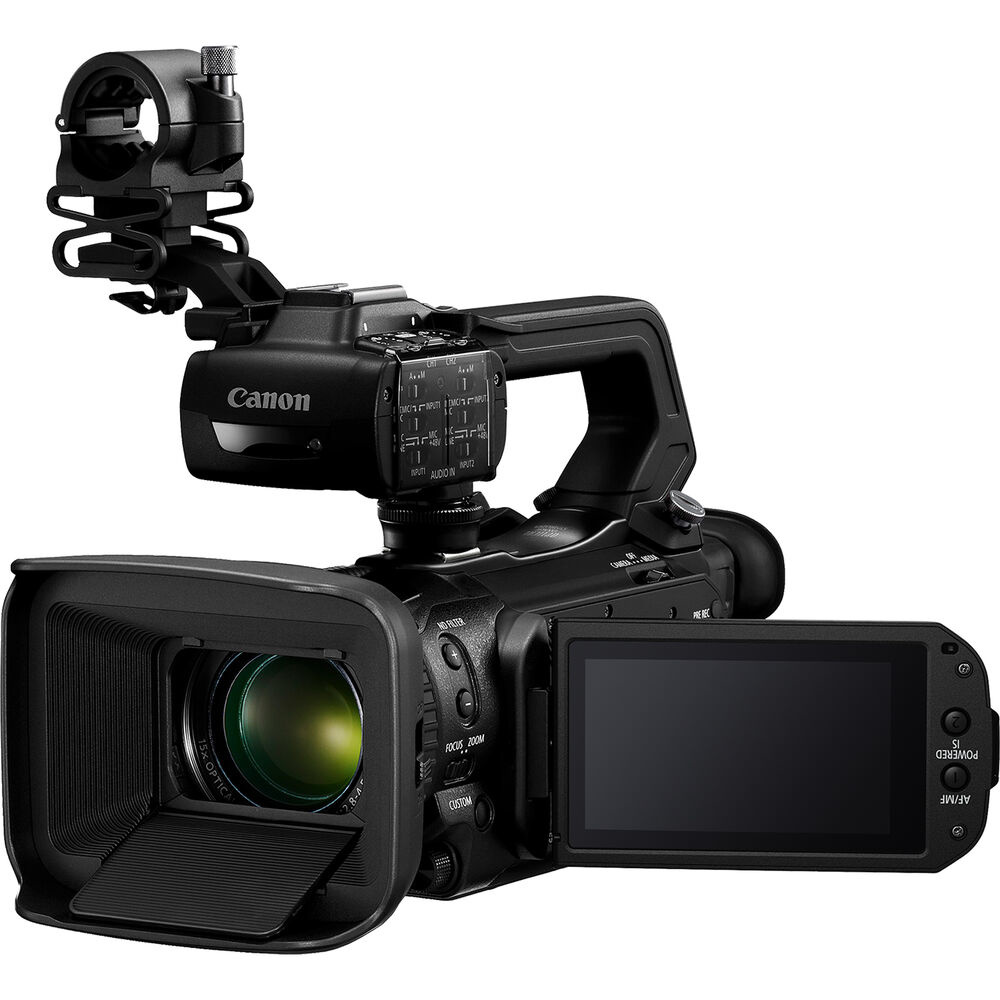

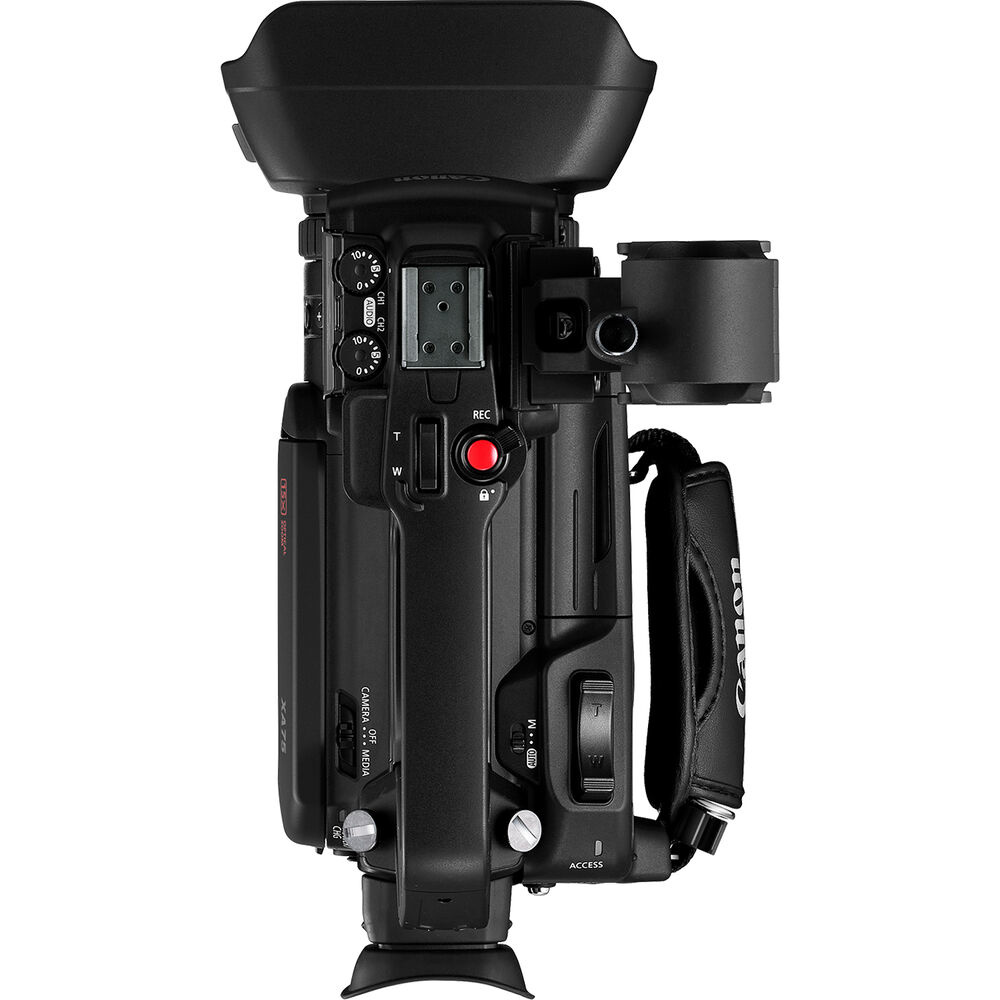

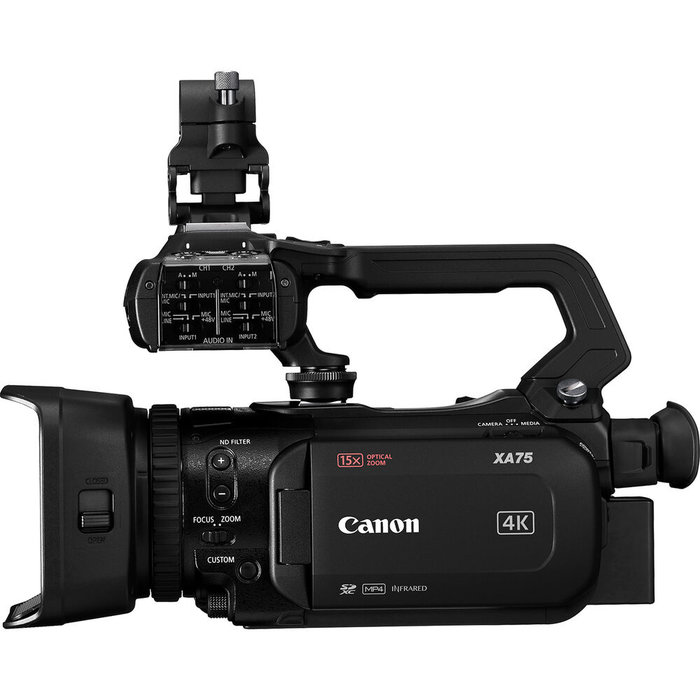

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus
A professional 4K video camera with 1.0-inch type CMOS sensor. This versatile workhorse features Dual Pixel CMOS AF, 15x optical zoom plus 5-axis stabilization, 3G-SDI, HDMI output and UVC streaming. Audio output via USB is not supported.
Make that recording, tell your story
Shoot high-quality 4K UHD videos with the compact XA75. In addition to excellent oversampling HD image processing, Dual Pixel CMOS AF, a Canon 15x optical zoom lens and HD live streaming in UVC via USB-C from a computer, you can capture high-quality images in XF-AVC or MP4 format.
Compact Professional 4K UHD Video Camera
Capture stunning 4K UHD and superb Full HD images thanks to a 1.0-inch type CMOS 4K sensor and DIGIC DV6 image processor. Oversampling HD processing delivers Full HD images from the sensor.
4K lens with 15x optical zoom
The Canon lens has a range of 25.5 – 382mm (35mm equivalent). A digital zoom gets you up to 300x closer with 5-axis image stabilization.
Fast and accurate focusing with face detection
Adjustable focus speeds and advanced Dual Pixel CMOS AF ensure fast and accurate focusing. Use the 3.5-inch LCD screen to set the focus by touching the desired AF point. Face Detection AF and Face Tracking are available when manual focus is set via the focus/zoom ring.
XF-AVC and MP4 for flexible recording
Choose from XF-AVC or MP4 recording formats. Also record XF-AVC 4K UHD 160 Mbps at 25P, as well as Full HD 45 Mbps at 50P/50i/25P. For smaller files, record in MP4 UHD 150 Mbps at 25P and Full HD 35 Mbps or 17 Mbps at 50P/25P.
Professional input and output
Output options include 3G-SDI, simultaneous backup and relay recording via dual SD card, and infrared mode. For specialist recordings, record in slow motion in Full HD 0.5x or in fast motion in 4K/Full HD up to 1200x. The colors match those of other Canon cameras via the preset menu.
Live stream and more
Stream HD images via UVC via a computer or add a date and time stamp to OSD recordings. Two XLR connectors on a detachable handle and 4-channel linear PCM provide professional audio options.

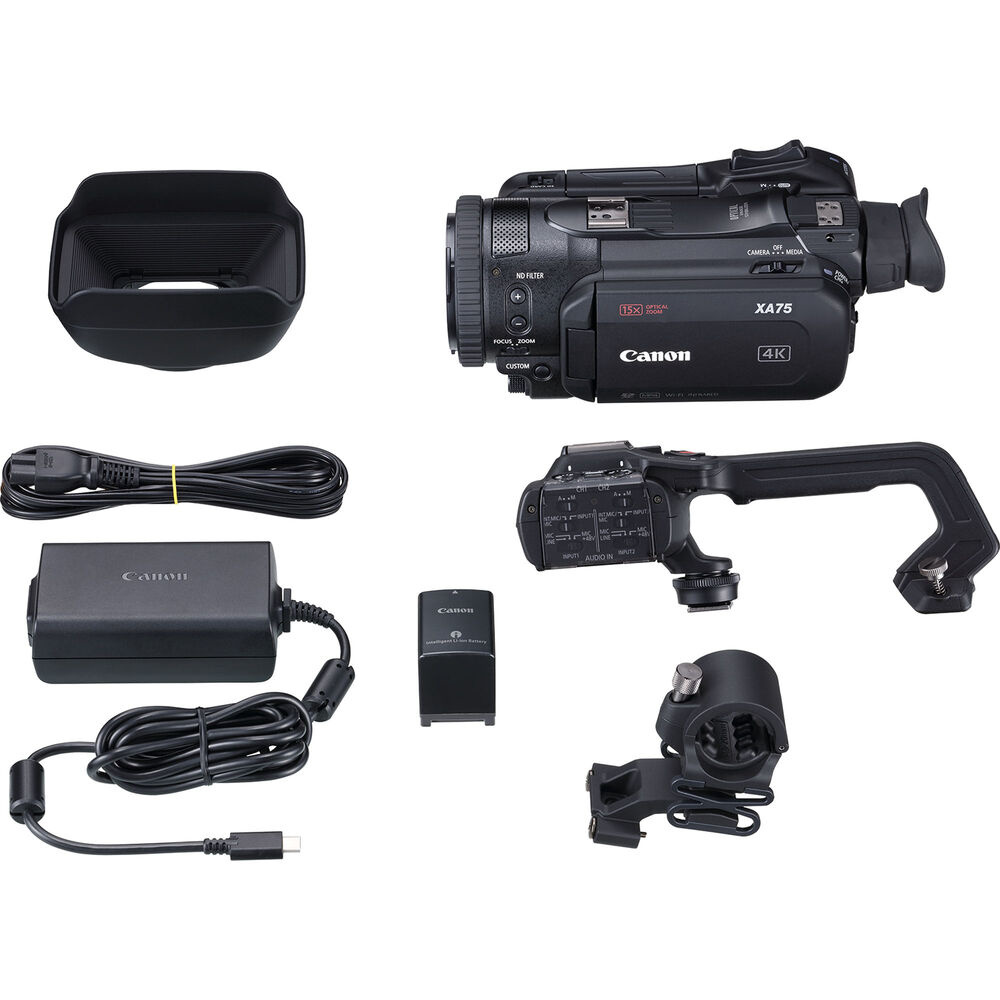

XA75
Handle HDU-1
PD-E1 USB Adapter
BP-820 battery
Lens hood with lens cover
Microphone holder
Imaging
Sensor Resolution | Current: 13.4 Megapixels (4268 x 3148) |
Sensor Type | 1"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Stills & Videos |
Exposure Control
Shutter Speed | 1/2000 to 1 Second |
Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed |
White Balance | 2000 to 15,000K |
Lens
Focal Length | 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) |
Optical Zoom Ratio | 15x |
Max Aperture | f/2.8 to 4.5 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm |
Filter Size | 58mm |
Focus Control | Autofocus |
Internal Video Capture
Recording Modes | H.264/MP4 4:2:0 8-Bit |
Recording Limit | Up to 2120 Minutes |
Broadcast Output | NTSC |
Built-In Microphone Type | Stereo |
Audio Recording | MP4: 2-Channel 16-Bit AAC Audio |
External Video Capture
IP Streaming | none |
Interface
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
Video I/O | 1 x Mini HDMI (HDMI 2.0) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48V Phantom Power) Input |
Power I/O | 1 x USB Type-C Input |
Other I/O | 1 x USB Type-C Output |
Monitor
size | 3.5" |
resolution | 2,760,000 Dot |
Display Type | Articulating Touchscreen LCD |
viewfinder
Type | Built-In Electronic (LCD) |
size | 0.36" |
resolution | 1,770,000 Dots |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 32 to 72°F / 0 to 40°C (Recommended) |
Storage Temperature | 23 to 113°F / -5 to 45°C |
Operating Humidity | 85% |
Storage Humidity | 60% |
General
Battery Type | Canon BP-8 Series |
Power Consumption | 5.3 W |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Cold Shoe Mount |
Dimensions (W x H x D) | 8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm |
weight | 2.2lb / 998g (Body Only) |
