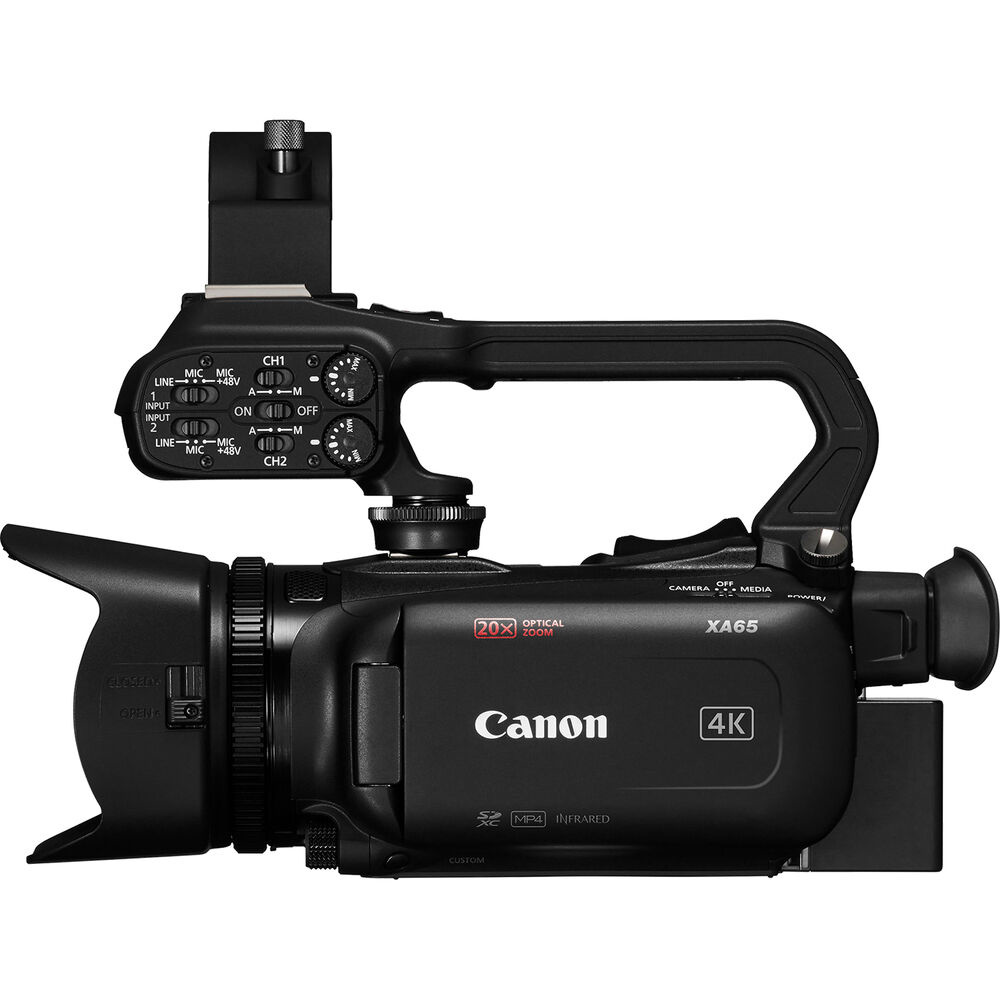

Canon XA65 Professional UHD 4K Camcorder
A 4K pro video camera with 1/2.3-inch CMOS sensor. This versatile workhorse features advanced autofocus, 20x optical zoom and 5-axis stabilization, 3G-SDI, HDMI output and UVC streaming. Audio output via USB is not supported.
Record, Capture, Stream
Shoot high-quality 4K UHD videos with the compact XA65. In addition to excellent oversampling HD image processing, advanced autofocus, a Canon 20x optical zoom lens and HD live streaming in UVC via USB-C from a computer, you can capture high-quality images in XF-AVC or MP4 format.
Compact Professional 4K UHD Video Camera
Capture stunning 4K UHD and superior Full HD images thanks to a 4K 1/2.3-inch CMOS sensor and DIGIC DV6 image processor. Oversampling HD processing delivers Full HD images from the 4K sensor.
4K lens with 20x optical zoom
The Canon lens has a wide angle of 29.3mm (35mm equivalent) and a powerful reach of 612mm with Dynamic IS. A digital zoom magnifies to 800x with 5-axis image stabilization.
Fast and accurate focusing with face detection
Adjustable focus speeds and the advanced Hybrid AF system ensure fast and accurate focusing. Use the 3.5-inch LCD screen to set the focus by touching the desired AF point. Face Detection AF and Face Tracking are available when manual focus is set via the focus/zoom ring.
XF-AVC and MP4 for flexible recording
Choose from XF-AVC or MP4 recording formats. Also record XF-AVC 4K UHD 160 Mbps at 25P, as well as Full HD 45 Mbps at 50P/50i/25P. For smaller files, record in MP4 UHD 150 Mbps at 25P and Full HD 35 Mbps or 17 Mbps at 50P/25P.
Professional input and output
Output options include 3G-SDI, simultaneous backup and relay recording via dual SD card, and infrared mode. For specialist recordings, record in slow motion in Full HD 0.5x or in fast motion in 4K/Full HD up to 1200x. The colors match those of other Canon cameras via the preset menu.
Live stream and more
Stream HD images via UVC via a computer or add a date and time stamp to OSD recordings. Two XLR connectors on a detachable handle and 4-channel linear PCM provide professional audio options.
XA65
Handle HDU-1
PD-E1 USB Adapter
BP-820 battery
Lens hood with lens cover
Microphone holder
Imaging
Sensor Type | 1/2.3"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens |
Capture Type | Video Only |
Exposure Control
Shutter Type | Electronic Global Shutter |
Shutter Speed | 1/2000 to 1 Second |
gain | 0 to 24 dB (Native) |
Signal-to-Noise Ratio | 3 dB |
Minimum Illumination | 5 Lux at 1/30 Shutter Speed |
White Balance | 2000 to 15,000K |
Lens
Focal Length | 3.6 to 73.4mm (35mm Equivalent Focal Length: 29.3 to 627mm) |
Optical Zoom Ratio | 20x |
Max Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm |
Filter Size | none |
Focus Control | Autofocus |
Internal Video Capture
Recording Modes | H.264/MP4/XF-AVC |
Broadcast Output | NTSC |
Built-In Microphone Type | Stereo |
Audio Recording | MP4: 2-Channel 16-Bit AAC Audio |
External Video Capture
IP Streaming | none |
Interface
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
Video I/O | 1 x Mini HDMI (HDMI 2.0) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48V Phantom Power) Input |
Power I/O | 1 x USB Type-C Input |
Other I/O | 1 x USB Type-C |
Global Positioning (GPS, GLONASS, etc.) | none |
Monitor
size | 3.5" |
resolution | 2,760,000 Dot |
Display Type | Articulating Touchscreen LCD |
viewfinder
Type | Built-In Electronic (LCD) |
size | 0.36" |
resolution | 1,770,000 Dots |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 32 to 72°F / 0 to 40°C (Recommended) |
Storage Temperature | 23 to 113°F / -5 to 45°C |
Operating Humidity | 85% |
Storage Humidity | 60% |
General
Battery Type | Canon BP-8 Series |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Cold Shoe Mount on Included Handle |
Dimensions (W x H x D) | 7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions) |
weight | 1.7lb / 750g (Body Only) |
