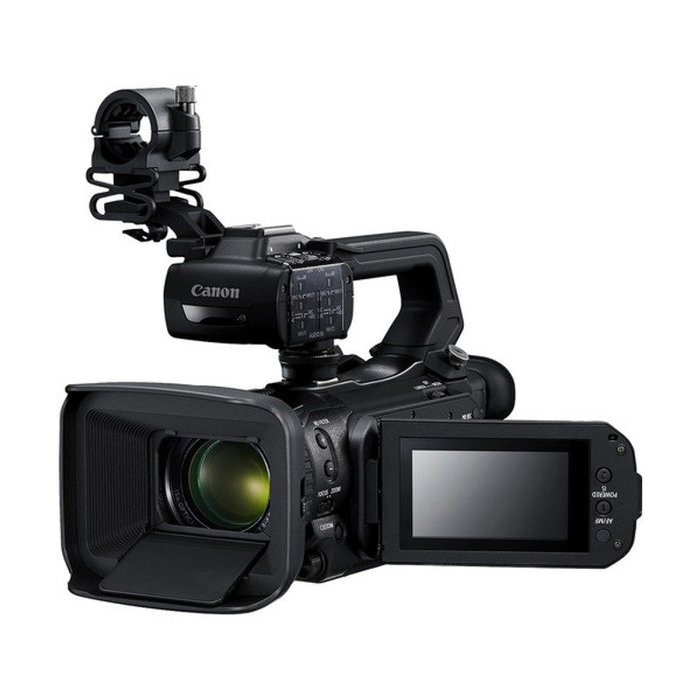

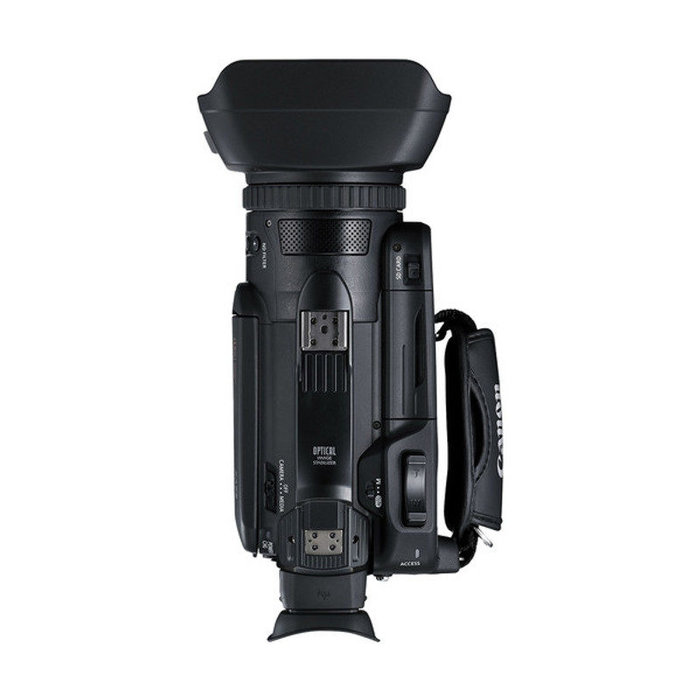

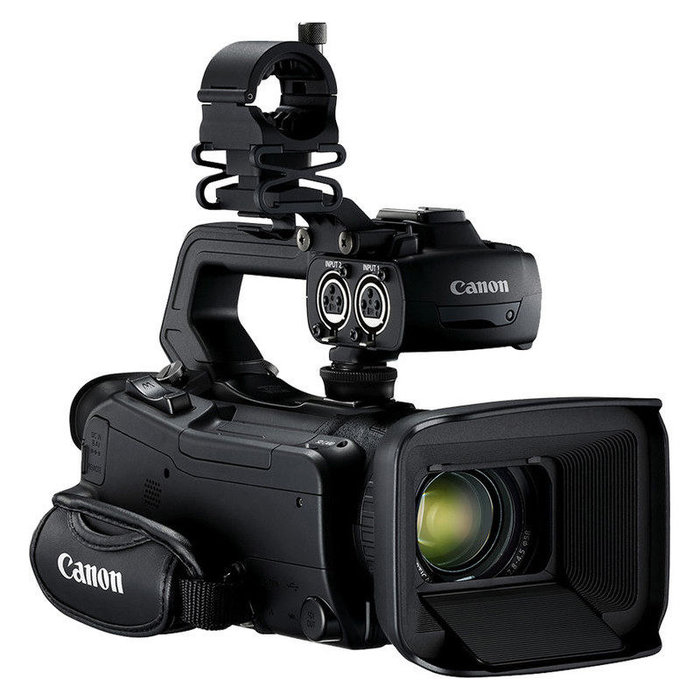

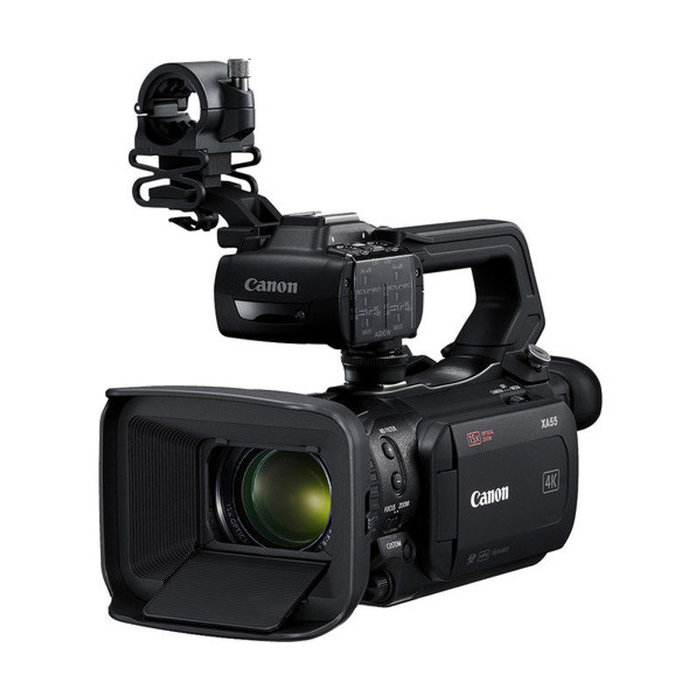

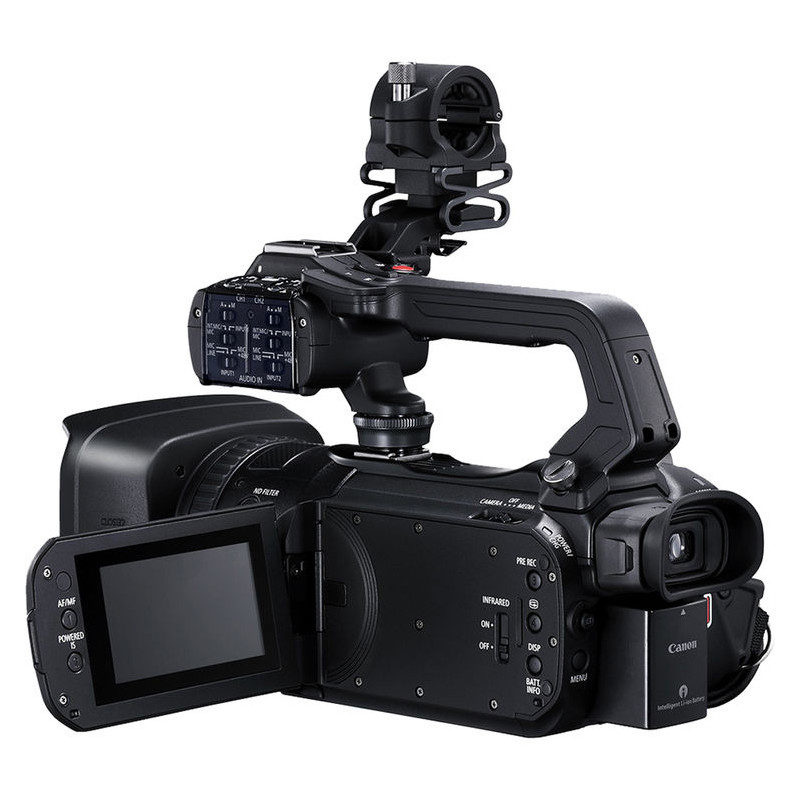

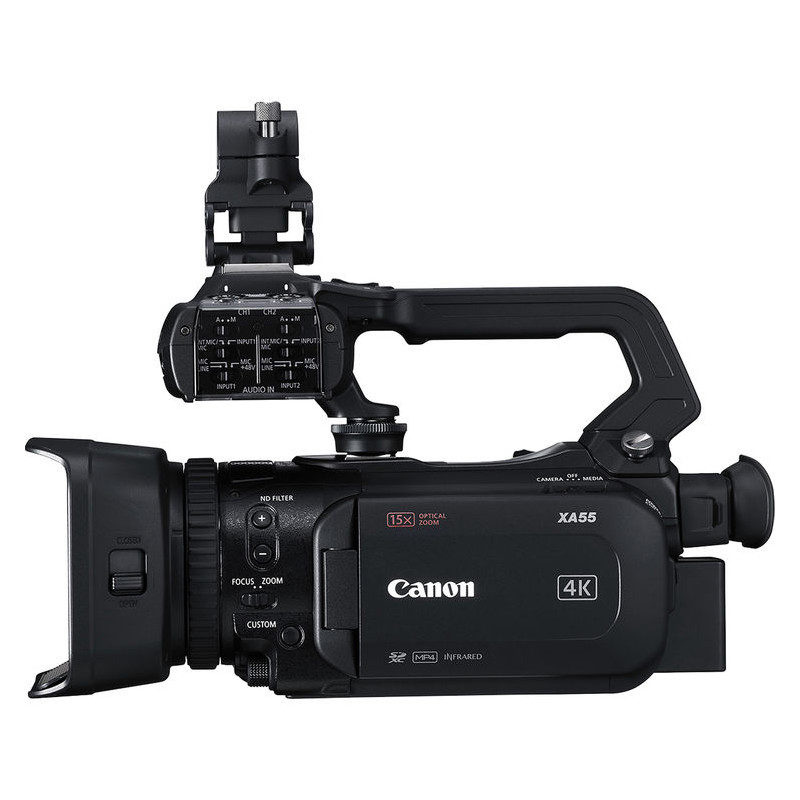

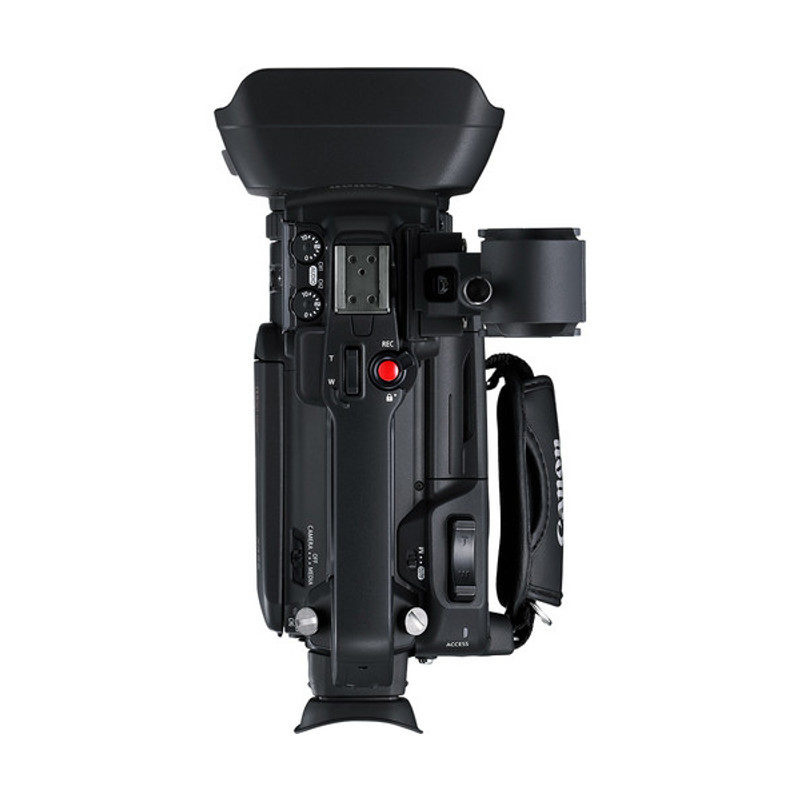

Canon XA55 UHD 4K
The Canon XA55 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI, and one BNC 3G-SDI output which fits right into the ENG category for documentary or journalism-style productions.
The XA55's optics include an integrated 15x HD optical zoom and a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording. The camera's pro-style features include Dual Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA55 also has display monitoring features such as zebra, color bars, and test tone and a built-in neutral density filter mechanism offering ND4, ND16, and ND64 options.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and outputs to mini-HDMI and 3G-SDI ports. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs. On the audio side, the XA55 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack. The camera's functions can also be controlled by the separately available RC-V100 remote control.
Features
- 8.29MP, 1" CMOS sensor
- Integrated 15x optical zoom lens
- 5-axis optical image stabilization
- UHD 4K30 fps, HD 59.97 fps recording
- Dual XLR, 3.5mm mic/line audio inputs
- MP4 recording
- DIG!C DV 6 processor
- Two SD memory card slots
- Mini-HDMI and 3G-SDI outputs
1x Canon XA55 Camera
1x Lens hood with lens protector
1x Microphone holder
1x Carrying handle HDU-3
1x Remote controller WL-D89
1x Li-ion battery CR2025
1x Battery BP-820
1x AC adapter CA-570
1x Power cord
1x Lens cap
Imaging | |
Image Sensor | 1-Chip 1" CMOS Sensor |
Sensor Resolution | 4268 x 3148 (13.4 MP) |
Effective Sensor Resolution | 3840 x 2160 (8.29 MP) |
Minimum Illumination | 1.7 lux at 1/30 Shutter Speed |
White Balance Range | 2000 to 15,000K |
Lens | |
Focal Length | 8.3 to 124.5mm |
35mm Equivalent Focal Length | 25.5 to 382.5mm |
Optical Zoom Ratio | 15x |
Maximum Aperture | f/2.8 to 4.5 |
Minimum Focusing Distance | Wide: 0.4" / 1.0 cm |
Filter Size | 58 mm |
Image Stabilization | Optical |
Focus Control | Autofocus |
Camera | |
Shutter Speed | 1/ to 1/2000 sec |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Built-In Microphone Type | Stereo |
Recording Media | 2 x SD (Unspecified Type) UHS-I Card Slots |
Recording | |
Broadcast System Compatibility | PAL |
Recording Modes | H.264/MP4 4:2:0 8-Bit: |
Audio Recording | MP4: 2-Channel 16-Bit AAC Audio |
Interfaces | |
Video Connectors | 1 x Mini-HDMI (HDMI 2.0) Output |
Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input |
Other I/O | 1 x USB Mini-B Output |
Display | |
Display Type | LCD |
Screen Size | 3" |
Touchscreen | Yes |
Screen Resolution | 460,000 Dots |
EVF | |
EVF Display Type | LCD |
Screen Size | .24" |
EVF Resolution | 1,560,000 Dots |
Power | |
Battery Type | Canon BP-8 Series |
Power Connectors | 1 x Proprietary (8.4 VDC) |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
Storage Temperature | 23 to 113°F / -5 to 45°C |
Operating Humidity | 85% |
Storage Humidity | 60% |
General | |
Accessory Mount | 1 x Cold Shoe Mount |
Tripod Mount | None |
Dimensions | 8.4 x 4.3 x 3.6" / 21.34 x 10.92 x 9.14 cm (Without Protrusions) |
Weight | 2.1 lb / 953 g |
