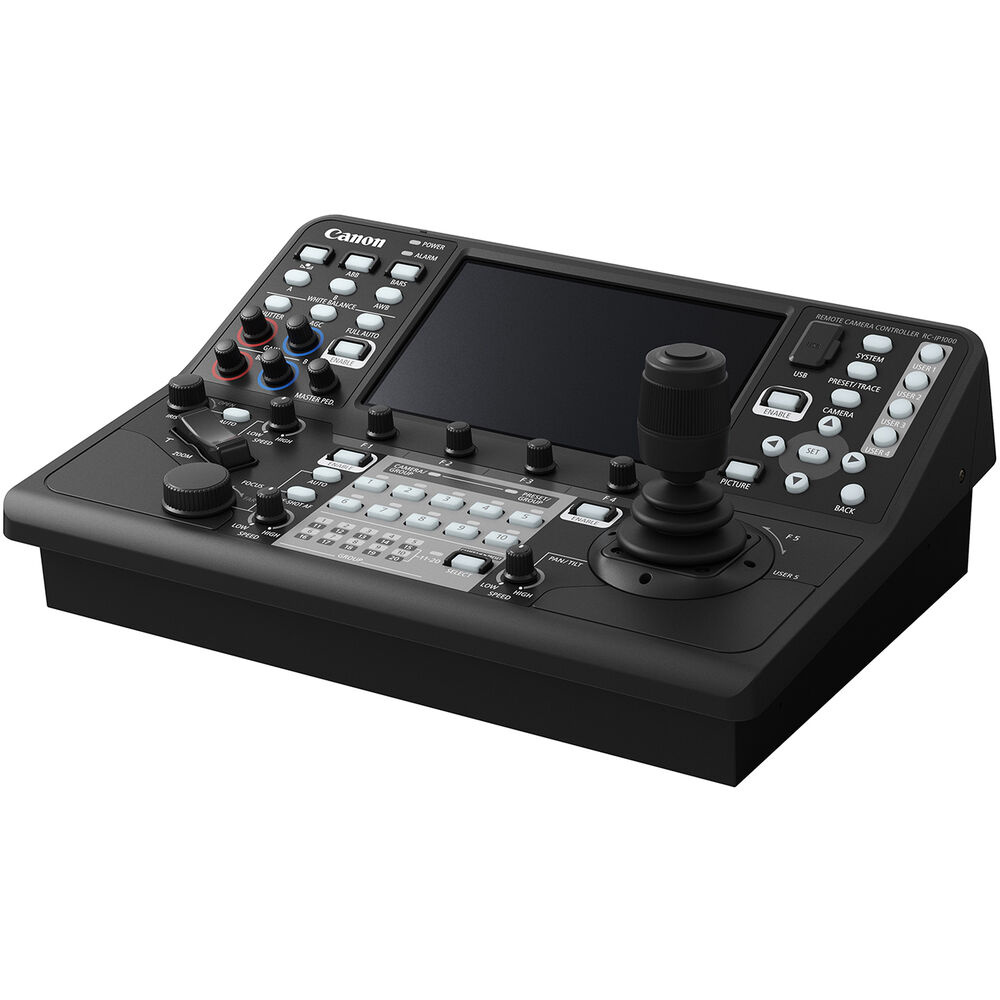

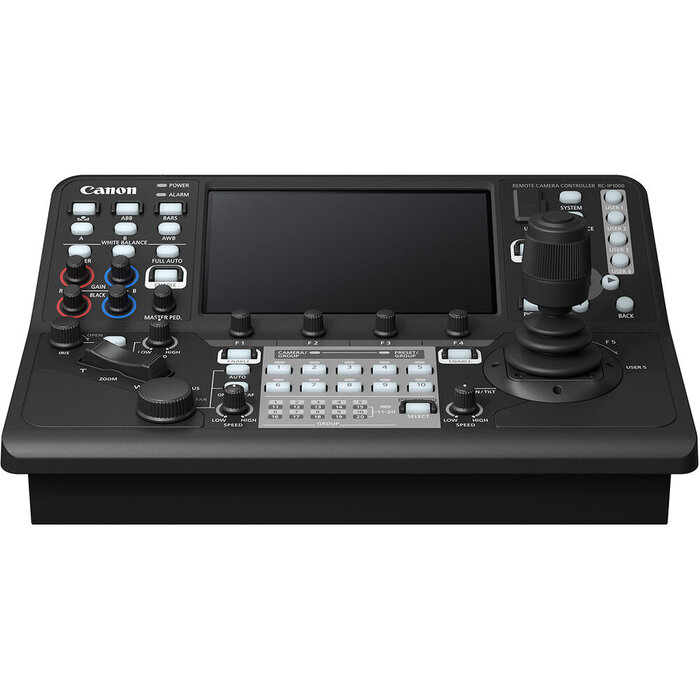

Canon RC-IP1000 PTZ Controller

COMMAND. CONTROL. CREATE.

Manage your live broadcast feeds by controlling and monitoring up to 200 cameras via IP. No PC is required for this professional PTZ controller with extensive operating options. It features SDI and HDMI connectivity, a multifunctional 7-inch touchscreen, customizable knobs and dials and an ergonomic joystick for precise control.

Tangible precision, professional operation

Fine-tune the PTZ camera's movements with pinpoint accuracy using the ergonomically designed joystick, which fits comfortably in your hand for intuitive rotary gesture control. A customizable button on the top provides even more versatility, such as One shot AF and a position to return to the home screen.

Multiple physical (rotary) buttons

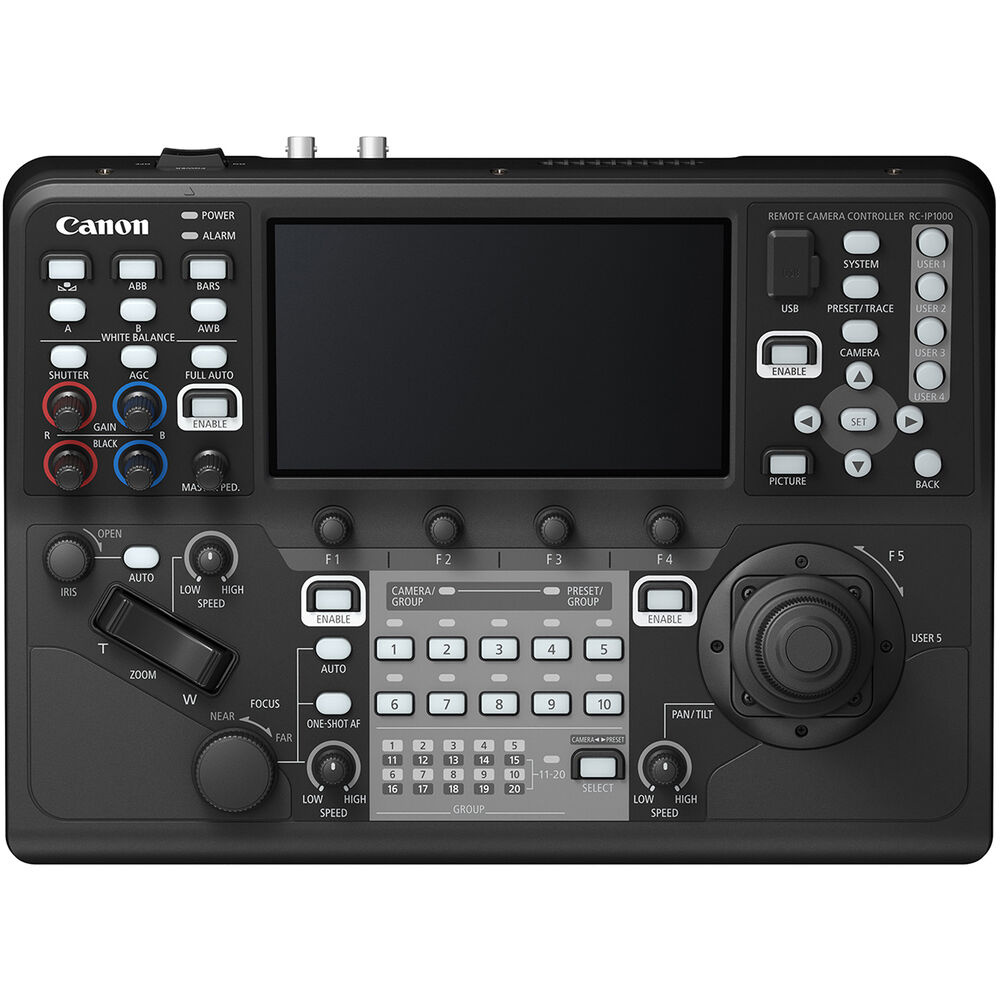

Control connected cameras thanks to 42 buttons and 14 dials for functions such as Iris, Gamma, Knee and White Balance. Backlit LEDs provide better overall visibility, while the professional zoom rocker provides ultra-precise zoom control.

IP Video and Input monitoring

Monitor and control Canon camera feeds via IP quickly and easily on the 7-inch touchscreen, with up to nine feeds viewable simultaneously in different screen layouts. Whichever camera you choose, the touchscreen automatically switches to displaying the relevant live feed. You can also output a single full-screen feed to an external monitor via the 12G-SDI or HDMI port.

Easy configuration without a PC

Use the RC-IP1000's search function to find and register new cameras over the LAN. The RC-IP1000 allows you to change all system settings, such as IP address, ID and password, up to 200 connected cameras. You can also perform the initial installation of the camera and controller without a PC.

Easy multi-camera control

Group all cameras or up to ten in one group. Deploy presets for multiple PTZ cameras simultaneously and control other cameras from the Canon PTZ and Cinema EOS* range, plus the professional XF605 video camera.

* C500 Mark II, C300 Mark III and C70 cameras

Intuitive touchscreen

Access a wide range of settings via the touchscreen. Set the focus points and settings for Touch AF and face and eye detection; set the manual focus point and adjust crop areas so that two feeds can be sent from one camera*.

* CR-N700 only

Professional inputs and connections

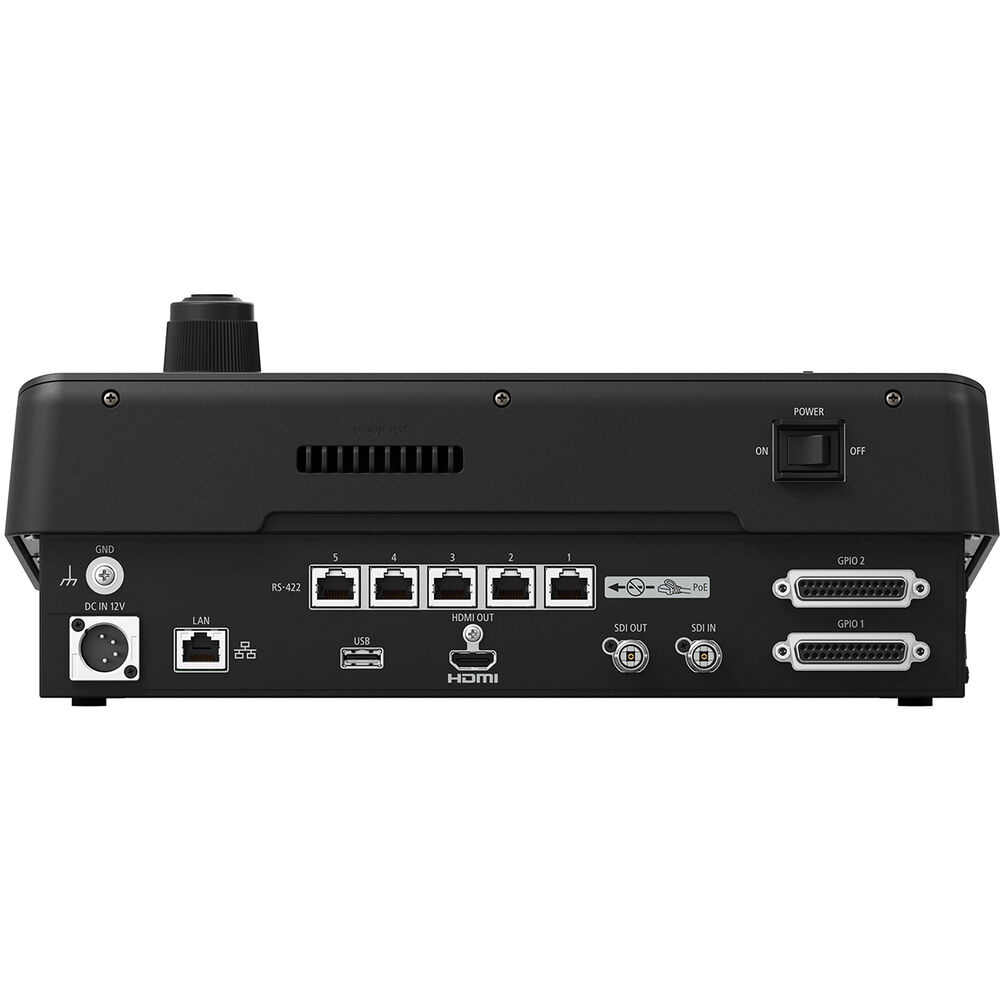

Integrate the RC-IP1000 into existing infrastructures or use it remotely thanks to a wide range of inputs, including a DC 12V XLR port, five serial RJ45 ports, LAN/POE+, USB, HDMI Out, 12G-SDI in/out and two GPIO D-Sub 25-pin channels. By using the GPIO/SDI connection with a video switcher, the selection of the camera on the RC-IP1000 can be perfectly automatically linked to the selection of the camera on the video switcher.

Advanced Pre-Set and Trace control

Control another camera while tracking and set your other camera positions without having to wait for the trace/pre-set to complete. Register and manage presets and traces by naming them via the touchscreen and use the physical button on the RC-IP1000 for quick access to the preset and trace.
