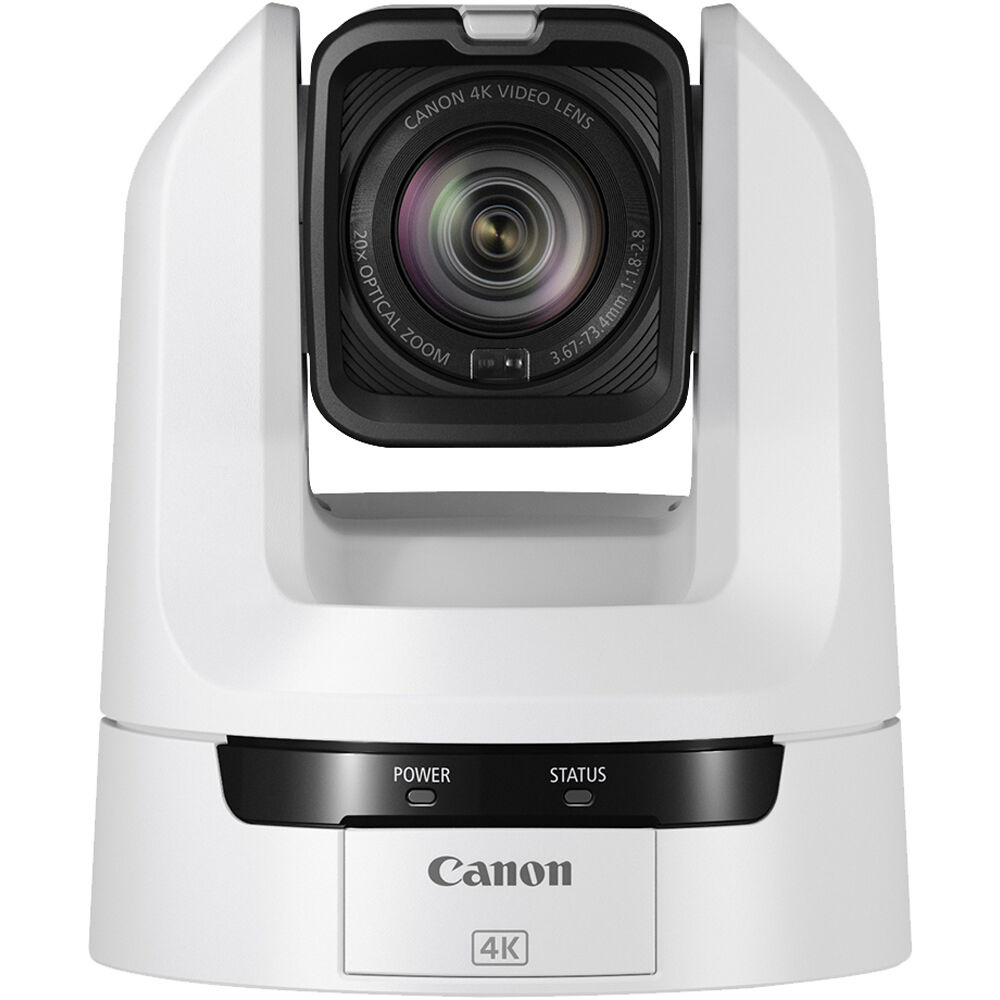

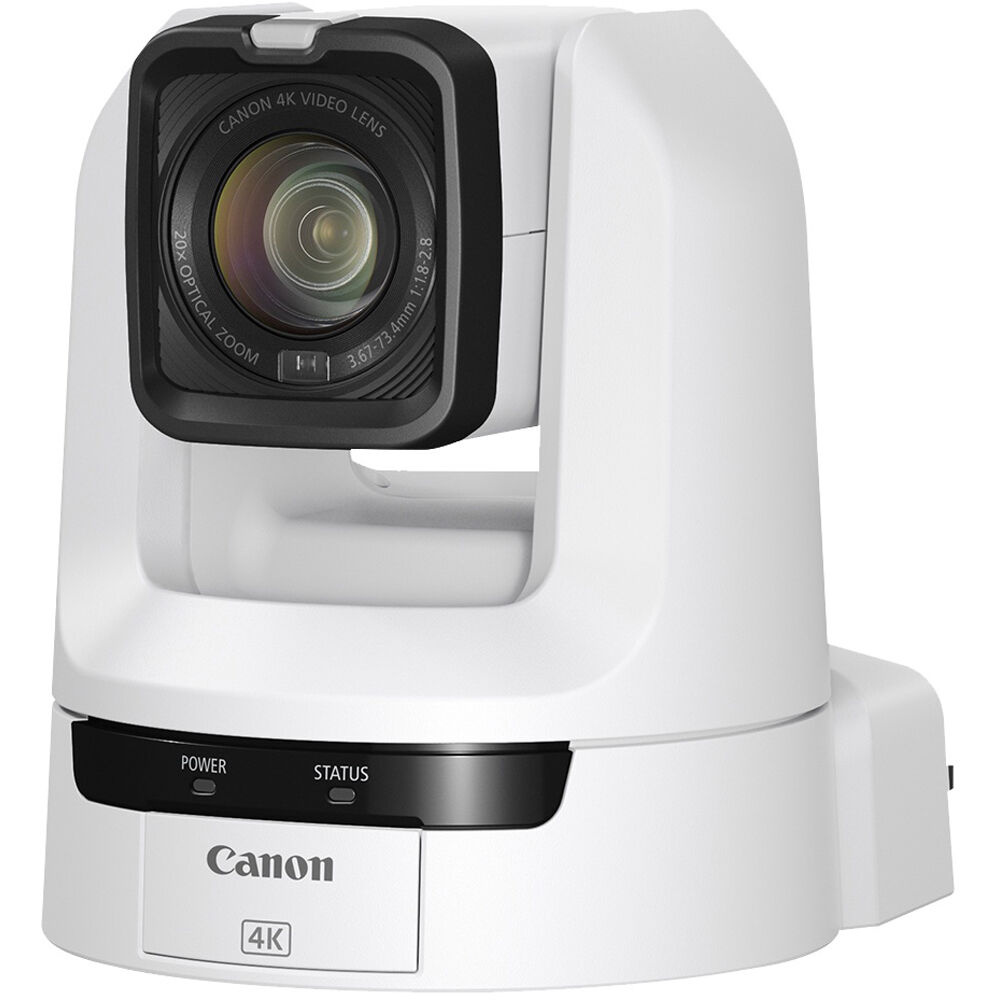

Canon CR-N100 4K NDI PTZ Camera with 20x Zoom - White
Experience the flexibility of a 1/2.3-inch 4K sensor and DIGIC DV6 processor with Hybrid AF and a 20x image-stabilized optical zoom. This camera can be used with the Auto Tracking app. With standard built-in IP streaming and control protocols, this camera is perfect for use by businesses, educational institutions, houses of worship and live events.
Excellent 4K images and HD oversampling
Capture powerful 4K UHD and superior Full HD images thanks to a 4K 1/2.3-inch CMOS sensor and DIGIC DV6 image processor. Oversampling HD image processing delivers Full HD images from the 4K sensor, resulting in lifelike HD video.
20x optical zoom delivers fantastic flexibility
Capture every detail you need with advanced Canon 4K optics featuring a flexible 20x optical zoom for a wide focal range of 29.3-601mm (35mm equivalent). The camera offers image stabilization for minimal disruption of images due to movement.
Accurate focusing with Hybrid AF
The CR-N100 combines high-precision Contrast AF with high-speed Phase Detection AF to deliver fast and accurate subject focus, even in low light.
The CR-N100 PTZ camera has an external sensor that measures the distance to the subject and compares the focus point with the focus point determined by the Contrast AF system. This Auto Focus system provides faster and more accurate focusing than conventional contrast AF, which helps the camera operator.
Accurate Auto Tracking*
Take advantage of the ability to automatically track the main speaker as they move around the stage with facial detection. Achieve your ideal tracking settings with multiple adjustments such as composition size, tracking sensitivity, exclusion zones, priority viewing area, and more.
* Auto Tracking App: Paid license required.
Multiple protocols for easy streaming and control
The CR-N100 features NDI|HX 2 and SRT that produce high-quality video streams for a variety of productions, even under unstable network conditions. Stream seamlessly via RTMP/RTMPS to Facebook or YouTube. The Canon XC protocol provides the ability to control the CR-N100 in a multi-PTZ camera system, in addition to Canon video camera products.
Smooth and precise operation
The CR-N100 has a high-precision control mechanism for precise pans and tilts in just 0.2°/s. The CR-N700 is not only compatible with the RC-IP100 controller and the Remote Camera Control application, but can also be configured with third-party remotes.
Extensive connectivity

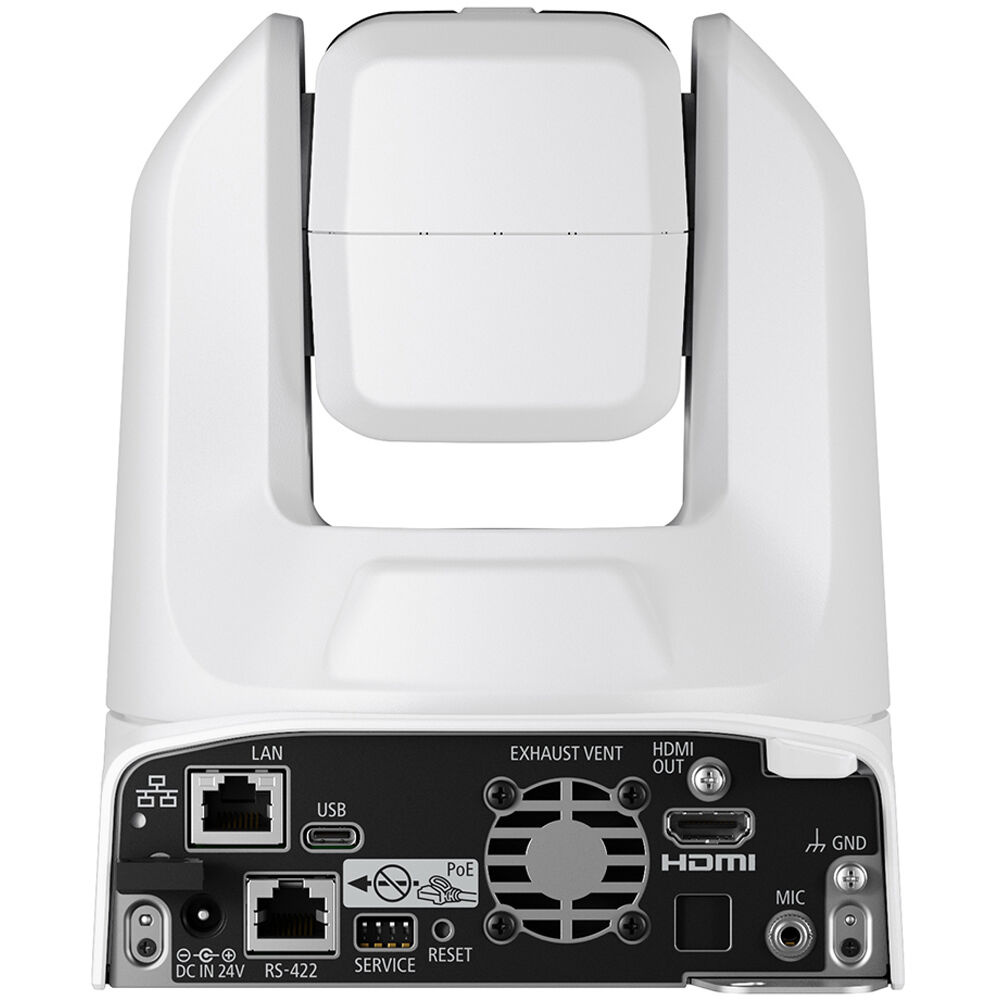

The CR-N100 can be flexibly connected to HDMI or IP (PoE+), both with support for 4K30P, and also features a USB-C port, serial port (RS422) and a 3.5mm audio jack.
Compatible with Multi-camera Management App
The CR-N100 is compatible with the Multi-camera Management application. Manage up to 200 different cameras and/or controllers simultaneously, making managing your Canon PTZ camera system simple and seamless. Update firmware, perform initial setup for all cameras and more.
CR-N100 camera
Mounting bracket, with screw
Locking cable, with screw
Locking cable for mounting camera, with screw
Remote control (WL-N01)
- Image sensor
- Effective pixels
- Lens
- Optical zoom
- Digital zoom
- Focal length
- Angle of view
- Minimum lighting of subjects
- Shutter speed
- Iris
- Gain
- ND filter
- Night mode (infrared filter off)
- White balance
- Focus
- Gamma
- Pan and tilt
- Video output format: HDMI
- Video output format: IP
- Video output format: USB
- Video transmission protocol
- Pre-set
- Communications operation
- Network connection
- GEN-LOCK connection
- HDMI OUT terminal
- RS-422 connection
- INPUT 1/INPUT 2 jacks
- MIC connection
- USB connection
- Operating environment
- Power supply
- Power consumption
- Dimensions (wxhxd)
- Weight
- Sound
Camera
Type 1/2.3 (1/2.3 inch) single-plate CMOS sensor
Approx. 8.29 Megapixels (3840 x 2160)
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-blade circular aperture
20x optical zoom
20x digital zoom
3.67 – 73.4mm, f/1.8 – 2.8,
Focal length equivalent to 35mm:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
[4K UHD]
Horizontal: 65.6° (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Program AE) shooting mode, auto slow shutter on)
1/6 - 1/2,000 sec. (specific values depend on frame rate and frame rate)
Manual/automatic aperture
0.0 dB – 36 dB
Integrated (1/8 at maximum, ND grading), motor control
No
AUTO (AWB), Set A, Set B, presets (daylight: 5,600 K 1 , artificial light: 3,200 K 2 ),
color temperature setting (2,000 K – 15,000 K), manual
Focus mode: Manual, Continuous AF, Face AF, Tracking
AF type: Hybrid AF, Contrast AF
Normal1 (Standard), Normal3 (BT.709)
Pan range: horizontal ±170°
Pan speed: 0.2° – 300°/sec.
Tilt range: vertical -30° – +100°
Tilt speed: 0.2° – 170°/sec.
Server
3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
1920 x 1080: 59.94P / 59.94i, 50.00P / 50.00i / 25.00P, 29.97P / 23.98P (4:2:2 10-bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10-bit)
[Frame Rate 59.94 Hz]
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
[Frame Rate 29.97 Hz]
3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 80bits)
[Frame Rate 50.00 Hz]
1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
[Frame Rate 25.00 Hz]
3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
[Frame Rate 23.98 Hz]
3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit)
1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit)
1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit)
640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit)
- JPEG has one fixed pattern depending on the frame rate (format is
fixed and cannot be selected)
Resolution: 1280 x 720
At a frame rate of 59.94/29.97 Hz: 14.99 fps
At a frame rate of 50.00/25.00 Hz: 12.50 fps
At a frame rate of 23.98 Hz: 11.99 fps
Motion JPEG:
1920x1080
59.94 Hz: 12.00 fps, 5.00 fps
50.00Hz: 12.50fps, 5.00fps
1280x720
59.94 Hz: 12.00 fps, 5.00 fps
50.00Hz: 12.50fps, 5.00fps
640x360
59.94 Hz: 12.00 fps, 5.00 fps
50.00Hz: 12.50fps, 5.00fps
Protocol: XC (Canon Original), RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
Number of presets: max. 100 (including start position)
Interface
LAN, serial, IR
LAN x 1, RJ45, 1000Base-T
No
HDMI connection x1 output only
RJ45 jack x 1
No
ϕ3.5mm stereo mini jack (unbalanced, support plug-in power)
Sensitivity (MIC): -72 dBV (manual volume center, full-scale -18 dB) / 1 kΩ or
more / Att.: 20 dB
Sensitivity (LINE): -10 dBV (manual volume center, full-scale -18 dB) / 1 kΩ or
more
Supply voltage: 2.4 V DC (bias resistance: 2.2 kΩ)
Type-C (USB 3.1) x 1
Physical characteristics
Temperature
0°C - 40°C
Humidity
10% – 90% (without condensation)
PoE: PoE+ power supply via LAN connection (compatible with IEEE802.3at)
– PoE cannot be used
External power source: 24 V DC (with included AC adapter)
PoE+ input: approx. 16.2 W 3 max. (body only)
DC input: approx. 15.0 W max. (body only)
Approx. 154 x 178 x 164 mm (excluding protruding parts)
Approx. 2.2kg (body only)
NC35 or less
