Description

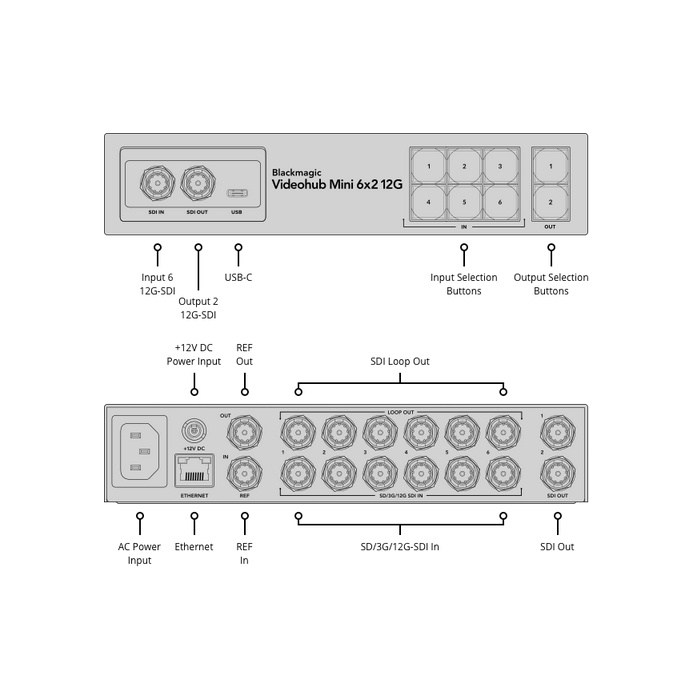

The Blackmagic Videohub Mini 6x2 12G is a compact zero latency video router that supports any combination of SD, HD, and Ultra HD simultaneously on the router. It features 6 12G-SDI inputs and 2 12G-SDI outputs plus reference connections for locking clean switching outputs in a compact 1/2 rack width package. The front panel allows you to quickly route a video connection and it even includes a 12G-SDI fallback for connecting external equipment and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control, and supports all SDI video standards up to 2160p60.

Technische specificaties

Processing

Switching Type	Pushbutton, Software
Audio Processing	48 kHz / 24-Bit

Input

Video Inputs	6x BNC (12G-SDI) 1x BNC (12G-SDI)
Input Video Format	SDI DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio Input	SDI

Output

Video Outputs	2x BNC (12G-SDI) 1x BNC (12G-SDI) 6x BNC (12G-SDI) (Loop Output)
Output Video Format	SDI DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio Output	SDI

Connectivity

Inputs/Outputs	1x RJ45
Other I/O	1x USB-C Output 1x BNC Blackburst, Reference, Tri-Level Sync Input 1x BNC Blackburst, Reference, Tri-Level Sync Output
Video Standard Compliance	SMPTE 259M/292M/296M/372M/424M/424M-A/424M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656

Hardware

Wi-Fi	Yes
Bluetooth	No

Power

Power I/O	1x Barrel (12 VDC ) Input 1x IEC C13 (100 to 240 VAC) Input
Power Consumption	Device: 18.5 W

General

Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions	8.27 x 6.82 x 1.82" / 21.01 x 17.32 x 4.62 cm
Weight	2.91 lb / 1.32 kg

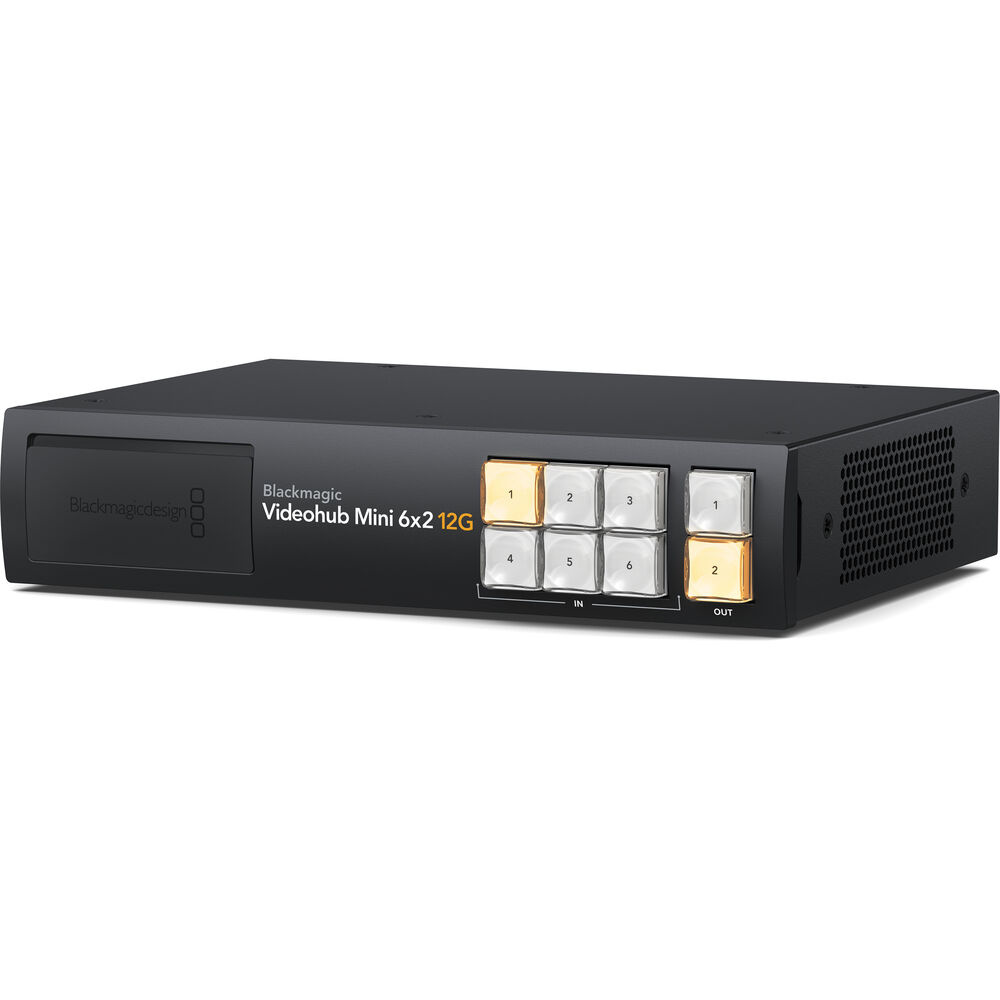

Blackmagic Design Video Hub Mini 6x2 12G Router
