Description

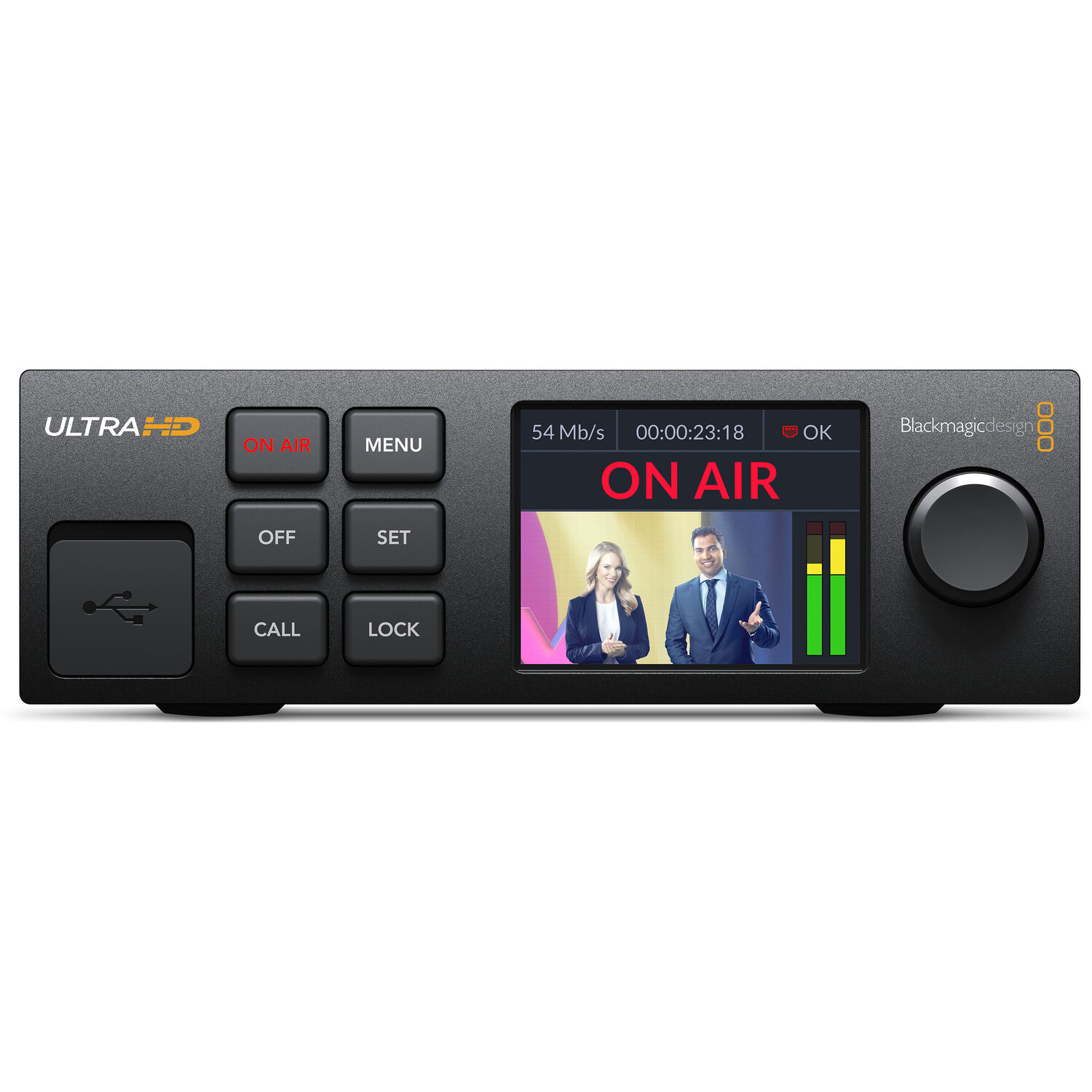

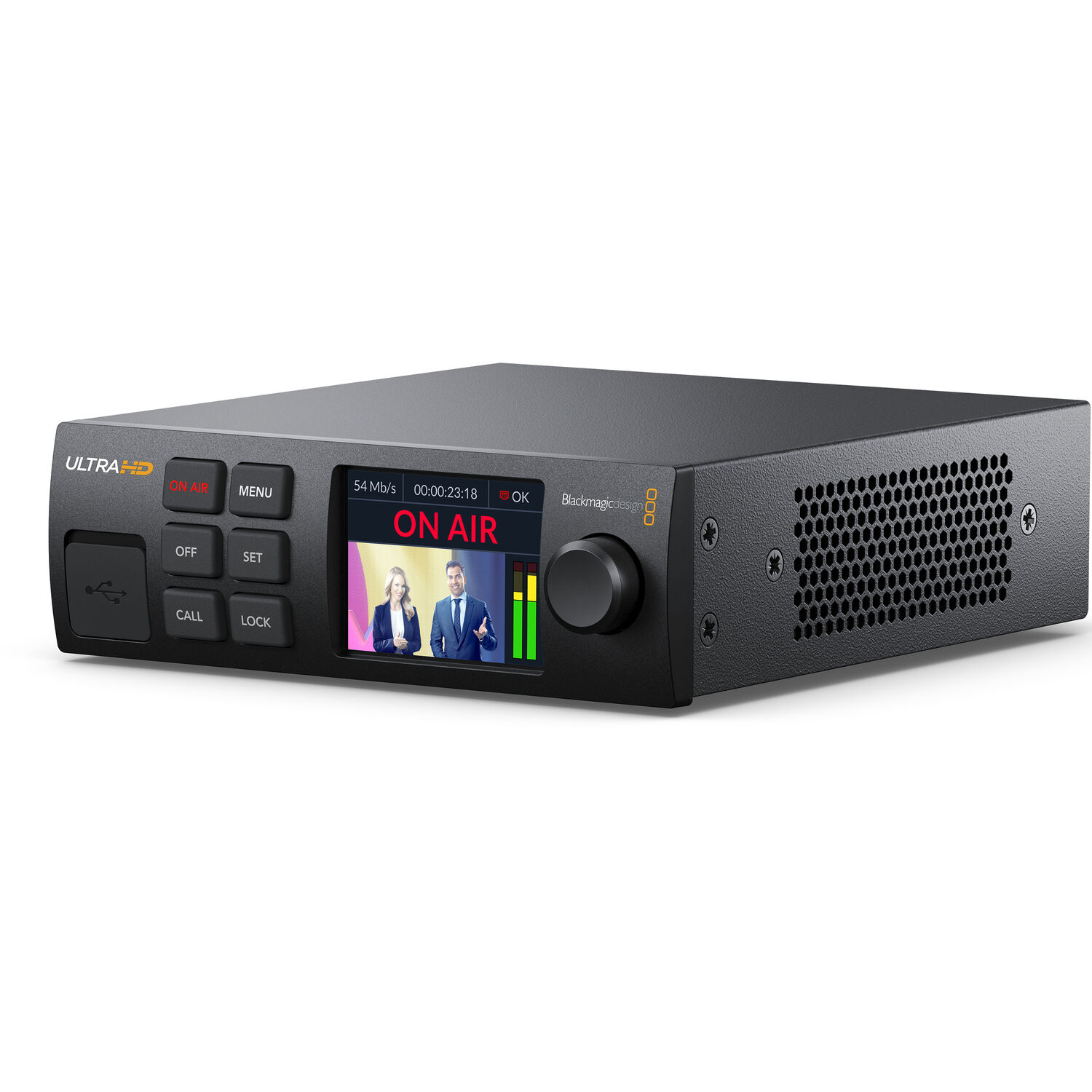

The Blackmagic Streaming Encoder 4K is a powerful standalone streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services like YouTube, Facebook, X and more. Additionally, you can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standard converted 12G-SDI input and streaming monitor output.

Technische specificaties

IP Encoding/Decoding

IP Video	3840 x 2160 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 1280 x 720 at 50p, 59.94p, 60p Encoding
Simultaneous Streams	1 Streams
Compatible Services	Facebook Live, Skype, Twitch, YouTube Live
Wi-Fi	Yes
Bluetooth	Yes
Cellular Support	No

Interfaces

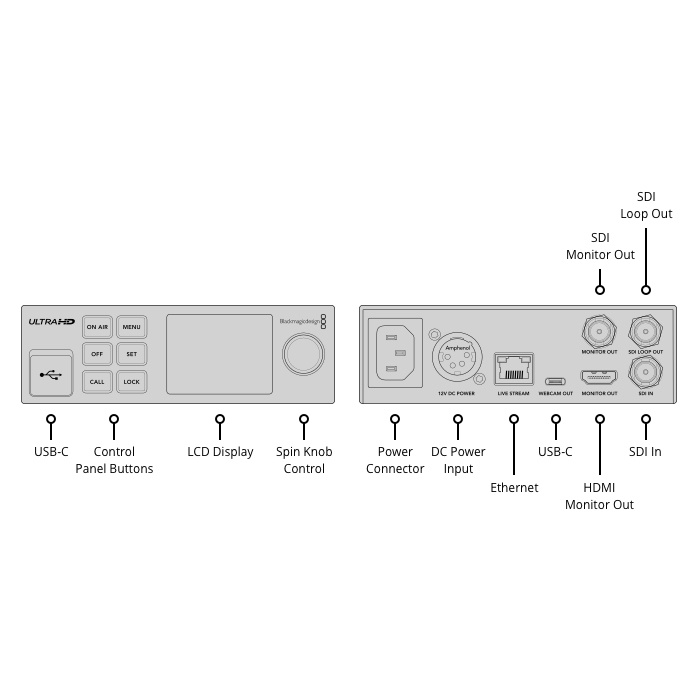

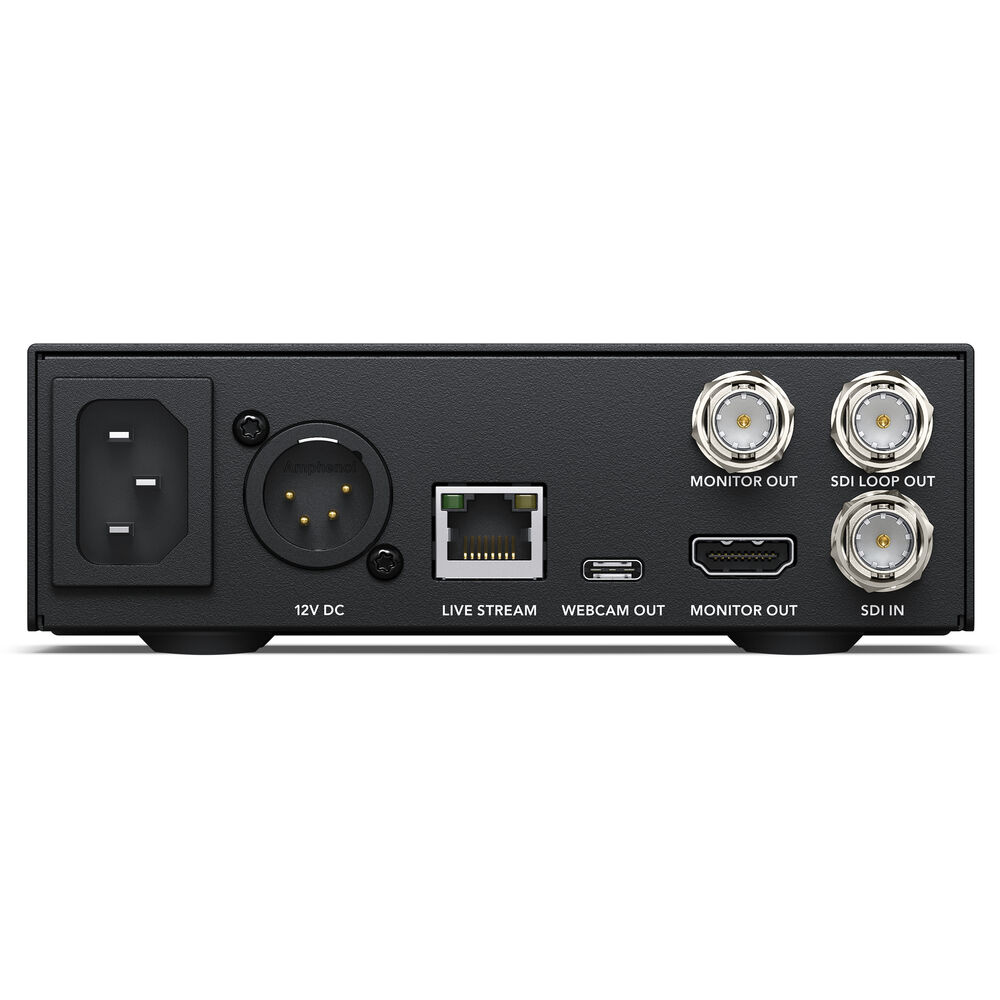

Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output 1x HDMI Monitor Output 1x USB-C (USB Video) Output
Other I/O	1x RJ45 Gigabit Ethernet Input/Output
Embedded Audio	SDI

Power

Power I/O	1x XLR 4-Pin (12 VDC) Input 1x NEMA 5-15R Input
Power Consumption	Device: 100 to 240 VAC (25 W) Device: 12 VDC (25 W)

General

Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C
Display	LCD
Rackmount Size	1 U (1/3-Rack)
Dimensions	6.9 x 5.51 x 1.75" / 17.5 x 14 x 4.45 cm
Weight	1.66 lb / 0.75 kg

Blackmagic Design Streaming Encoder 4K
