Description

The Blackmagic Streaming Decoder 4K is a professional streaming decoder that allows you to receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that allows you to connect SDI tally, camera control and talkback to the encoder.

Technische specificaties

IP Encoding/Decoding

IP Video

H.264/H.265:
3840 x 2160 Decoding

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Cellular Support	5G NR / 4G LTE via Unspecified SIM Type
SIM Card Slots	Not Specified by Manufacturer

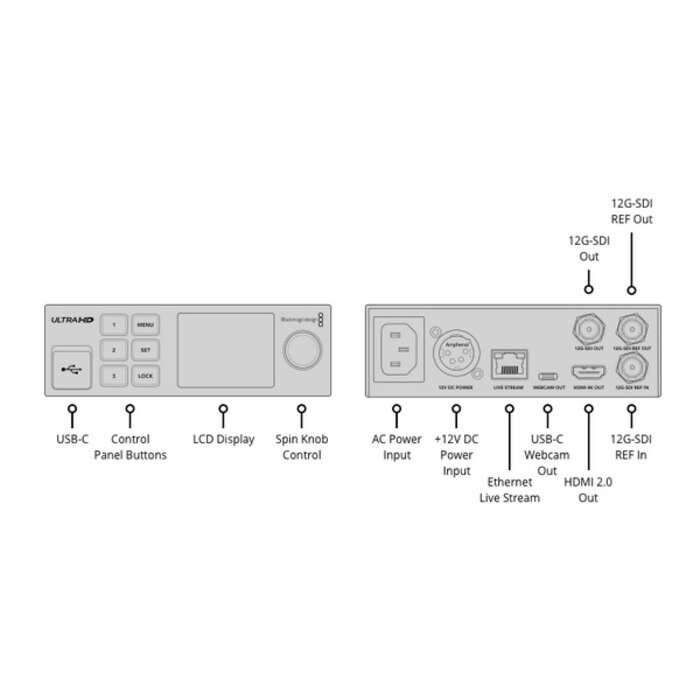

Interfaces

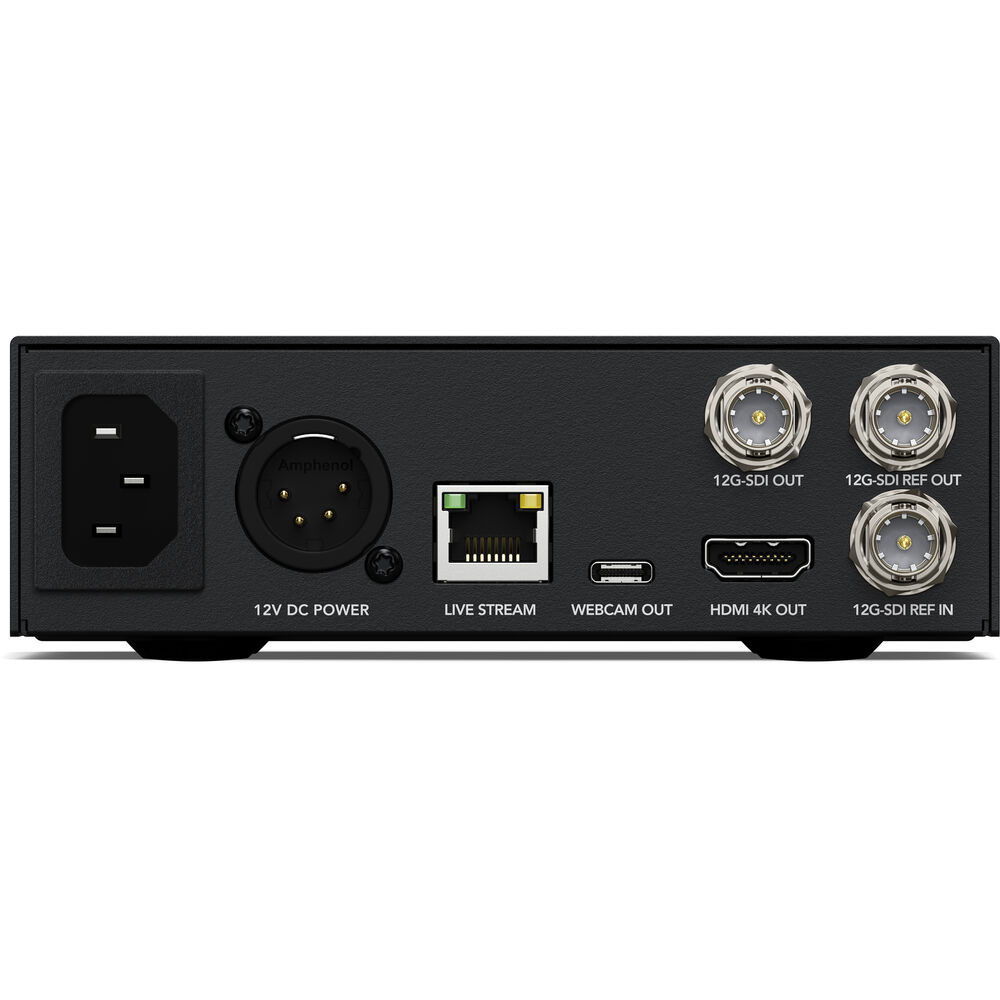

Video I/O	1x BNC (12G-SDI) Output 1x HDMI Output
Other I/O	1x RJ45 Fast Ethernet Input/Output 1x BNC Genlock Input 1x BNC Genlock Output
Embedded Audio	HDMI/LAN (RJ45)/SDI

Power

Power I/O

1x IEC C14 Input
1x Mini-XLR 4-Pin Input

General

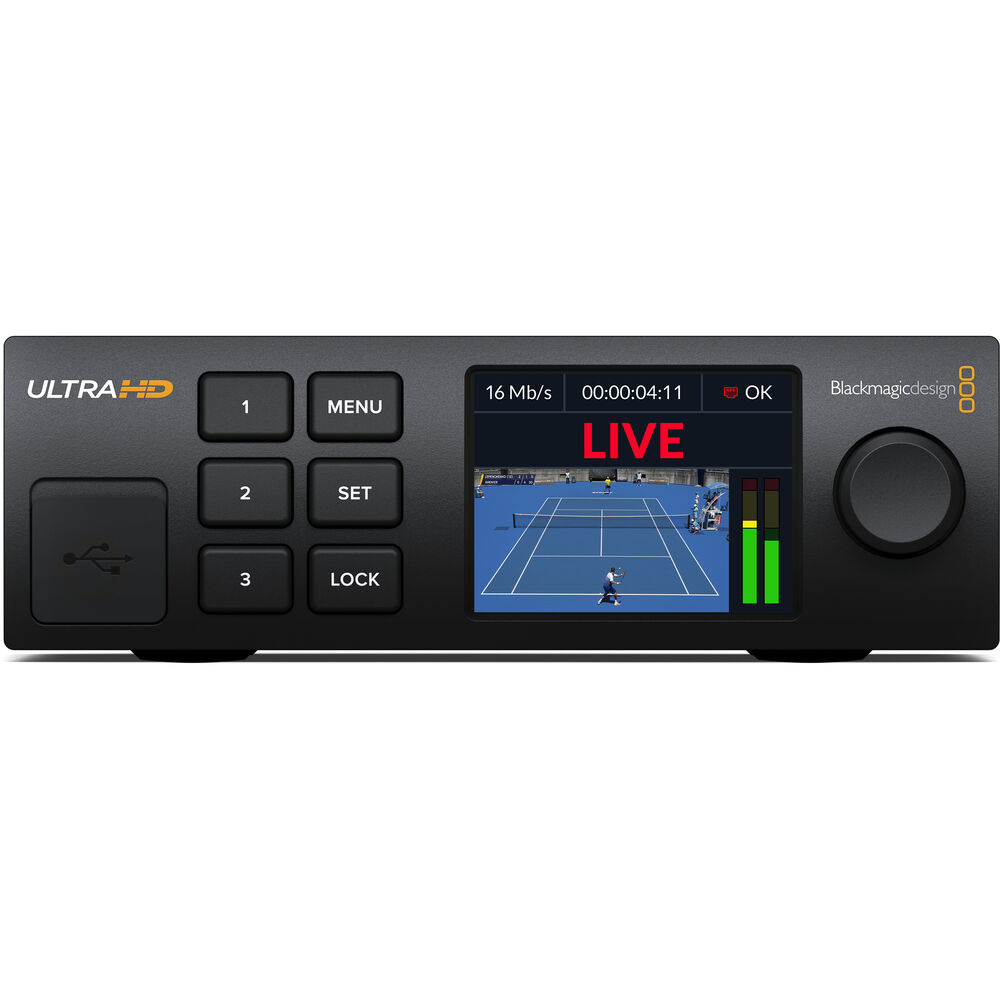

Display	LCD
Rackmount Size	1 U
Dimensions	5.5" / 14 cm (Width)

Blackmagic Design Streaming Decoder 4K
