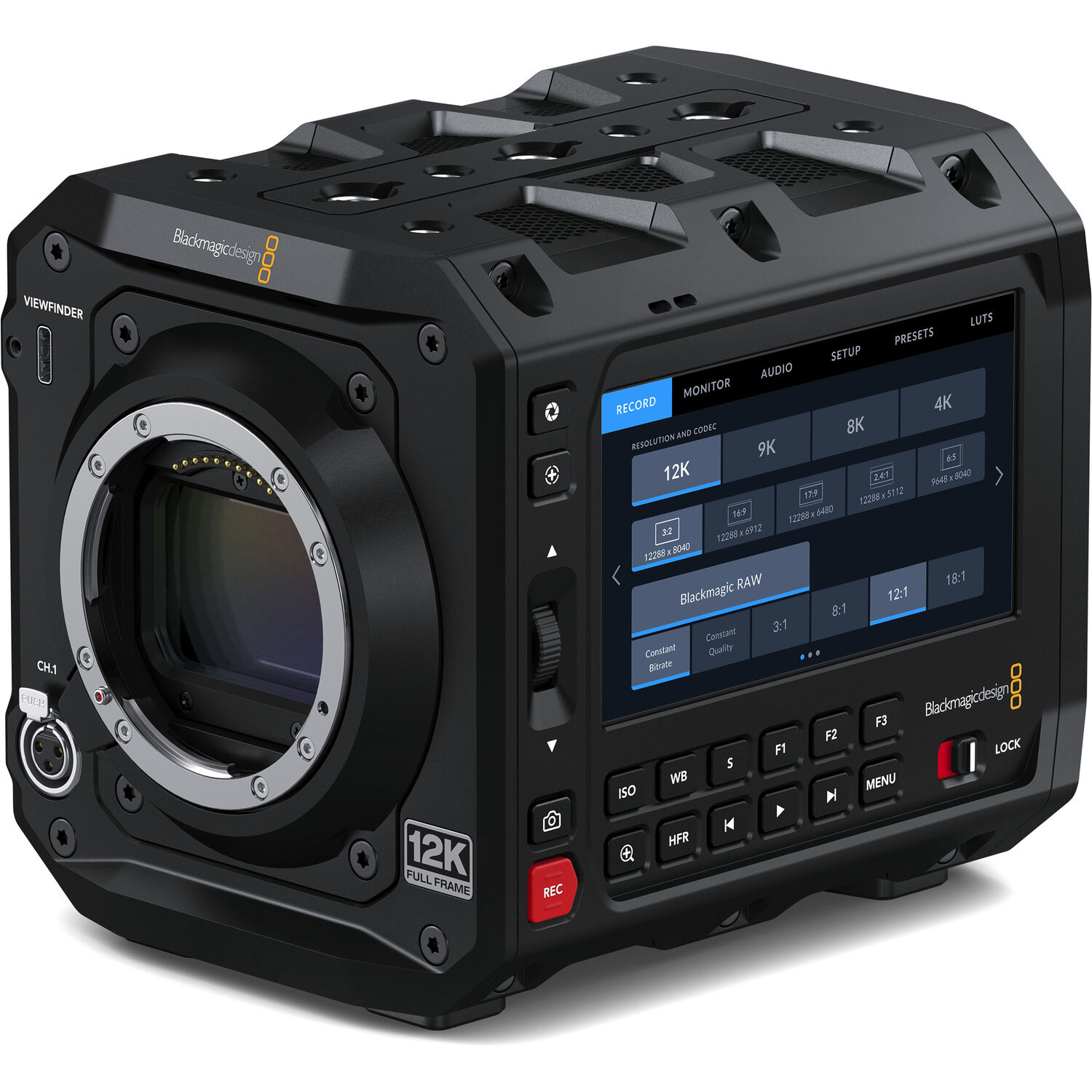

Blackmagic Design Blackmagic Design PYXIS 12K Cinema Camera (L-Mount)

Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig

Gratis verzending vanaf € 100,-

085 130 5392

Great deals

Meedenkers en Oplossers

Tailored Services

Description

The Blackmagic PYXIS 12K L-Mount is an advanced digital cinema camera with an incredibly versatile design that allows you to build the perfect camera setup for your production. This new model features a 12288 x 8040 full-frame RGBW sensor with built-in optical low-pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K L-Mount features a fixed L-Mount that works with the latest full-frame lenses and a wide range of lens adapters.

Technische specificaties

Imaging

Lens Mount	L-Mount
Lens Communication	Yes
Sensor Resolution	Effective: 98.8 Megapixels (12,288 x 8040)
Image Sensor	35.64 x 23.32mm (Large Format) CMOS
Image Stabilization	No
Built-In ND Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Rolling Shutter
Advertised Dynamic Range	16 Stops

Video Capture

Internal Recording Modes	Blackmagic RAW 12288 x 8040 up to 40 fps 9648 x 8040 up to 40 fps 12288 x 6912 up to 45 fps 12288 x 6480 up to 50 fps 7680 x 6408 up to 50 fps 9648 x 6264 up to 50 fps 8192 x 5360 up to 72 fps 6432 x 5360 up to 72 fps 12288 x 5112 up to 60.00 fps 9312 x 4896 up to 65 fps 8688 x 4896 up to 65 fps 8192 x 4608 up to 84 fps 8192 x 4320 up to 90 fps 9312 x 3864 up to 80 fps 8192 x 3408 up to 112 fps 4096 x 2680 3216 x 2680 4096 x 2304 4096 x 2160 4096 x 1704
External Recording Modes	SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
Fast/Slow Motion Support	No
Built-In Microphone	Stereo
IP Streaming	Yes

Interface

Media/Memory Card Slot	Dual Slot: CFexpress Type B
Video I/O	1x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5mm TRRS Headphone/Mic Headphone Output 1x 1/8" / 3.5mm TRS Stereo Microphone Input
Power I/O	1x LEMO 2-Pin (12VDC) Input
Other I/O	1x USB-C Viewfinder Output 1x USB-C Control/Data/Video 1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet)
Wireless	Bluetooth Control
Mobile App Compatible	Yes: Android & iOS
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type	Primary Monitor: Fixed 4" Touchscreen LCD
Resolution	Primary Monitor: 1920 x 1080

Focus

Focus Mode

Automatic, Manual Focus

Power

Battery Type

Sony BP-U Series

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C

General

Shoe Mount	No

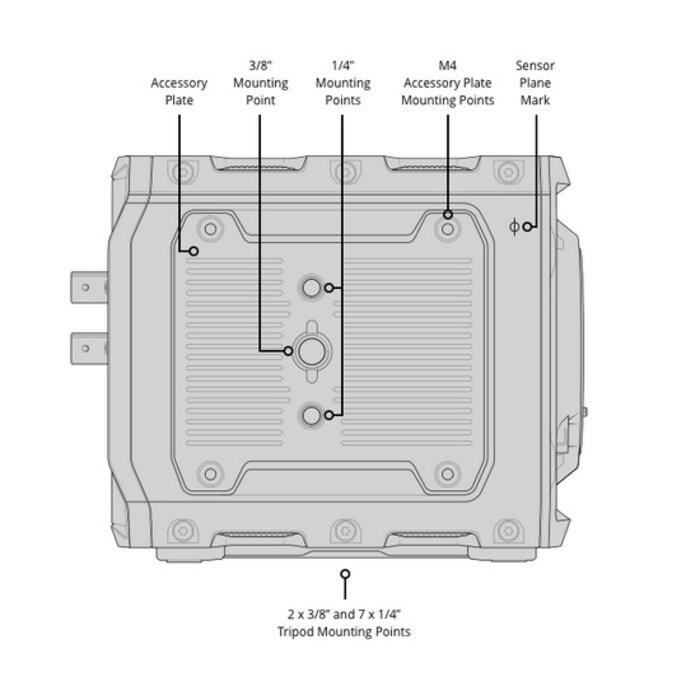

Tripod Mounting Thread	7x 1/4"-20 Female (Bottom) 2x 3/8"-16 Female (Bottom)
Accessory Mounting Thread	2x 1/4"-20 on Camera Body 1x 3/8"-16 on Camera Body 4x M4 on Camera Body
Dimensions (W x H x D)	5.94 x 4.69 x 4.17" / 15.09 x 11.91 x 10.59 cm
Weight	3.5 lb / 1.6 kg (Body Only)
