Blackmagic Design Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL)

Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig

Gratis verzending vanaf € 100,-

085 130 5392

Great deals

Meedenkers en Oplossers

Tailored Services

Description

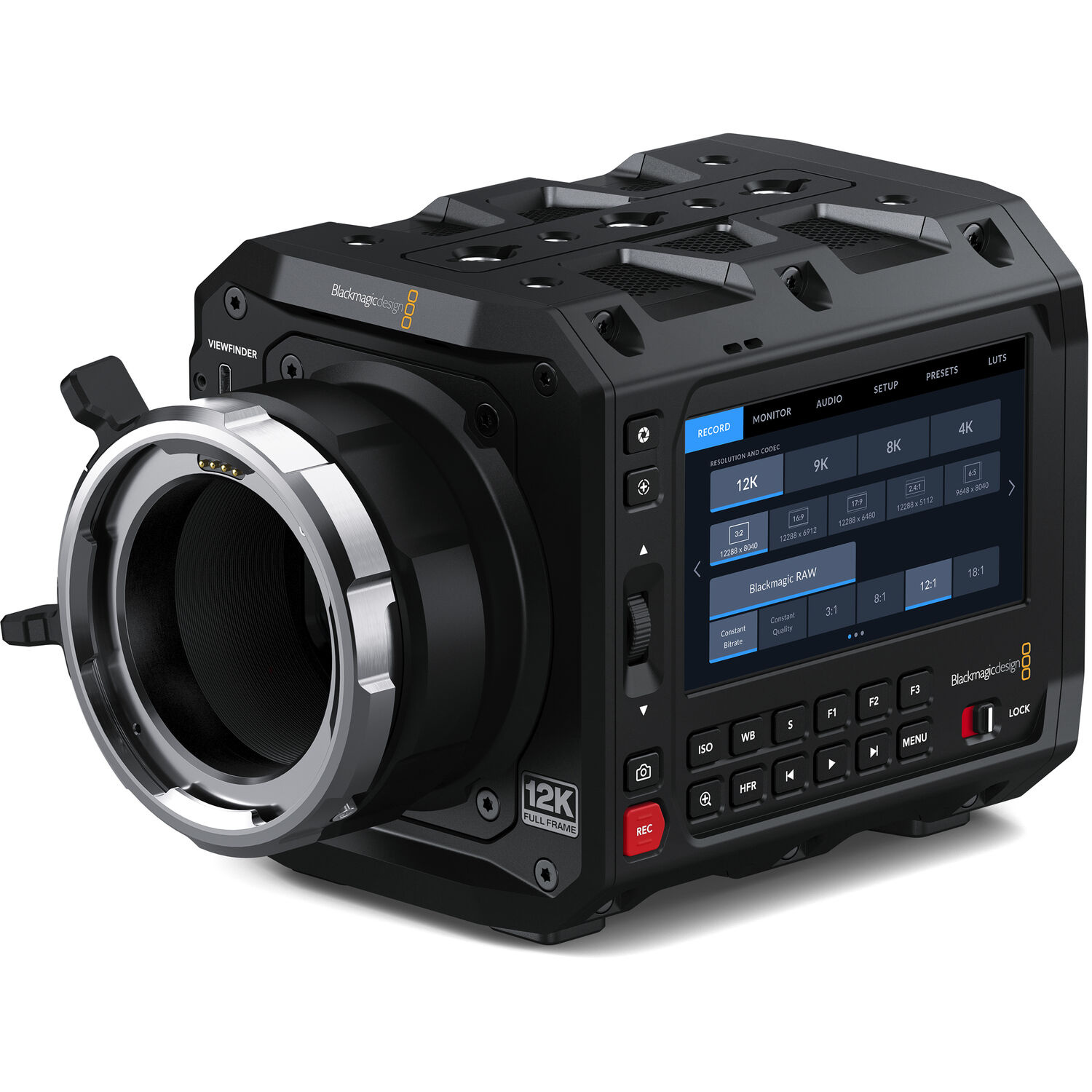

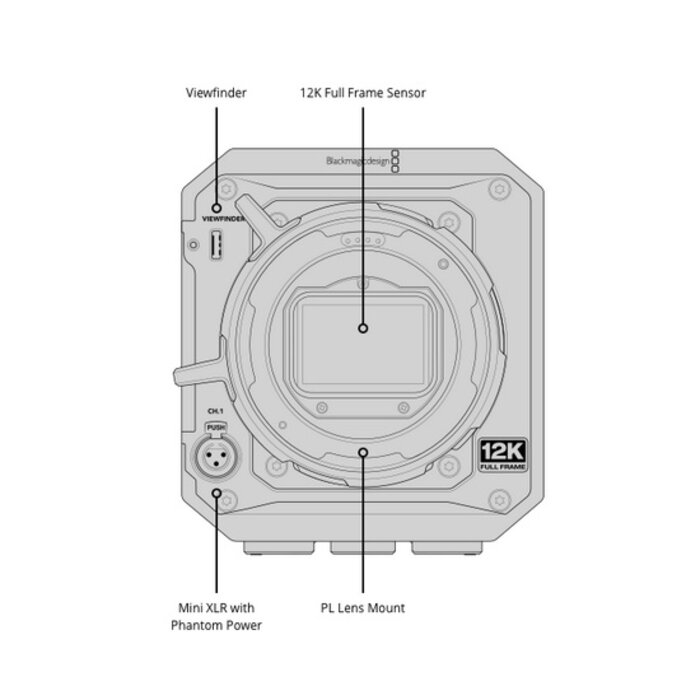

The Blackmagic PYXIS 12K PL is an advanced digital cinema camera with an incredibly versatile design that lets you build the perfect camera setup for your production. This new model features a 12288 x 8040 full-frame RGBW sensor with built-in optical low-pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K PL has a fixed PL mount that works with professional, high-quality cinema lenses.

Technische specificaties

Imaging

Lens Mount	ARRI PL
Lens Communication	Yes
Sensor Resolution	Effective: 98.8 Megapixels (12,288 x 8040)
Image Sensor	35.64 x 23.32mm (Large Format) CMOS
Image Stabilization	No
Built-In ND Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Rolling Shutter
Advertised Dynamic Range	16 Stops

Video Capture

Internal Recording Modes	Blackmagic RAW 12288 x 8040 up to 40 fps 9648 x 8040 up to 40 fps 12288 x 6912 up to 45 fps 12288 x 6480 up to 50 fps 7680 x 6408 up to 50 fps 9648 x 6264 up to 50 fps 8192 x 5360 up to 72 fps 6432 x 5360 up to 72 fps 12288 x 5112 up to 60.00 fps 9312 x 4896 up to 65 fps 8688 x 4896 up to 65 fps 8192 x 4608 up to 84 fps 8192 x 4320 up to 90 fps 9312 x 3864 up to 80 fps 8192 x 3408 up to 112 fps 4096 x 2680 3216 x 2680 4096 x 2304 4096 x 2160 4096 x 1704
External Recording Modes	SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
Fast/Slow Motion Support	No
Built-In Microphone	Stereo
IP Streaming	Yes

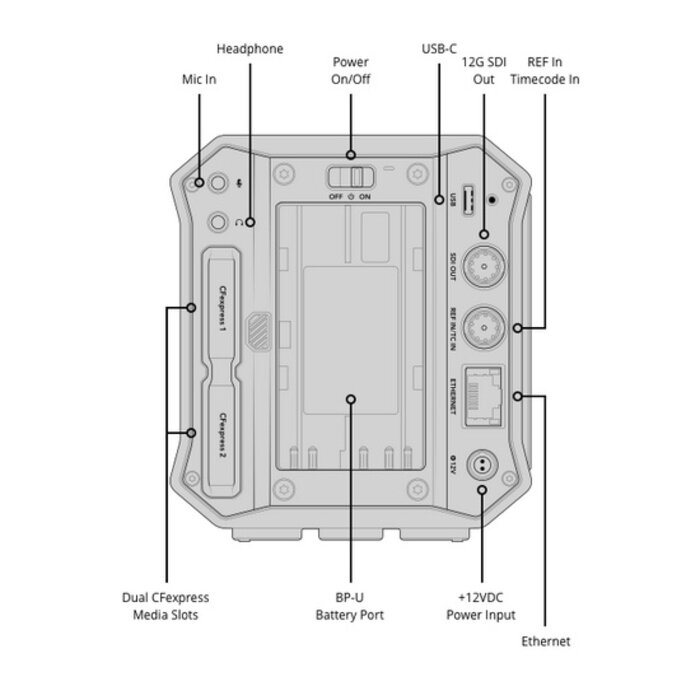

Interface

Media/Memory Card Slot	Dual Slot: CFexpress Type B
Video I/O	1x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5mm TRRS Headphone/Mic Headphone Output 1x 1/8" / 3.5mm TRS Stereo Microphone Input
Power I/O	1x LEMO 2-Pin (12VDC) Input
Other I/O	1x USB-C Viewfinder Output 1x USB-C Control/Data/Video 1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet)
Wireless	Bluetooth Control
Mobile App Compatible	Yes: Android & iOS
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

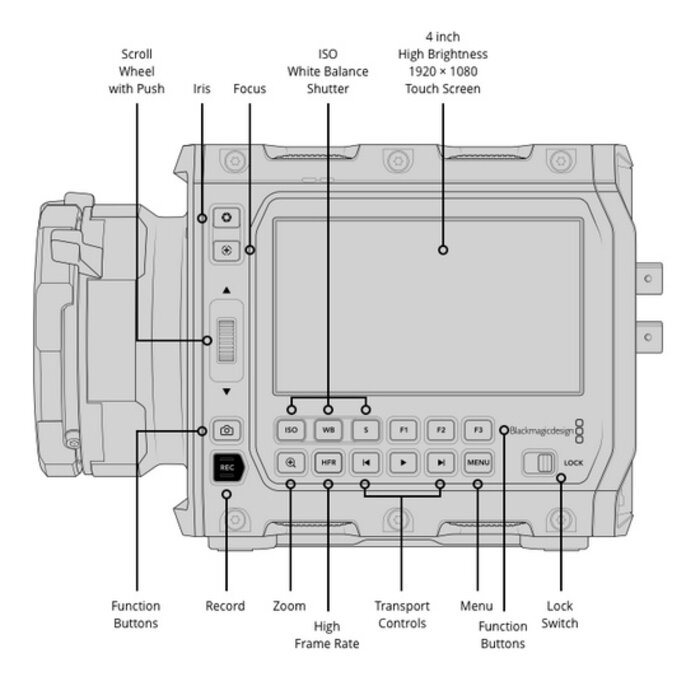

Display Type	Primary Monitor: Fixed 4" Touchscreen LCD
Resolution	Primary Monitor: 1920 x 1080

Focus

Focus Mode

Automatic, Manual Focus

Power

Battery Type

Sony BP-U Series

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C

General

Shoe Mount	No

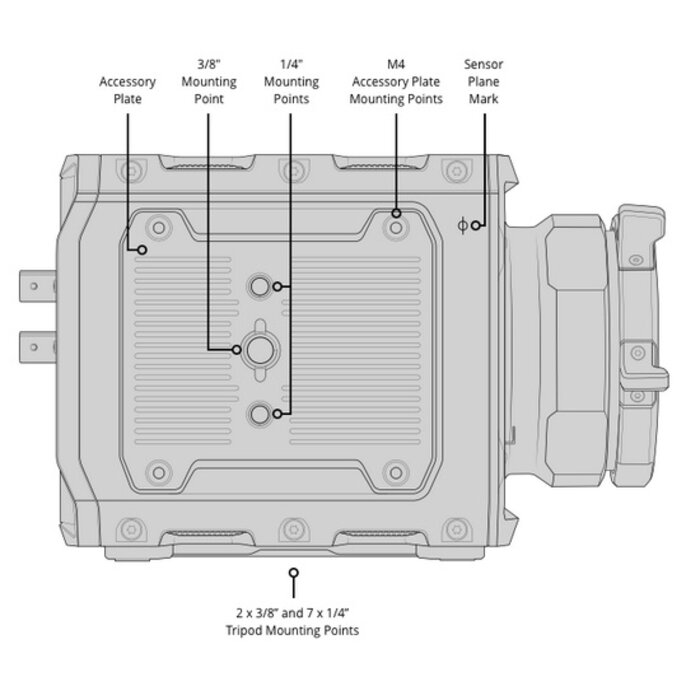

Tripod Mounting Thread	7x 1/4"-20 Female (Bottom) 2x 3/8"-16 Female (Bottom)
Accessory Mounting Thread	2x 1/4"-20 on Camera Body 1x 3/8"-16 on Camera Body 4x M4 on Camera Body
Dimensions (W x H x D)	5.94 x 4.69 x 4.17" / 15.09 x 11.91 x 10.59 cm
Weight	3.5 lb / 1.6 kg (Body Only)
