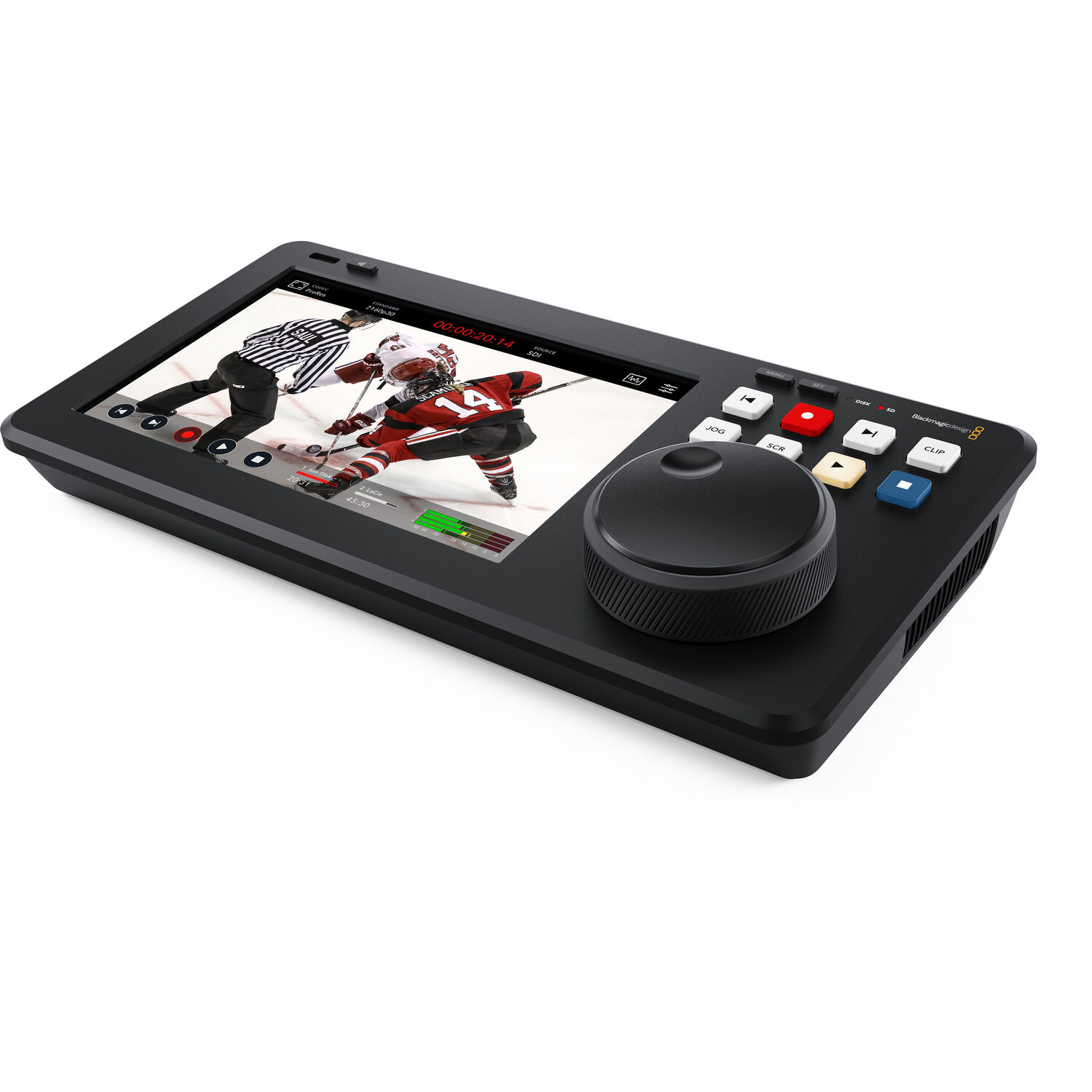

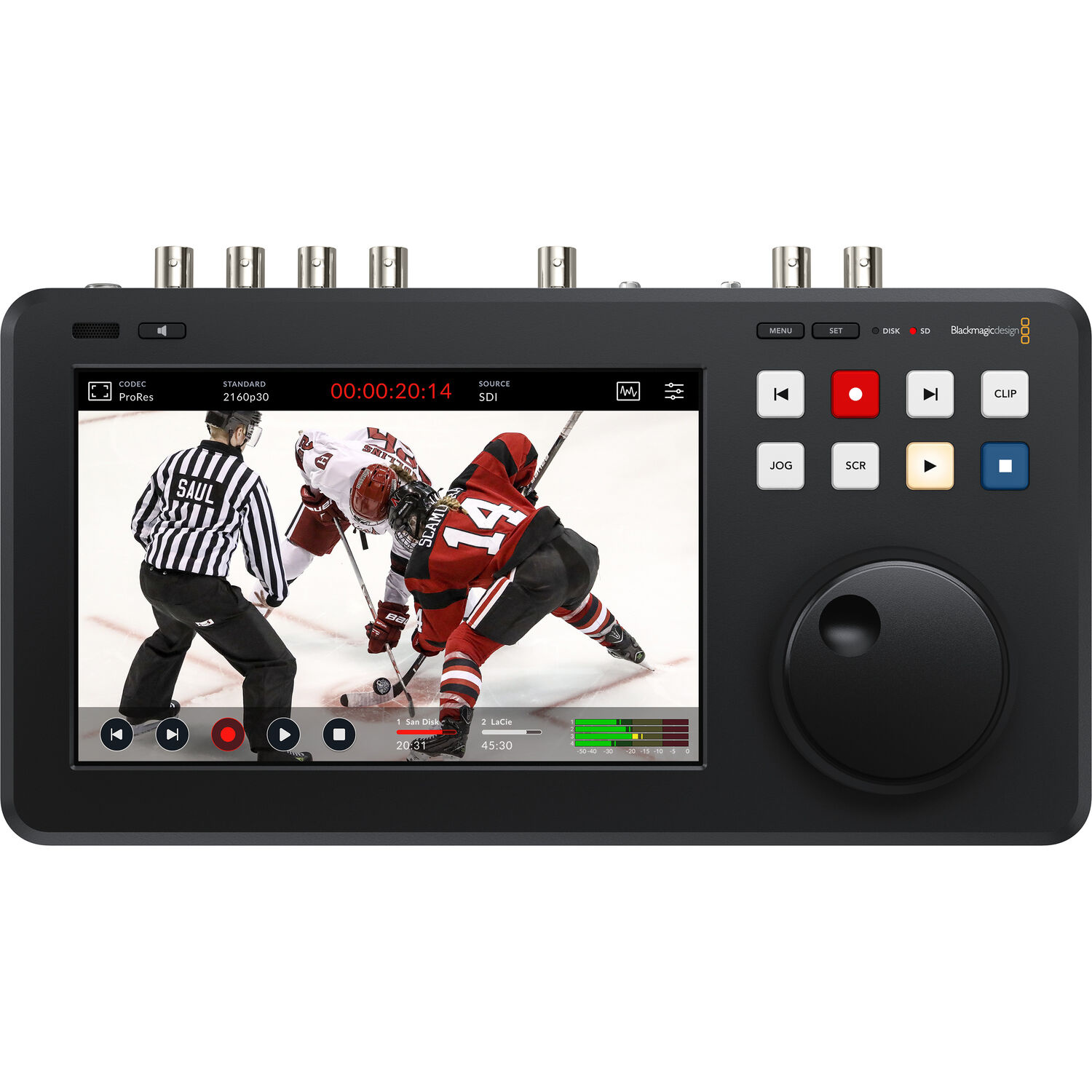

Blackmagic Design HyperDeck Shuttle 4K Pro 2TB

Video Resolution

DCI 4K at 23.98, 24, 25, 30
UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
DCI 2K at 23.98, 24, 25, 29.97, 30
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i at 50, 59.94, 60
1080PsF at 23.98, 24, 25, 29.97, 30
720p at 50, 59.94, 60
625i at 50
525i at 59.94

Sampling Rate

Audio
24-bit, 48 kHz
Video
4:2:2 YUV

Video Codecs

ProRes, DNx, H.265, H.264

Audio Format

AAC 2-Channel
PCM 2/4/8/16/32/64-Channel

Panel Type

LCD

Display Size

7"

Touch screen

Yes

USB I/O

1 x USB-C 3.0 / 3.1 / 3.2 Gen 1 Female Output

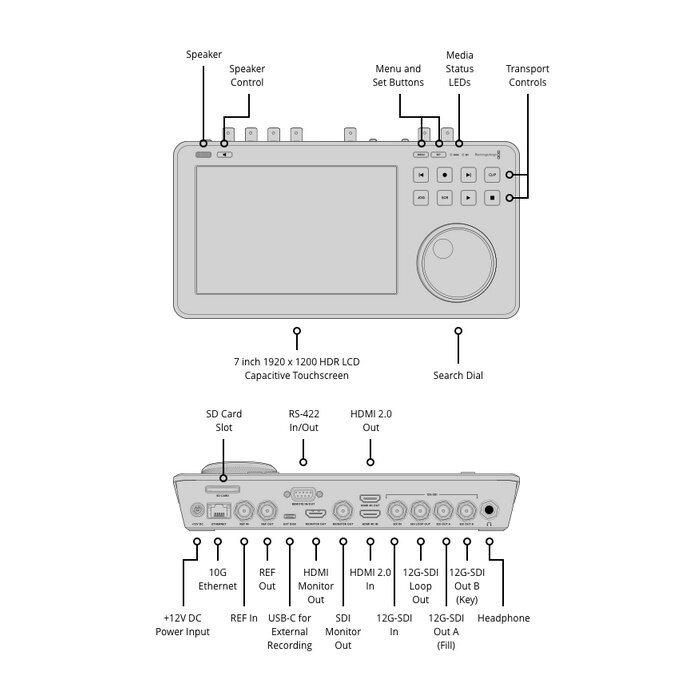

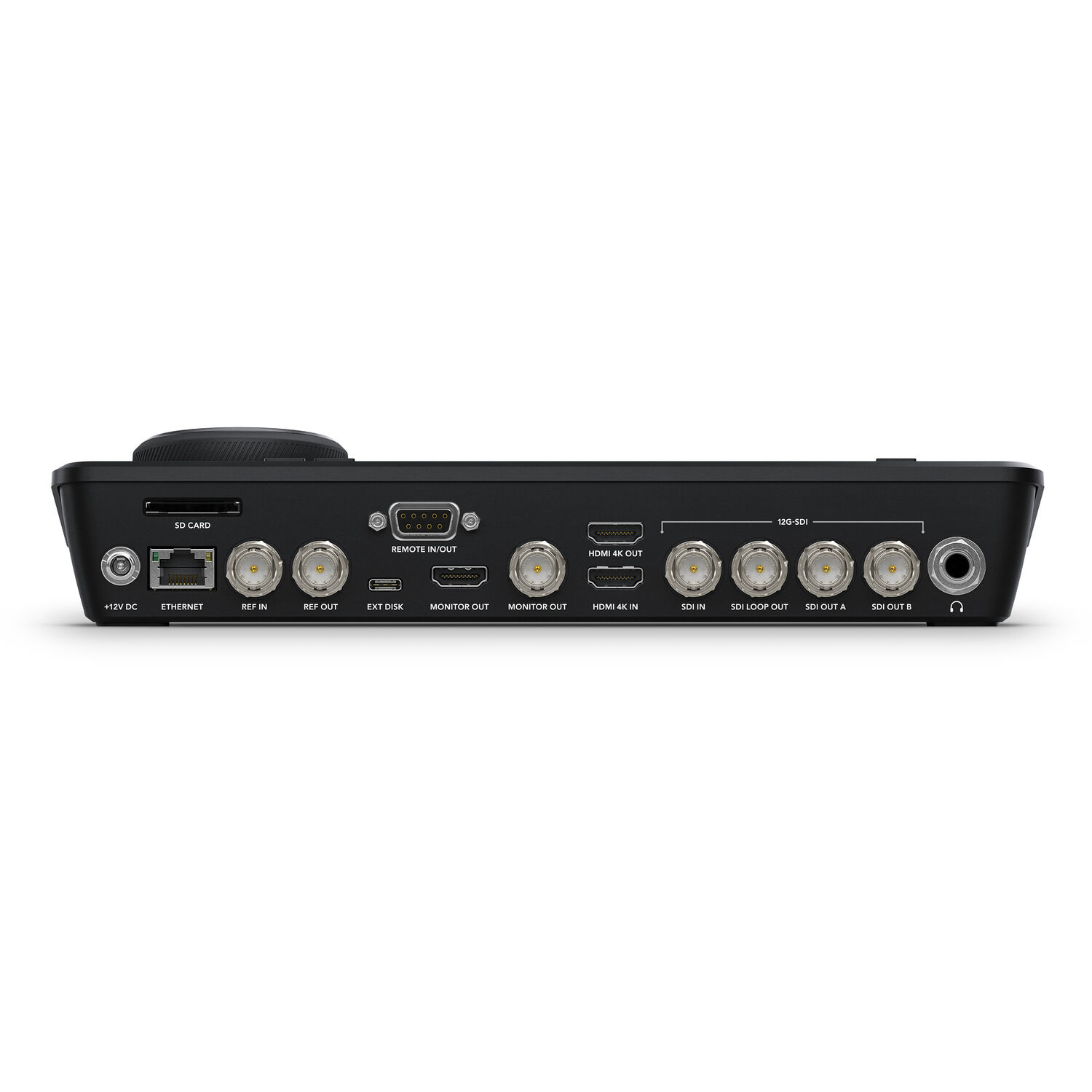

Video I/O

1x HDMI Input
1x HDMI Output
1x HDMI Output ( Monitor )
1x BNC Input
1x BNC Output (Loop Output)
2x BNC Output
1x BNC Output ( Monitor )

Audio I/O

1x 1/4" Headphone Input

Media/Memory Card Slot

Single Slot: SD (Unspecified Type)
Single Slot: M.2 SSD

Other I/O

1 x DB-9 RS-422 Input
1 x RJ45 10G Ethernet
1 x BNC Reference/Tri-Sync/Blackburst Input
1 x BNC Reference/Tri-Sync/Blackburst Output

Wireless

Yes

Power Source

DC Input

DC Input Power

12 VDC

Power Consumption

60 W (Maximum)

Color

Black

Operating Conditions

32 to 72°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C up to 90% Humidity

Dimensions

10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm

Weight

2.39 lb / 1.08 kg
