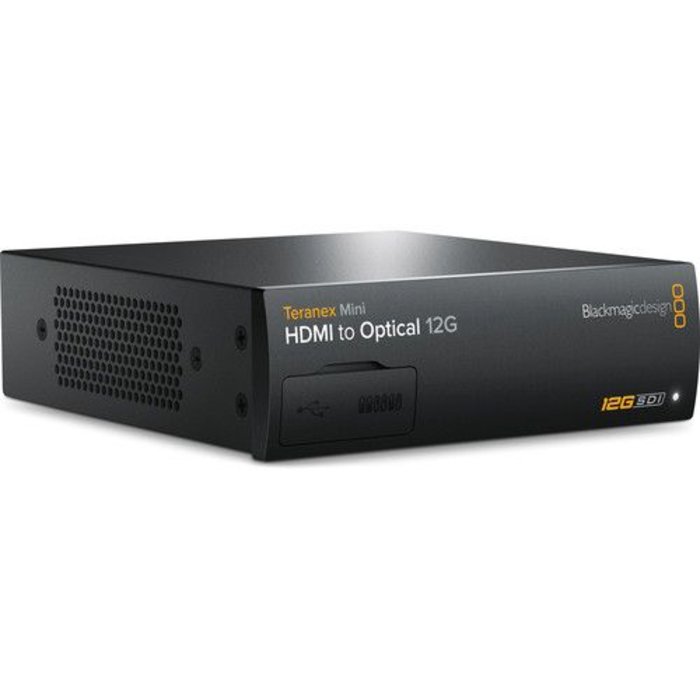

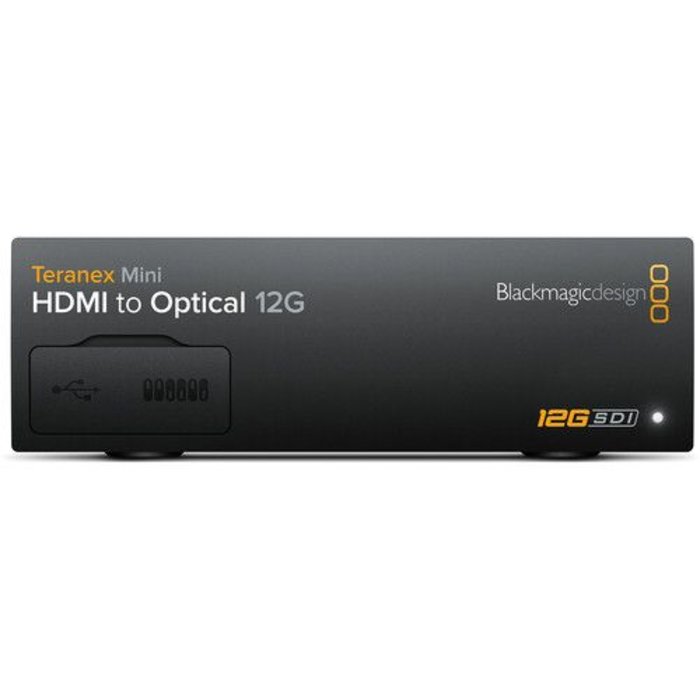

Blackmagic Design Teranex Mini - HDMI to Optical 12G
Convert from HDMI to 12G optical fiber and 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
Teranex Mini - HDMI to Optical 12G
SD card with software and manual
HDMI
1 x HDMI 2.0 type A connector with support for 2160p60.
Optical Fiber Connection
LC connector, 1310 nanometer wavelength, single mode.
Optical Fiber Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
SDI Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB and Ethernet.
Re-Clocking
Yes
