Blackmagic Design Mini Converter SDI to Analog 4K
The Blackmagic Mini Converter SDI to Analog 4K contains everything you need to convert SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built-in downconverter means you can even connect Ultra HD sources to component video in SD or HD and NTSC and PAL video! Easily connect all analog equipment such as Betacam SP, VHS and video monitors!

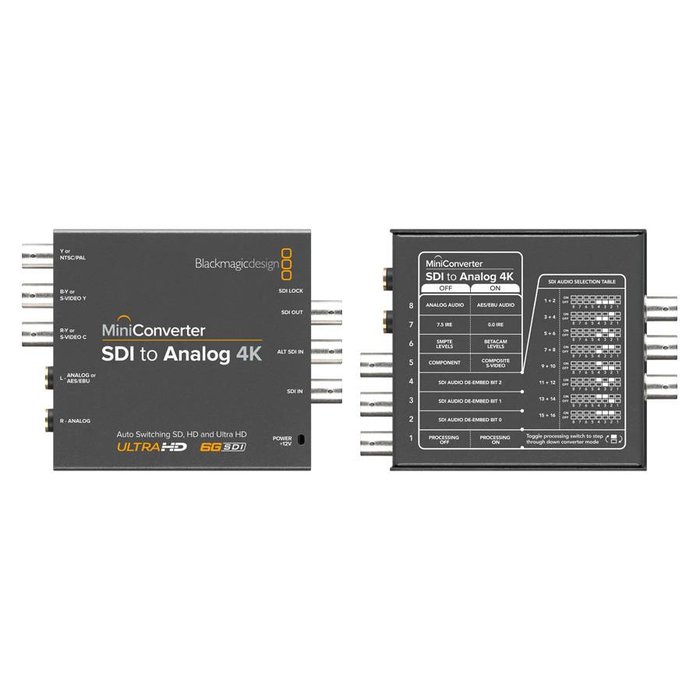

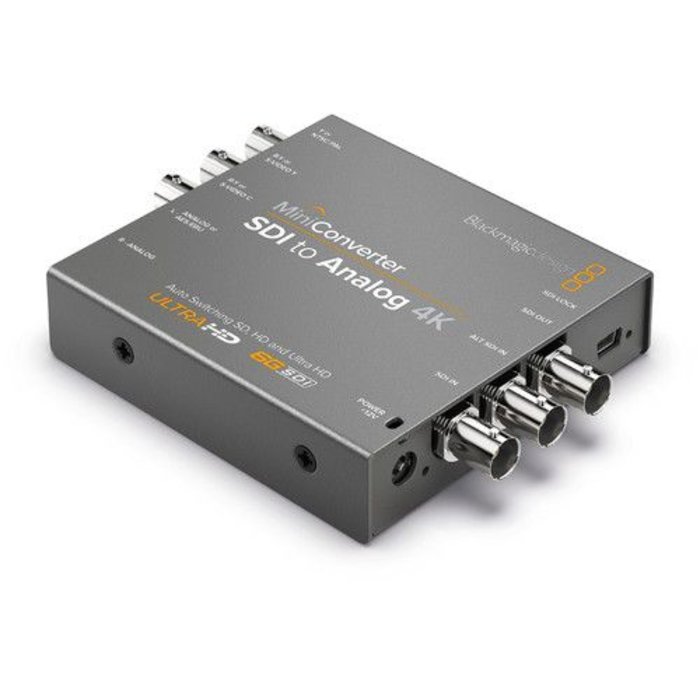

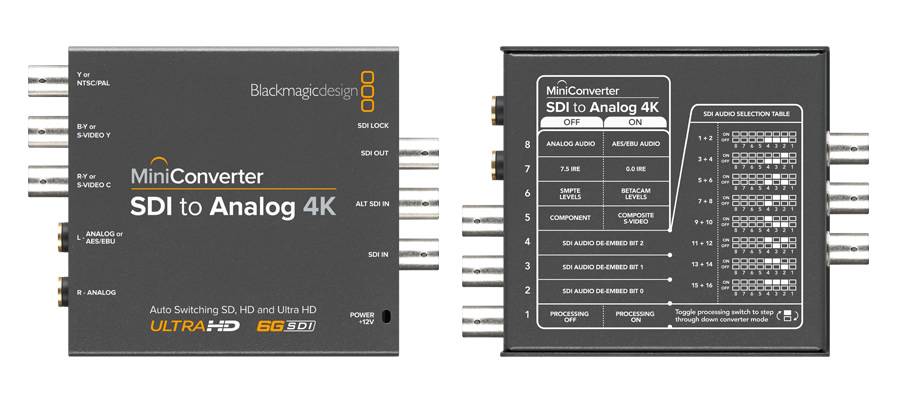

Mini Converter SDI to Analog 4K
12V universal power supply with international socket adapters
SDI Video Input
Switchable between SD, HD and
6G-SDI.
SDI Video Output
Automatically matches the SD, HD and 6G-SDI video input.
Analog Video
NTSC, PAL and S-Video from and component HD from 6G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of 6G-SDI, HD or standard definition SDI inputs.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
2K Format Support
2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition adn UHD
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
Analog Format Support
625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080Ps F24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD down conversion
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12V
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
