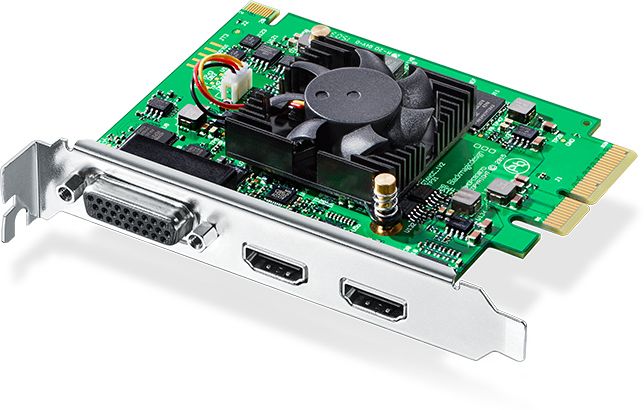

Blackmagic Design Intensity Pro 4K
Introducing the new Intensity Pro 4K, the easiest and highest quality way to capture video on your computer! Intensity Pro 4K has all the same great features of the original Intensity Pro capture card but now you also get Ultra HD and 1080p60 high frame rate support! Now you can capture Ultra HD images at up to 30 frames per second or 1080HD at an incredible 60 frames per second! You can save files with or without compression and use it with the most popular Mac and Windows video software. Intensity Pro 4K also includes DaVinci Resolve Lite so you get a full capture and playback solution along with professional video editing and color grading, without having to buy any extra software!
Connect and Capture from Anything
Edit and stream video, capture gameplay or convert old tapes!
Whether you’re editing video and you need a realtime preview on a big screen TV, if you’re a hardcore gamer creating high frame rate walk throughs of your latest gameplay, or you’re trying to save family videos from old VHS tapes, Intensity Pro 4K has all the video connections and features you need! Intensity Pro 4K includes both analog and digital connections that let you easily plug in everything from older VHS decks to the latest big screen 4K televisions! You can even connect your cameras and use Intensity Pro 4K for live streaming, video conferencing, presentations and more!
Highest Quality Connections
Connect to all of your SD, HD and Ultra HD devices!
Intensity Pro 4K features the highest quality HDMI and analog connections so you always get the best looking video possible. Intensity Pro 4K includes HDMI connectors for working with the latest HD and Ultra HD equipment, as well as analog YUV, S-Video, and NTSC/PAL connections for working with older analog televisions, videotape players and more. That means Intensity Pro 4K works with everything from your old VHS decks and DVD players all the way up to the latest gaming consoles and big screen Ultra HD televisions
Intensity Pro 4K
Software SD card.
Breakout Cable
12 Months Limited Warranty
Connections
HDMI Video Input
1 x HDMI type A connector.
HDMI Video Output
1 x HDMI type A connector.
HDMI Audio Input
8 Channels embedded in SD, HD and Ultra HD.
HDMI Audio Output
8 Channels embedded in SD, HD and Ultra HD.
Analog Video Input
Component, Composite or S-Video.
Analog Video Output
Component, Composite or S-Video.
Analog Audio Input
2 Channel RCA HiFi audio in 24-bit.
Analog Audio Output
2 Channel RCA HiFi audio in 24-bit.
SPDIF Audio Output
2 Channel 24-bit.
Multiple Rate Support
HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
Computer Interface
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.
Standards
SD Format Support
625i/50 PAL and 525i/59.94 NTSC, 480p
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.
HDMI Video Sampling
RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.
HDMI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Color Space
REC 601, REC 709.
HDMI Color Precision
10-bit
HDMI Configuration
HDMI 1.4b supports Deep Color and automatically configures to connected display.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
