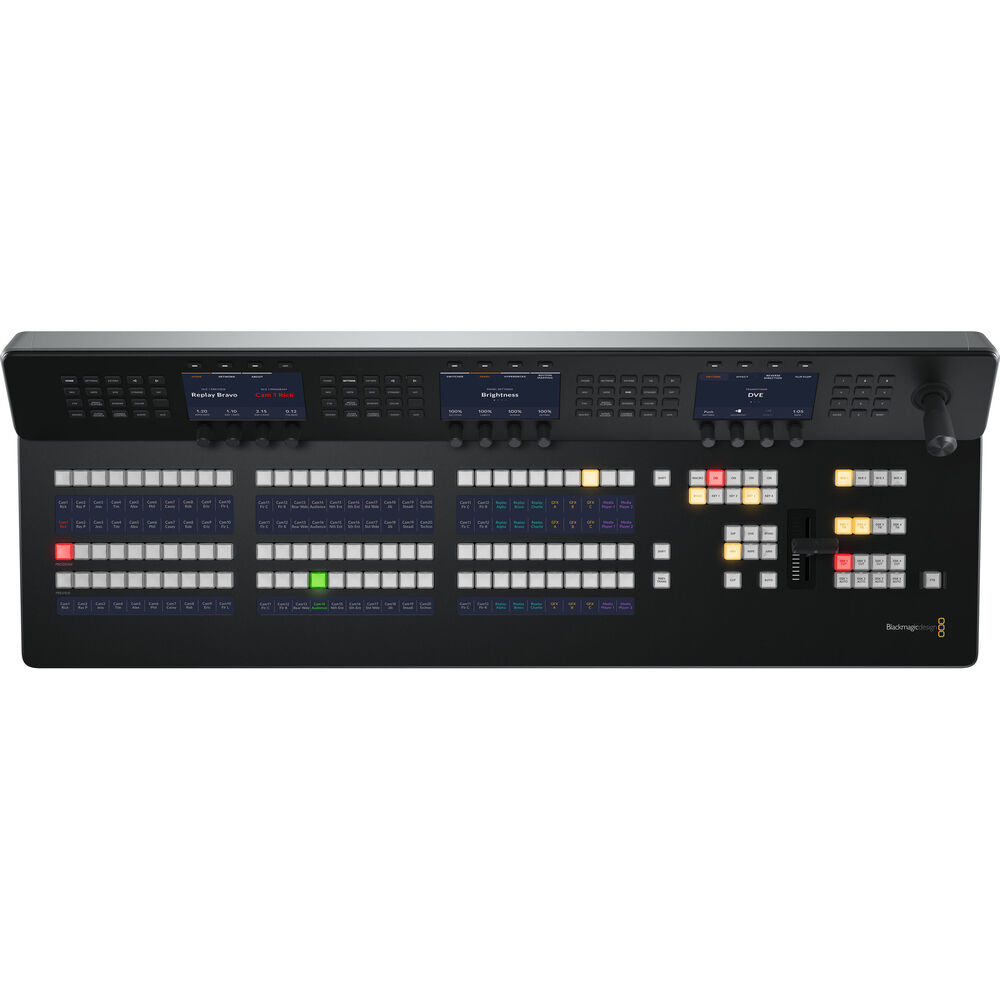

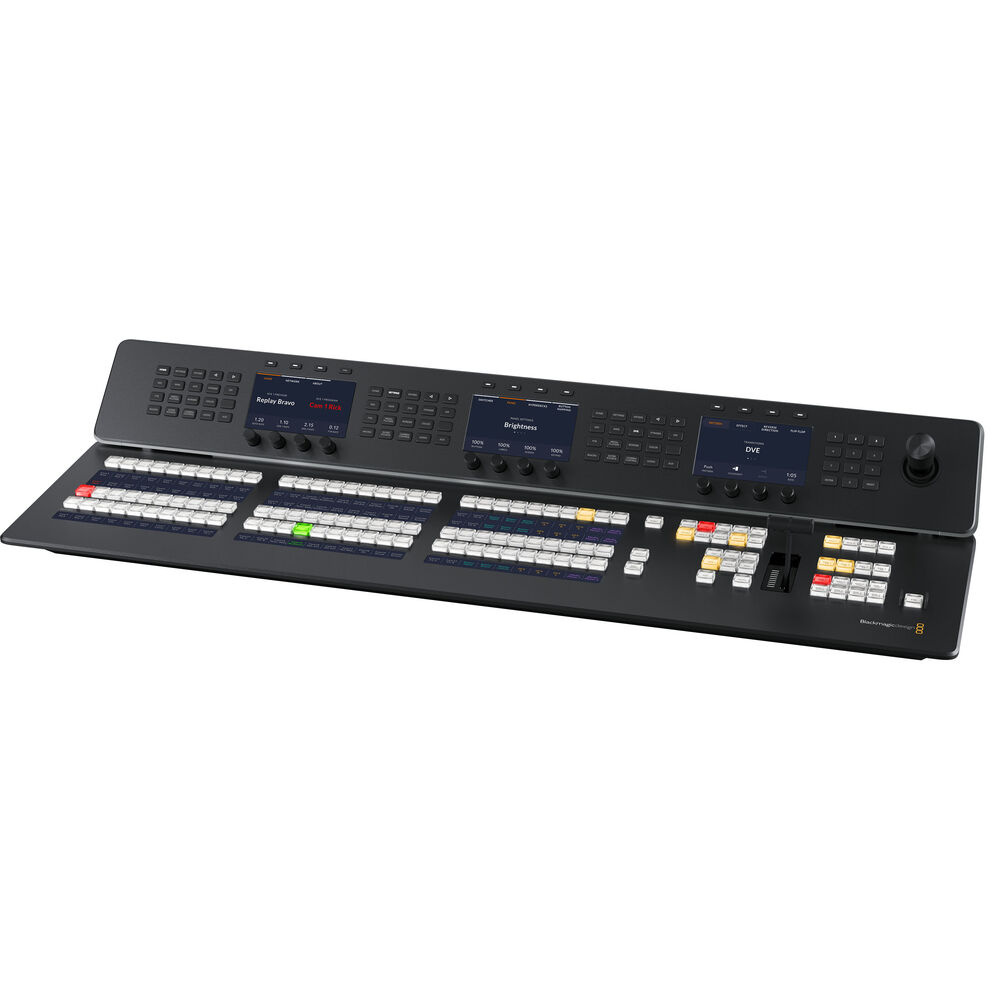

Blackmagic Design ATEM 1 M/E Advanced Panel 30
The ATEM 1 M/E Advanced Panel 30 features a single M/E row 30-button design, ideal for switching between large productions and suitable for desk surfaces that are not deep enough for a larger panel. It has 3 independent LCD screens and can control up to 4 M/E switchers. All input buttons feature LCDs for custom labeling and it also includes an independent selection bus! Dual power inputs provide redundancy and the built-in 4-port Ethernet switch means no additional networking equipment is required, so it fits even the most challenging live production spaces!
ATEM 1 M/E Advanced Panel 30
Welcome wallet with QR code for software download
Connections
Ethernet
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Software Updates
1 x USB-C for firmware updates.
Product Specifications
Number of Mix Effects Rows
1
Direct Cross Points
30
Shifted Cross Points
60
Crosspoint Button Type
Tri-Color LED
Preview Transition
1
Transition Rate Displays
Via main menu
LCD Menu Displays
3
Menu Control
3 x 20 buttons
Dedicated Macro Buttons
1 x 30
Transport Control Buttons
8
Destination Bus
1
Source Select Bus
1
Fader Bar
1
3 Axis Joystick
1
Numeric Keypad
1
Software
Software Applications
ATEM Software Control Panel.
Operating Systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Power Requirements
Input Voltage
2 x Internal 100 - 240V AC.
Redundant Power
Yes
Power Usage
80W
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 95% non-condensing
