Blackmagic Design ATEM 1 M/E Advanced Panel 10

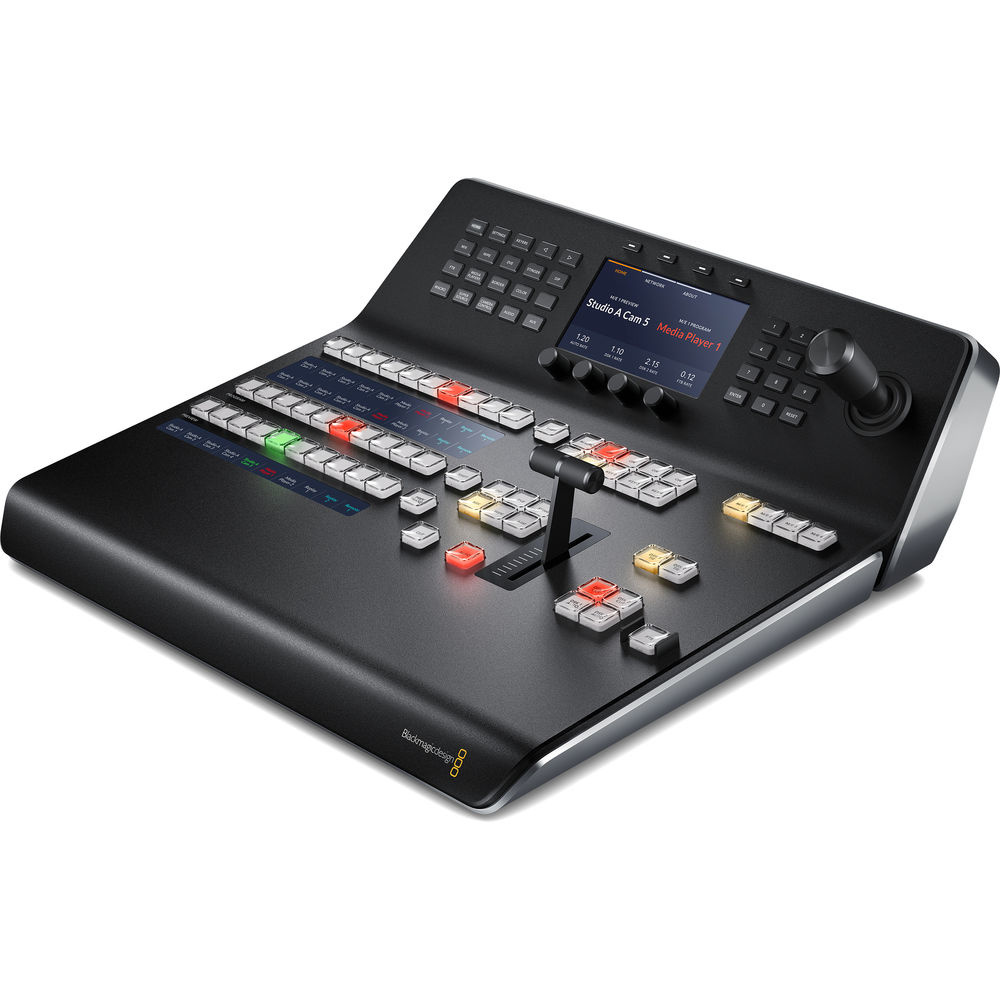

The Blackmagic Design ATEM 1 M/E Advanced Panel 10 is a full featured hardware control panel for BMD ATEM switchers. It connects via Ethernet and provides hands-on tactile control, essential for broadcast studios.

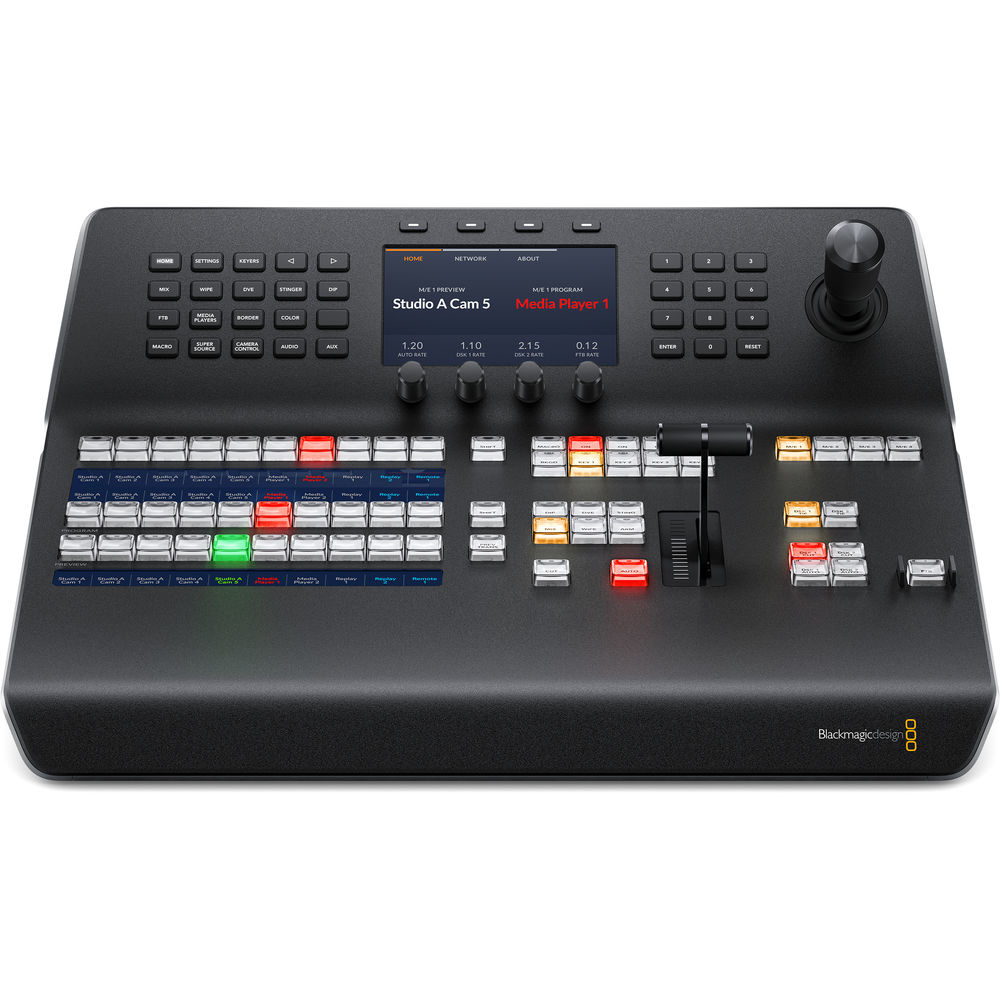

An LCD information display surrounded by soft-touch menu buttons and rotary encoders allows intuitive programming of control functions. In addition to the main display, each programmable button has an LCD scribble strip to indicate its function.

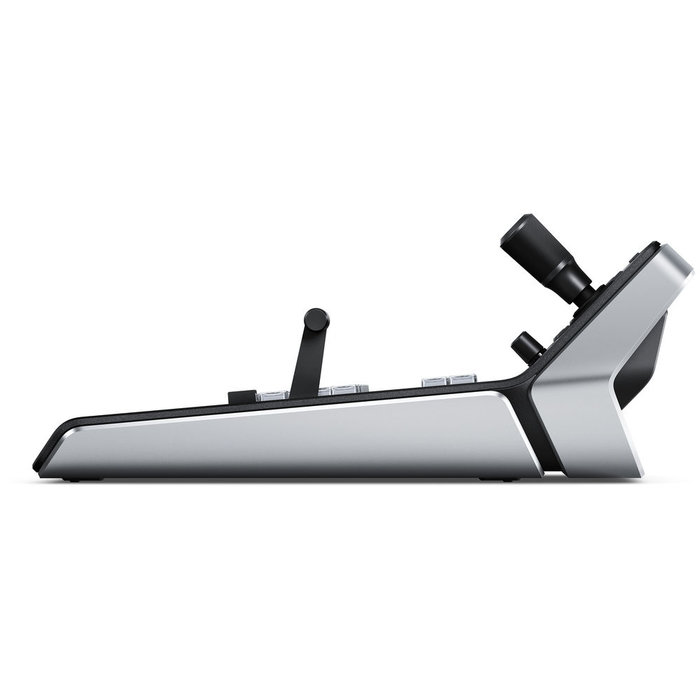

Since buttons can perform different functions, up to 20 inputs can be controlled by sliding the 10 input buttons. The buttons themselves have curved surfaces to prevent incorrect keystrokes. Real-time dynamic controls are available in the form of a single 3-axis joystick with a large, weighted T-bar fader. Use the joystick to remotely control PTZ cameras or effects, and use the T-bar to adjust transitions, wipes, fades and more.

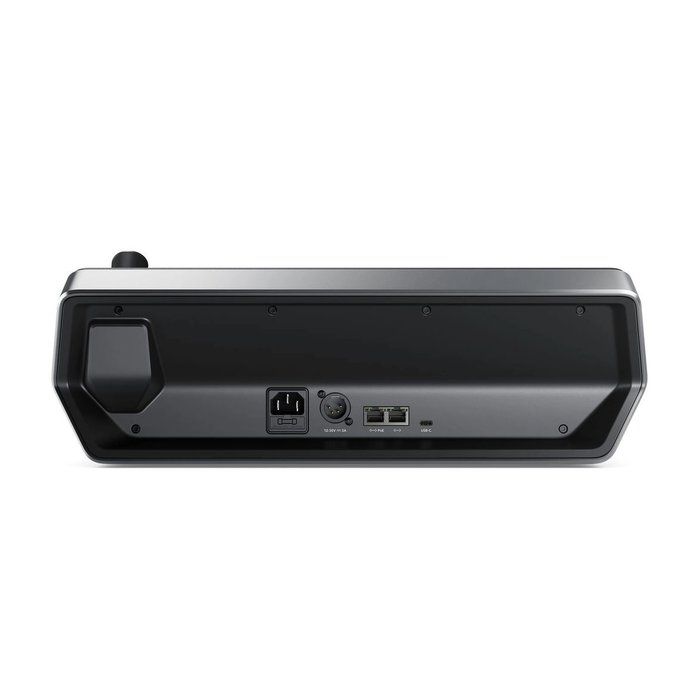

On the back of the device are two Ethernet connections, a USB port for firmware updates and power inputs. Use the IEC input for mains connection and the 4-pin XLR 12V input for DC power supplies. The panel chassis is small enough to fit in a standard equipment rack, allowing it to be implemented in broadcast trucks and fly-away sets.
Switching functions
10 direct cross points
20 shifted crosspoints
Tri-color LED crossover buttons with 3-row 24-character LCD scribble strips
4 on-air indicators
Auto, cut, tie / preview DSK transition selectors
3 LCD menu screens
20 button menu control
1 destination bus
1 source select bus
Weighted T-bar fader
Joystick with 3 axis
Numeric Keypad
Blackmagic Design ATEM 1 M/E Advanced Panel 10
Connections | Ethernet: 2 x RJ45, 10/100/1000BASE-T |
Power Consumption | 45 W |
power supply | Input: 110-240 VAC |
Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C |
Dimensions | 15.3 x 16.9" / 38.9 x 43cm |
weight | 12.7lb / 5.7kg |
