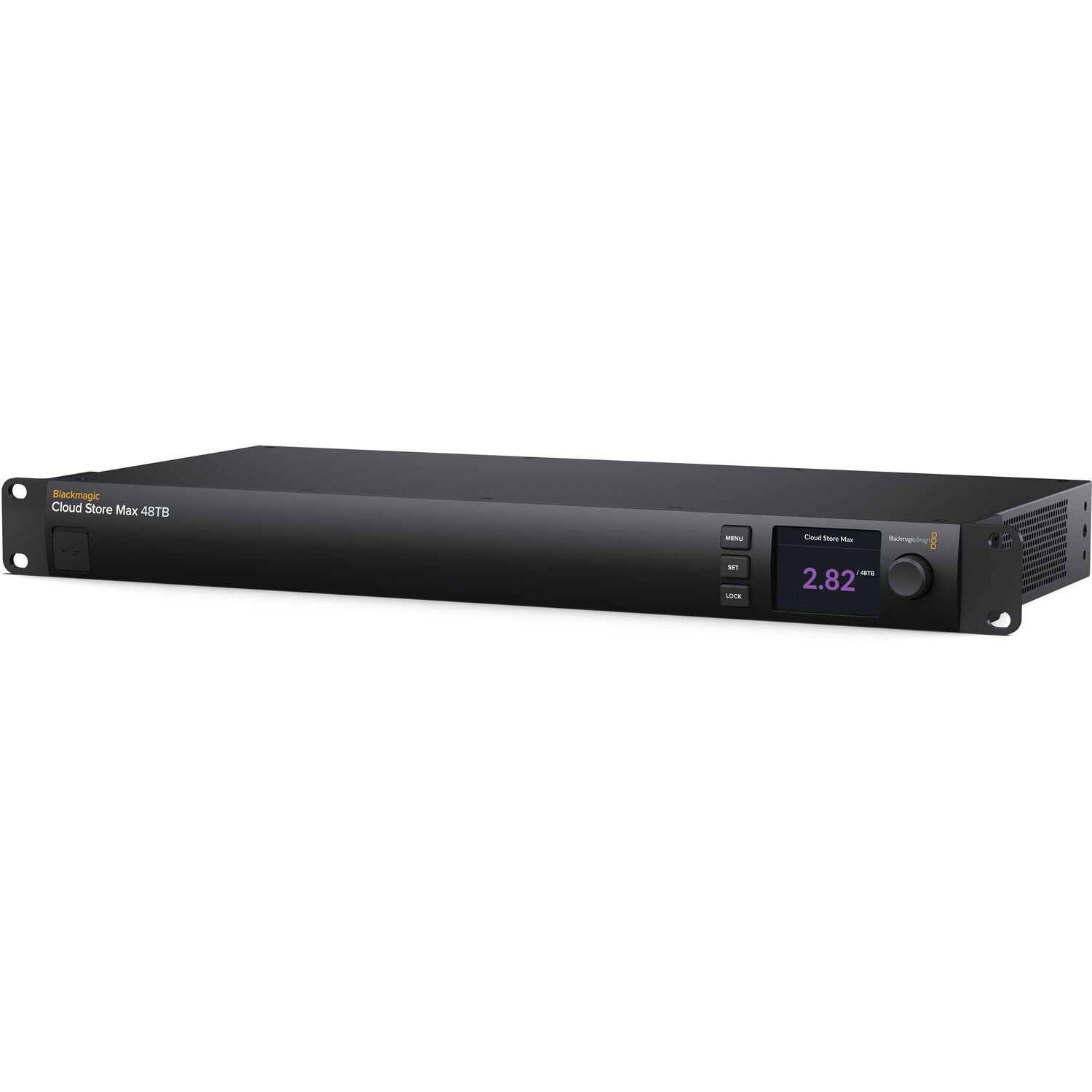

Blackmagic Cloud Store Max 48TB
The Blackmagic Cloud Store Max 48TB is an extremely high performance flash storage solution in a compact 1RU design. The Cloud Store Max has a capacity of 48 TB with 12 cards RAID 0 flash memory, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high-speed copper cables or longer optical fiber cables, USB-C and Blackmagic Cloud sync for worldwide distribution of files. It's fast even with many concurrent users all opening files at the same time!
Blackmagic Cloud Store Max 48TB
Welcome wallet with QR code for software download

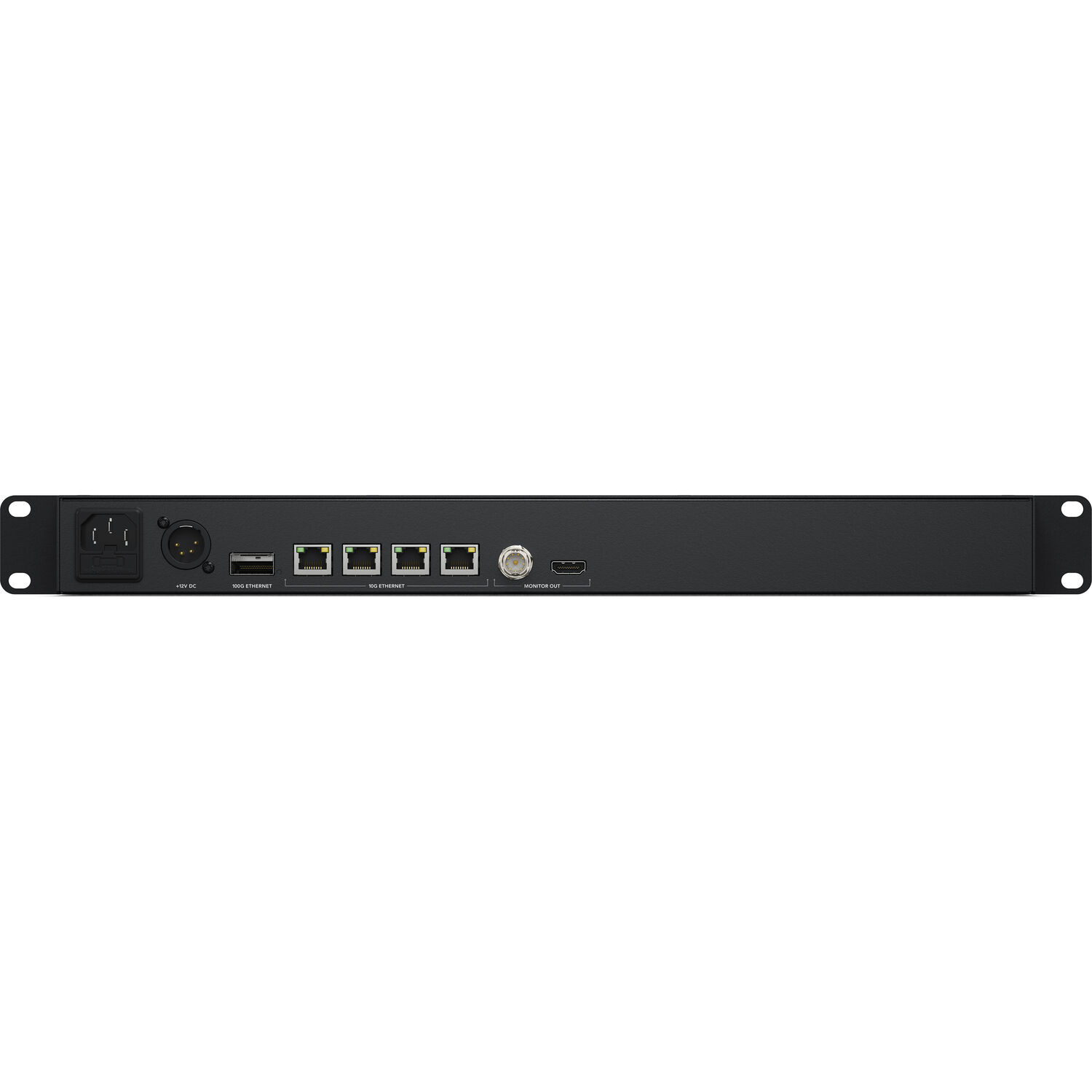

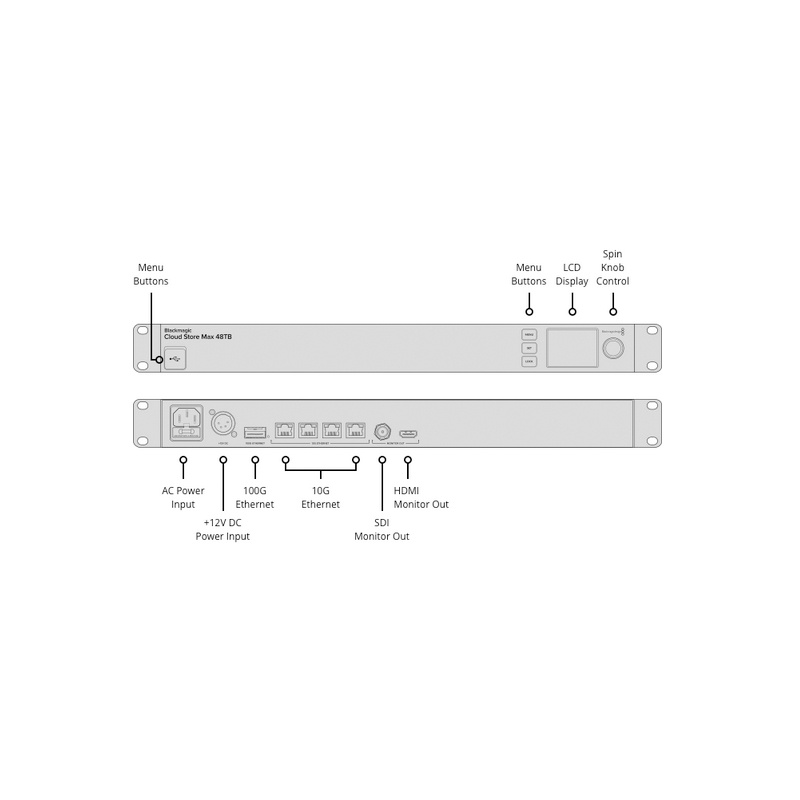

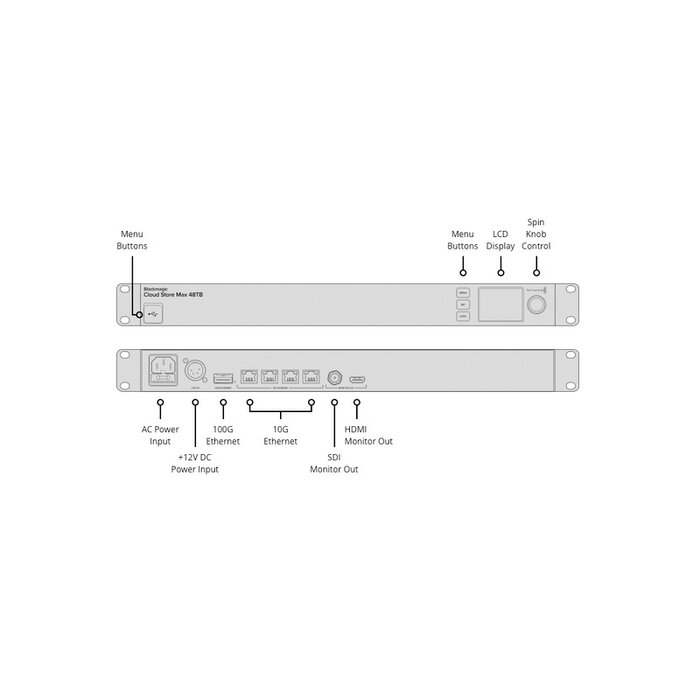

Connections
10G Ethernet Ports
4 x Ethernet 100/1000/10G BASE-T
100G Ethernet Ports
1 x Ethernet 100/1000/10G/100G BASE-T
USB-C Port
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
SDI Monitor Outputs
1
HDMI Monitor Outputs
1
Computer Interface
USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol
SMB
Computer Connections
50 max.
Cloud Synchronization
Compatible Services
Dropbox
Google Drive
Storage
Storage Type
M.2 NVMe SSD
Total Capacity
48TB
Displays
SDI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

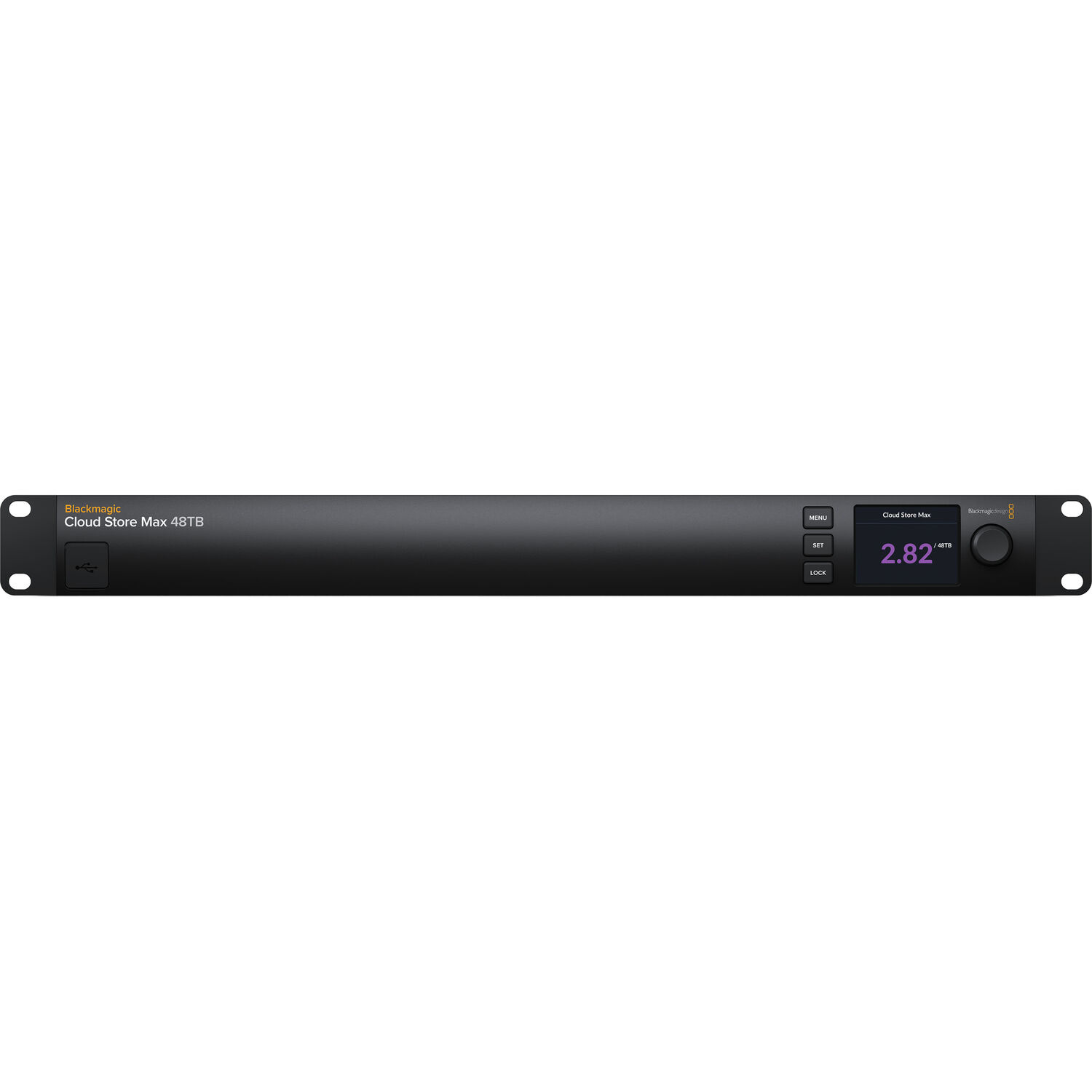

Front Panel Display
Built in 2.2 inch LCD for settings and storage name, capacity and use.
Status Indicator
Front panel LED illuminates white indicating normal operation or red indicating disk fault.
Control
Built-in Control Panel
3 buttons, 2.2 inch color display and spin knob for menu settings.
External Control
USB-C or Ethernet for configuration and software updates.
Software
Software Included
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac 14.3 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs
1 x IEC C14 mains input.
1 x 4-pin XLR +12V DC input.
Power Usage
TBA
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
