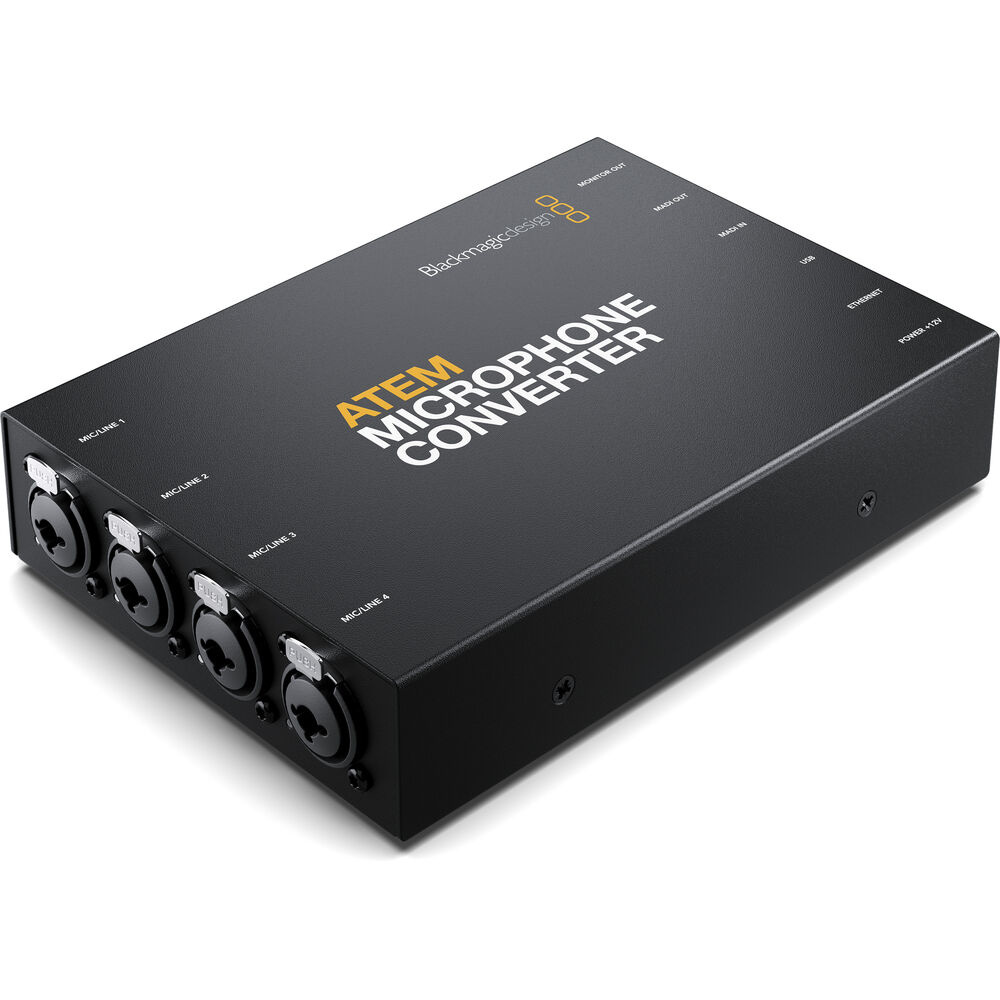

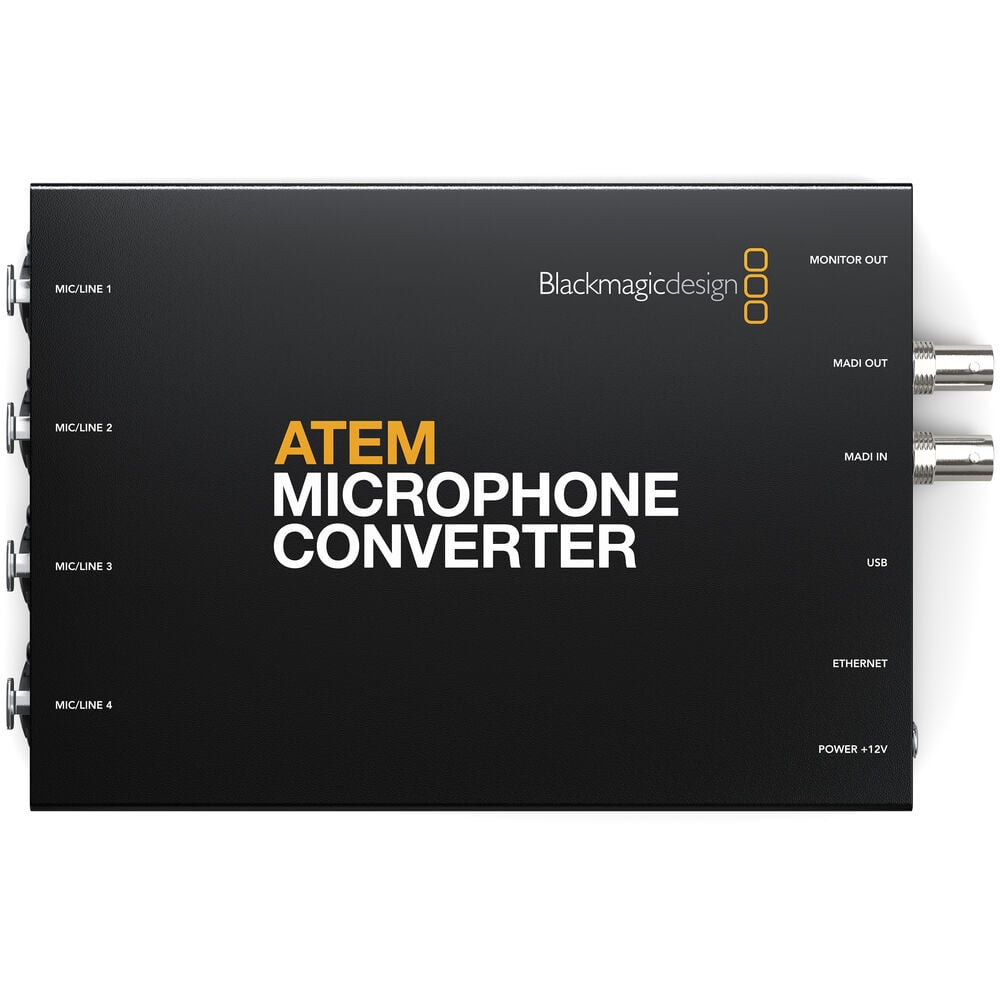

Blackmagic Atem Microphone Converter
With the ATEM Microphone Converter it is now easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter plugs into the ATEM Television Studio MADI port, so no installation is required. Additional converters can even be connected in series for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design has amazing audio quality with an extremely low noise floor, wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each individual input that work together to increase dynamic range! There is also an HDMI monitor output with scrolling audio waveform.
ATEM Microphone Converter
External 12V DC power supply
General
compatibility | Blackmagic Design ATEM Television Studio |
ADC | 8x per Input |
Preamps | Digital Preamps: 32-Bit Float |
bit depth | 24 Bit |
sample rate | 48kHz |
dynamicrange | 131 dBA |
Noise Floor | -129 dBV |
THD | 0.002% |
MADI | AES10-2020 Compliance |
HD Video Standards | 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60 |
Inputs/Outputs
USB I/O | 1 xUSB-C Female Input/Output |
Video I/O | 1 xHDMI Monitor Output |
Audio I/O | 4 xCombo XLR-1/4" Line/Mic Input (With 48V Phantom) |
MADI I/O | 1 x BNC Input, Supports 64-Channel MADI Digital Audio |
Power
PowerSource | AC Adapter with Power Brick (Included) |
DC InputPower | 12 to 17.5 VDC |
Power Consumption | 12W (Maximum) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Physical
dimensions | 7.87 x 4.92 x 1.6" / 19.99 x 12.5 x 4.1 cm |
Weight | 1.87lb / 0.85kg |
