Blackmagic 2110 IP Converter 8x12G SFP Converter

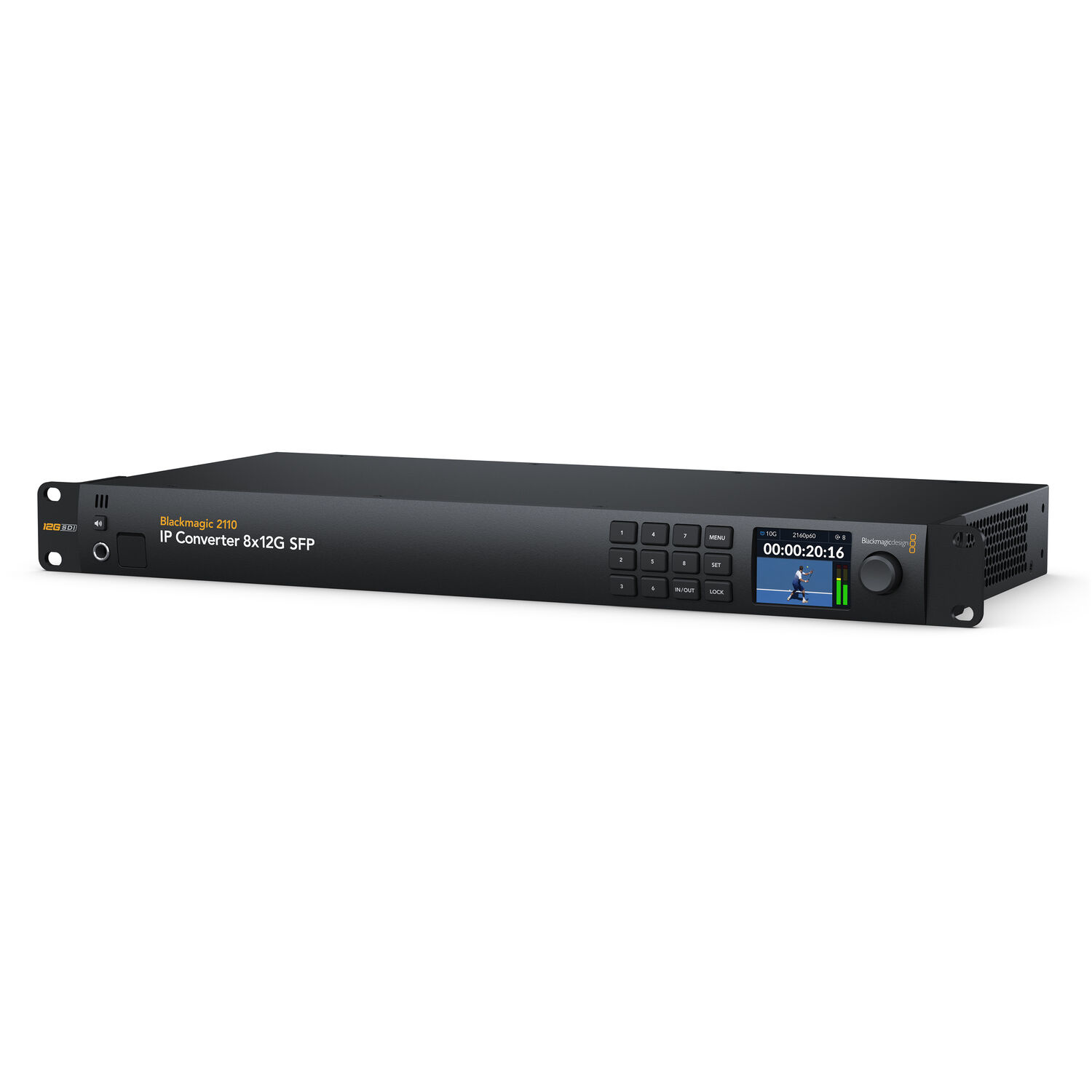

With the Blackmagic 2110 IP Converter 8x12G SFP you can add SMPTE-2110 UP video to 12G-SDI broadcast equipment. It features 8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters that use SFP modules for compatibility with long-distance Fiber Ethernet modules. The 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.
Blackmagic 2110 IP Converter 8x12G SFP

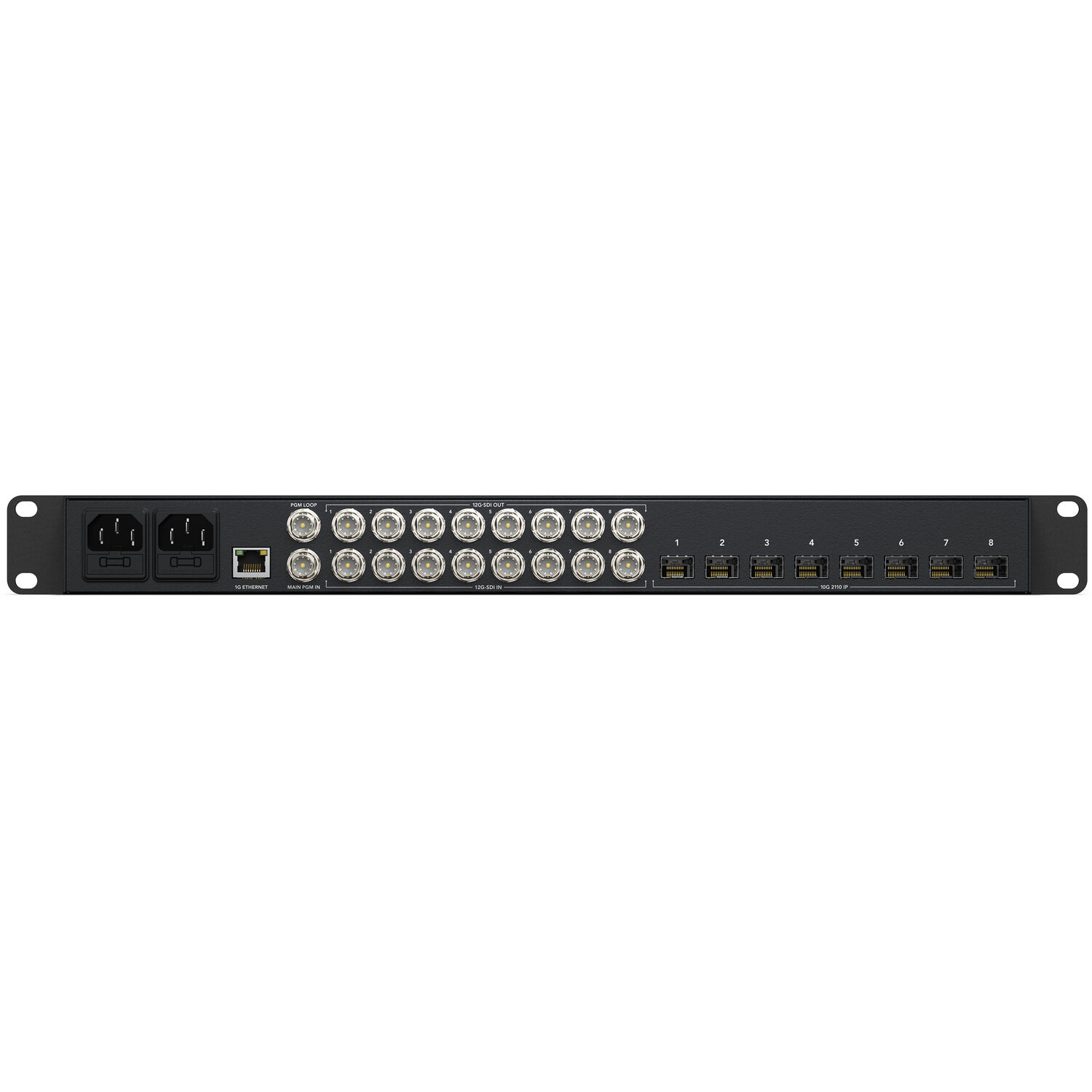

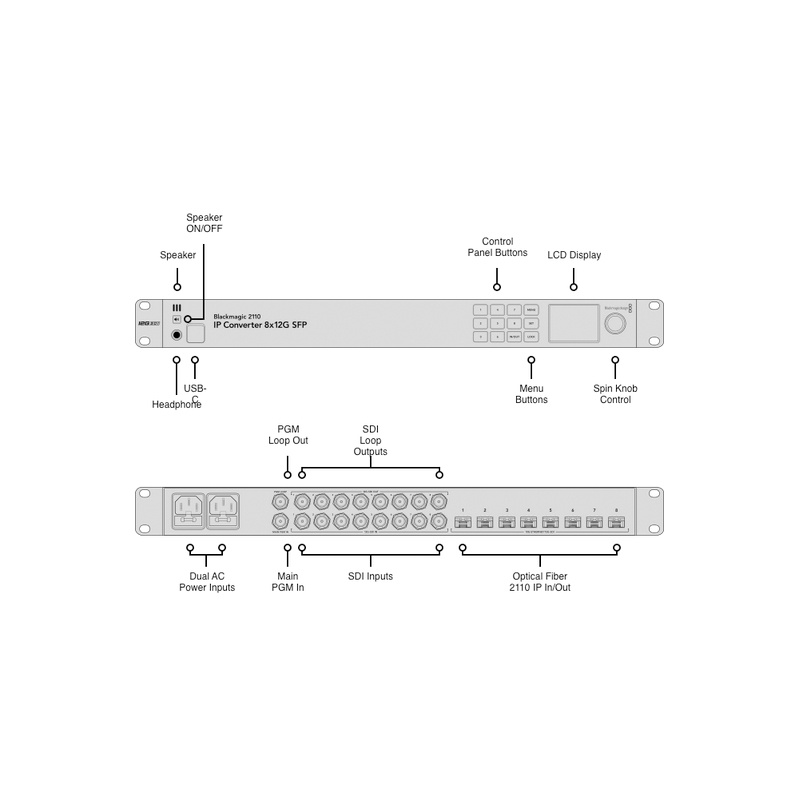

Connections
Total SDI Inputs
9
SDI Video Inputs
8
SDI Main Program Inputs
1
SDI Video Outputs
8
SDI Main Program Outputs
1 Walk Out.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs/Outputs
8x10G Ethernet
Analog Audio Outputs
1 x 6.35mm headphone socket.
SDI Audio Inputs
16 Ch embedded audio on SDI input.
SDI Audio Outputs
16 Ch embedded audio on SDI loop output.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Analog Audio Outputs
1 x 6.35mm headphone socket.
Multi Rate Support
Auto detection of SD, HD, Ultra HD and 4K.
Reclocking
Yes
Ethernet
8 x 10Gb/s SFP sockets supporting up to 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out.
Computer Interface
1 x USB-C 3.0 for configuration and firmware updates.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SDI Compliance
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Transmitter: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Audio
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Control

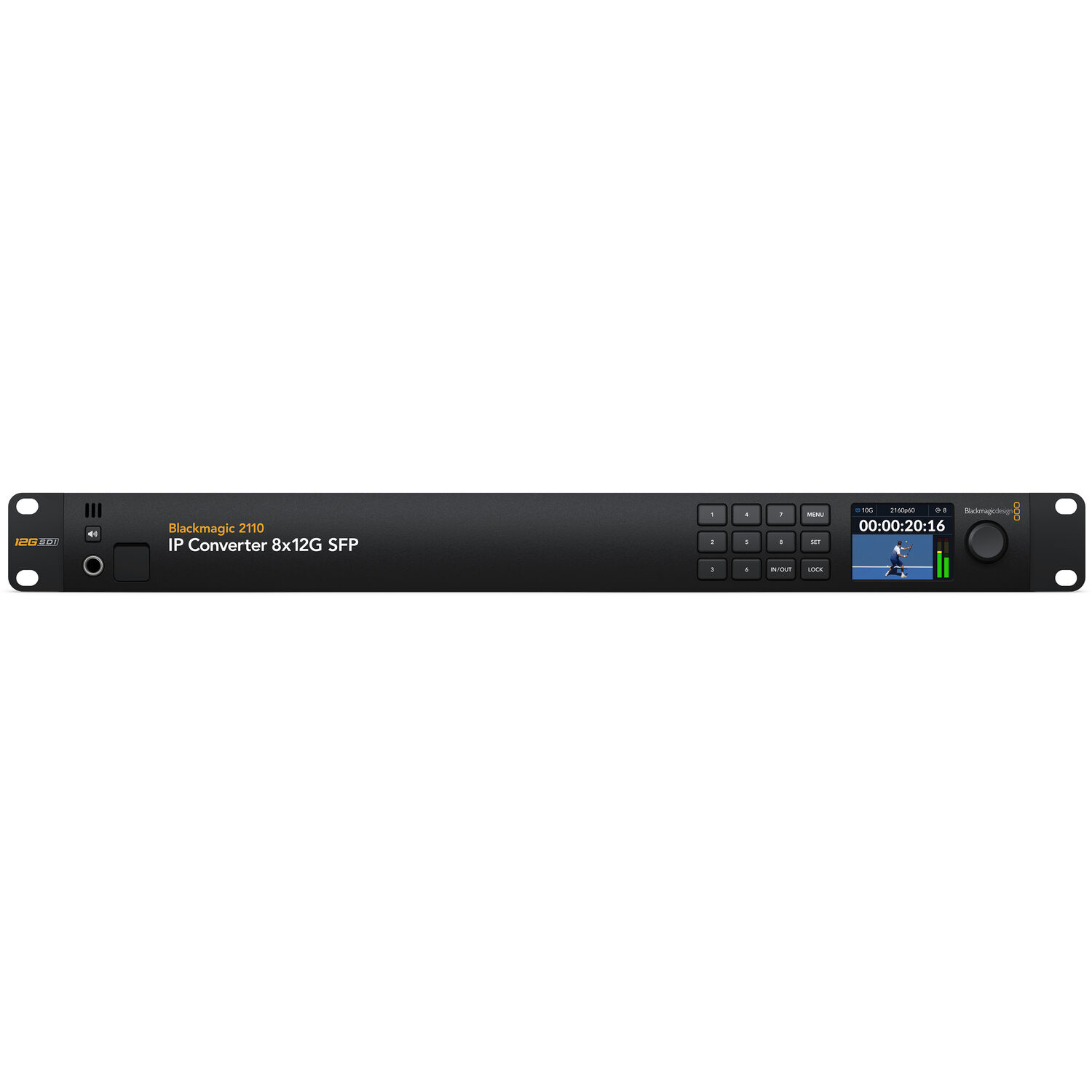

Built-in Control Panel
12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply
2 x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage
TBA
Physical Installation
1 rack unit.
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
