AJA IPT-10G2-SDI Bridging 3G-SDI to SMPTE ST 2110 Video and Audio Converter

IPT-10G2-SDI is designed to bridge 3G-SDI video sources into SMPTE ST 2110 networks.

The IPT-10G2-SDI receives baseband video plus up to 8 embedded audio channels over 3G-SDI, then encapsulates the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the stream from the dual RCA inputs.

2x 10 GigE SFP+ cages are provided, allowing “hitless switching” (ST 2022-7) redundancy protection for critical contribution and transmission environments.

IPT-10G2-SDI Mini-Converter transmits a SMPTE ST 2110 essence derived from an incoming 3G-SDI input source. Providing two SFP+ cages for redundancy protection via "hitless switching", IPT-10G2-SDI is rugged, quiet and fanless. AJA Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

Key features

• SMPTE ST 2110 audio, video transmitter
• Rugged, quiet, fanless design
• 3G-SDI Transmitter with 1x full size BNC input up to 1080 60p, 4:2:2, 10-bit, YCbCr
• Full 10-bit pixel processing pipeline
• Embedded SDI audio input (up to eight channels)
• 2x RCA analog audio input
• 2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 "Hitless Switching") with status light
• 1x 1 GigE RJ-45 socket for control LAN with status light
• Reference Out connector to provide PTP locked sync to baseband sources for lowest latency
• Frame sync to retime baseband sources that are not locked to PTP
• Web browser accessible setup and control interface, via built-in web server
• 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
• NMOS and Ember+ support
• Customizable control with AJA REST API

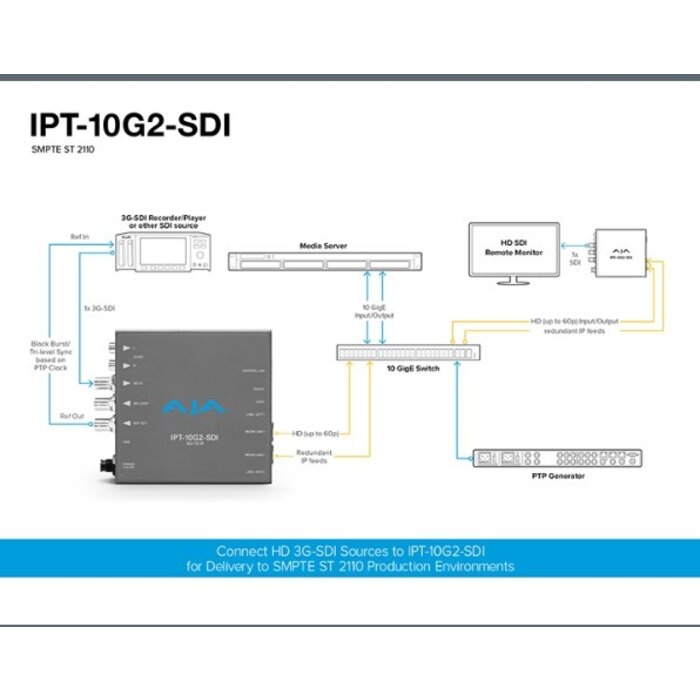

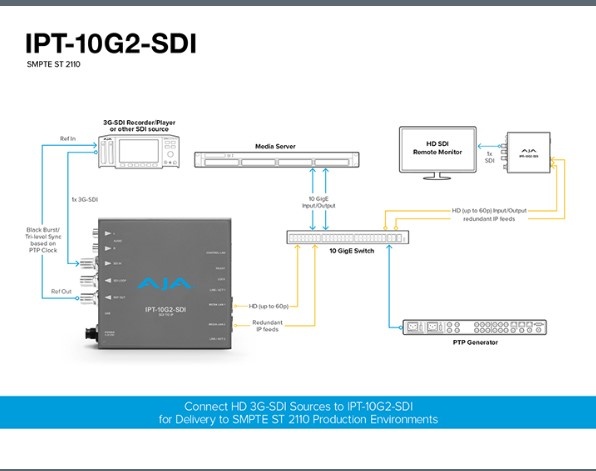

Bridge 3G-SDI Sources to Anywhere on a SMPTE ST 2110 Network

With new IP based facilities often requiring integration with traditional baseband sources, and with existing 3G/1.5G-SDI routers often at capacity while facilities undertake their transition to IP,  IPT-10G2-SDI provides a solution for converting baseband camera, router or edit bay sources, and then formatting and transmitting via IP to provide that content to a range of destinations.

User Control

IPT-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates with AJA eMini Setup software.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Browser and REST clients supported
• 1x USB 2.0 Mini-B (IEC 62680-1) connector
• Browser-based or AJA eMini-Setup of network parameters
• NMOS transmit (Discovery, Registration and Control)
• According to standards IS-04 v1.3 & IS-05 v1.1
• LLDP (Link Layer Discovery Protocol)
• AJA REST API (Control Only)
• Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
• Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control
• Ember+ (no Discovery, Control only) v1.6.2

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
