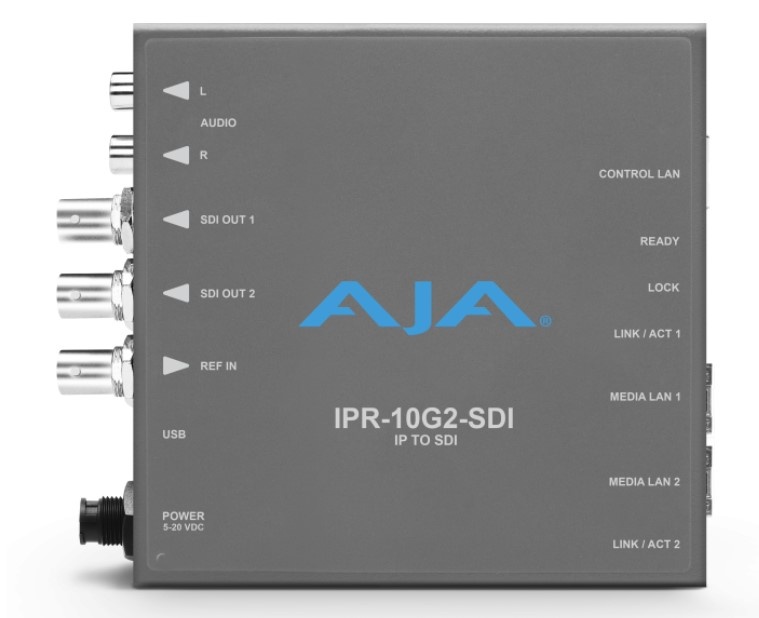

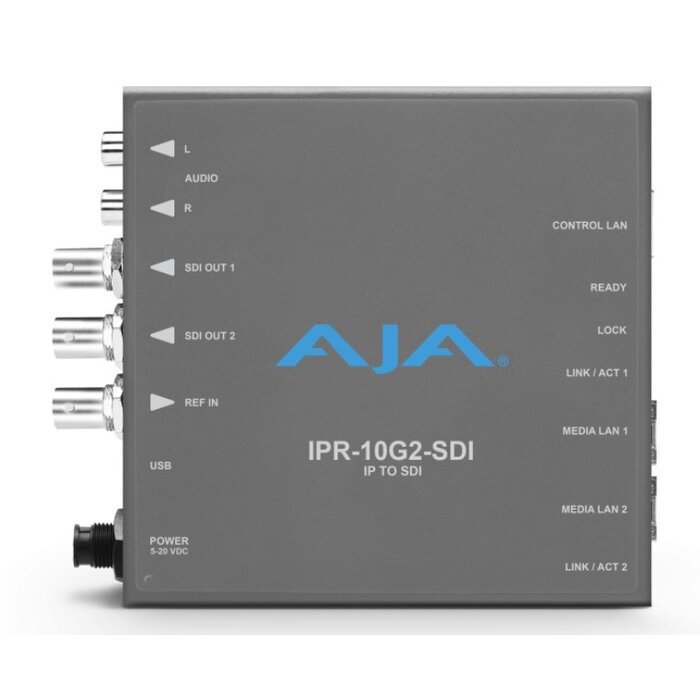

AJA IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI Converter

The IPR-10G2-SDI Mini-Converter is designed to bridge SMPTE ST 2110 networks to SDI, with support up to HD 60p.

IPR-10G2-SDI receives SMPTE ST 2110 audio and video over 10 GigE, and then de-encapsulates the data to output baseband SDI video. Associated audio from the SMPTE ST 2110 stream is likewise extracted, synchronized, and embedded into the SDI output. Simultaneously, analog stereo audio is available via the dual RCA outputs.

2x 10 GigE SFP+ cages are provided, allowing “hitless switching”* redundancy protection (ST 2022-7) for critical distribution and monitoring applications.

IPR-10G2-SDI includes dual 3G-SDI mirrored outputs with embedded 8-channel audio output and stereo audio output.

The analog/tri-level reference input allows the baseband output of IPR-10G2-SDI to be locked to the timing of the baseband environment at destination. Supports seamless integration into existing baseband environments such as master control, trucks or edit suites.

IPR-10G2-SDI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for monitoring on, or routing to, HDMI devices. Providing two SFP+ cages for redundancy protection via "hitless switching", IPR-10G2-SDI is rugged, quiet and fanless. AJA Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

Key features

• SMPTE ST 2110 audio, video receiver
• Rugged, quiet, fanless design
• 2x 10 GigE SFP+ cages for media LAN (providing support for "hitless switching") with status light
• 1x 1 GigE RJ-45 socket for control LAN with status light
• 3G-SDI receiver with dual (mirrored) full-size BNC outputs supporting up to HD 60p, 4:2:2, 10-bit, YCbCr
• Full 10-bit pixel processing pipeline
• Embedded SDI audio output (up to 8-channels)
• 2x RCA analog audio output (simultaneous with SDI audio)
• Reference In connector to enable locking sync of baseband output for local environment
• System Modes to enable quick setup for lowest latency / highest protection, etc.
• Web browser accessible setup and control interface, via built-in web server
• 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
• NMOS and Ember+ support
• USB keyboard control for quick and easy preset recalls
• Customizable control with AJA REST API

Monitor ST 2110 Video and Audio from anywhere on the Network.

The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and ingest destination simultaneously.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.

The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for output over 3G-SDI.

The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.

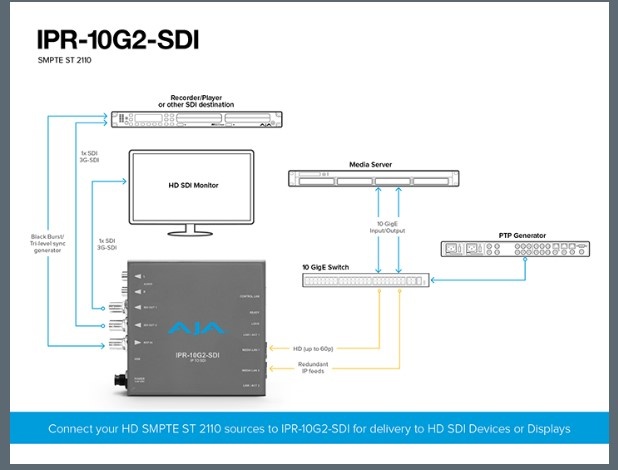

Workflow

IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI Receiver with other AJA IP Receivers and Transmitters, or even take it a step further with AJA KONA IP or Io IP to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

User Control

IPR-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables full setup and control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates with AJA eMini Setup Software.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Browser and REST clients supported
• 1x USB 2.0 Mini-B (IEC 62680-1) connector
• Browser-based or AJA eMini-Setup of network parameters
• NMOS transmit (Discovery, Registration and Control)
• According to standards IS-04 v1.3 & IS-05 v1.1
• LLDP (Link Layer Discovery Protocol)
• AJA REST API (Control Only)
• Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
• Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control
• Ember+ (no Discovery, Control only) v1.6.2

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
