AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Receiver

AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Receiver

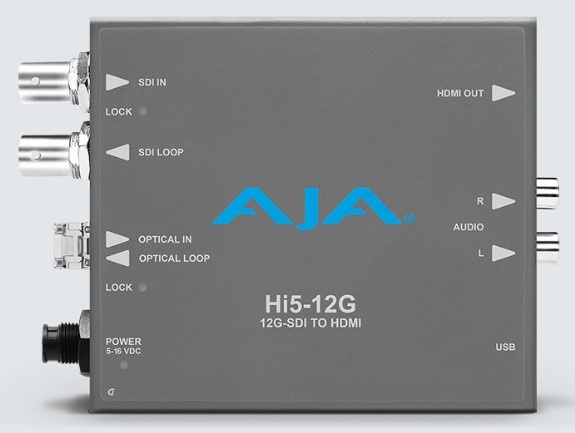

The Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Receiver from AJA converts a 12G-SDI or fiber LC source input to an HDMI 2.0 output. This compact converter can extend a 4K fiber or 12G-SDI signal up to 6.2 miles away, and incorporates a re-clocked SDI loop-out. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). With support for up to DCI/UHD 4K60, HFRs (high frame-rates), and HDR metadata generation, the Hi5-12G-R integrates smoothly into your professional workflow.

An LED indicator displays one of five colors when your input signal is locked: blue for 12G-SDI, purple for 6G-SDI, amber for 3G-SDI, red for HD-SDI, or green for SD-SDI. A USB port enables easy upgrades and configuration with the included Mini-Config software.

Input/output up to eight embedded audio channels via a convenient single-cable audio/video connection. The AJA Hi5-12G-R also provides 2-channel RCA-style audio outputs for separate audio monitoring. This converter includes a universal power supply with international plug connectors for worldwide use.

Key Features

• Converts a 12G-SDI input or fiber source to an HDMI 2.0 output
• Supports HDMI 2.0b to 18 Gb/s for UHD 4K 60/59.94/50 4:2:2/4:4:4
• Supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
• Incorporates a re-clocked SDI loop-out
• Extends 4K signals up to 6.2 miles
• HDR support with HDR10 and HLG (hybrid log gamma)
• An LED signal-lock display indicates your input source-type with one of five colors
• Input/output up to eight embedded-audio channels
• Additional 2-channel RCA analog audio output
• Configure and update via the USB port and the included Mini-Config software
• Universal power supply with international plug connector set
• Compact and portable form
