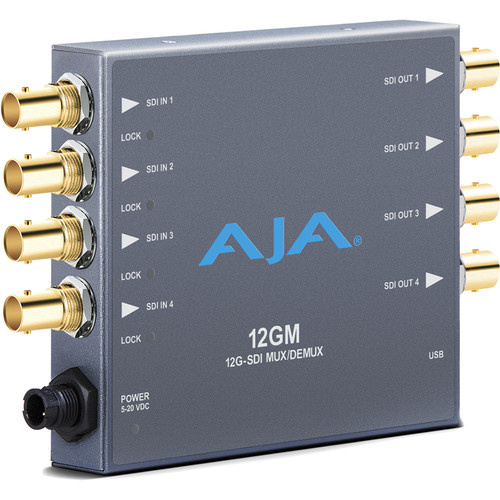

Name: Aja AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer
Brand: Aja
SKU: 12GM
Price: 1463.00 EUR
Availability: InStock

Description

AJA's 12GM is an SDI standard converter. Resolutions up to DCI 4K are supported, so Quad 3G-SDI can be converted into 12G and vice-versa. Multi-link signals can now be combined to run over fewer cables, and newer standards can now be backward compatible with legacy SDI gear. All signals are re-clocked and amplified to ensure signal integrity over long cable runs.

Compact 12G to/from 3G conversion
SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
Converts SMPTE 425M A to/from SMPTE 425M B
Fully equalizing and reclocking with jitter attenuation
If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
DWP-U-R1 power supply included

Technische specificaties

Inputs	4 x BNC, SD/HD/3G/6G/12G-SDI
Outputs	4 x BNC, SD/HD/3G/6G/12G-SDI
Other I/O	1 x USB mini-B
Resolution Support	4096 x 2160 23.98/24/25/29.97/30/50/59.94/60 3840 x 2160 23.98/24/25/29.97/30/50/59.94/60 2048 x 1080 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 25/29.97/30 720p 50/59.94/60 NTSC PAL
SDI Standards	SMPTE-259/292/424/2081/2082
Cable Equalization	12G: 295' / 90 m 6G: 401' / 125 m 3G: 525' / 160 m 1.5G: 656' / 200 m 270M: 1542' / 470 m (tested with Belden 1694 coax cable)
Chroma Subsampling	4:2:2 YCbCr, 4:4:4 YCbCr/RGB
Color Depth	8/10-bit
Audio Support	16-channels embedded 24-bit audio
Power	Input: 5-20 VDC Consumption: 12 W
Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 140°F / -40 to 60°C Humidity: 10-90%, non-condensing Operating Altitude: < 10,000' / 3000 m
Dimensions	5.8 x 4 x 0.9" / 14.6 x 10.2 x 2.3 cm

Packaging Info

Package Weight	1.63 lb
Box Dimensions (LxWxH)	7.35 x 5.8 x 4.15"
