Name: Aja AJA 12G-AMA - 12G-SDI, 4-Channel Balanced Audio Embedder/Disembedder with Fiber Options
Brand: Aja
SKU: 12G-AMA
Price: 1531.00 EUR
Availability: InStock

Description

12G-AMA - 12G-SDI, 4-Channel Balanced Audio Embedder/Disembedder with Fiber Options

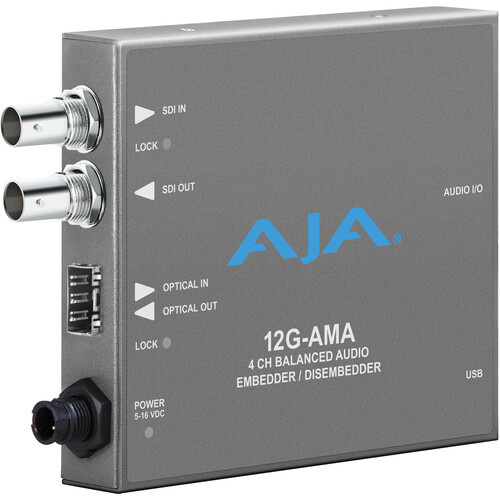

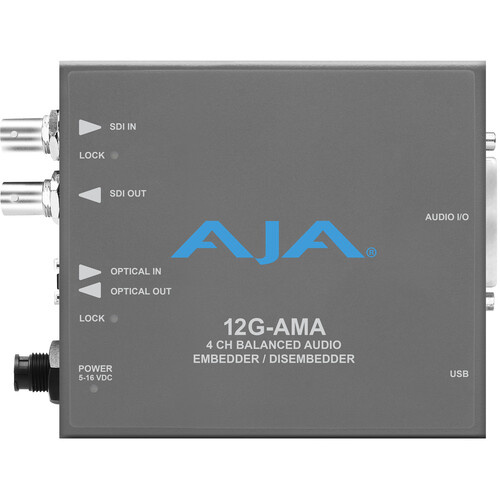

The AJA 12G-AMA mini-converter is an analog audio embedder/disembedder with 12G-SDI input and output supporting up to UHD 4K60/DCI 4K60. It also features an SPF slot where SPFs such as the AJA FIBERLC-TR-12G can be user-installed at a later time to support single-mode fiber I/O with LC or ST connectors.

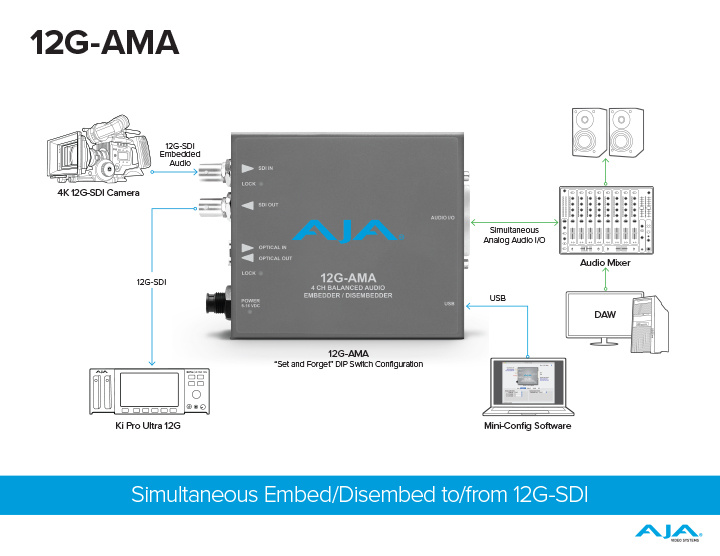

The converter has a 25-pin port for an included breakout cable that offers 4-channel XLR audio input and output. The audio disembedding feature is constantly functional. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio from the breakout cable. Analog audio levels are selectable.

The converter interacts with the AJA Mini-Config software over a USB connection. The application is compatible with PC and Mac and is provided as a free download from the AJA website.

Features

12G-SDI Input and Output up to 4K/UltraHD
4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
Audio Disembedding is always functional with four Analog outputs
Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
Selectable Analog audio levels
Automatically detects and configures the input video standard
5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
Configure via USB port and supplied AJA Mini-Config software

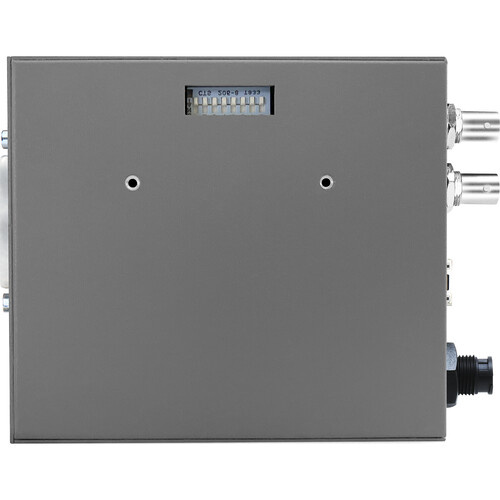

DIP Switch configuration
+5-16 VDC Power

Technische specificaties

Video Formats	4096 x 2160 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 3840 x 2160 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 720p at 50, 59.94, 60 625i50 525i59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-Bit
Video Input Digital	1 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single-Link SD/HD/2K/UHD 4K/DCI 4K Single-Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
Video Output Digital	1 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single-Link SD/HD/2K/UHD 4K/DCI 4K Single-Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
Cable Equalization	Using a Belden 1694A Coax Cable: 12 Gb/s: 213' / 65 m 6 Gb/s: 410' / 125 m 3 Gb/s: 623' / 190 m 1.5 Gb/s: 656' / 200 m 270 Mb/s: 1,328.75' / 405 m
Video Latency	12G: 3.2 µsec 6G: 3.2 µsec 3G Level B (Dual Stream HD Mode): 6.3 µsec 3G Level A: 3.2 µsec HD (1.5 Gb/s): 6.3 µsec SD (270 Mb/s): 17.2 µsec
Audio I/O	Balanced Analog Audio 1 x 25-Pin D Female Included 25-Pin D Male Breakout Cable: 4 x XLR Female Input 4 x XLR Male Output
Audio Bit Depth	24 Bit
Embedded Audio	SMPTE 272M (SD): 20-Bit, 48 kHz Synchronous SMPTE 299M (12G/6G/3G/1.5G): 24-Bit, 48 kHz Synchronous Incoming Embedded Audio Can Be Passed, Removed, or Overridden. Up to 16 Channels Supported. 2048 x 1080p/PsF at 29.97/30 fps Support Maximum of 8 Channels of Embedded Audio.
Audio Latency	Embed Path: 1100 µsec Disembed Path: 1200 µsec
Analog Audio Levels	Configured via Mini-Config Software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu
User Interface	External DIP Switch USB Port Used with Mini-Config Application (PC/Mac Compatible)
Power	5 to 16 VDC, 10 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Relative Humidity	10 to 90%
Operating Altitude	<10,000' / <3,000 m
Dimensions	5.8 x 3.1 x 1" / 147.3 x 78.7 x 25.4 mm
Weight	0.6 lb / 0.3 kg

Packaging Info

Package Weight	2.655 lb
Box Dimensions (LxWxH)	10 x 5.7 x 3.8"
