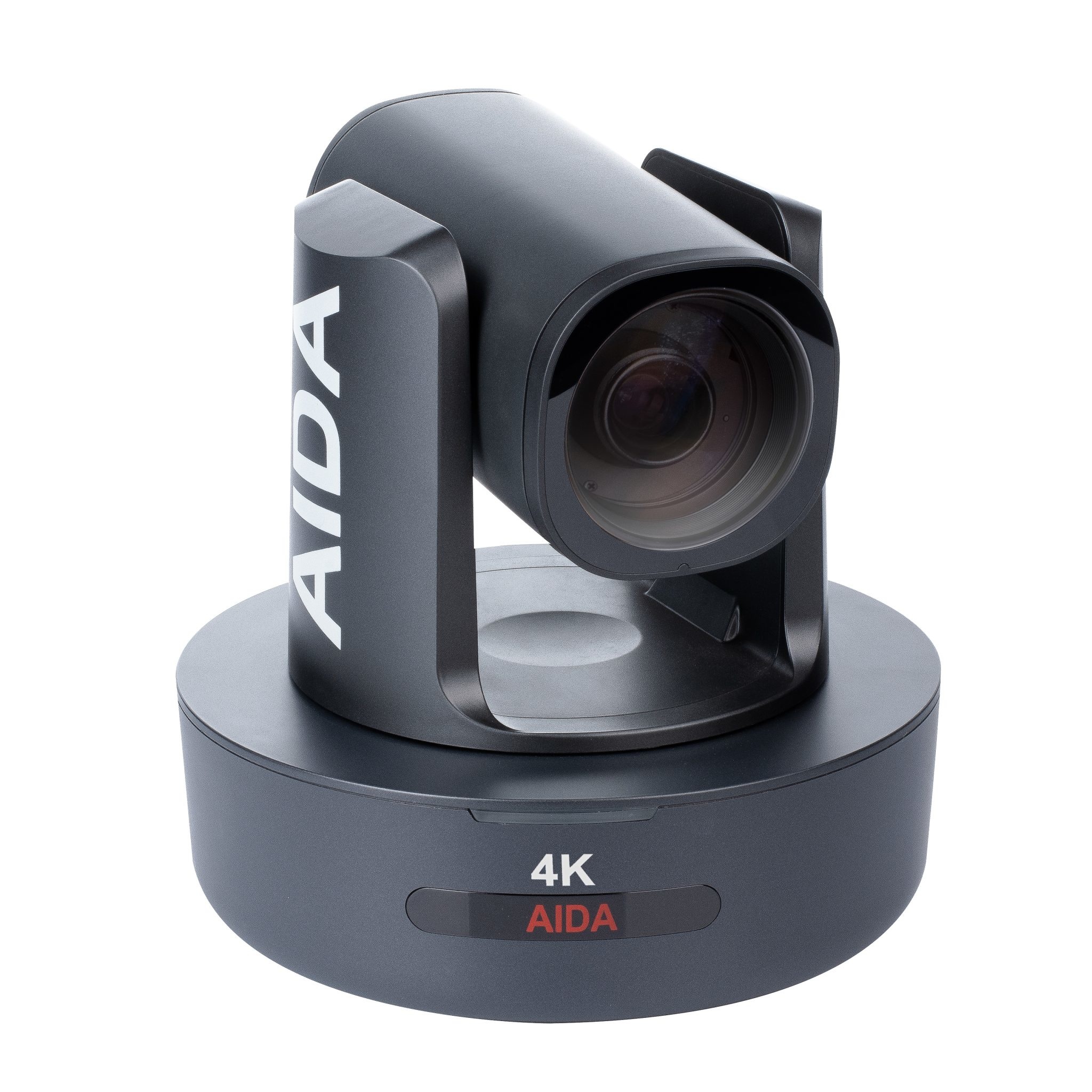

Aida PTZ4K-NDI-X30 4K NDI|HX - IP/HDMI - Black
The Aida 4K NDI|HX camera has a powerful 30x optical zoom and offers simultaneous HDMI and IP output up to UHD 4K60 or simultaneous UHD 4K60 output via HDMI and USB-C 3.0*.
The pan, tilt and zoom functions can be controlled via IP, NDI, serial control or using the supplied remote control.
The camera features RS-232 input/output for serial control, as well as the VISCA control protocol via IP. IP streaming of video via RTSP/RTMP protocols.
Up to 10 presets can be assigned and controlled via the included IR remote control and up to 128 presets via serial control. E
A noise reduction filter ensures that you do not experience blur during movements.
The camera is powered via the supplied power adapter or can be powered with PoE+ with a suitable network switch.
Most important features
NDI|HX streaming capable of low-latency video streaming and PTZ control via the NDI|HX protocol.
4K SONY CMOS sensor for crystal-clear video up to 60 frames, even in less than ideal video conditions.
Advanced digital image processor ensures vivid and detailed images.
Noise reduction filter with compensation for blur-free moving images.
Simultaneous 4K60p via HDMI and NDI®|HX/SRT/RTSP/RTMP!*
Simultaneous 4K60p via HDMI and USB3.0*
*(Disclaimer: USB and NDI®|HX/IP streams do not run simultaneously.)
4K 30x optical zoom module for sharp images up to 50 meters from your subject.
3.5mm line input without audio delay via IP/NDI protocols.
Built-in OSD menu.
Cost-effective 4K PTZ camera.
Aida PTZ4K-NDI-X30
IR Remote Controller
Camera Mounting Bracket
12V DC Power Adapter
Safety Cable
VIDEO
Image Sensor: 1/1.8” Progressive CMOS
Effective Pixels: Horizontal: 3840, Vertical: 2160
Pixel Size: 2.0 μm (H) x 2.0 μm (V)
Resolution: 2160, 1080p & 1080i: 3840x2160, 1920 x 1080
Resolution Rate: 2160 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Output: HDMI / NDI|HX / RTSP / RTMP / SRT / USB 3.0
Color Space: 4:2:2 (YCbCr) 10bit
Min. Illumination: 0.1Lux
FUNCTION
White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
Focus: Auto, Manual
Shutter Speed: 1 to 1/10,000 Sec.
LENS
Lens: 30X 4K Optical Zoom
Focal Length: 6.91~214.64mm
Viewing Angle: 59° (wide) ~ 1.98° (tele)
PTZ
Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Presets: 128 Positions (via web), 10 Positions (via remote)
AUDIO
Input: 3.5mm TRS Stereo Audio Port
Sample Rate: 16/24/32 Bits
PHYSICAL
Camera Control Protocol: VISCA, VISCA over IP, NDI

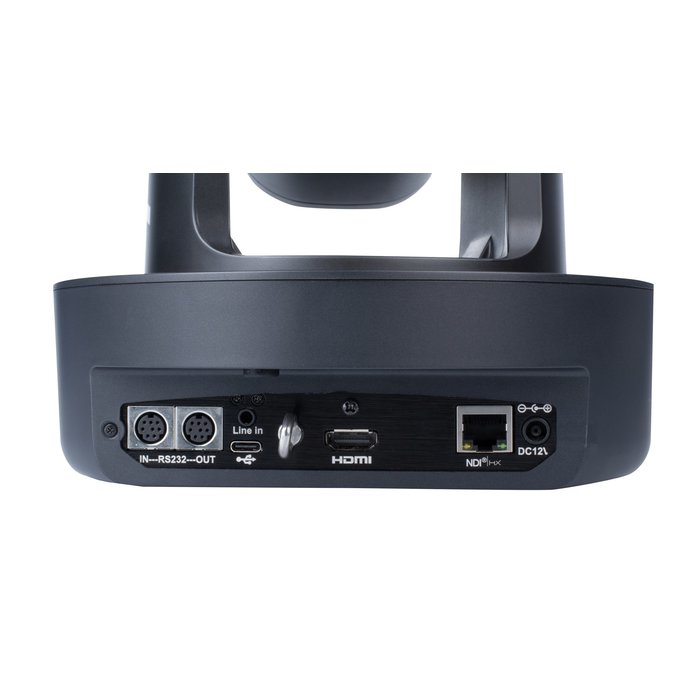

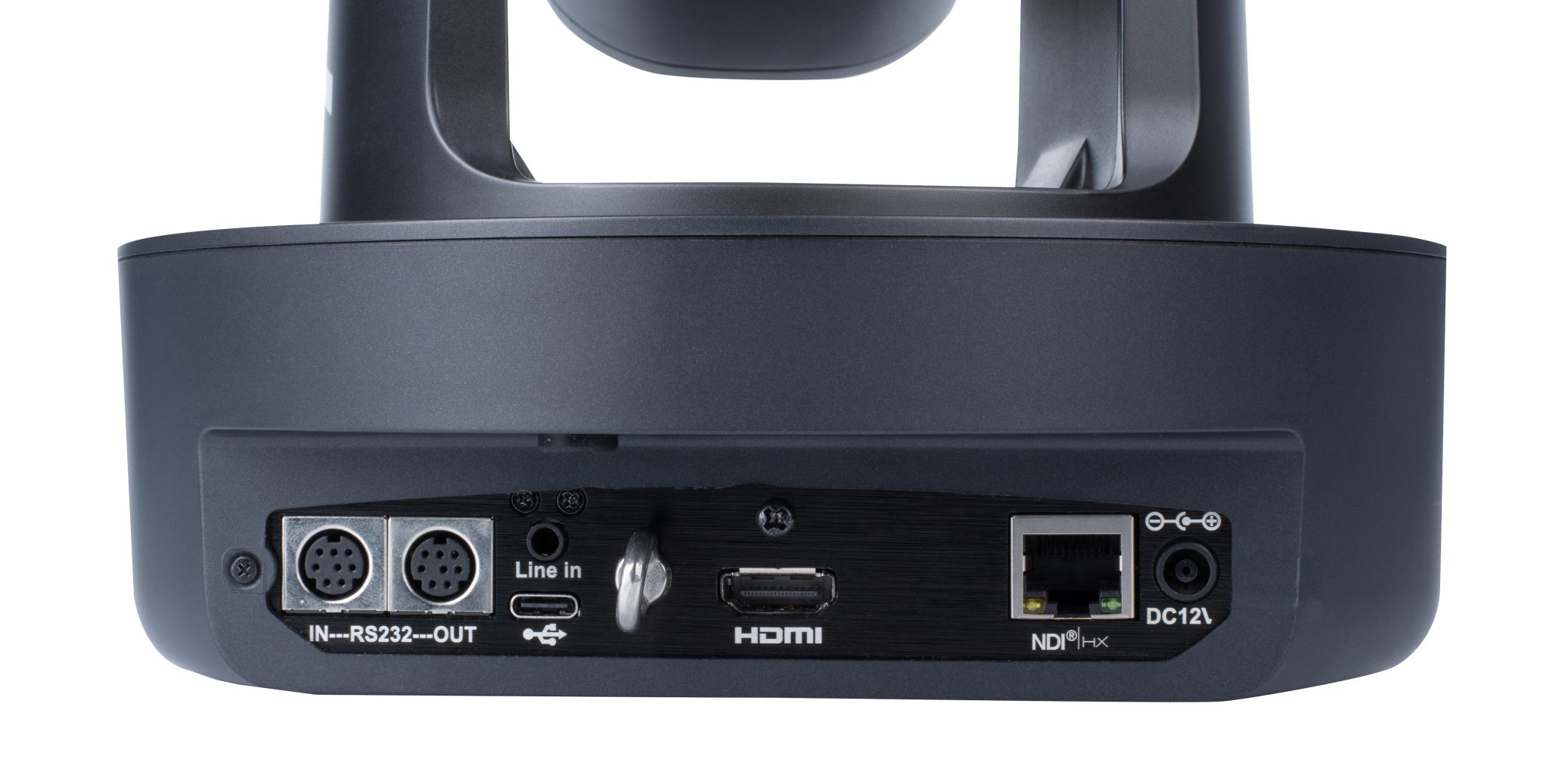

Interface: RS-232C IN & OUT, RJ-45, Remote Controller
Operation Temp: 32°F - 104°F
Dimension: 197mm x 197m x 186mm / 7.75” x 7.75” x 7.3”
Weight: 2.1kg / 4.63 lbs
Power: 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at Standard Required)
