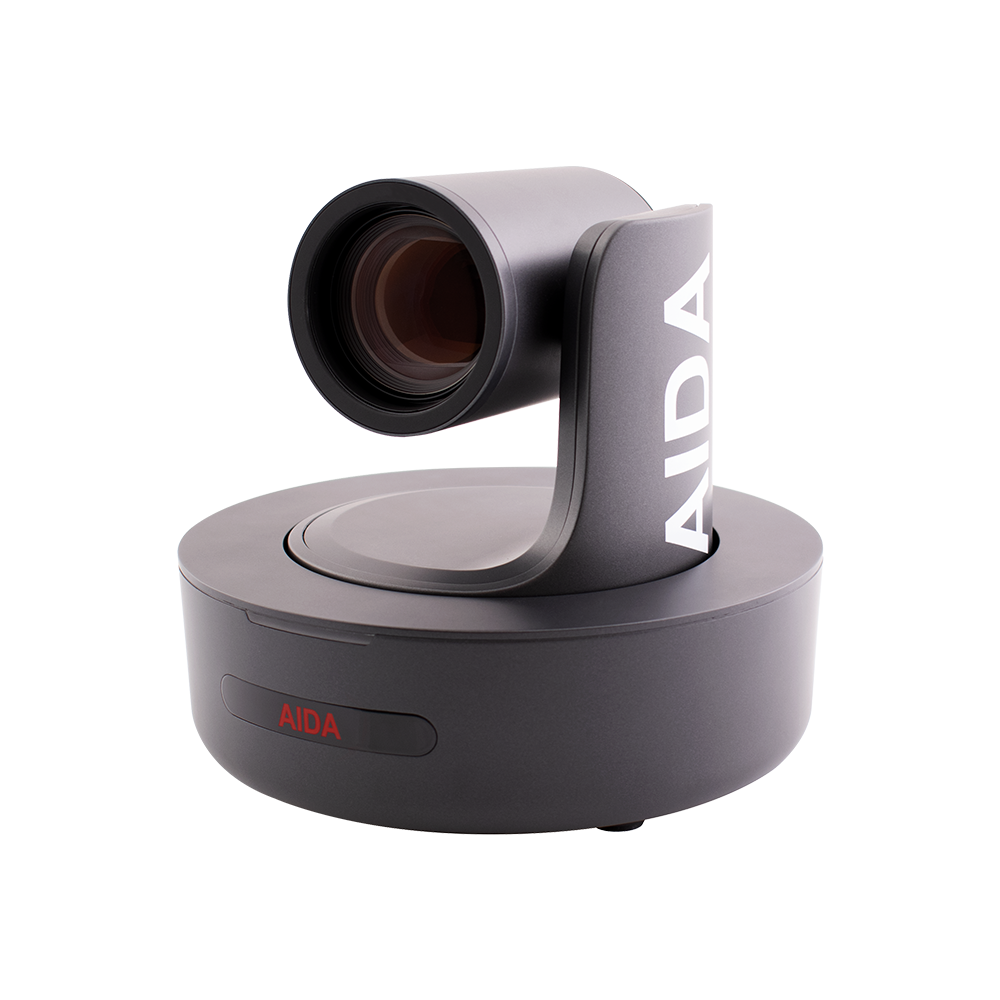

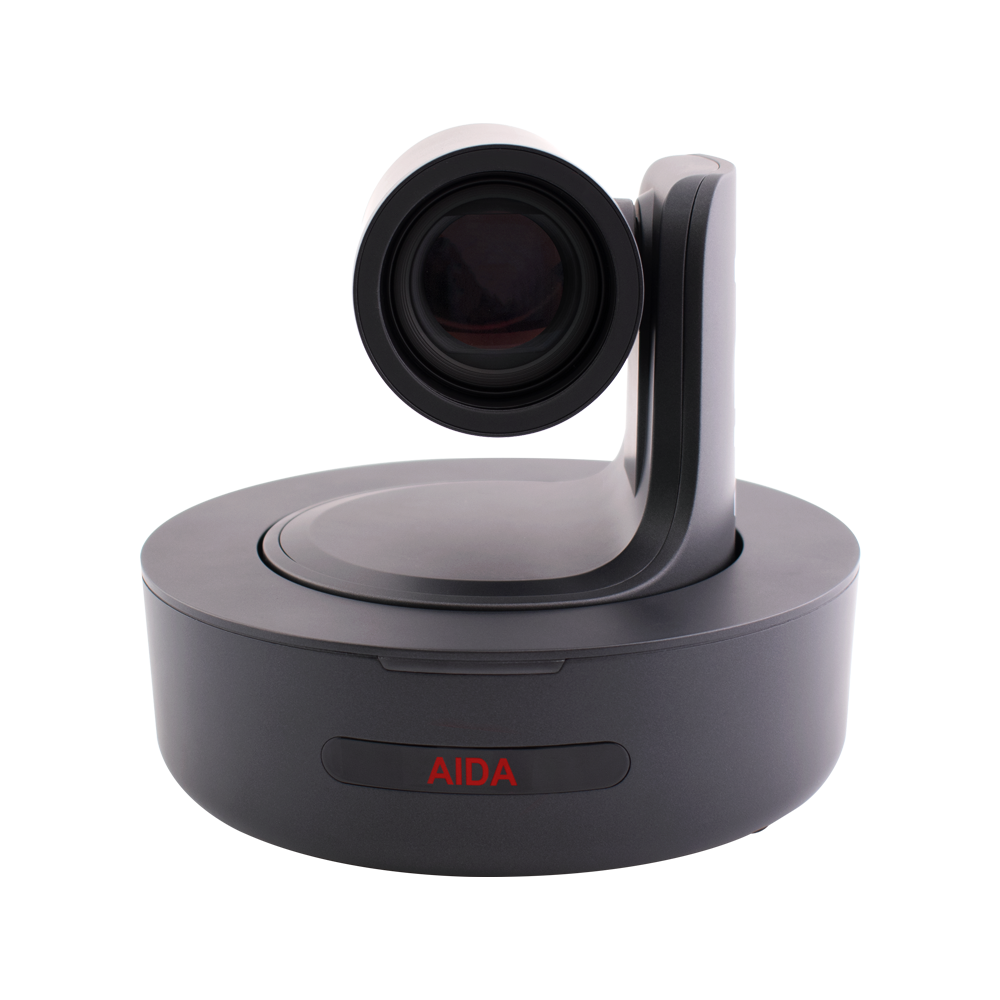

AIDA - PTZ-X12-IP - FHD PTZ Camera with 12X Optical Zoom
Aida 20X and 12X cameras do not color match. A combination of 20X and 12X cameras is therefore not advised.
The PTZ-X12-IP is one of AIDA's most well-rounded Full HD cameras yet. The camera features IP streaming technology by H.264 or the newer H.265 High Efficiency Video Coding (HEVC). With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our cameras cost effective approach makes professional grade PTZ cameras, at the fraction of the price.
MAIN FEATURES
- Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
- Advanced digital image processor provides vivid and detailed images with full access feature sets.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion

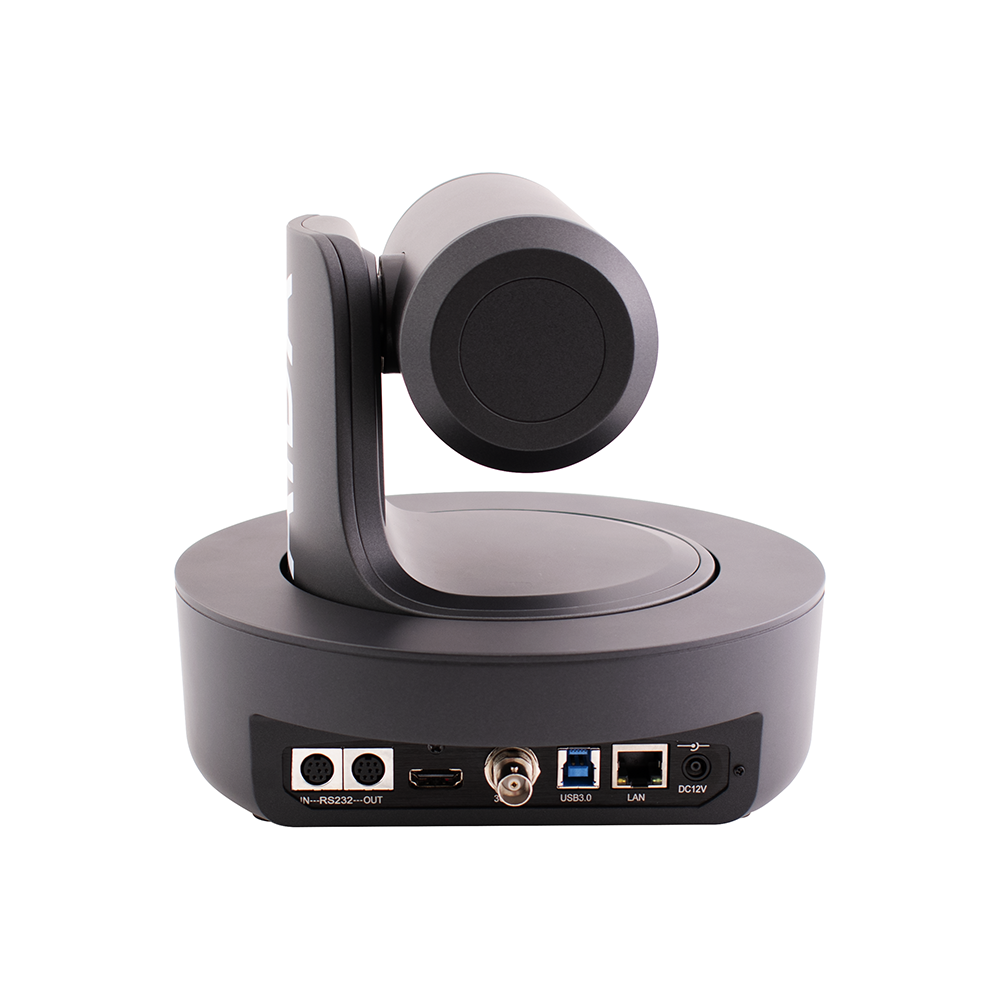

video without blur. - 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.
- Power Optical Zoom capability up to 12X.
- Compatible with other industry leading products, conforming to SMPTE 424M/292M standard.
- Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
- Built-in OSD controls for customizable image settings.
- Versatile and compact.
APPLICATIONS
- Broadcast
- Live Production
- Video conference
- Medical
- Worship
- Theater
- Education
- Security
PTZ-X12-IP camera
remote controller
Camera mounting bracket
USB 3.0
Power adapter & cable
Video
Image Sensor | 1/2.5" Progressive CMOS |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel size | 2.13µm x 2.13µm |
Resolution | 1080p & 1080i: 1920x1080 |
Resolution/Rate | 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p |
IP rate | 1920x1080 @ 1~60 |
output | HD SDI/3G SDI |
ColorSpace | 4:2:2 (YCbCr) 10bit |
Min. illumination | 0.1Lux |
function
WhiteBalance | Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor |
Focus | Auto, Manual |
Shutter speed | 1 to 1/10,000 Sec. |
Lens
Lens | 12X HD Optical Zoom, F1.5~F3.0 |
PTZ
Pan/Tilt Range | Pan: 340°, Tilt: +90 to -30° |
Pan/Tilt Speed | Pan: 0° to +120°/s, Tilt: 0° to +80°/s, |
presets | 128Position |
Field of View | 72.5° |
Standard
SMPTE | SMPTE 292M, SMPTE 424M |
IP protocol | TCP/IP, RTSP/RTMP |
Physical
CameraControl | Protocol: VISCA |
Operation Temp | 32°F - 104°F |
Dimension | 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69" |
Weight | 1.35kg / 2.97lbs |
Power | 12VDC (+9 - +15VDC) |
