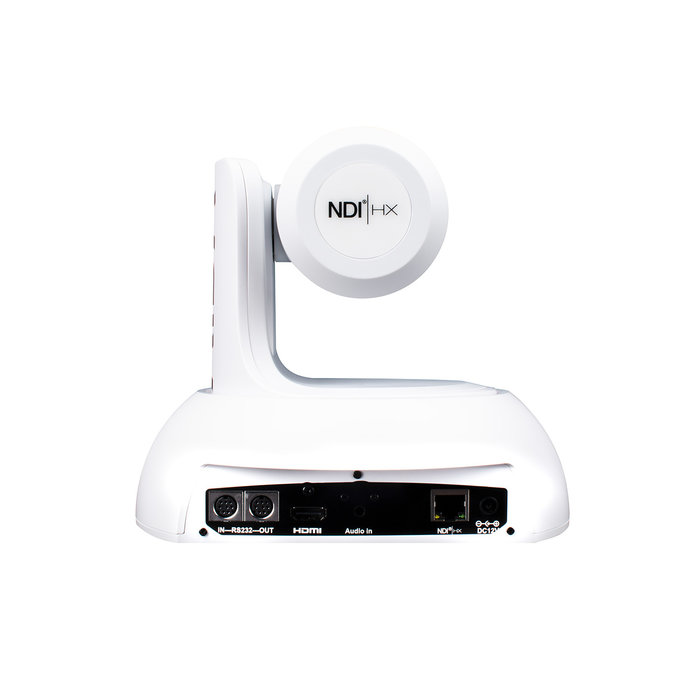

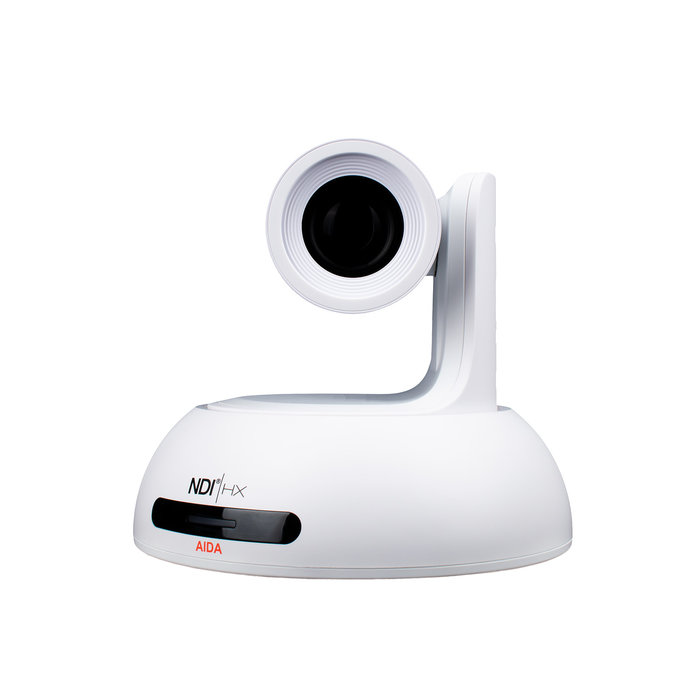

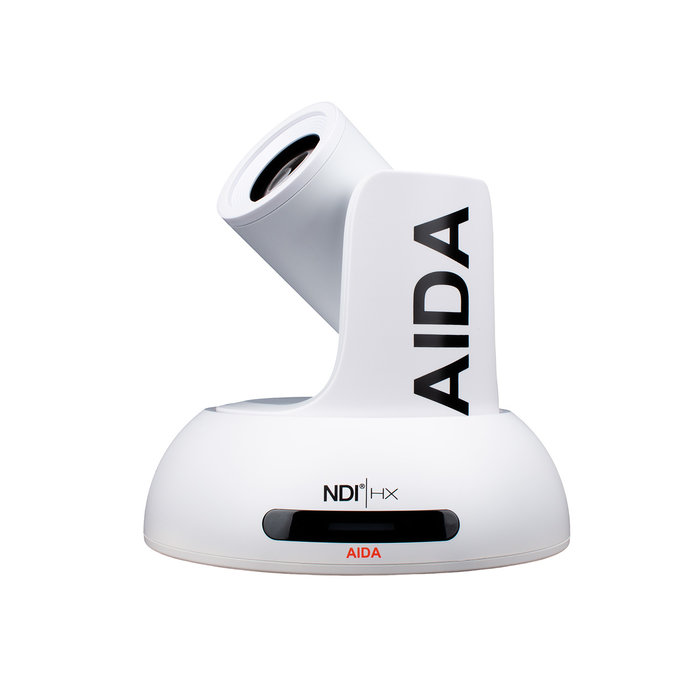

Aida PTZ-NDI-X18 - White - FHD NDI|HX with 18X Optical Zoom
The PTZ-NDI-X18 is the perfect entry-level PTZ camera for live streaming productions.
This PTZ is equipped with an 18X optical zoom for sharp 1080p images and simultaneous video output via HDMI, NDI|HX and IP.
Control the PTZ with your standard VISCA, VISCA over IP or NDI controller.
Most important features
- NDI®|HX streaming capable of low latency video streaming and PTZ control.
- Full HD Progressive Scan sensor captures sharp and vivid colors under different lighting conditions.
- Advanced digital image processor ensures vivid and detailed images.
- Noise reduction filter for effective noise reduction for video without blur.
- Simultaneous IP and HDMI output
- Optical zoom up to 18X.
- 3.5mm line input.
- On-Screen Display
- Comes in a white or black housing.
Aida PTZ-NDI-X18
Remote Control
Camera Mounting Bracket
Power Supply
Video
Image Sensor 1/3” Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.13 μm (H) x 2.13 μm (V)
Resolution 1080p & 1080i: 1920 x 1080
Resolution Rate 1080 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p Output HDMI
NDI®|HX / RTSP / RTMP / SRT
Color Space 4:2:2 (YCbCr) 10bit Min. Illumination 0.1Lux
Function
White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus: Auto, Manual
Shutter Speed: 1 to 1/10,000 Sec.
Lens: 18X HD Optical Zoom
Focal Length: 5.2~93mm
F-Stop: F1.5 ~ F3.0
Viewing Angle: 60° (wide) ~ 4° (tele)
PTZ
Pan/Tilt Range - Pan: 340°, Tilt: +90 to -30° Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Presets: 128 Positions (via web)
10 Positions (via remote)
Standard
IP Protocol: UDP/IP, RTSP/RTMP
Audio
Input: 3.5mm TRS Stereo Audio Port
Sample Rate: 16/24/32 Bits
Physical
Camera Control Protocol: VISCA, VISCA over IP, NDI
Interface: RS-232C IN & OUT, RJ-45
Remote Controller
Operation Temp: 32°F - 104°F
Dimension: 155mm x 160m x 170mm / 6.10” x 6.92” x 6.69” Weight 1.35kg / 2.97lbs
Power: 12VDC (+9 - +15VDC)
PoE+ (IEEE802.3at Standard Required)
