AIDA UHD-NDI3-300 - UHD NDI|HX3 POV Camera
This Aida UHD-NDI3-300 offers 4K60 video via HDMI or via IP thanks to NDI|HX3 support. Low latency 4K video, power and data communication can be transmitted via a single UTP cable. The camera comes with a 5mm CS-mount lens.
This innovative POV camera that can record stunning 4K60 video has a 78° field of view thanks to the 5mm CS-Mount lens. Combining this high-quality 4K video with NDI|HX3 IP streaming compatibility, the UHD-NDI3-300 camera outputs uncompressed video signals at up to 60 MB/s. Because the camera is equipped with NDI|HX3 support, this means less cable clutter and installation problems: video, audio, control, power and data are all carried via one CATx cable. HDMI output with embedded audio is also available.

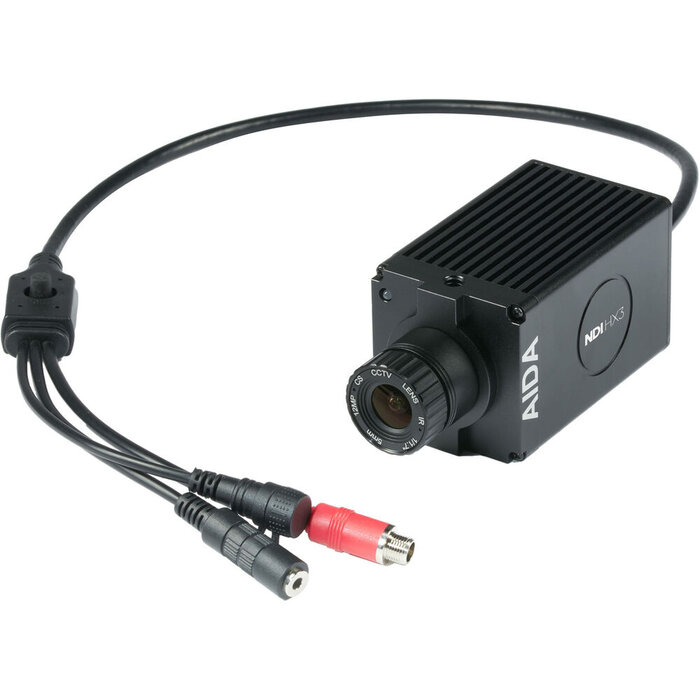

The UHD-NDI3-300 is housed in a compact and robust housing that is suitable for a wide range of applications. 1/4"-20 mounting threads are located on both the bottom and top of the housing for flexible rigging options from tripods to truss. The front of the camera features a small status light so the talent can see when it's time is to go live. A built-in breakout cable has the 12 VDC input port and a 3.5mm jack for line-in audio, as well as a set of dip switches for firmware adjustment.
AIDA Imaging UHD NDI|HX3 POV Camera
5mm 12MP Lens
USB Cable
C-Mount Cap Adapter
Sensor Cap
General
Compatibility | Newtek NDI|HX |
Image Sensor | 1/2.8" Progressive CMOS |
Effective Pixels (H x V) | 3840x2160 |
Resolutions | NDI|HX/HDMI: 2160p60/59.94/50/30/29/97/25/24 |
Lens | 12MP 5mm CS Mount |
Field of View | 78° |
Color Spaces | 4:2:2 (YCbCr) 10 bit |
Minimum Illumination | Day: 0.2 Lux |
Inputs/Outputs
USB I/O | 1 x USB-C Female Input/Output |
Video I/O | 1x HDMI Output |
Audio I/O | 1x 1/8" / 3.5mm Line Input |
Protocol | IP: UPD|IP, RTSP|RTMP, SRT, NDI|HX |
Power
Power Source | AC Adapter with Power Brick (Included), PoE |
DC Input Power | 12 VDC |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Physical
Mounting | Top: 1x 1/4"-20 Thread |
Color | Black |
Cable Length | Not Specified by Manufacturer |
Dimensions | 3.35 x 1.93 x 1.93" / 8.51 x 4.9 x 4.9 cm |
Weight | 0.8 lb / 350 g |
